320-LPH SNIPER PERFORMANCE FUEL PUMP UNIT FALCON BA XR6 TURBO 4.0L F6 FPV E85 98

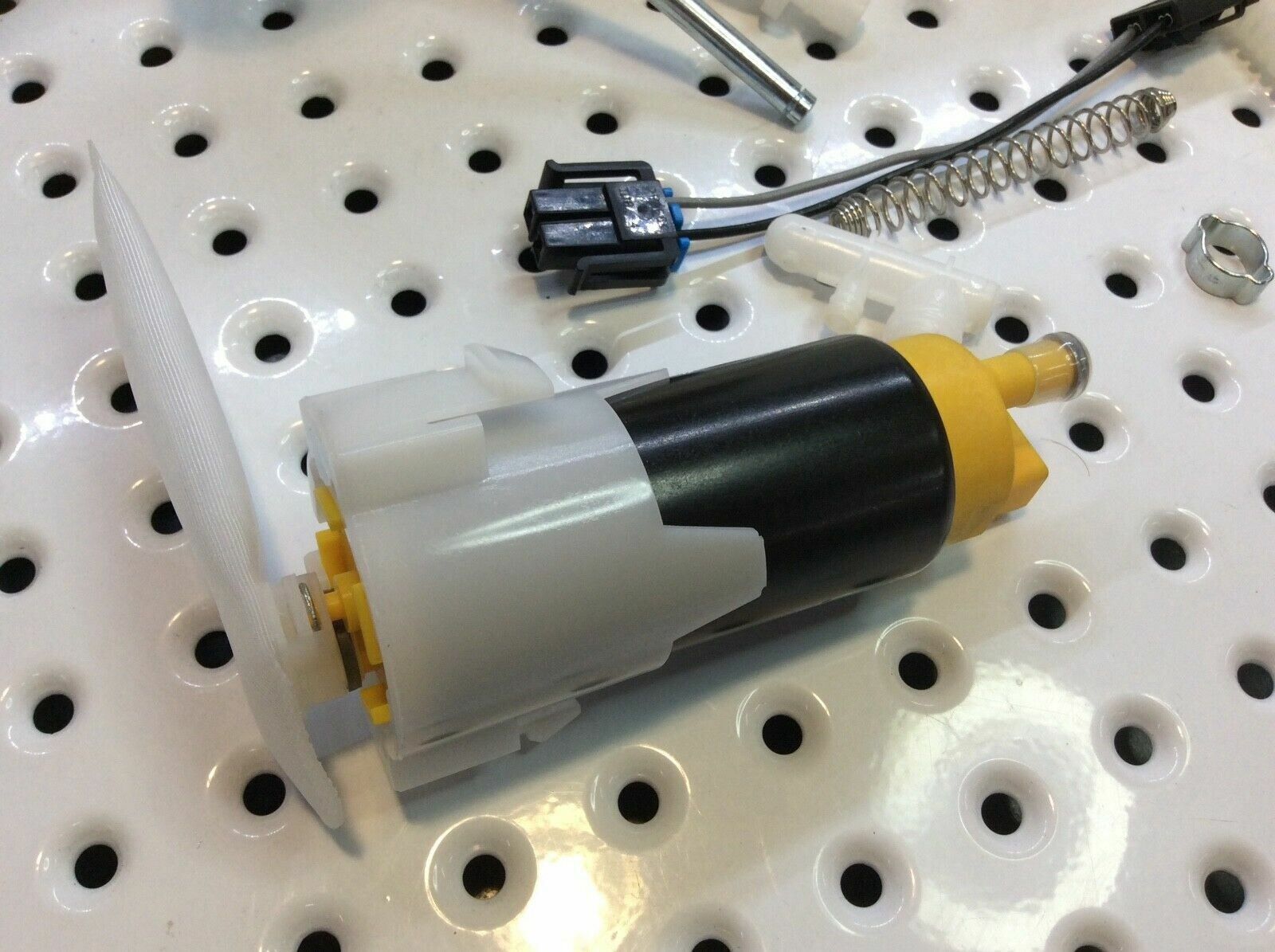

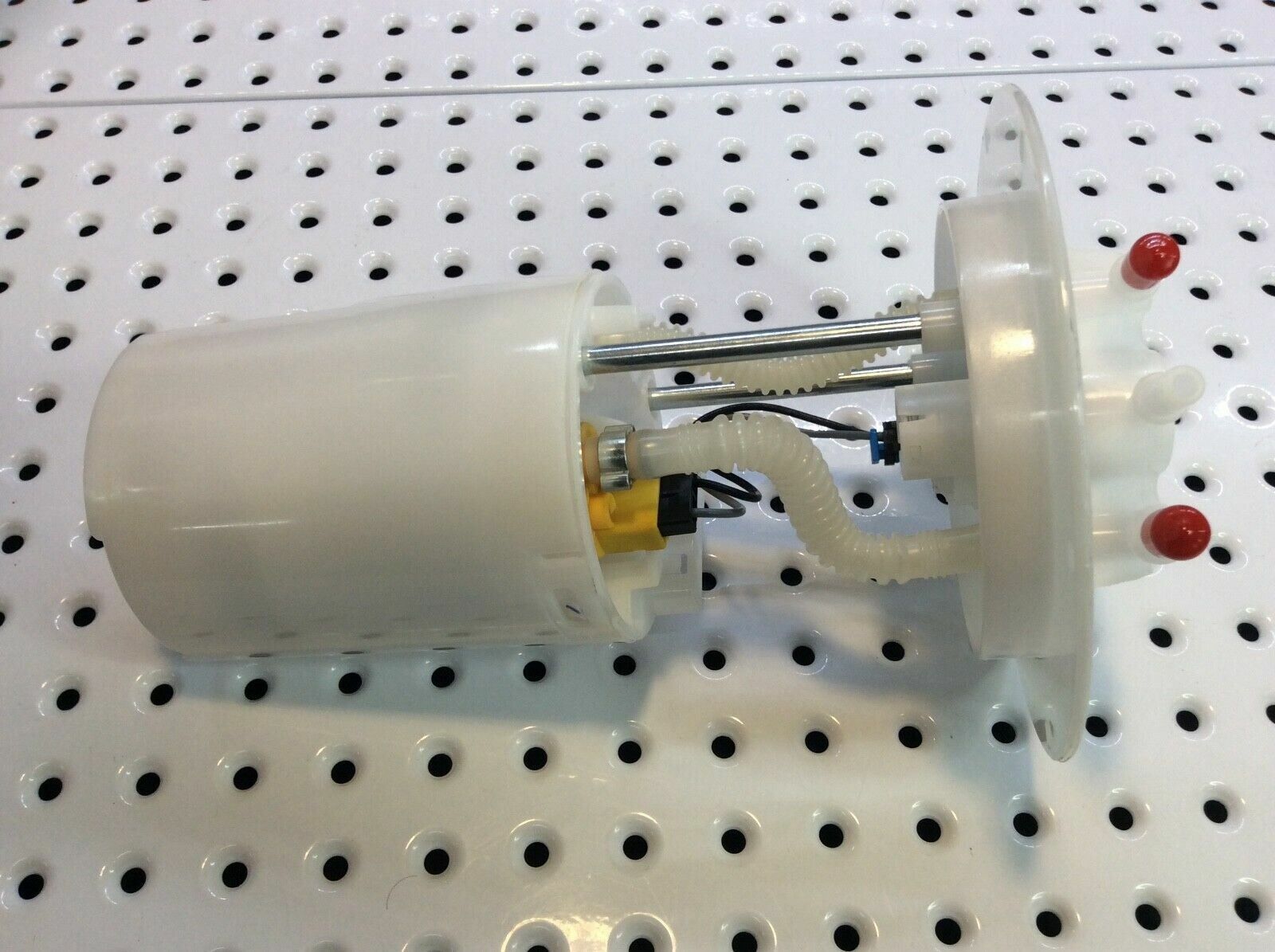

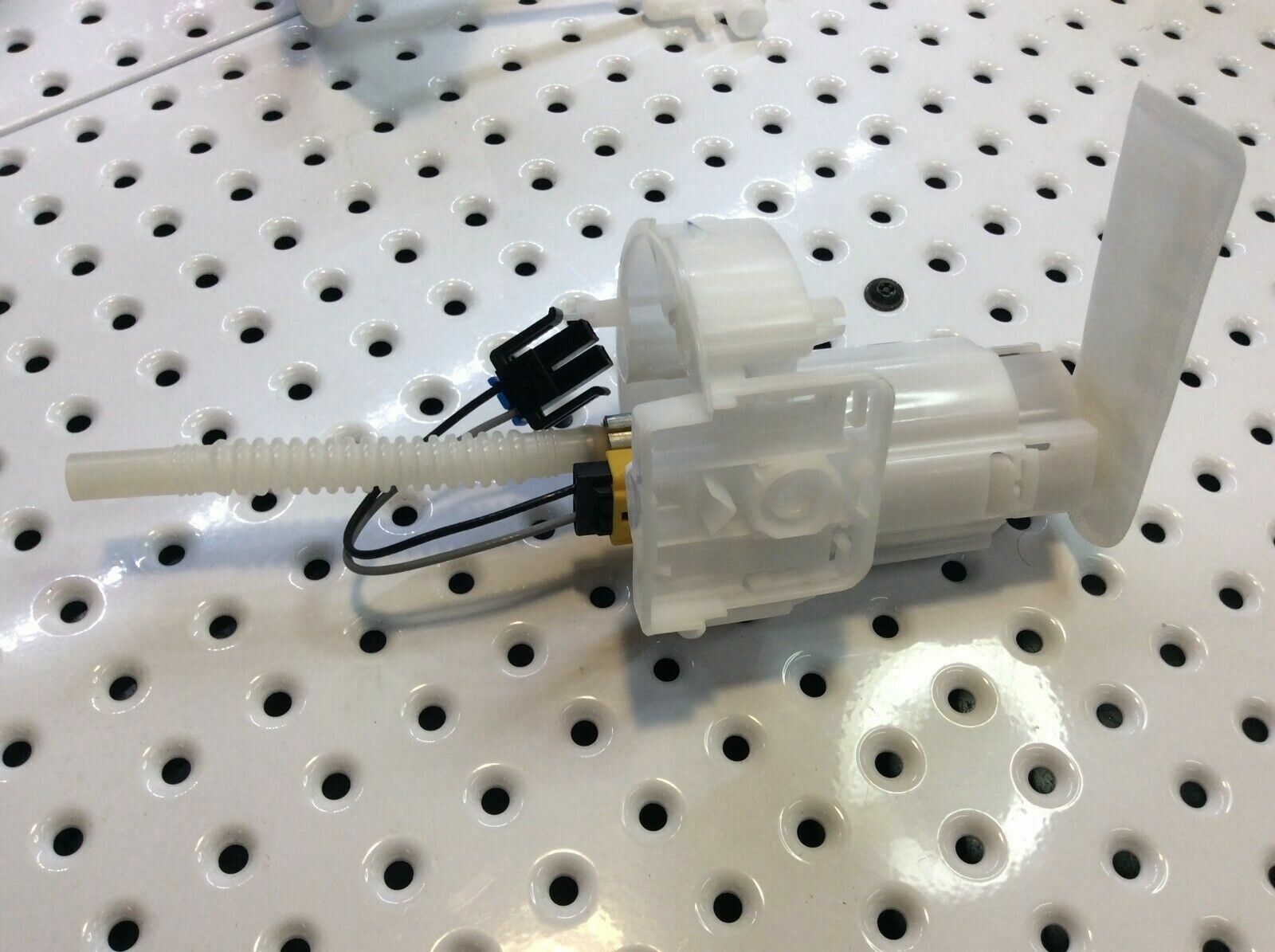

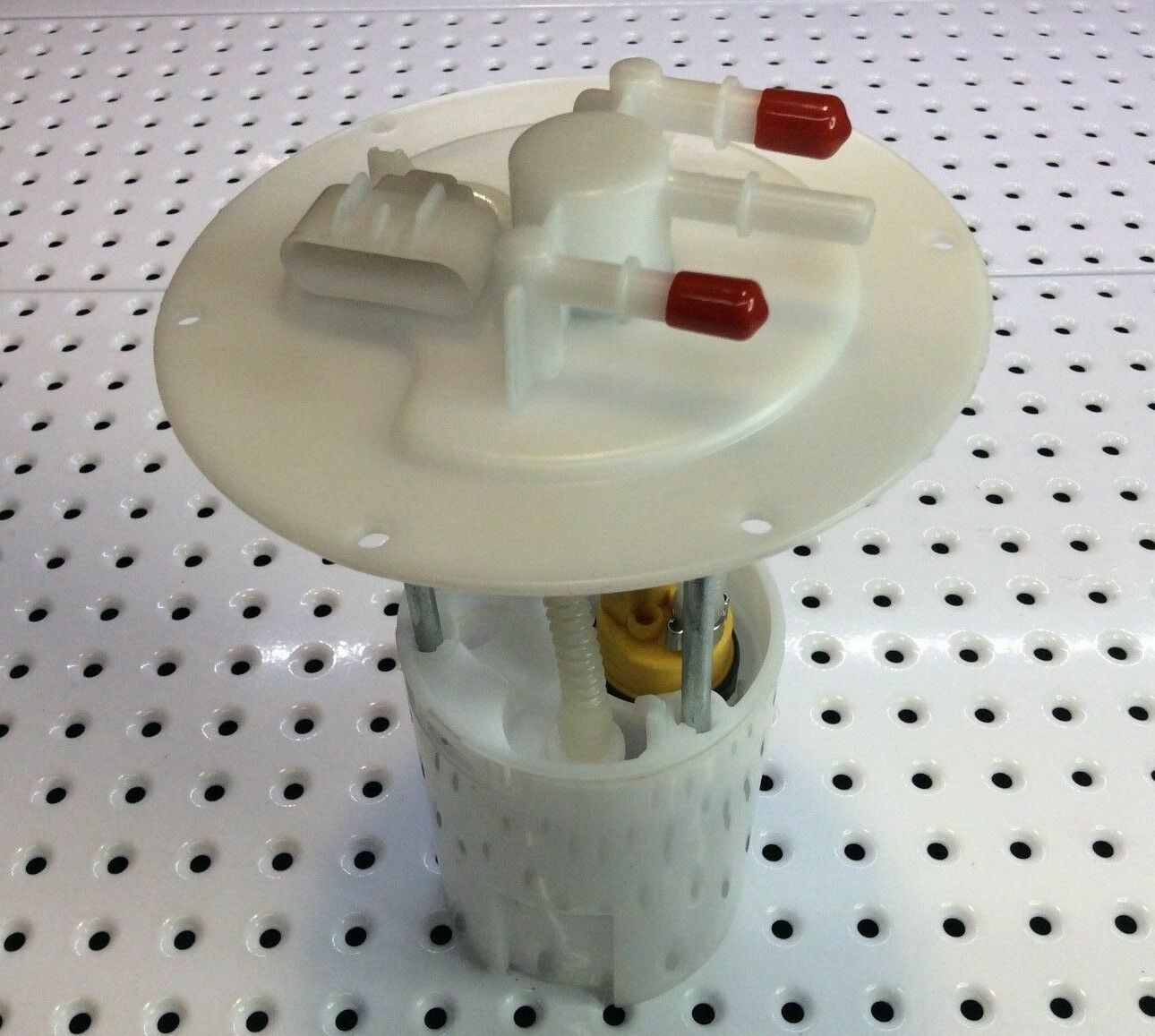

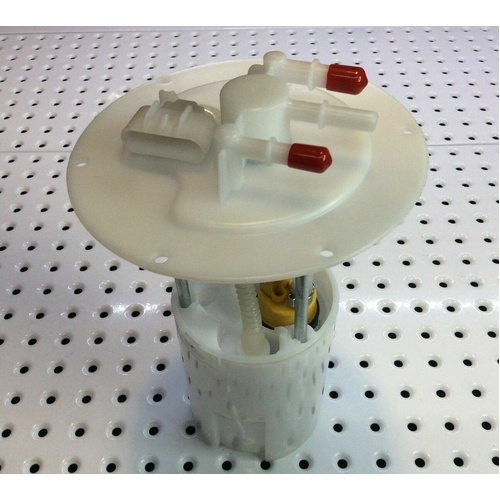

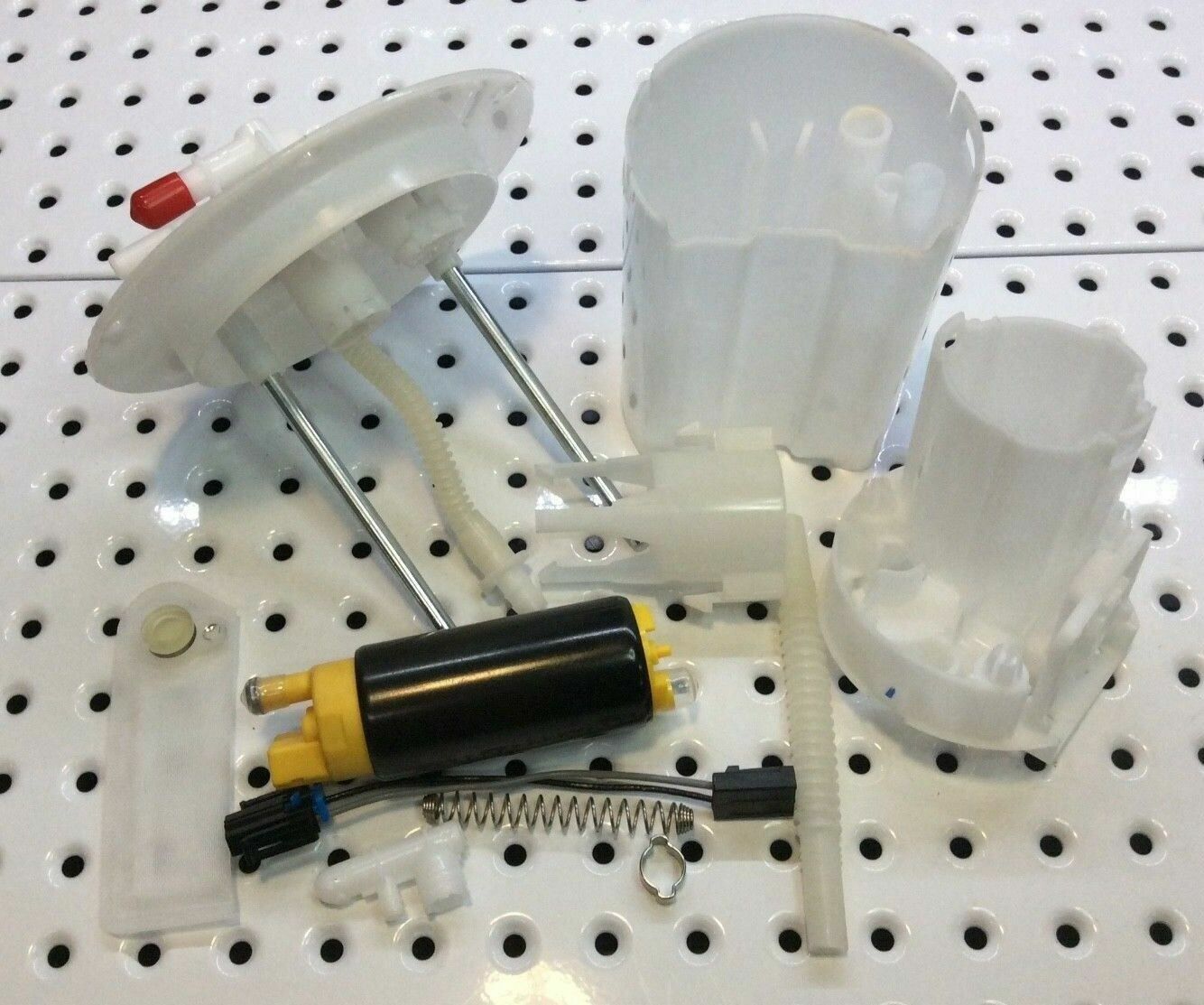

UP FOR SALE IS OUR SNIPER-PERFORMANCE &ULTROTECH CUSTOM BUILT FUEL PUMP ASSEMBLY TO SUIT FALCON BA BF UP TO 09-2007 SEDAN. SUITS BOTH PUMP FUEL 98 & E85 WITH THIS PUMP. THIS ASSEMBLY IS MADE BY SNIPER PERFORMANCE AND FITTED WITH SNIPER-ULTROTECH SN-341-320 THAT FLOWS 320LPH AT 43.3-PSI 3-BAR 12.5v AND CAN SUPPORT UP TO 640BHP. IT HAS BEEN DYNO & RACE TRACK TESTED. 1/4 MILE, CIRCUIT AND DRIFT. THIS ASSEMBLY CONSIST OF ONLY THE BEST OF THE BEST PARTS AVAILABLE AND HAND ASSEMBLED IN MELBOURNE. THE ASSEMBLY IS MADE OF THE BEST POLLIMER AVALABLE AND ITS E85 & METHANOL APPROVED. WE ARE THE ONLY ONES THAT OFFER THIS ASSEMBLY WITH A SPECIAL CLIP LOCK PUMP RETANER THAT MOUNTS THE PUMP 10mm ABOVE THE BOTTOM OF THE SWIRL-POD THIS KEEPS THE FILTER-STRAINER CLEAN AND ALLOWS THE PUMP ITS FULL POWER POTENTIAL. ALSO KEEPS THE PUMP QUIETER WITH NO CHANCE OF VIBTATION ORE MOVING AROUND & COMING LOOSE. THE HOSES ARE RATED AT TWICE THE BURST PRESSURE OF THE FACTORY HOSES AND ARE HIGH FLOWING. FITTED WITH ONE PIECE WIRING LOOM WITH STAINLESS STEEL TERMINALS. STAINLESS STEEL COMPRESSION SPRING, HOSE CLAMP & GUIDE PINS FITTED FOR NO CHANCE OF CORROSION. HIGH MICRON HIGH FLOW NYLON STRAINER. HIGH FLOW MODIFIED FUEL RETURN VALVE TO KEEP THE RETURN PRESSURE LOW AND TO FILL THE SWIRL POD IN HALF THE NORMAL TIME IT WOULD USUALLY TAKE. |
| Part Name | SNIPER-ULTROTECH SN-341 Fuel Pump & Assembly for Ford Falcon BA / BF SEDAN |
| Manufacturer | SNIPER-ULTROTECH |
| SNIPER Part no # | SN-341-320LPH Fuel Pump. MOD-003-SP |
| Condition: | Brand new, fully assembled |
| Part Description | · SNIPER-ULTROTECH SN-341, professionally assembled with our universal fitting kit into a high-quality fuel pump assembly unit · Ready to go as pictured – install into your Ford Falcon BA BF (sedan only) · Easy to install |
| Part Specifications | · Maximum flow rate = 320 litres/hour · Support applications up to 600HP (if you have more than 640HP you’ll require a (Walbro 400lph OR 460lph pump) |
Will suit ALL the following vehicles: AND CUSTOM APPLICATIONS
| Make | Model | Series | Engine | Date |
| Ford | Falcon BA/BF | XT | 4.0L I6 | 2002 to 09-2007 |
| Ford | Falcon BA/BF | Futura | 4.0L I6 | 2002 to 09-2007 |
| Ford | Falcon BA/BF | XR6, XR6 Turbo | 4.0L I6 Turbo | 2002 to 09-2007 |
| Ford | Falcon BA/BF | XR8 | 5.4L V8 | 2002 to 09-2007 |
| Ford | BA/BF | Fairmont, Fairmont Ghia | 4.0L I6 | 2002 to 09-2007
|
UP FOR SALE IS OUR SNIPER-PERFORMANCE &ULTROTECH CUSTOM BUILT FUEL PUMP ASSEMBLY TO SUIT FALCON BA BF UP TO 09-2007 SEDAN. SUITS BOTH PUMP FUEL 98 & E85 WITH THIS PUMP. THIS ASSEMBLY IS MADE BY SNIPER PERFORMANCE AND FITTED WITH SNIPER-ULTROTECH SN-341-320 THAT FLOWS 320LPH AT 43.3-PSI 3-BAR 12.5v AND CAN SUPPORT UP TO 640BHP. IT HAS BEEN DYNO & RACE TRACK TESTED. 1/4 MILE, CIRCUIT AND DRIFT. THIS ASSEMBLY CONSIST OF ONLY THE BEST OF THE BEST PARTS AVAILABLE AND HAND ASSEMBLED IN MELBOURNE. THE ASSEMBLY IS MADE OF THE BEST POLLIMER AVALABLE AND ITS E85 & METHANOL APPROVED. WE ARE THE ONLY ONES THAT OFFER THIS ASSEMBLY WITH A SPECIAL CLIP LOCK PUMP RETANER THAT MOUNTS THE PUMP 10mm ABOVE THE BOTTOM OF THE SWIRL-POD THIS KEEPS THE FILTER-STRAINER CLEAN AND ALLOWS THE PUMP ITS FULL POWER POTENTIAL. ALSO KEEPS THE PUMP QUIETER WITH NO CHANCE OF VIBTATION ORE MOVING AROUND & COMING LOOSE. THE HOSES ARE RATED AT TWICE THE BURST PRESSURE OF THE FACTORY HOSES AND ARE HIGH FLOWING. FITTED WITH ONE PIECE WIRING LOOM WITH STAINLESS STEEL TERMINALS. STAINLESS STEEL COMPRESSION SPRING, HOSE CLAMP & GUIDE PINS FITTED FOR NO CHANCE OF CORROSION. HIGH MICRON HIGH FLOW NYLON STRAINER. HIGH FLOW MODIFIED FUEL RETURN VALVE TO KEEP THE RETURN PRESSURE LOW AND TO FILL THE SWIRL POD IN HALF THE NORMAL TIME IT WOULD USUALLY TAKE.

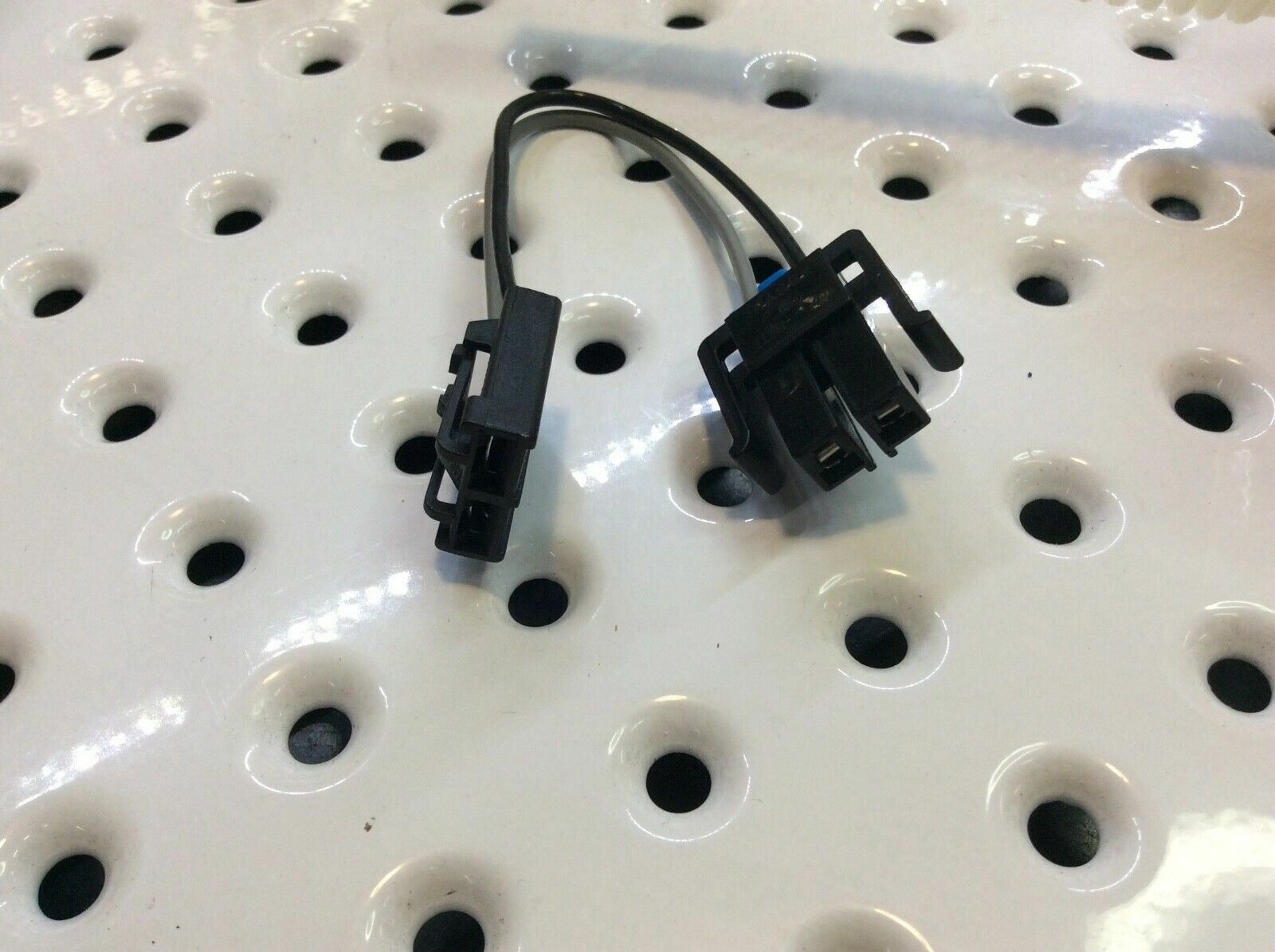

SPECIFICATIONS. FUEL PUMP PART NUMBER: SNIPER SN-341-320. PRESSURE AND FLOW RATE: 320-LPH AT 3-BAR 43.3-PSI 12.5-V 6.5A supports up to 640-BHP. ASSEMBLY PART NUMBER: SNIPER PERFORMANCE MOD-003-320LPH. ASSEMBLY HEIGHT: BACE TO FLANGE 215-mm COMPRESSED 180-mm. ASSEMBLY CAPACITY: POD 500-millilitres as the factory unit. ASSEMBLY HOSE FITTINGS: Left Returnee (8-mm c-lock). Centre (8-mm c-lock) vent to charcoal canister. Right (10-mm c-lock) Fuel out. WIARING HARNEST: One piece wiring loom Delphi to SN-341-320 with stainless steel braid & terminals 200-mm long. PRESSURE HOSES: High pressure, high burst, high flow white submersible full fuel hose made in the EU, 155mm long. CHECK THIS OUT. WE ALSO DO A PERFORMANCE UP-GRADE TO SUIT BA BF THAT OUR BIG POD ASSEMBLY ITS CUSTOM MADE BY SNIPER-PERFORMANCE ITS BIGGER IN THE SWIRL-POD AREA 1-LT COMPARED TO FACTORY ONE THATS 500-ML THIS WILL STOP SURGING UNDER EXTREME TAKE OFFS AND AROUND CORNERS WHICH IS A COMMON PROBLEM WITH THE FACTORY SWIRL POD THAT HOLDS 1/2-LT AS THE FACTORY MRI UNIT DOSE NOT HOLD ENOUGH FUEL FOR A AFTERMARKET HIGH FLOW PUMPS. WHICH CAUSES THEM TO SUCK AIR AND SURGE UNDER HALF A TANK OF FUEL. THIS WILL STOP THE SURGING PROBLEM BY 100%. CHECK OUT THE PICTURES BELOW THE ONE ON THE LEFT IS OUR BIGPOD AND ITS IN OUR STORE. CHECK IT OUT. WE CAN ALSO SUPPLY THIS BIG-POD ASSEMBLY WITH THE WALBRO GSS431 255LPH 550BHP ORE THE WALBRO F90000274 700-BHP 400LPH PUMP FUEL & THE WALBRO TIA485-2 750+BHP 460LPH E85 PUMP. MESSAGE US FOR A PRICE $$$. ALL CUSTOM APPLICATIONS WILLING & ABLE TO BUILD.  COMES FULLY ASSEMBELD WITH ALL E85 APROUVED PARTS FITTED READY TO DROP IN. The Walbro TIA485-2 460LPH pump is the highest flowing in-tank fuel pump on the market, and is E85 & Methanol safe. Walbro designed the pump to meet the requirements of modern turbocharged applications where a single 255LPH fuel pump is insufficient. The pump uses a turbine style design which incorporates two composite plastic blades. The turbine design lends itself to extremely quiet operation and a massive flow rate. We also sell performance and standard fuel pumps, Injectors VDO & Bosch 280cc to 2400cc, Sniper Performance Coils, Garret Turbo, Turbosmart Full Range, Vic agent for AeroFlow fittings & hoses, Crow Cams, APR bolts, K&N Air Filters, NOS Kits & Filling, Auto Meter, Intercoolers, Custom Piping, Center Line & Weld Racing Wheels, Mickie Thompson Race Tyres, Red Line Oils and many more. Message us with your details and we will get back to you. WE ALSO HAVE IN OUR STORE FOR SALE IS OUR NEW PRODUCT. YEARS IN DEVELOPMENT AND WITH EXTENSIVE VEHICLE AND DYNO TESTING, MADE IN JAPAN WITH AIRCRAFT GRADE ELECTRONICS. AND SUPPLIED WITH VDO SILICON GREASE. SET OF 6 PERFORMANCE IGNITION COILS TO SUIT FALCON XR6 TURBO BA BF & TERRITORY TURBO MODELS. WE ARE SO CONFIDENT OF THIS PRODUCT IF YOU ARE NOT 100% SATISFIED WE OFFER A FULL MONEY BACK GUARANTY.
Increased spark KV'S and voltage along with multiple spark capabilities, the time it takes to fire once it gets the signal is one Millisecond which is five times quicker than standard. That helps improve the combustion process of the fuel mixture to create an efficient burn. Perfect spark from 500 rpm to 12,000 rpm This results in improved throttle response. Stops Pre-Ignition and Pinning when used with E85 applications. Smooth idle and quick starts, plus increased hard acceleration and high rpm without misfiring.
MISFIRING PROBLEMS SOLVED EASY!!!
Warranty $210.00 a set of 6. WE ARE ALSO WHITELINE DEALERS SO ANY SUSPENSION PARTS WE CAN HELP AT THE BEST POSIBLE PRICE.
For General Enquires :Customer Support, technical support and bookings & pickups we are located at 45 Charles street north Coburg Melbourne Victoria 3058. Always best to call first. Contact through eBay message leave us your details and we will get back to you ASAP. Warranty. 12 Months or 20,000 km Warranty on Passenger Vehicles. Payment. We accept : Pay on Pickup, PayPal, Bank Transaction, credit card over the phone from 9 to 5 Monday to Friday & Money Order as payment methods. Please use your eBay Username as a transaction reference. Postage. Local Pickup (message for address and pick up times). Domestic : Fixed Rate we use Couriers please, Fastway couriers, Fitting services. Available in our modern and well equipped work shop. Opening Hours. Monday to Friday 7.30am to 6pm. Saturday by appointment only.
|
For General Enquires :Customer Support ,technical support and bookings.
Contact through eBay messagePh : (61) 03.93.54.29.62 Ph : 04.17.303.775.
| SKU | MOD-003-320_13 |
| Brand | SNIPER PERFORMANCE ULTROTECH |
| Shipping Weight | 3.0000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.150m |
| Shipping Length | 0.300m |
| Unit Of Measure | ea |
