BIG-POD SNIPER PERFORMANCE WALBRO E85 525LPH FUEL PUMP FALCON BA BF UTE XR8 FPV.

Image result for BA FORD UTE SUPER PURSUIT

DuPont Sustainable Sourcing Goals 2020 – Bioplastics News

THE NEW GENUINE 525LPH F90000285 WALBRO MADE IN THE USA.

The NEW WALBRO E85 525-LPH F90000285 pump is the highest flowing in-tank fuel pump on the market, and is E85 & Methanol approved. Walbro designed the pump to meet the requirements of modern turbocharged applications where a single 255LPH fuel pump is insufficient. The pump uses a turbine style design which incorporates two composite plastic blades. The turbine design lends itself to extremely quiet operation and a massive flow rate.

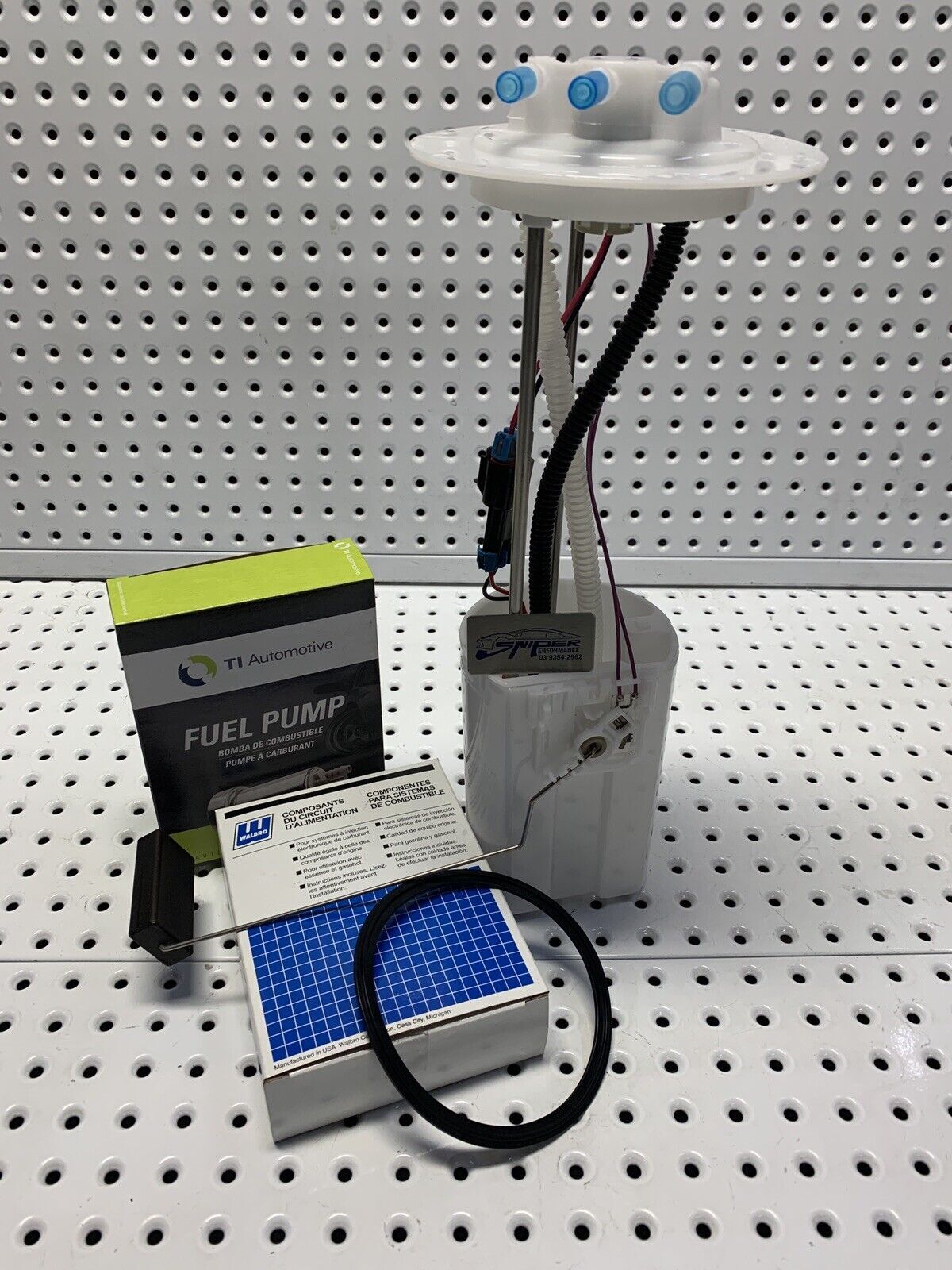

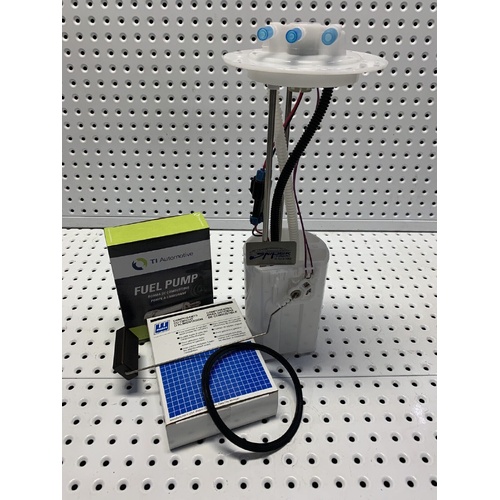

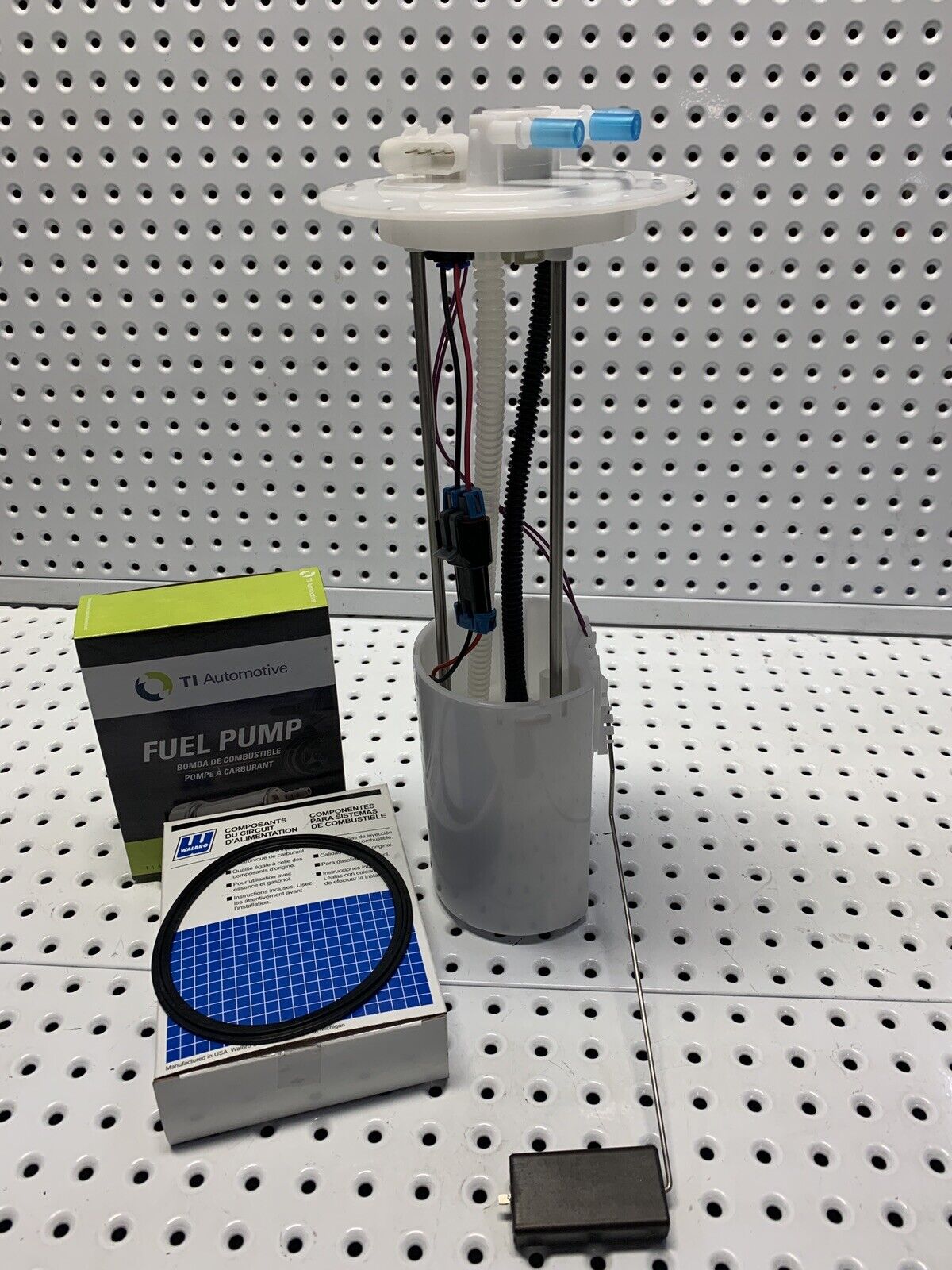

UP FOR SALE IS OUR BIG-POD 1 LITRE SNIPER-PERFORMANCE & WALBRO CUSTOM BUILT BIG-POD FUEL PUMP ASSEMBLY TO SUIT FALCON FPV BA, BF UTE XR6, XR8 UP TO 09-2007.

GENUINE USA WALBRO 525-LPH F90000285 900+BHP SUITED FOR E85, E100, METHANOL & PUMP FUEL (PERTOL) WITH THIS PUMP.

THIS ASSEMBLY IS CUSTOM MADE AND ONLY AVAILABLE BY SNIPER PERFORMANCE, FITTED WITH A GENUINE WALBRO 525-LPH F90000285 AND CAN SUPPORT UP TO 820 + BHP AT THE FLYWHEEL. FOR FITMENT TO YOUR POWER RATING NEEDS ALWAYS CHECK WITH YOUR TUNER BEFORE PURCHASE.

OUR SNIPER PERFORMANCE ASSEMBLY IS CUSTOM MADE IN THE POD AREA WE HAVE INCRESED THE VOLUME FROM 500ml TO 1 LITRE. MADE TO STOP SURGING UNDER EXTREME TAKE-OFF'S AND AROUND CORNERS WHICH IS A COMMON PROBLEM WITH THE FACTORY SWIRL POD. THE FACTORY UNIT HOLDS 500-ml NOT ENOUGH FUEL FOR A AFTERMARKET HIGH FLOW PUMPS THAT CAUSES THEM TO DRAIN THE UNIE & SUCK AIR AND SURGE UNDER HARD TAKE-OFFS & CORNERING WITH HALF A TANK ORE LOWER, OUR ASSEMBLY IS MADE AND MODIFIED TO STOPS THE SURGING PROBLEM BY 100%.

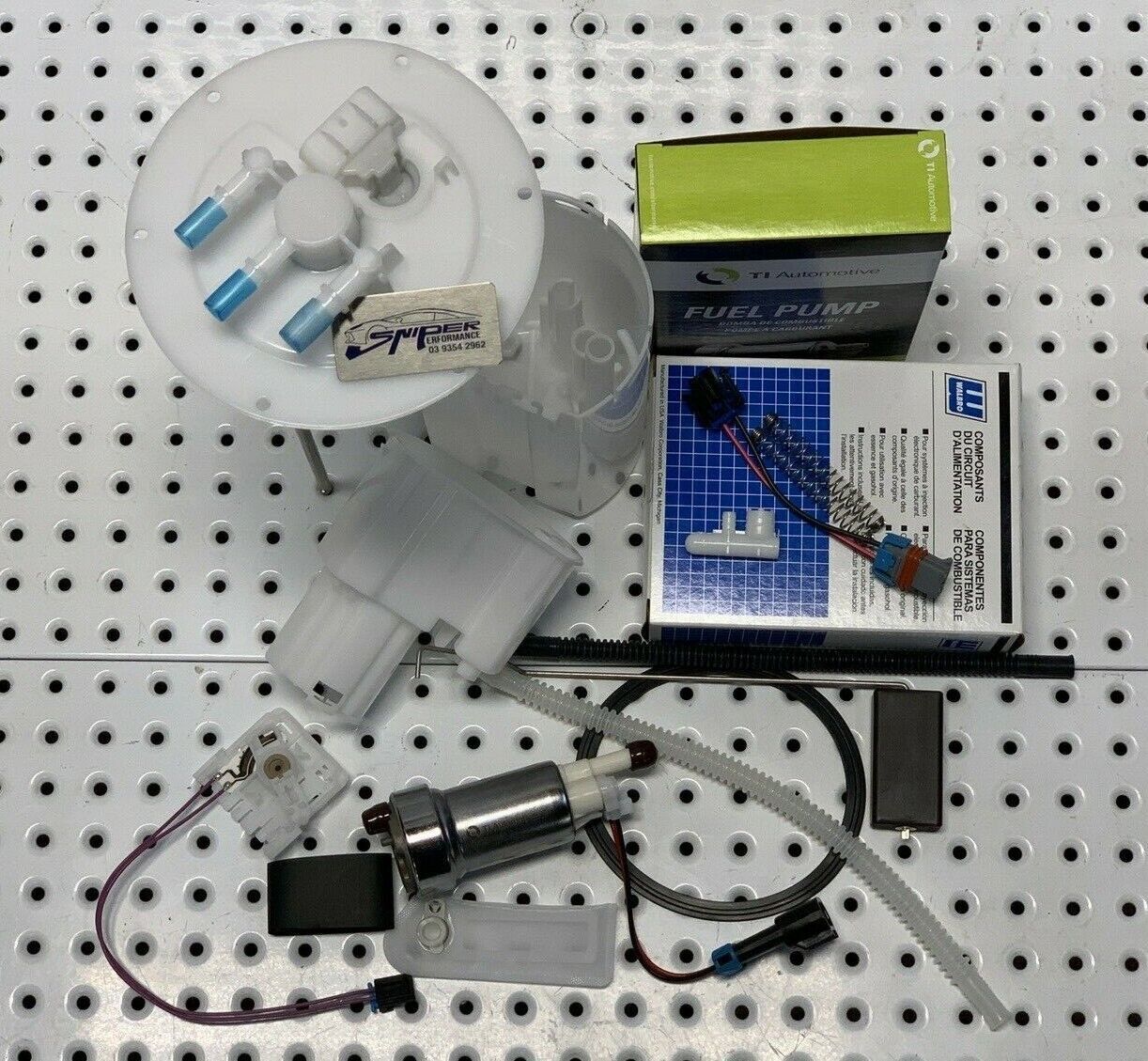

CHECK OUT THE PICTURES ON THIS LISTING.

IT HAS BEEN DYNO, RACETRACK TESTED, 1/4 MILE, CIRCUIT AND DRIFT.

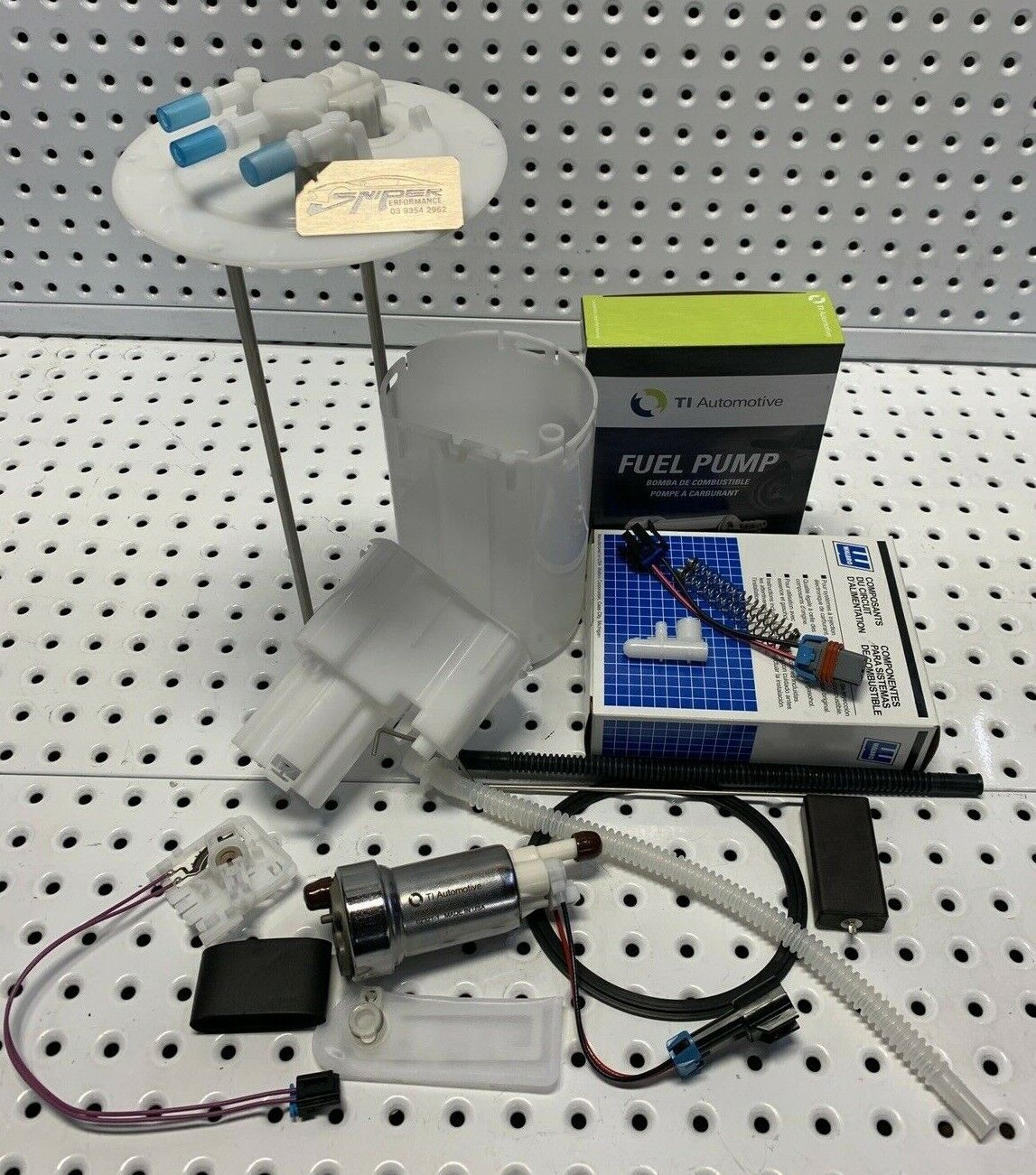

THIS ASSEMBLY CONSIST OF ONLY THE BEST OF THE BEST PARTS AVAILABLE AND HAND ASSEMBLED AND MODIFIED IN MELBOURNE.

THE CHEMICAL COMPOUND OF THE POLLIMER IN THIS ASSEMBLY IS MADE BY DUPONT FOR E85 & METHANOL. WE ARE THE ONLY ONES THAT OFFER THIS BIGGER ASSEMBLY FOR THE FORD BA BF UTE.

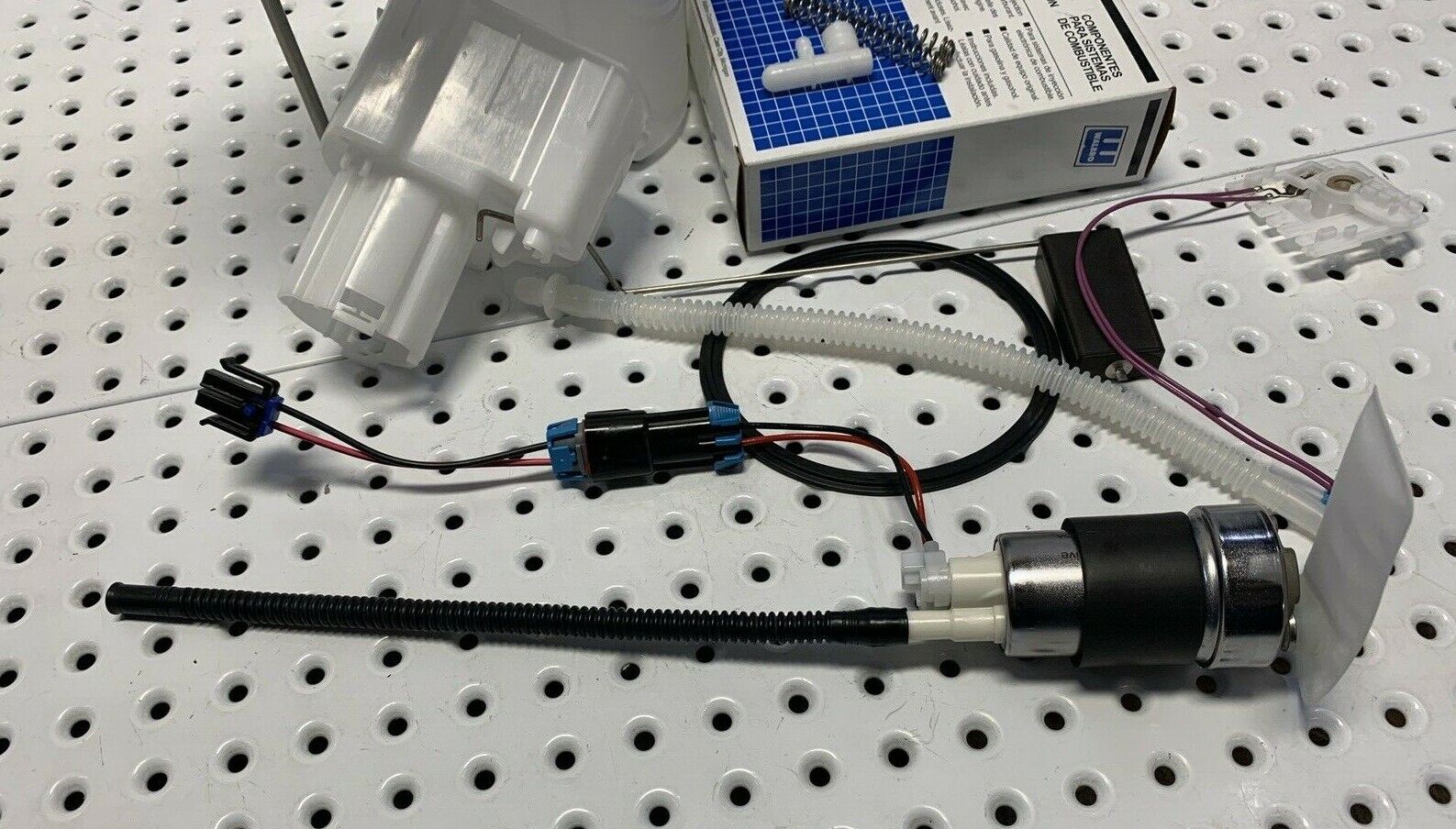

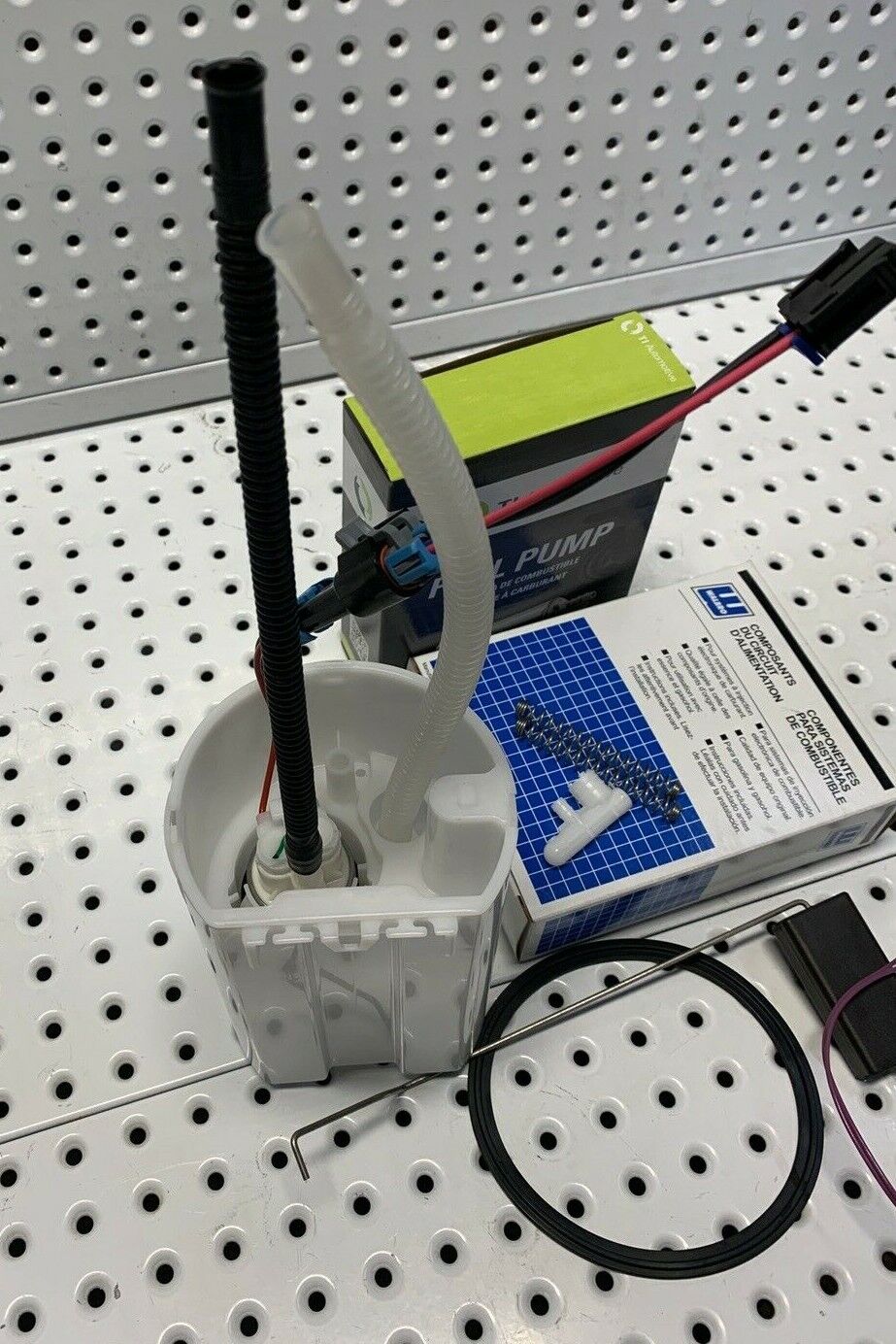

THE FUEL HOSES USED IN THIS ASSEMBLY ARE MADE IN THE EU THE BLACK FEED E85 HOSE IS A LINED 2 LAYER HOSE MADE IN GERMANY THAT HAS A 3X BURST PRESSURE OF THE STANDARD HOSE. THE WHITE RETURN HOSE IS RATED AT TWICE THE BURST PRESSURE OF THE FACTORY HOSE AND BOTH ARE HIGH FLOW & ANTI STATIC.

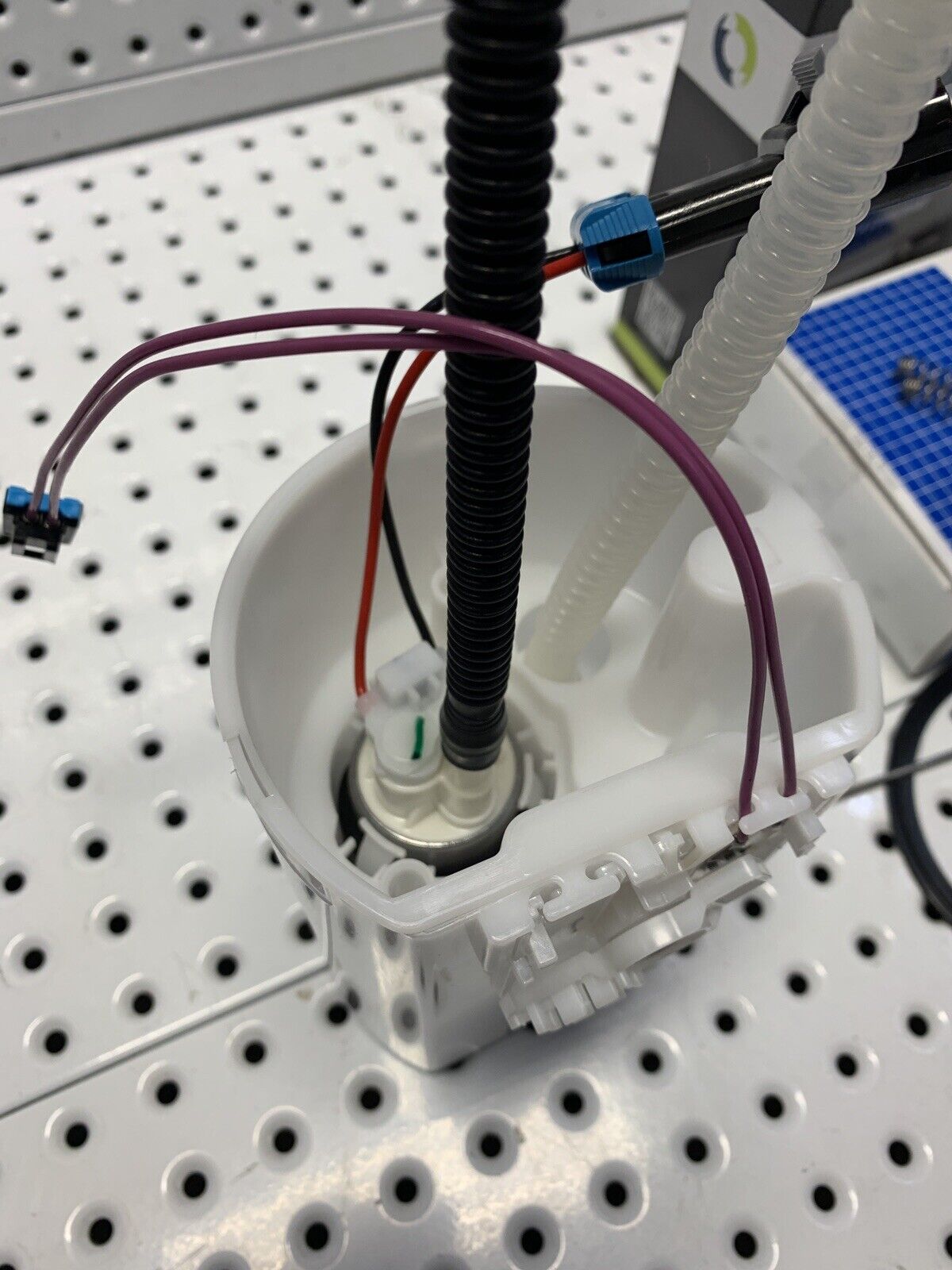

WE SPECIFICALLY FIT THE PUMP WITH A NEW DELPHI-WALBRO FACTORY WIRING PLUG (NO JOINS ON PUMP) WITH STAINLESS STEEL TERMINALS.

STAINLESS STEEL COMPRESSION SPRING & GUIDE PINS FITTED FOR NO CHANCE OF CORROSION.

HIGH MICRON HIGH FLOW DUPONT NYLONG STRAINER FOR MAXIMUM FILTRATION AND FLOW.

HIGH FLOW MODIFIED FUEL RETURN VALVE TO KEEP THE RETURN PRESSURE LOW AS POSIBLE AND TO FILL THE SWIRL POD IN HALF THE NORMAL TIME IT WOULD USALY TAKE.

PLEASE NOTE ONLY SUITS BF UP TO 09/2007. IF YOU NEED ONE BUILT AFTER THAT THERE IN OUR STOTE PART NUMBER MOD-043-1-525.

TO SUIT:

FORD FALCON XR6T BA 10/2002-09/2005 4.0L BARRA 240T I6 24v DOHC VCT Turbo MPFI RWD 2-DOOR UTE.

FORD FALCON RTV BA 10/2003-09/2005 5.4L BARRA 220 V8 24v SOHC VCT MPFI RWD 2-DOOR CAB CHASSIS.

FORD FALCON RTV BA 10/2003-09/2005 5.4L BARRA 220 V8 24v SOHC VCT MPFI RWD 2-DOOR UTE.

FORD FALCON XL, XLS BA 10/2002-09/2005 5.4L BARRA 220 V8 24v SOHC VCT MPFI RWD 2-DOOR CAB CHASSIS.

FORD FALCON XL, XLS BA 10/2002-09/2005 5.4L BARRA 220 V8 24v SOHC VCT MPFI RWD 2-DOOR UTE.

FORD FALCON XR8 BA 02/2003-09/2005 5.4L BOSS 260 V8 32v DOHC MPFI RWD 2-DOOR UTE.

FORD FALCON XR6T BF 10/2005-09/2007 4.0L BARRA 245T I6 24v DOHC VCT Turbo MPFI RWD 2-DOOR UTE.

FORD FALCON RTV BF 10/2005-09/2007 5.4L BARRA 220 V8 24v SOHC VCT MPFI RWD 2-DOOR CAB CHASSIS.

FORD FALCON RTV BF 10/2005-09/2007 5.4L BARRA 220 V8 24v SOHC VCT MPFI RWD 2-DOOR UTE.

FORD FALCON XL, XLS BF 10/2005-09/2007 5.4L BARRA 220 V8 24v SOHC VCT MPFI RWD 2-DOOR CAB CHASSIS.

FORD FALCON XL, XLS BF 10/2005-09/2007 5.4L BARRA 220 V8 24v SOHC VCT MPFI RWD 2-DOOR UTE.

SPECIFICATIONS.

FUEL PUMP PART NUMBER: WALBRO E85 525-LPH F90000285.

HORSEPOWER: 900+ at 60PSI. naturally aspirated applications.

FLOW RATE: 470-LPH AT 40-PSI & capable off 525-LPH.

ASSEMBLY PART NUMBER: Sniper Performance MOD-034-BP-525.

ASSEMBLY HEIGHT: Base to flange 370-mm compressed 330-mm.

ASSEMBLY CAPACITY: POD 1 liter compered to 500ml factory assembly.

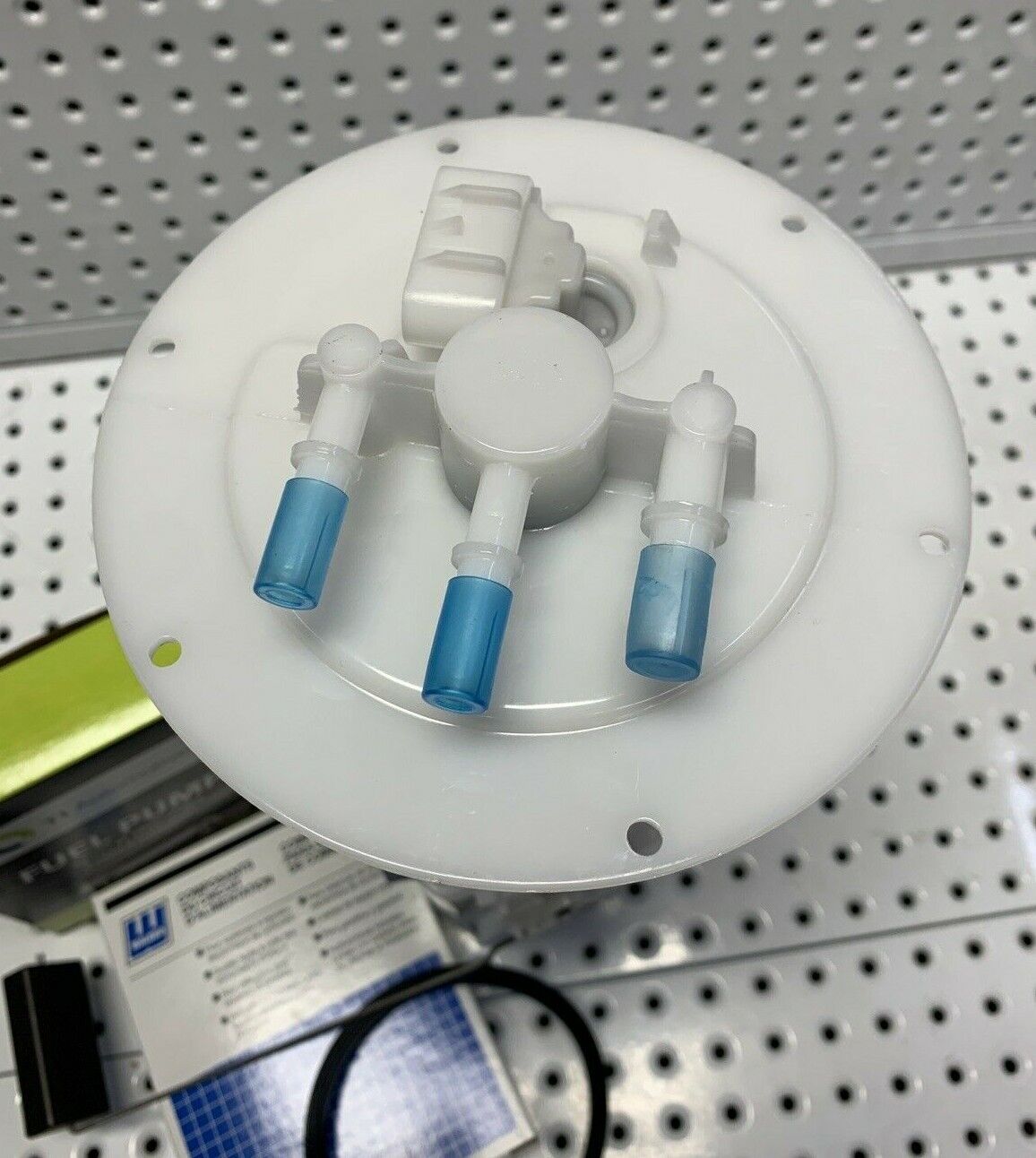

ASSEMBLY HOSE FITTINGS: Left Returnee (8-mm c-lock). Centre (8-mm c-lock) vent to charcoal canister. Right (10-mm c-lock) Fuel out.

WIARING HARNEST: One piece wiring loom Delphi to Walbro with stainless steel braid & terminals 100-mm long.

PRESSURE HOSES: High pressure, high burst, high flow white & black submersible fuel hose made in the EU, 155mm long.

FUEL SENDER READINGS: Full 233-ohms -+5. Empty 39-ohms -+5.

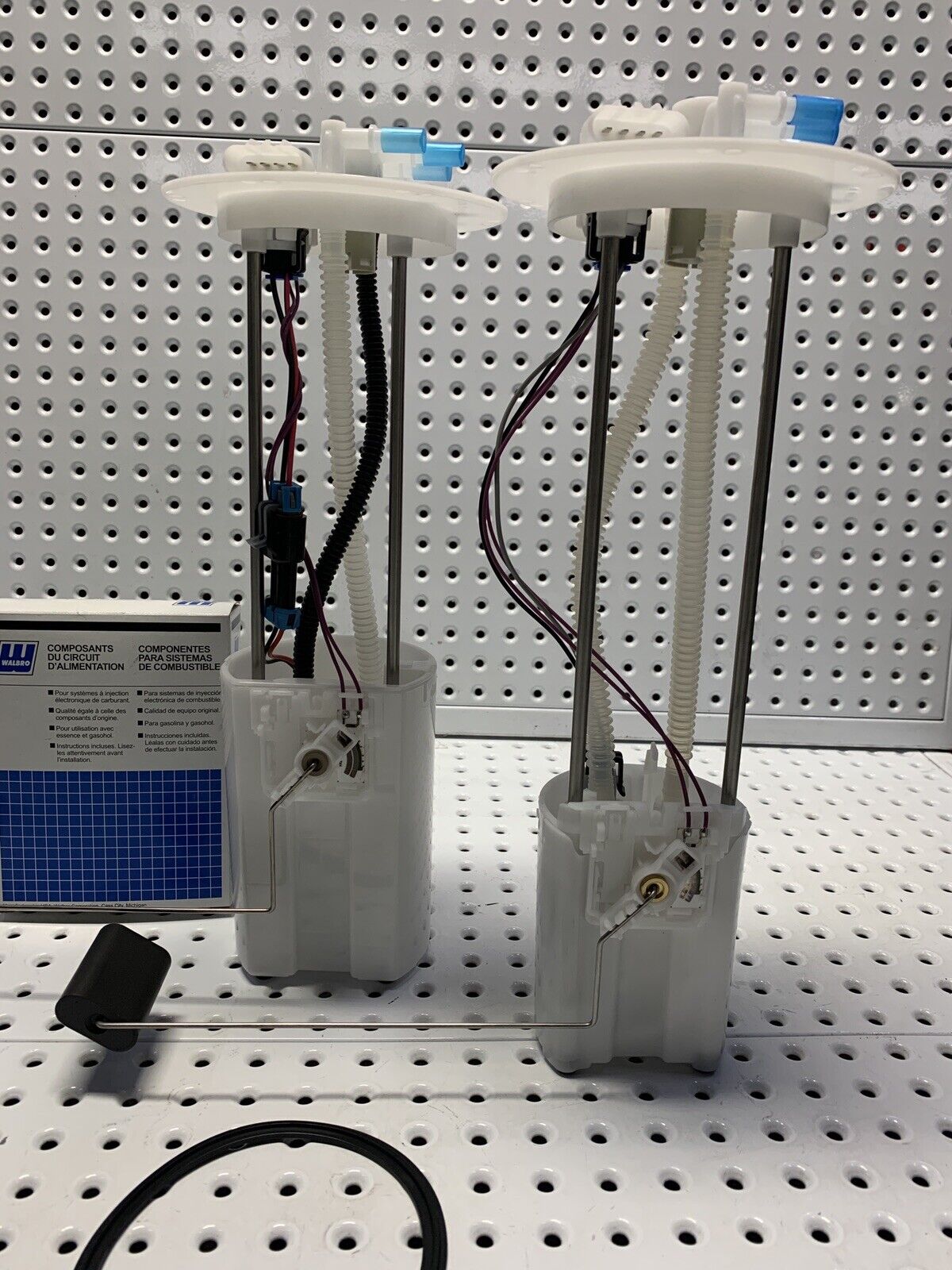

CHECK OUT THE DIFFERENCE WITH THE STOCK ONE ON THE RIGHT.

WE CAN ALSO SUPPLY THIS ASSEMBLY WITH THE WALBRO TIA485-2 460-LPH, & GSS352 350LPH PUMP FUEL & THE WALBRO GSS341 550-BHP 255-LPH . MESSAGE US FOR A PRICE $$$. ALL CUSTOM APPLICATIONS WILLING ABLE TO BUILD.

Image result for walbro performance fuel pumps

ALL OUR COME FULLY ASSEMBELD READY TO DROP IN.

We also sell performance and standard fuel pumps, Injectors VDO & Bosch 280cc to 2400cc, Sniper Performance Coils, Garret Turbo, Turbosmart Full Range, Vic agent for AeroFlow fittings & hoses, Crow Cams, APR bolts, K&N Air Filters, NOS Kits & Filling, Auto Meter, Intercoolers, Custom Piping, Center Line & Weld Racing Wheels, Mickie Thompson Race Tyres, Red Line Oils and many more.

Message us with your details and we will get back to you.

WE ALSO HAVE IN OUR STORE FOR SALE IS OUR NEW PRODUCT.

YEARS IN DEVELOPMENT AND WITH EXTENSIVE VEHICLE AND DYNO TESTING, MADE IN JAPAN WITH AIRCRAFT GRADE ELECTRONICS.

A SET OF 6 HIGH PERFORMANCE IGNITION COILS TO SUIT FALCON XR6 TURBO BA BF & TERRITORY TURBO MODELS. WE ARE SO CONFIDENT OF THIS PRODUCT IF YOU ARE NOT 100% SATISFIED, WE OFFER A FULL MONEY BACK GUARANTY.

Our coils connect directly to the factory connectors direct fit. Once installed, you’ll have the power and performance of a higher energy spark with 15% more spark and multiple spark discharge.

With Increased spark KV'S and higher voltage along with multiple spark capabilities, the time it takes to fire once it gets the signal is one Millisecond which is five times quicker than standard. That helps improve the combustion process of the fuel mixture to create an efficient burn.

Perfect spark from 500 rpm to 12,000 rpm This results in improved throttle response.

Stops Pre-Ignition and Pinning when used with

E85 applications.

Smooth idle and quick starts, plus increased hard acceleration and high rpm without misfiring.

SNIPER HI PERFORMANCE!

MISFIRING PROBLEMS

SOLVED EASY!!!

Made in Japan with a 2 year

Warranty. $210.00 a set of 6.

WE ARE ALSO WHITELINE DEALERS SO ANY SUSPENSION PARTS WE CAN HELP AT THE BEST POSIBLE PRICE.

Image result for WHITELINE

For General Enquires: Customer Support, technical support and bookings & pickups we are located at 45 Charles street north Coburg Melbourne Victoria 3058. Always best to call first.

Contact through eBay message leave us your details and we will get back to you ASAP.

Warranty. 12 Months or 20,000 km Warranty on Passenger Vehicles.

Payment. We accept: Pay on Pickup, PayPal, Bank Transaction, credit card over the phone from 9 to 5 Monday to Friday & Money Order as payment methods. Please use your eBay Username as a transaction reference.
Postage. Local Pickup (message us for address and pick up times) Domestic: Fixed Rate we use Couriers please, Fastway, Australia Post (Regular Post) and express. Please contact us of which you prefer on purchase in order details or if not we will post out with the one we think would be the best to use. International: POA, Please contact us via eBay for a quote. All items sent with tracking no and insurance for lost or damaged in transit.
Fitting services. Available in our modern and well equipped work shop.

For General Enquires: Customer Support, technical support and bookings & pickups we are located at 45 Charles street north Coburg Melbourne Victoria 3058. Always best to call first.
Contact through eBay message leave us your details and we will get back to you ASAP.
PH. 0417 303 775.
