FUEL PUMP PART NUMBER: F02UV0U343-01 Made in Germany by Bosch Motorsport. Exceeds specifications of SAEJ1537 Compatible with pump gas, E85, and race fuels. Carbon commutators and brushes, fully encapsulated precision balanced armature, composite turbine impeller.


BOSCH MOTORSPORT BR50, FO2UV0U343-011 750-1000 BHP TO SUIT E85, METHANOL & PUMP FUEL (PETROL).

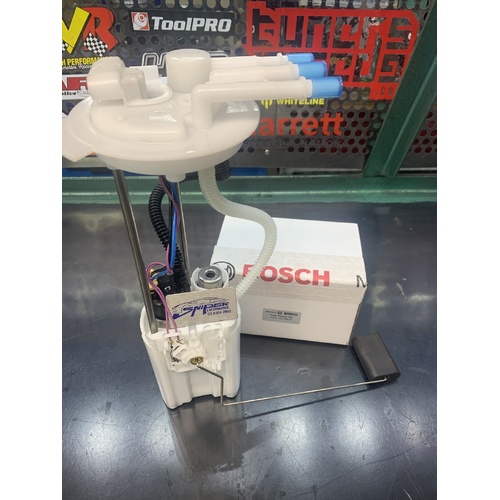

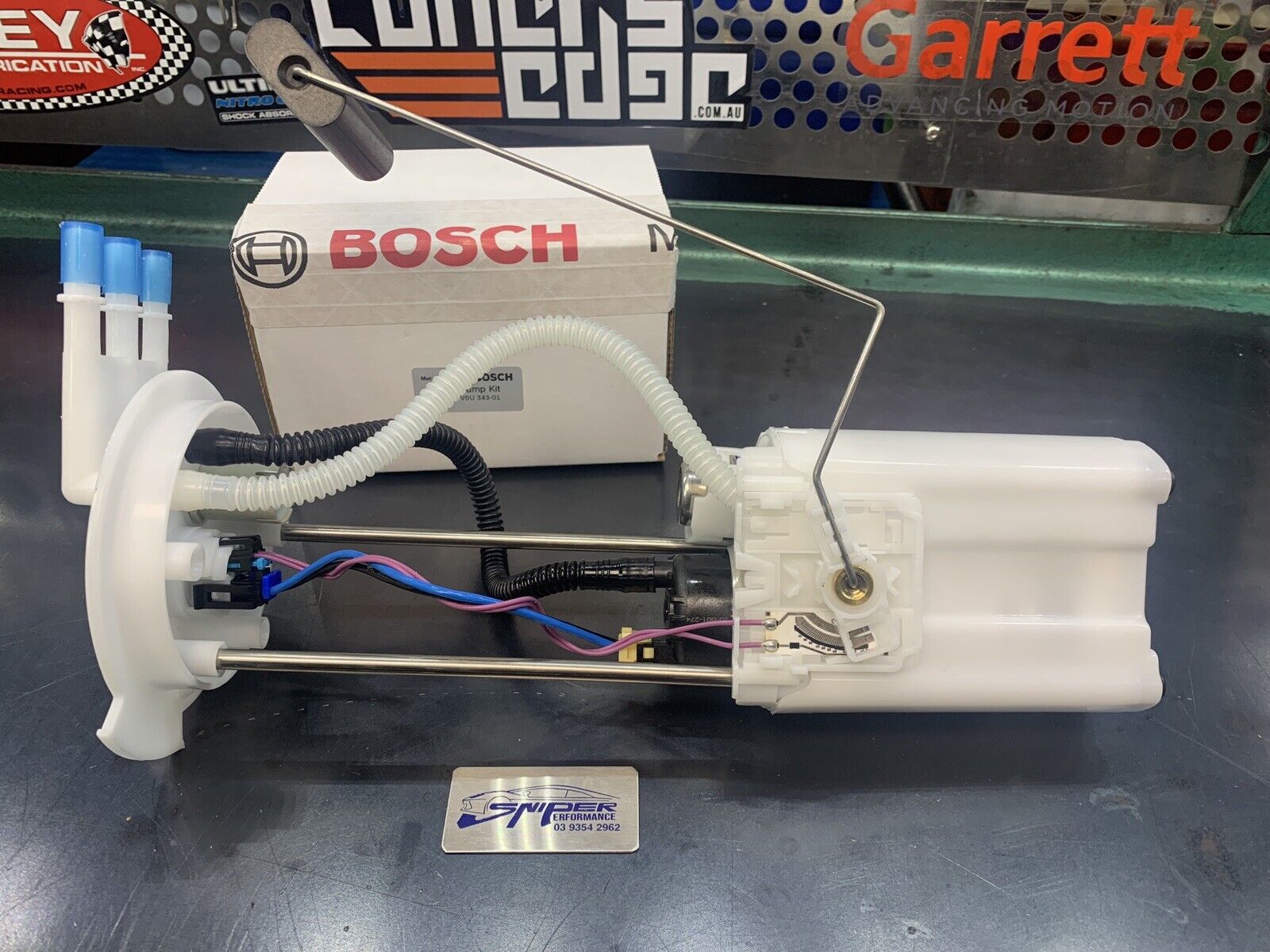

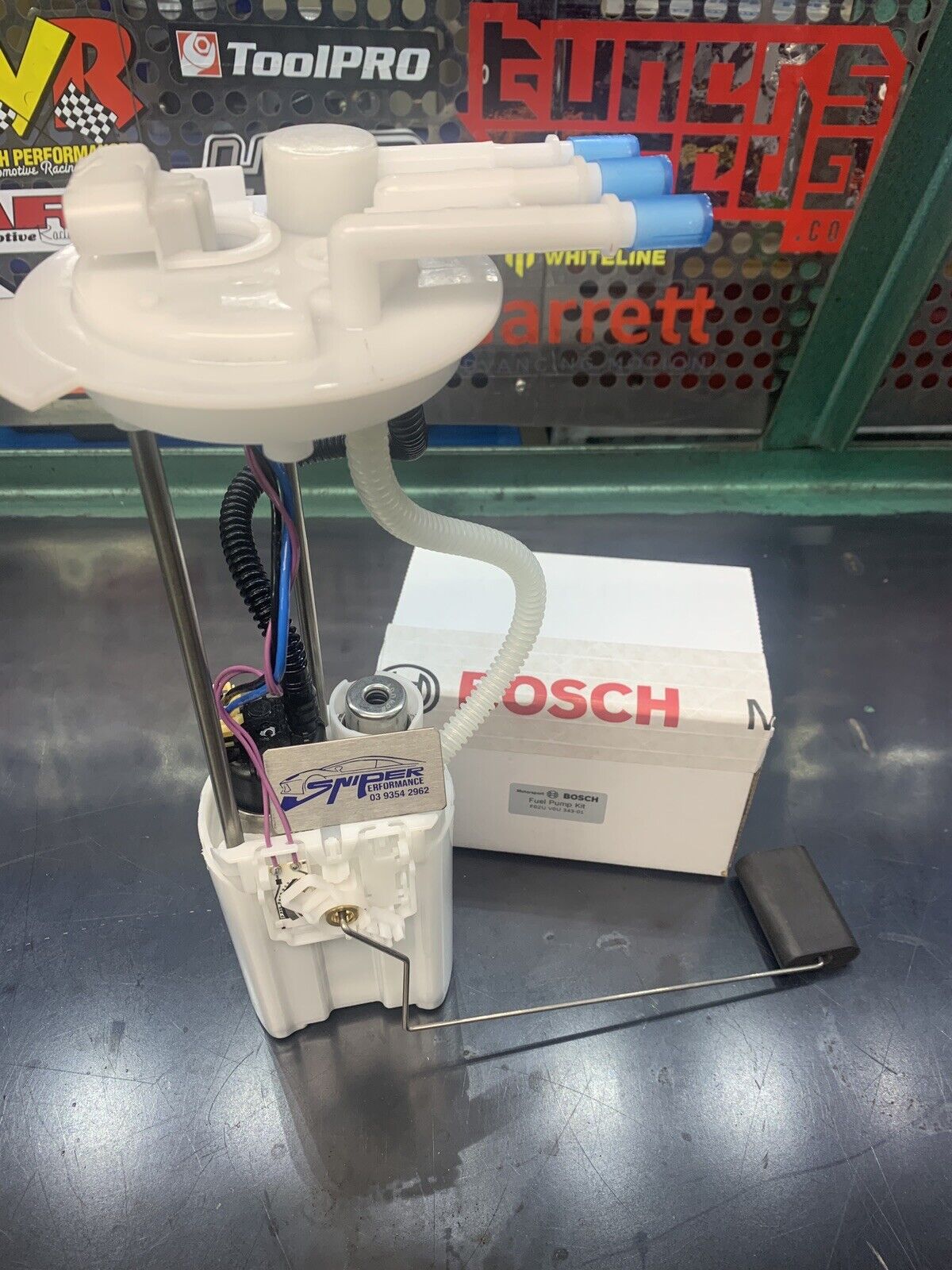

UP FOR SALE IS OUR BOSCH MOTORSPORT & SNIPER-PERFORMANCE CUSTOM BUILT FUEL PUMP ASSEMBLY TO SUIT HOLDEN COMMODORE VY, VZ V8 5.7L, 6.0L LS1, LS2 SEDAN & WAGON.


FITTED WITH A BOSCH MOTORSPORT 400-LPH E85 FUEL PUMP IT ALSO SUITES PETROL.



THIS ASSEMBLY IS MADE BY SNIPER PERFORMANCE AND FITTED WITH A A BOSCH MOTORSPORT 400-LPH E85 CAN SUPPORT UP TO 750 TO 1000-BHP BUT PLEASE CHECK WITH YOUR TUNER FOR CORRECT SIZE FOR YOUR APPLICATION.

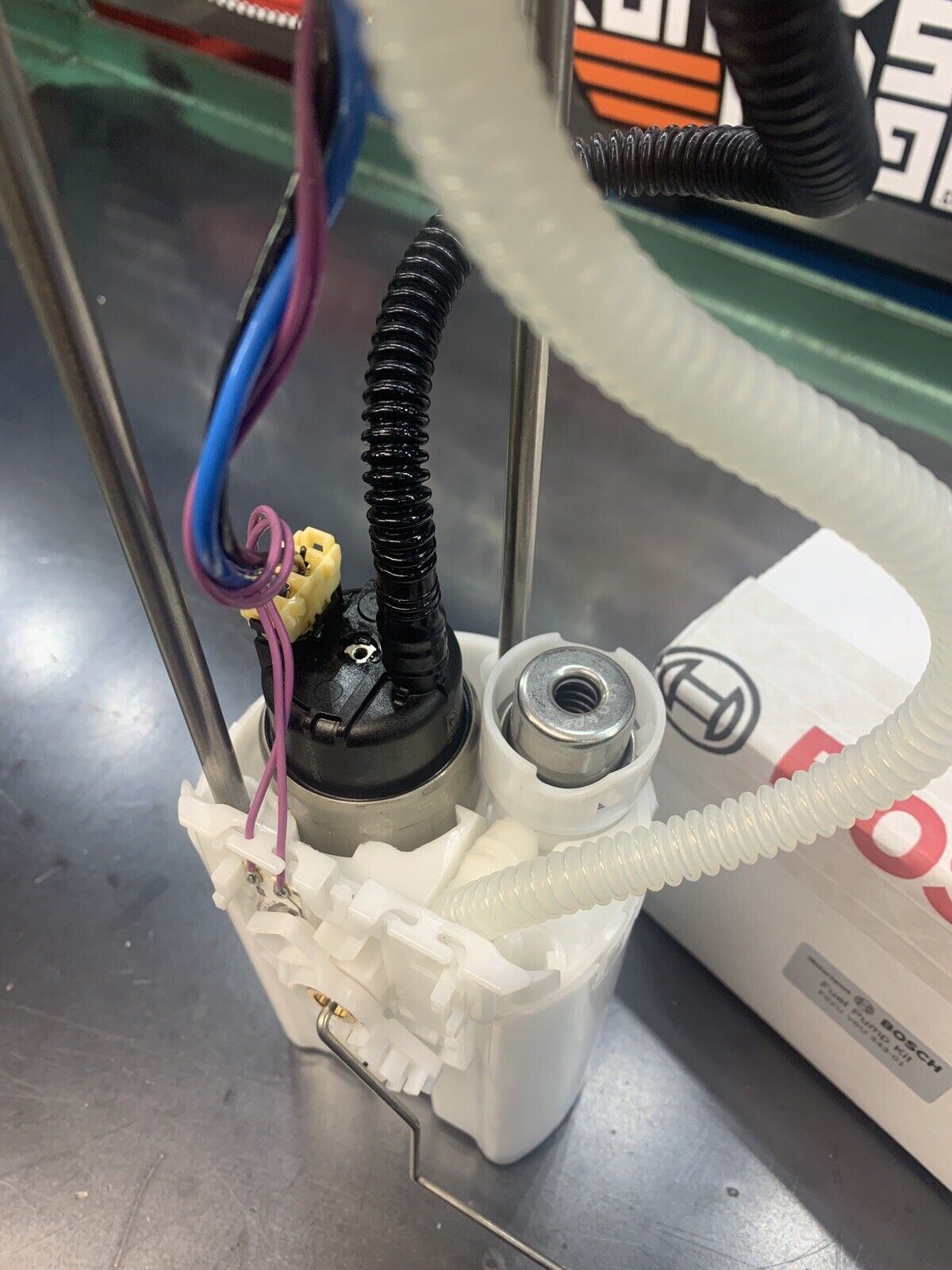

OUR ASSEMBLY IS CUSTOM MADE THAT'S DIFFERENT IN THE SWIRL-POD AREA, MADE TO STOP SURGING UNDER EXTREME TAKE OFF'S AND AROUND CORNERS WHICH IS A COMMON PROBLEM WITH THE FACTORY SWIRL POD. AS THE FACTORY MRI UNIT DOSE NOT HAVE THE RIGHT PLUMING FOR AFTERMARKET HIGH FLOW PUMPS THAT CAUSES THEM TO SUCK AIR AND SURGE UNDER HALF A TANK OF FUEL. THIS SET UP WILL STOP THE SURGING PROBLEM BY 100%.


IT HAS BEEN RACE TRACK TESTED, 1/4 MILE, CIRCUIT AND DRIFT.

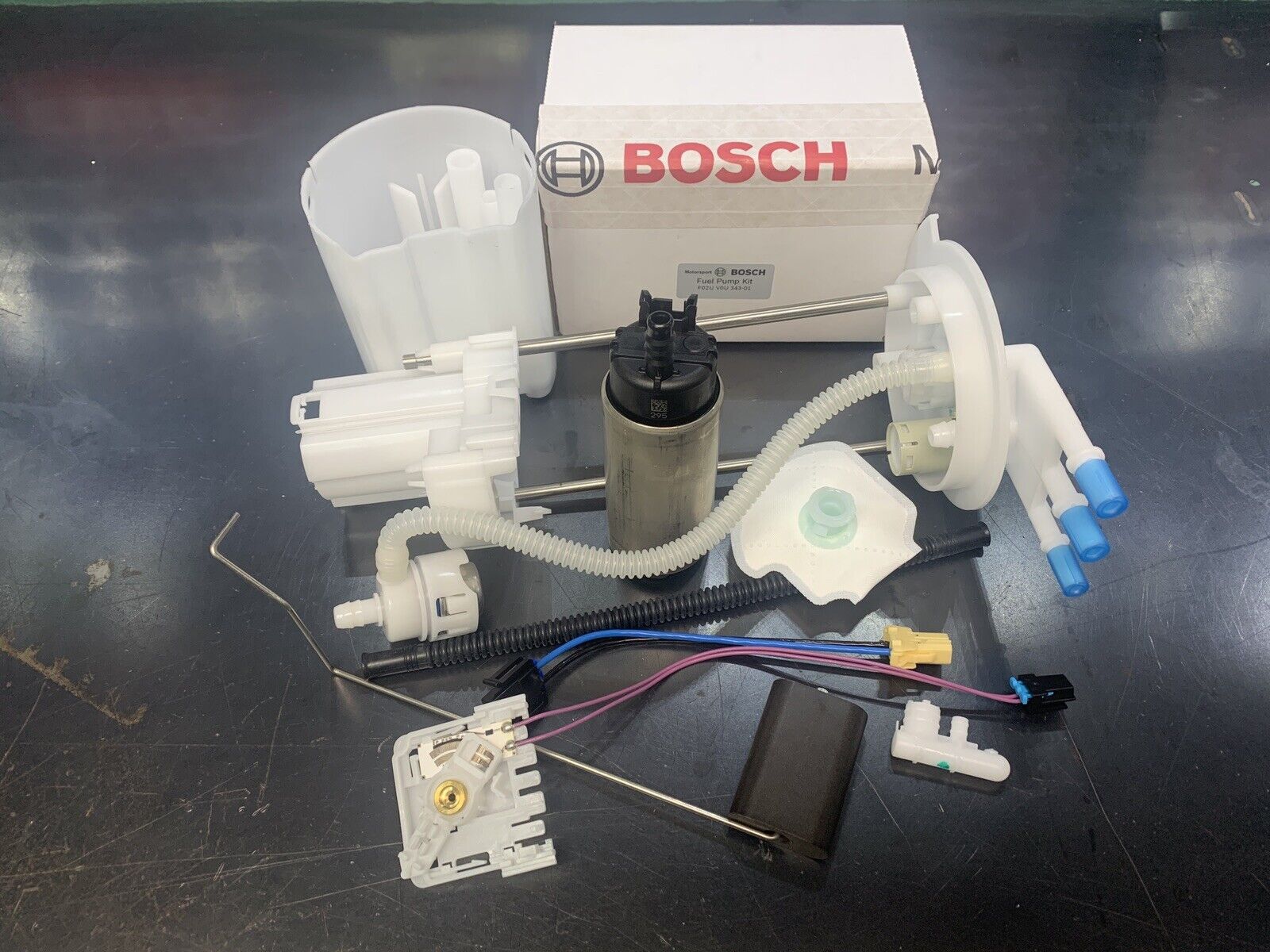

THIS ASSEMBLY CONSIST OF ONLY THE BEST OF THE BEST PARTS AVAILABLE AND HAND ASSEMBLED IN MELBOURNE.

THE ASSEMBLY IS MADE OF THE BEST DUPONT POLLIMER AVALABLE AND ITS E85 & METHANOL APPROVED.


OUR FUEL HOSES ARE RATED AT 2 TO 3 TIMES THE BURST PRESSURE OF THE FACTORY HOSES, HIGH FLOWING & ANTY STATIC.


FITTED WITH ONE PIECE WIRING LOOM WITH STAINLESS STEEL TERMINALS.


STAINLESS STEEL COMPRESSION SPRING, HOSE CLAMP & GUIDE PINS FITTED FOR NO CHANCE OF CORROSION.


HIGH MICRON HIGH FLOW DUPONT NYLONG STRAINER.


HIGH FLOW MODIFIED FUEL RETURN VALVE TO KEEP THE RETURN PRESSURE AS LOW AS POSSIBLE AND TO FILL THE SWIRL POD IN HALF THE NORMAL TIME IT WOULD USALY TAKE.



PLEASE CHECK DESCRIPTION, PART NUMBER  AND VIN NUMBER BEFORE PURCHASE.

TO SUIT GMH COMMODORE & HSV SEDAN & WAGON.


WK HOLDEN CAPRICE 7/2003-07/2004 5.7L V8 LS1 FROM VIN NO 4L162085 - ON.

WK HOLDEN CAPRICE 7/2004-2006 5.7L V8 LS1 GEN3.

VY COMMODORE 7/2003-07/2004 5.7L V8 LS1 FROM VIN NO 4L156716 - ON.

VY HOLDEN CALAIS 7/2003-07/2004 5.7L V8 LS1 FROM VIN NO 4L156716 - ON.

VY COMMODORE ADVENTRA CX8, LX8 7/2003-07/2004 5.7L V8 LS1 FROM VIN NO 4L156716 - ON.

VY COMMODORE AVALANCH 7/2003-07/2004 5.7L V8 LS1 FROM VIN NO 4L156716 - ON.

VY COMMODORE GTS GTS-R 10/2002-09/2004 5.7L V8 LS1 FROM VIN NO 4L162085 - ON .

VY MONARO 9/2003-07/2004 5.7L V8 LS1 FROM VIN NO 4L167584 - ON.

VY HOLDEN SENATOR 10/2002-9/2004 5.7L V8 LS1 AFTER VIN NO 4L156716.

WK HOLDEN GRANGE 7/2003-9/2004 5.7L V8 LS1 FROM VIN NO 4L162085 - ON.

WK HOLDEN GRANGE 9/2004-10/2005 6.0L V8 LS2.

WK HOLDEN GRANGE 1/2006-7/2006 6.0L V8 LS2.

VZ COMMODORE SEDAN & WAGON 7/2004-2007 3.6L V6 ALOYTEC.

VZ COMMODORE ADVENTRA 7/2004-2007 3.6L V6 ALOYTEC.

VZ COMMODORE AVALANCH 7/2004-2007 3.6L V6 ALOYTEC.

VZ HOLDEN CALAIS 7/2004-2007 5.7L V8 LS1.

VZ COMMODORE SEDAN & WAGON 7/2004-2007 5.7L V8 LS1.

VZ COMMODORE ADVENTRA 7/2004-2007 5.7L V8 LS1.

VZ COMMODORE AVALANCH 7/2004-2007 5.7L V8 LS1.

VZ COMMODORE CLUBSPORT R8 10/2004-7/2006 6.0L V8 LS2.

WL HOLDEN STATESMAN 7/2004-2007 3.6L V6 ALOYTEC.

WK HOLDEN STATESMAN 7/2003-7/2004 5.7L V8 LS1 FROM VIN NO 4L162085.

WL HOLDEN STATESMAN 7/2004-ON 5.7L V8 LS1.

WL HOLDEN STATESMAN 2006 6.0L V8 LS2.

WL HOLDEN STATESMAN 2006 6.0L V8 L76.

VZ HOLDEN SENATOR 10/2004-7/2006 6.0L V8 LS2.

HSV CLUBSPORT R8 VY 09/2003-09/2004 5.7L LS1 GENIII V8.

HSV CLUBSPORT R8 VZ 10/2004-07/2006 6.0L LS2 V8.

HSV GTS VY 10/2002-09/2004 5.7L LS1 GENIII V8 FROM VIN NUMBER: 4L156716 --> ON.

HSV CLUBSPORT VY 09/2003-09/2004 5.7L LS1 GENIII V8 FROM VIN NUMBER: 4L156716 --> ON.

HSV CLUBSPORT VZ 10/2004-07/2006 6.0L LS2 V8.

HSV SENATOR VY 10/2002-08/2003 5.7L LS1 GENIII V8 FROM VIN NUMBER: 4L156716 --> ON.

HSV SENATOR VZ 10/2004-07/2006 6.0L LS2 V8.

HSV AVALANCHE VY 12/2003-09/2004 5.7L LS1 GENIII V8 FROM VIN NUMBER: 4L156716 --> ON.

HSV AVALANCHE VZ 10/2004-04/2006 5.7L LS1 GENIII V8.

HSV CLUBSPORT VY 09/2003-09/2004 5.7L LS1 GENIII V8.

HSV CLUBSPORT VY 2002-2004 5.7L LS1 C4B V8 FROM VIN NUMBER: 4L156716 --> ON.

HSV CLUBSPORT VZ 10/2004-07/2006 6.0L LS2 V8.

HSV CLUBSPORT R8 VY 09/2003-09/2004 5.7L LS1 GENIII V8.

HSV CLUBSPORT R8 VZ 10/2004-07/2006 6.0L LS2 V8.

HSV COUPE GTS V2 04/2004-09/2004 5.7L LS1 GENIII V8 FROM VIN NUMBER: 4L167584 -->ON.

HSV GRANGE WK 10/2003-09/2004 5.7L LS1 GENIII V8 FROM VIN NUMBER: 4L162085 -->ON.

HSV GRANGE WK 2003-2004 5.7L LS1 C4B V8 FROM VIN NUMBER: 4L162085 -->ON.

HSV GRANGE WL 09/2004-07/2006 6.0L LS2 V8.

HSV GTS VY 10/2002-09/2004 5.7L LS1 GENIII V8 FROM VIN NUMBER: 4L156716 -->ON.

HSV SENATOR VY 10/2002-08/2003 5.7L LS1 GENIII V8 FROM VIN NUMBER: 4L156716 -->ON.

HSV SENATOR VZ 10/2004-07/2006 6.0L LS2 V8.

HSV SV6000 VZ 08/2005-04/2006 6.0L LS2 V8.


OUR PART NUMBER: MOD-013-400.
INTERCHANGEABLE WITH GENUINE PART NUMBER GM: 92159903, 92181807, 92181830, 92183879.
OTHER PART NUMBERS: EFP-135, EFP-145, EFP-146.

SPECIFICATIONS. MOD-013-400.

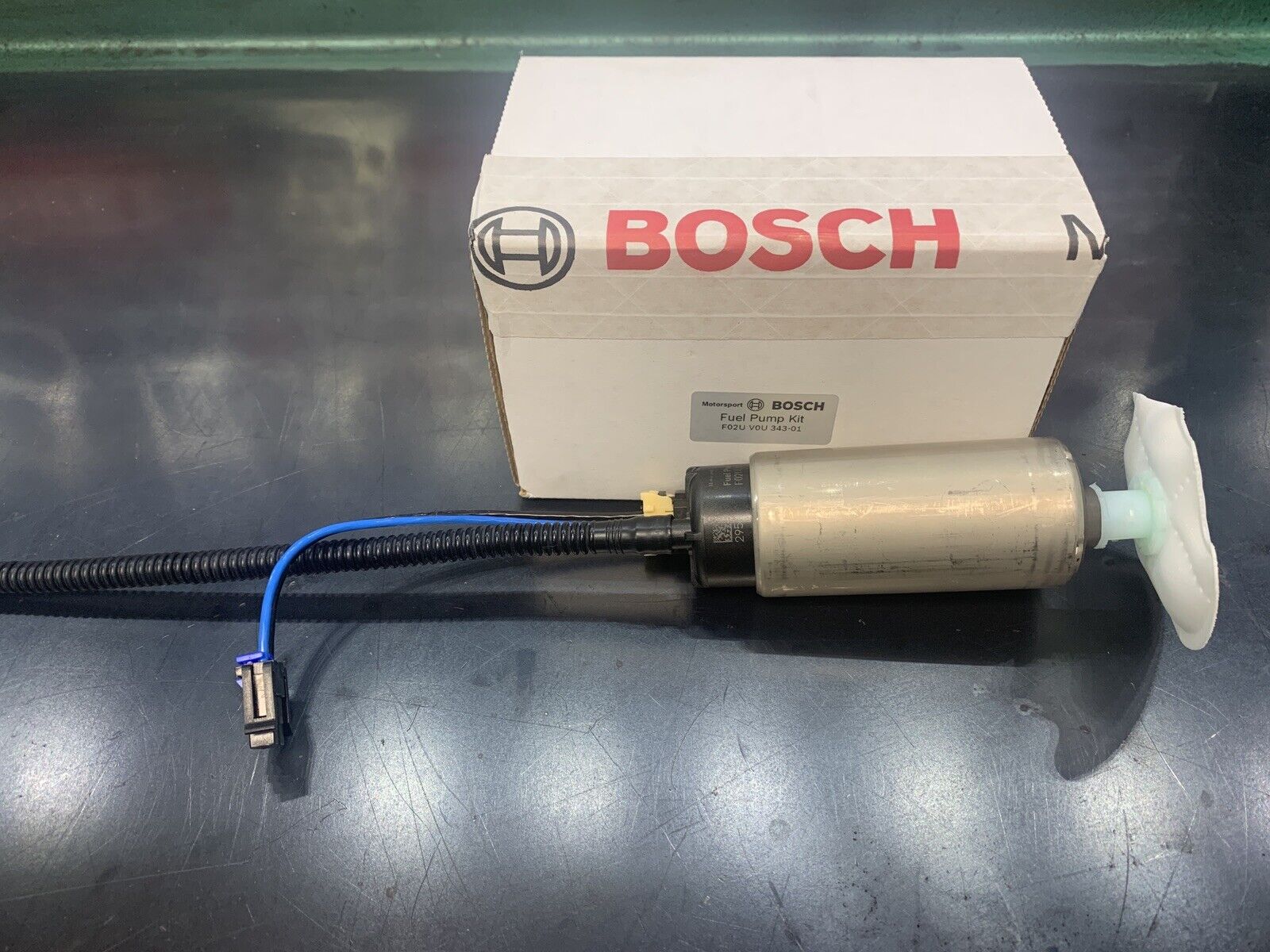

FUEL PUMP PART NUMBER: F02UV0U343-01 400-LPH.
PRESSURE AND FLOW RATE: - Up to 540 l/h @ open flow, - Up to 460 l/h @ 40Psi (2.75bar), - Up to 380 l/h @ 80Psi,  (5.5bar), - Up to 270l/h @ 145Psi (10.0bar). supports 750-1000 BHP at the flywheel.
VOLTS & AMP CONSUMPTION: - Draws ~16A @ 40Psi (2.75bar), ~19A @ 80Psi (5.5bar), ~24A @ 145Psi (10.0bar)

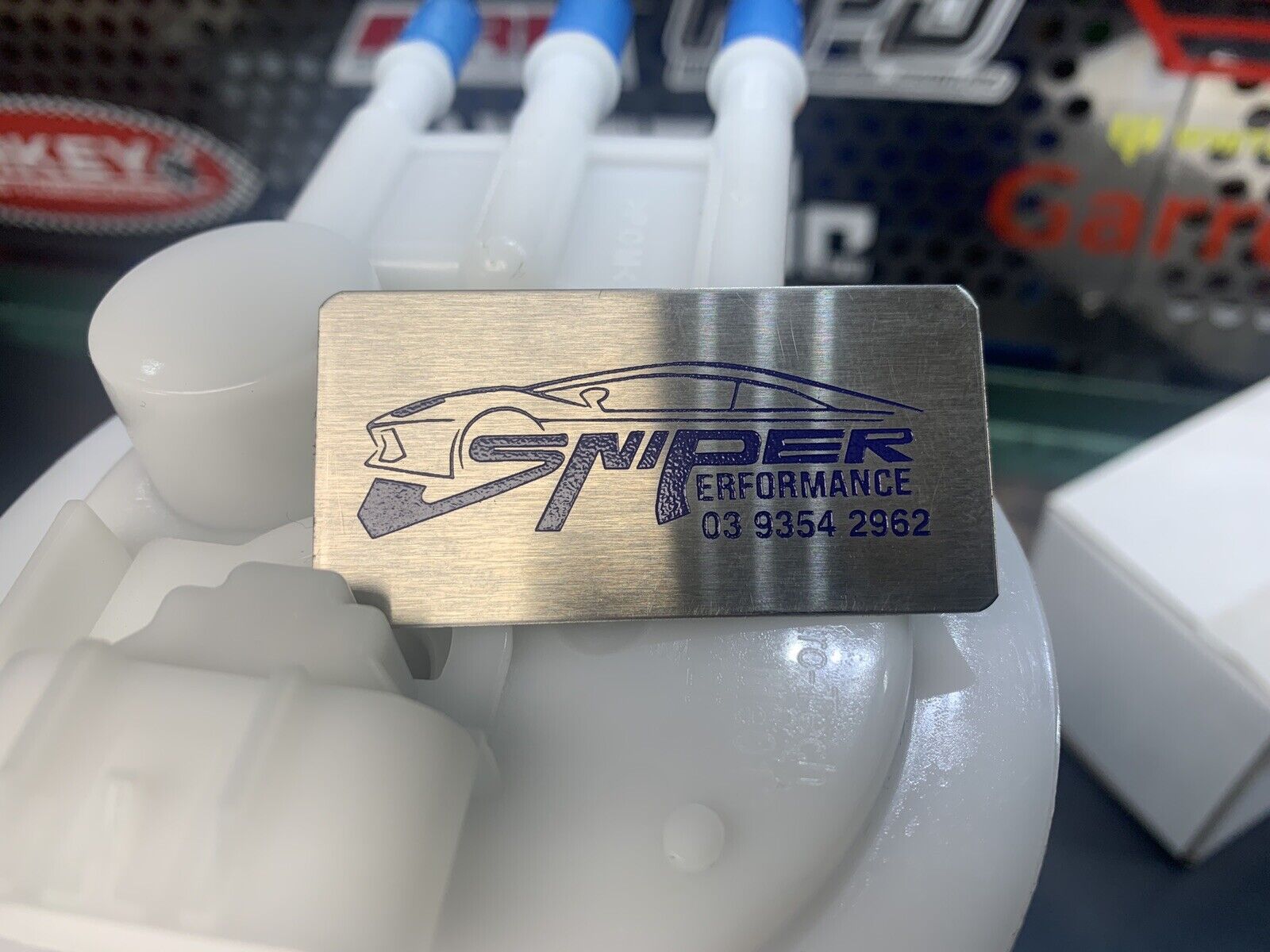

ASSEMBLY PART NUMBER: Sniper Performance MOD-013.
ASSEMBLY HEIGHT: Base to Flange 325-mm Compressed 240-mm.
ASSEMBLY CAPACITY: POD 500-millilitres as the factory unit.

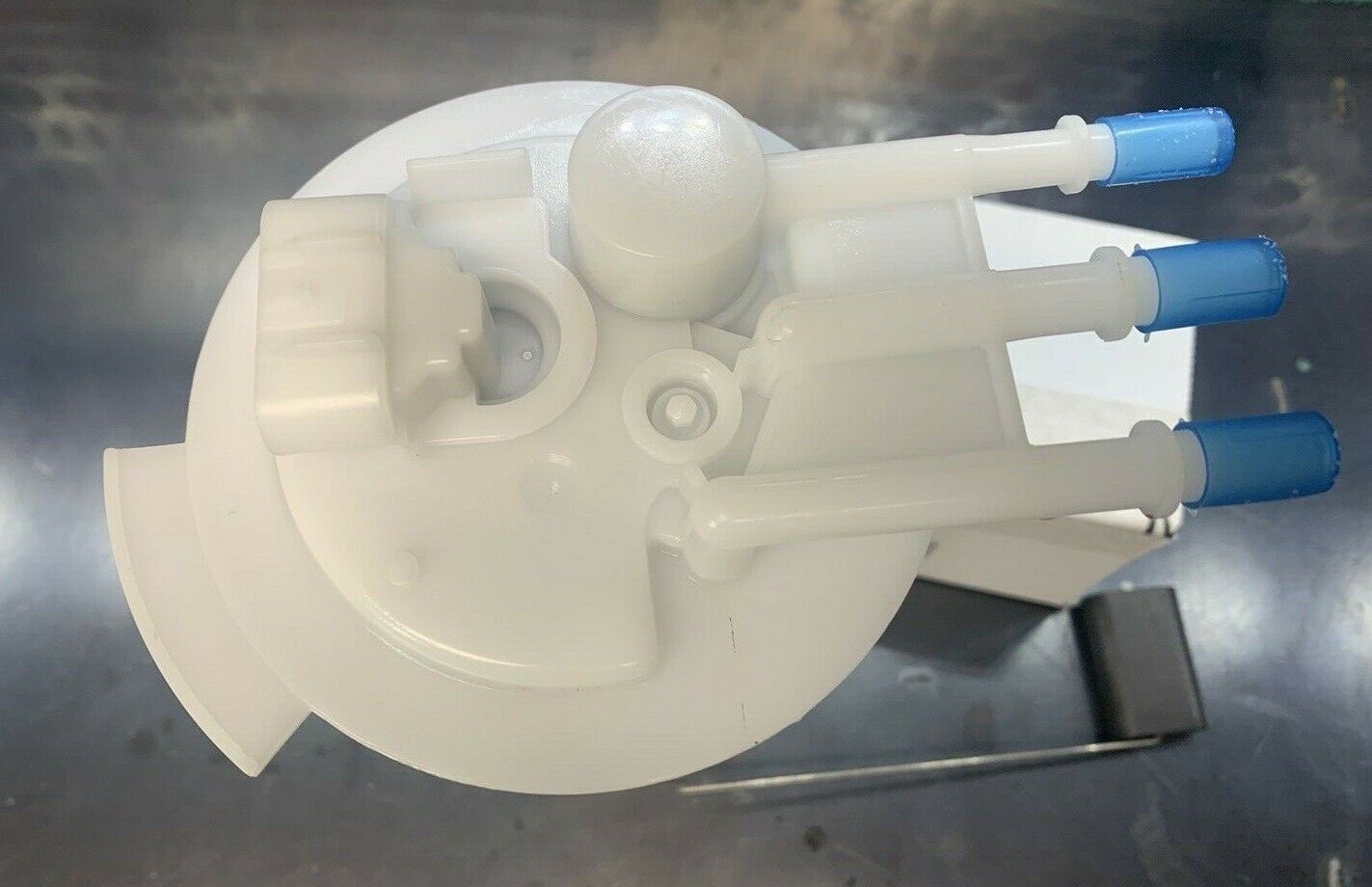

ASSEMBLY HOSE FITTINGS: Left Returnee (10-mm c-lock). Centre (8-mm c-lock) Charcoal Canister. Right (10-mm c-lock) Fuel out.

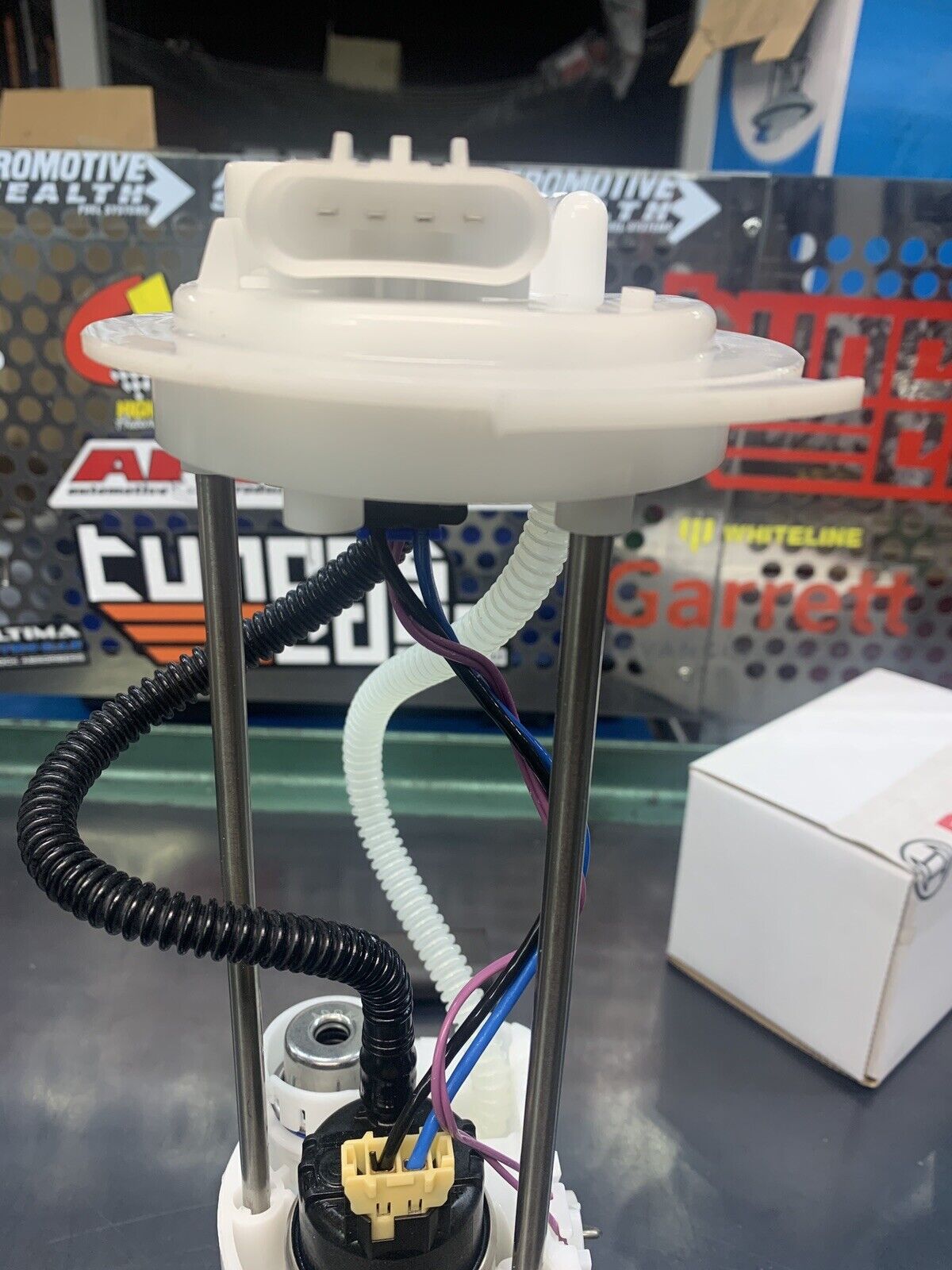

WIARING PLUG: High amp Oval side by side 4 pin 2.2-mm.

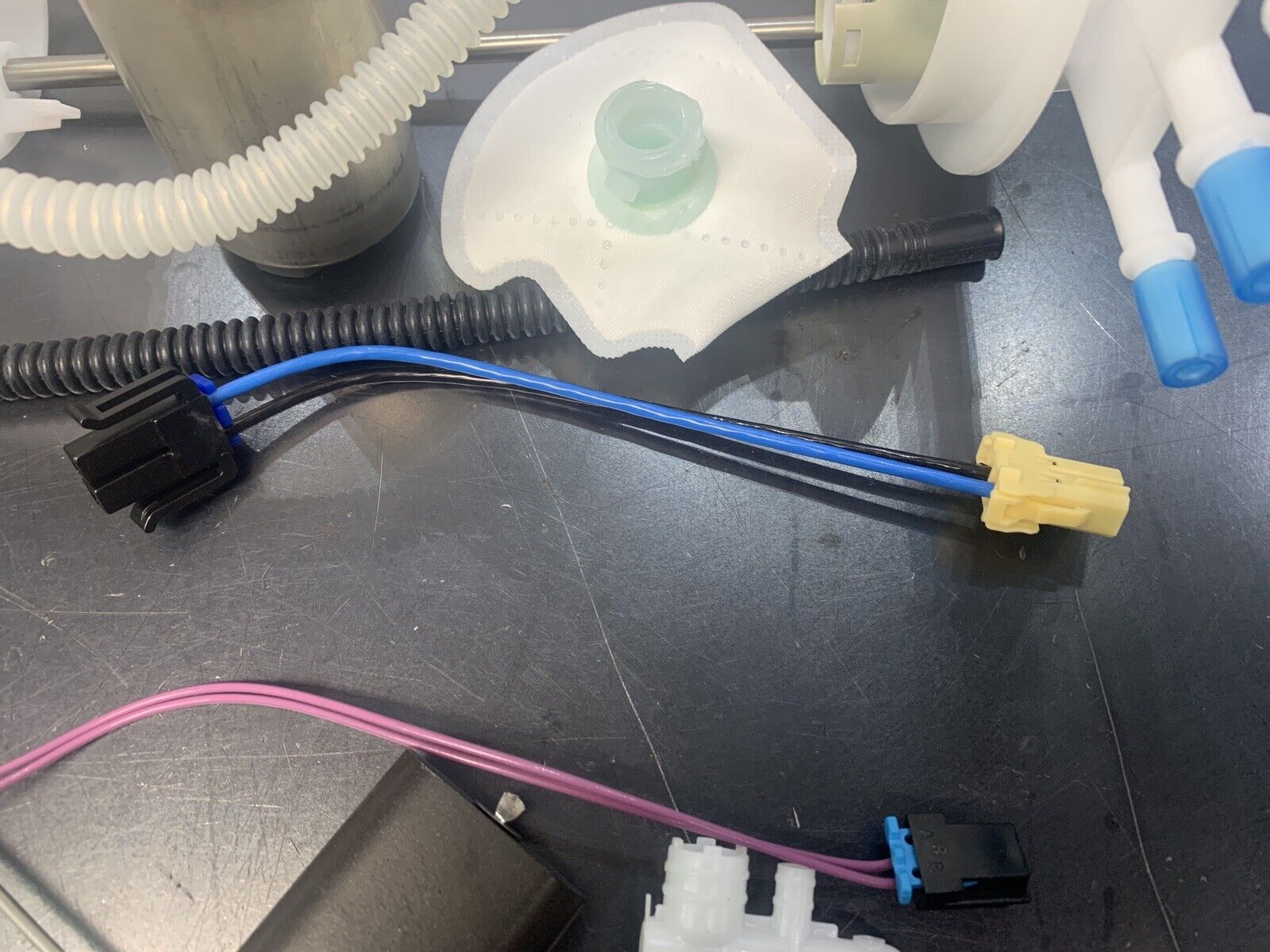

WIARING HARNEST: One piece wiring loom Delphi to Walbro with stainless steel braid and terminals.
PRESSURE HOSES: High pressure, high burst, high flow white submersible fuel hoses made in the EU, 210mm long.
FUEL GAUGE READINGS: Up-full 40-ohms -+5. Down-empty 255-ohms -+5.


WE CAN ALSO SUPPLY THIS ASSEMBLY THE WALBRO 342 255-LPH, GSS352 350-LPH AND THE WALBRO E85 460 & 525-LPH E85 PUMP.  MESSAGE US FOR A PRICE $$$. AS ITS A CUSTOM BUILT APPLICATION WITH A NEW WIRING UPDATED PLUG.
   Walbro GSS342 Fuel Pump In-Tank 255LPH High Pressure Electric – Fuelpumps.com                     WALBRO 460 FUEL PUMP
COMES FULLY ASSEMBELD WITH ALL E85 APROUVED PARTS FITTED READY TO DROP IN.
