FUEL PUMP PART NUMBER: F02UV0U343-01 Made in Germany by Bosch Motorsport. Exceeds specifications of SAEJ1537 Compatible with pump gas, E85, and race fuels. Carbon commutators and brushes, fully encapsulated precision balanced armature, composite turbine impeller.


BOSCH MOTORSPORT BR50, FO2UV0U343-011 750-1000 BHP TO SUIT E85, METHANOL & PUMP FUEL (PETROL).

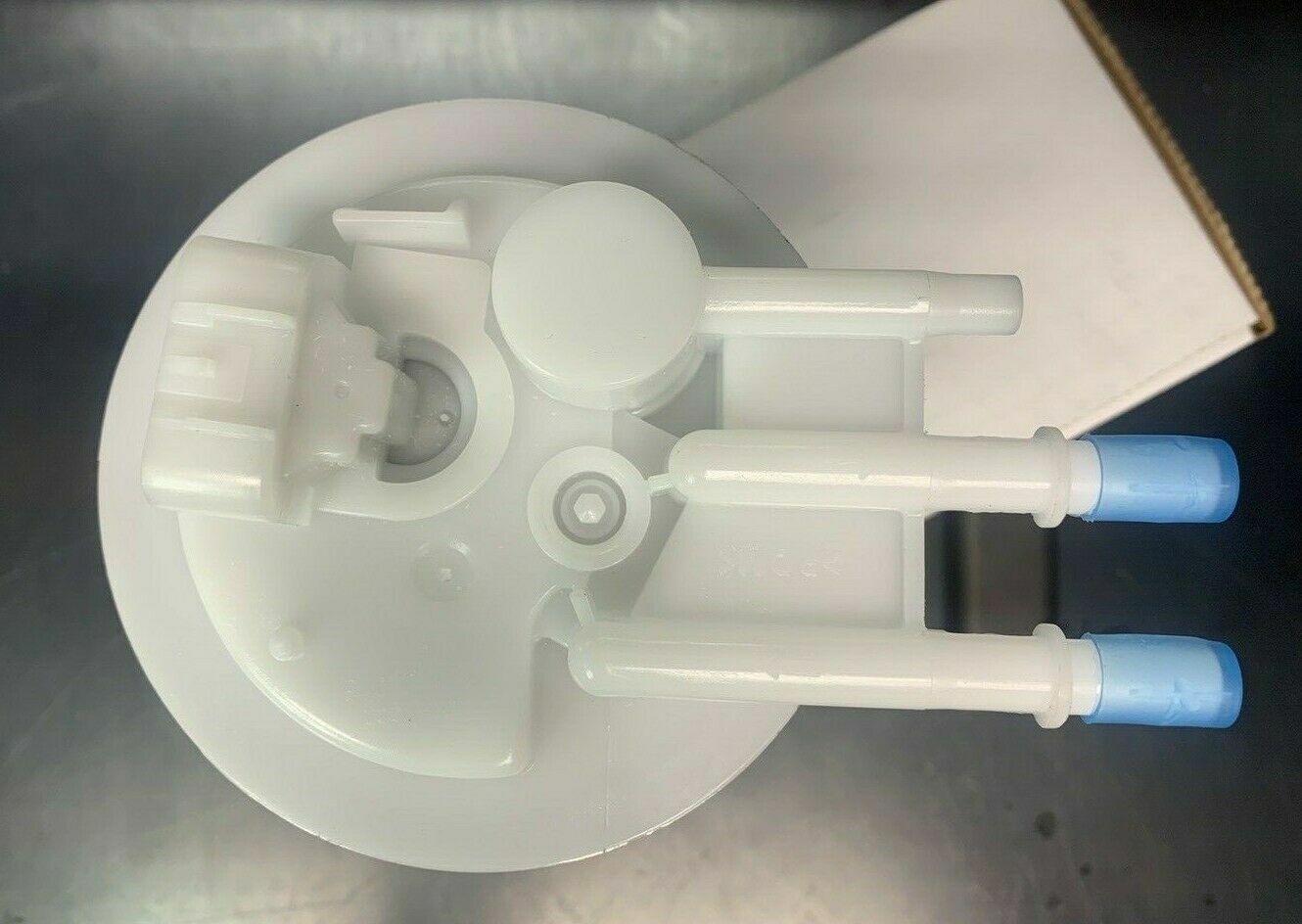

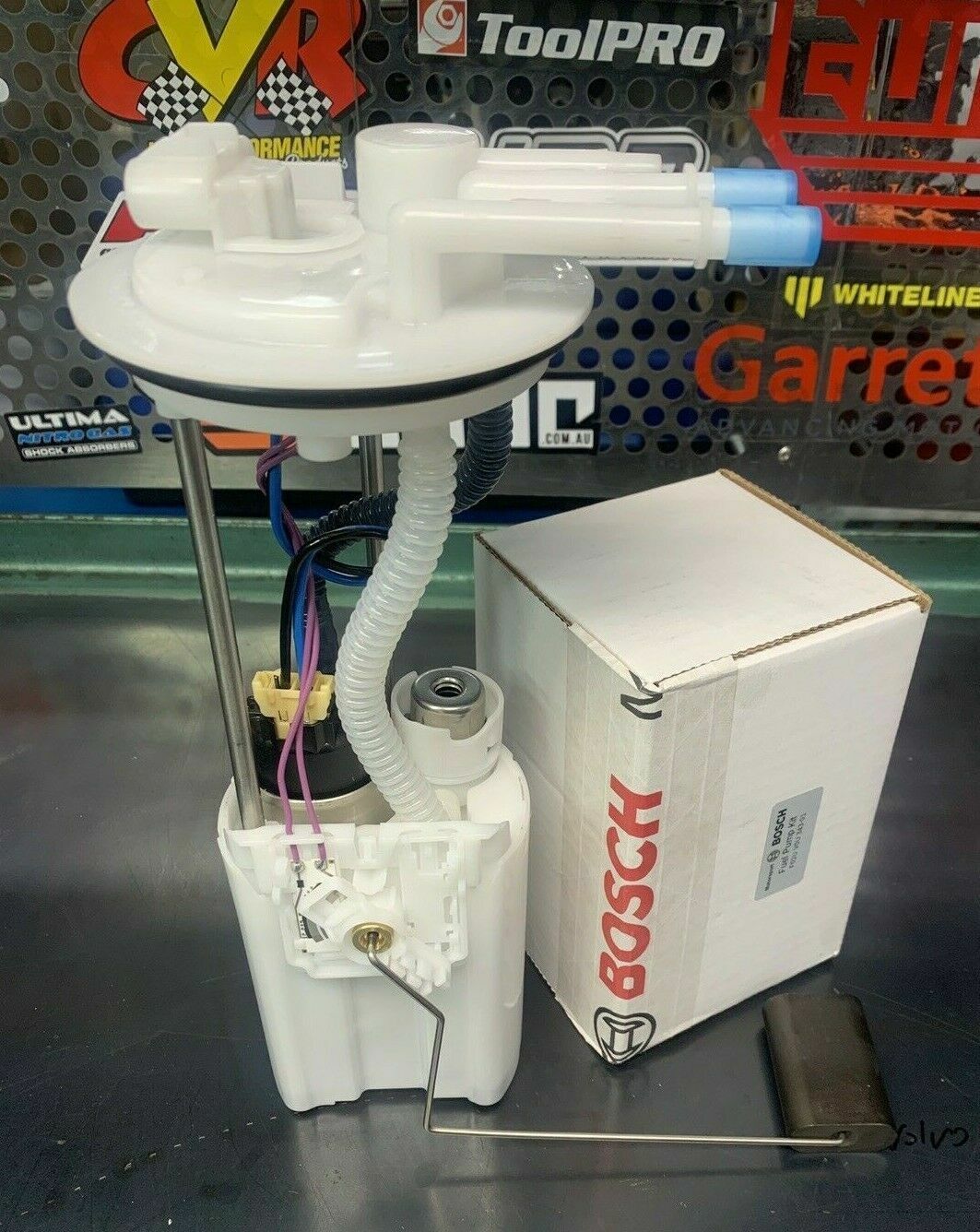

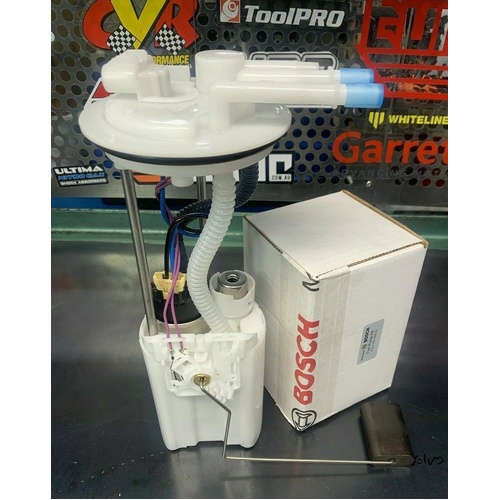

UP FOR SALE IS OUR BOSCH MOTORSPORT & SNIPER-PERFORMANCE CUSTOM BUILT FUEL PUMP ASSEMBLY TO SUIT HOLDEN COMMODORE VY V8, VZ V6 & V8 5.7L, 6.0L LS1, LS2 UTE.


FITTED WITH A BOSCH MOTORSPORT 400-LPH E85 FUEL PUMP IT ALSO SUITES PETROL.



THIS ASSEMBLY IS MADE BY SNIPER PERFORMANCE AND FITTED WITH A BOSCH MOTORSPORT 400-LPH E85 CAN SUPPORT BETWEEN 750 TO 1000-BHP BUT PLEASE CHECK WITH YOUR TUNER FOR CORRECT SIZE FOR YOUR APPLICATION.


OUR ASSEMBLY IS CUSTOM MADE THAT'S DIFFERENT IN THE SWIRL-POD AREA, MADE TO STOP SURGING UNDER EXTREME TAKE OFF'S AND AROUND CORNERS WHICH IS A COMMON PROBLEM WITH THE FACTORY SWIRL POD. AS THE FACTORY MRI UNIT DOSE NOT HAVE THE RIGHT PLUMING FOR AFTERMARKET HIGH FLOW PUMPS THAT CAUSES THEM TO SUCK AIR AND SURGE UNDER HALF A TANK OF FUEL. THIS SET UP WILL STOP THE SURGING PROBLEM BY 100%.


IT HAS BEEN RACE TRACK TESTED, 1/4 MILE, CIRCUIT AND DRIFT.

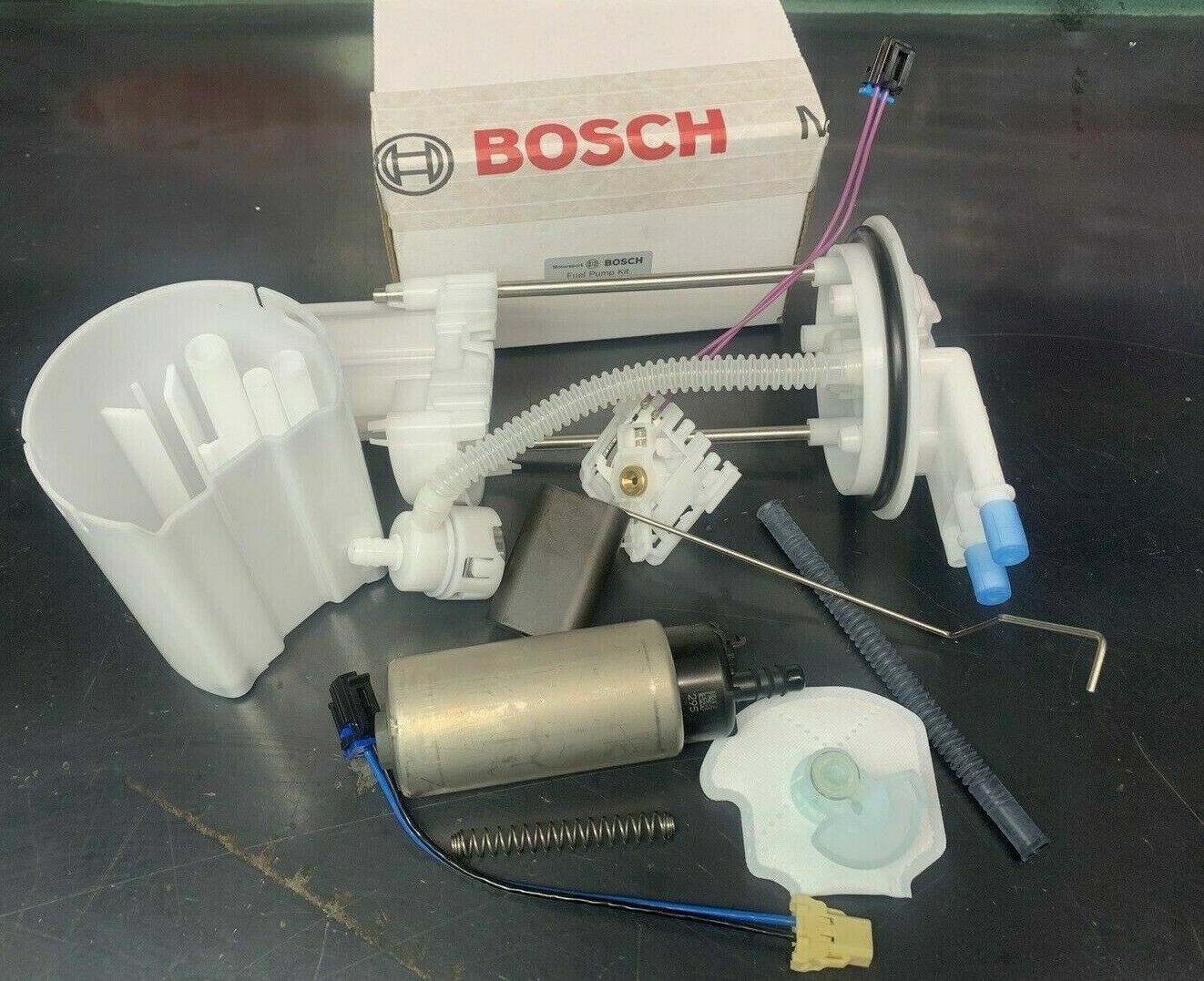

THIS ASSEMBLY CONSIST OF ONLY THE BEST OF THE BEST PARTS AVAILABLE AND HAND ASSEMBLED IN MELBOURNE.

THE ASSEMBLY IS MADE OF THE BEST DUPONT POLLIMER AVALABLE AND ITS E85 & METHANOL APPROVED.


OUR FUEL HOSES ARE RATED AT 2 TO 3 TIMES THE BURST PRESSURE OF THE FACTORY HOSES, HIGH FLOWING & ANTY STATIC.


FITTED WITH ONE PIECE WIRING LOOM WITH STAINLESS STEEL TERMINALS.


STAINLESS STEEL COMPRESSION SPRING, HOSE CLAMP & GUIDE PINS FITTED FOR NO CHANCE OF CORROSION.


HIGH MICRON HIGH FLOW DUPONT NYLONG STRAINER.


HIGH FLOW MODIFIED FUEL RETURN VALVE TO KEEP THE RETURN PRESSURE AS LOW AS POSSIBLE AND TO FILL THE SWIRL POD IN HALF THE NORMAL TIME IT WOULD USALY TAKE.

COMMODORE S UTE VY 09/2002-07/2004 V8 5.7L LS1 GENIII. FROM VIN NUMBER  4L156716 ON.

COMMODORE SS UTE STYLESIDE VY 08/2003-07/2004 5.7L V8 LS1 GENIII. FROM VIN NUMBER 4L156716 0N.

COMMODORE MALOO UTE VY 08/2003-07/2004 5.7L V8 LS1 GENIII. FROM VIN NUMBER 4L156716 ON.

COMMODORE MALOO R8 UTE VY 08/2003-07/2004 5.7L V8 LS1 GENIII. FROM VIN NUMBER 4L156716 ON

COMMODORE UTE STYLESIDE VZ  7/2004-2007 3.6L LEO/LY7 V6.

COMMODORE UTE STYLESIDE VZ  7/2004-2007 5.7L Gen3 ls1 V8.

COMMODORE UTE STYLESIDE VZ  2006 6.0L Gen4 ls2 V8.

COMMODORE UTE STYLESIDE VZ  2007 6.0L Gen4 ls2 V8.

COMMODORE UTE STYLESIDE VZ  2006-2007 6.0L L76 / L98 V8.

COMMODORE UTE STYLESIDE VZ  2006-2007 6.0L L76 / L98 V8.

COMMODORE UTE MALOO VZ  07/2004-2007 6.0L L76 / L98 V8.

COMMODORE UTE S SS VZ  7/2004-2007 5.7L Gen3 ls1 V8.

HSV MALOO VY 10/2002-09/2003 5.7L LS1 GEN3 V8. FROM VIN NUMBER 4L156716 ON.

HSV MALOO VY VY 10/2003~09/2004 5.7L LS1 GEN3 V8. FROM VIN NUMBER 4L156716 ON.

HSV MALOO VY 2004 2 5.7L LS1 C4B V8. FROM VIN NUMBER 4L156716 ON.

HSV MALOO R8 VZ 10/2004-09/2007 6.0L LS2 V8


OUR PART NUMBER: MOD-016-400.

GENUINE PART NO: 92183879, 92159905.

OTHERE PART NUMBERS: EFP-136, EFP-144, GE179.


MOD-016-400, 400LPH.
SPECIFICATIONS.
FUEL PUMP PART NUMBER: BOSCH F02UV0U343-01 400-LPH.
PRESSURE AND FLOW RATE: - Up to 540 l/h @ open flow, - Up to 460 l/h @ 40Psi (2.75bar), - Up to 380 l/h @ 80Psi,  (5.5bar), - Up to 270l/h @ 145Psi (10.0bar). supports 750-1000 BHP at the flywheel.
VOLTS & AMP CONSUMPTION: - Draws ~16A @ 40Psi (2.75bar), ~19A @ 80Psi (5.5bar), ~24A @ 145Psi (10.0bar).
ASSEMBLY PART NUMBER: Sniper Performance MOD-016.
ASSEMBLY HEIGHT: Base to Flange 265-mm Compressed 215-mm.
ASSEMBLY CAPACITY: POD 500-millilitres as the factory unit.
ASSEMBLY HOSE FITTINGS: Left Returnee (10-mm c-lock). Centre (10-mm c-lock) Fuel out. Right blocked.

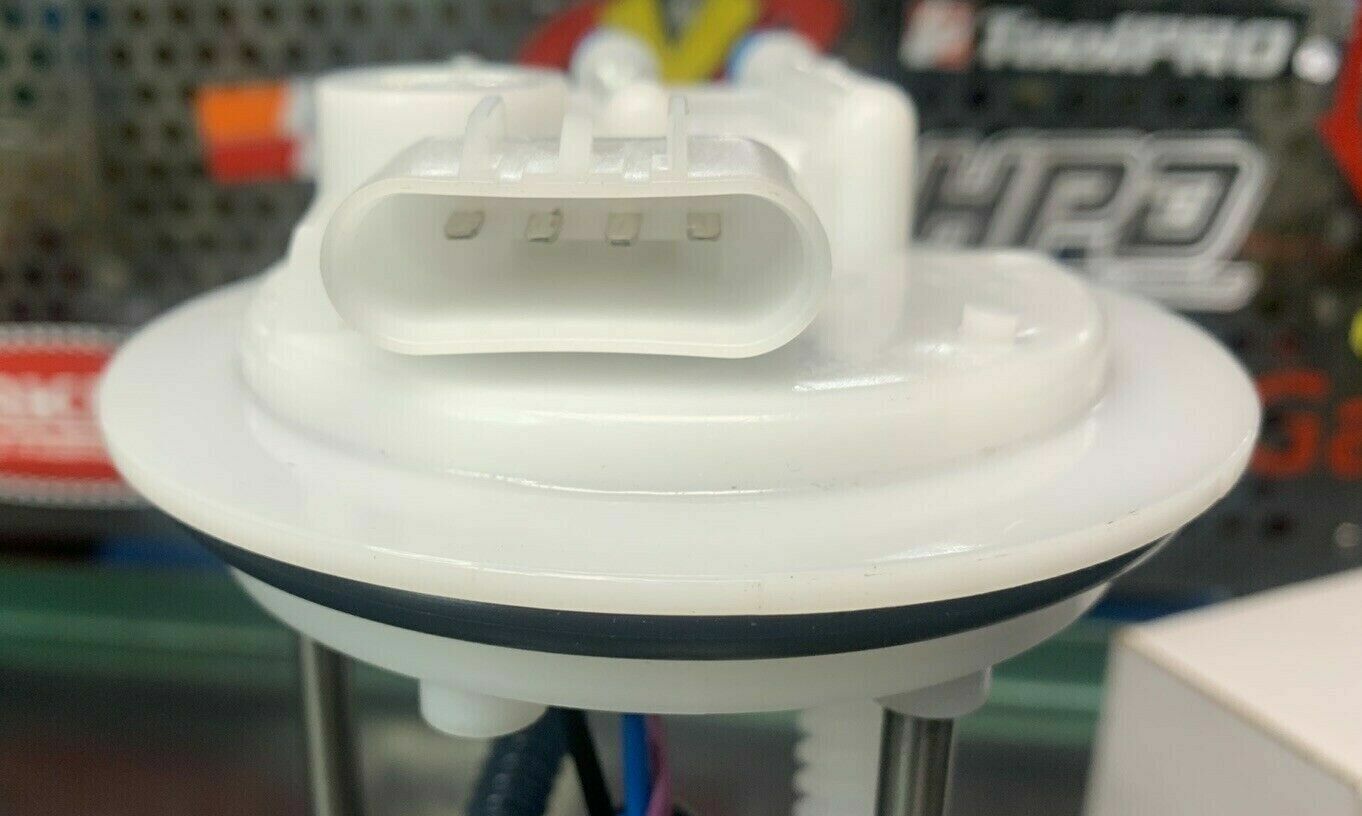

WIARING HARNEST: One piece wiring loom Delphi to Walbro with stainless steel braid and terminals.
PRESSURE HOSES: Black E85 High pressure, composite high burst, high flow submersible fuel hoses made in the EU, 280mm long.
FUEL GAUGE READINGS: Up-full 40-ohms. Down-empty 255-ohms.


WE CAN ALSO SUPPLY THIS ASSEMBLY WITH THE WALBRO 342 255-LPH, GSS352 350-LPH AND THE WALBRO E85 460-LPH ORE THE 525-LPH E85 PUMP.  MESSAGE US FOR A PRICE $$$. AS ITS A CUSTOM BUILT APPLICATION WITH A NEW WIRING UPDATED PLUG.
   Walbro GSS342 Fuel Pump In-Tank 255LPH High Pressure Electric – Fuelpumps.com                     WALBRO 460 FUEL PUMP
ALL ASSEMBLYS COME FULLY ASSEMBELD WITH ALL E85 APROUVED PARTS FITTED READY TO DROP IN.


We also sell performance and standard fuel pumps, Injectors VDO & Bosch 280cc to 2400cc, Sniper Performance Coils, Garret Turbo, Turbosmart Full Range, Vic agent for AeroFlow fittings & hoses, Crow Cams, APR bolts, K&N Air Filters, NOS Kits & Filling, Auto Meter,  Intercoolers, Custom Piping, Center Line & Weld Racing Wheels, Mickie Thompson Race Tyres, Red Line Oils and many more.

Message us with your details and we will get back to you ASAP.

WE ARE ALSO WHITELINE DEALERS SO ANY SUSPENSION PARTS WE CAN HELP AT THE BEST POSIBLE PRICE.

Image result for WHITELINE  Image result for WHITELINE


Warranty.  12 Months or 20,000 km Warranty.

Payment. We accept : Pay on Pickup, PayPal, Bank Transaction, credit card over the phone from 9 to 5 Monday to Friday Money Order as payment methods. Please use your eBay Username as a transaction reference.

Postage.  Local Pickup (message us for address and pick up times) Domestic: Fixed Rate we use Couriers please, Fastway, Australia Post Regular Post and express. please contact us of which you prefer on purchase in order details ore if not we will post out with the one we think would be the best to use. International: POA, Please contact us via eBay for a quote.  All items sent with tracking and insurance  for lost ore damaged in transit.

Fitting services.   Available in our modern and well equipped work shop.


For General Enquires: Customer Support ,technical support and bookings & pickups we are located at 45 Charles street north Coburg Melbourne Victoria 3058. Always best to call first.

      Contact through eBay message leave us your details and we will get back to you ASAP.

PH: 03 93 54 29 62.  PH: 04 17 30 37 75.


SKU MOD-016-400_3
Brand BOSCH MOTORSPORT, SNIPER PERFORMANCE
Shipping Weight 3.0000kg
Shipping Width 0.200m
Shipping Height 0.150m
Shipping Length 0.300m
Unit Of Measure ea
