FUEL PUMP PART NUMBER: F02UV0U343-01 Made in Germany by Bosch Motorsport. Exceeds specifications of SAEJ1537 Compatible with pump gas, E85, and race fuels. Carbon commutators and brushes, fully encapsulated precision balanced armature, composite turbine impeller.

BOSCH MOTORSPORT BR50, FO2UV0U343-011 750-1000 BHP TO SUIT E85, METHANOL & PUMP FUEL (PETROL).

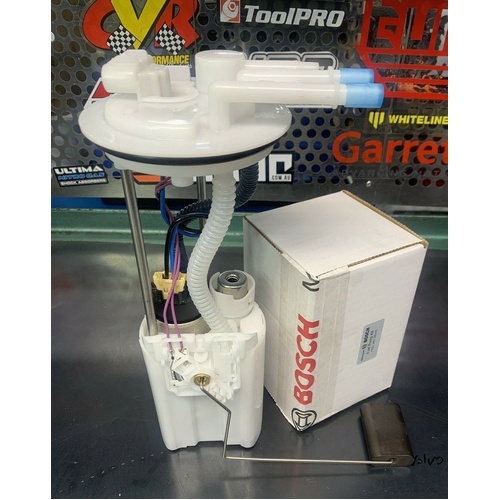

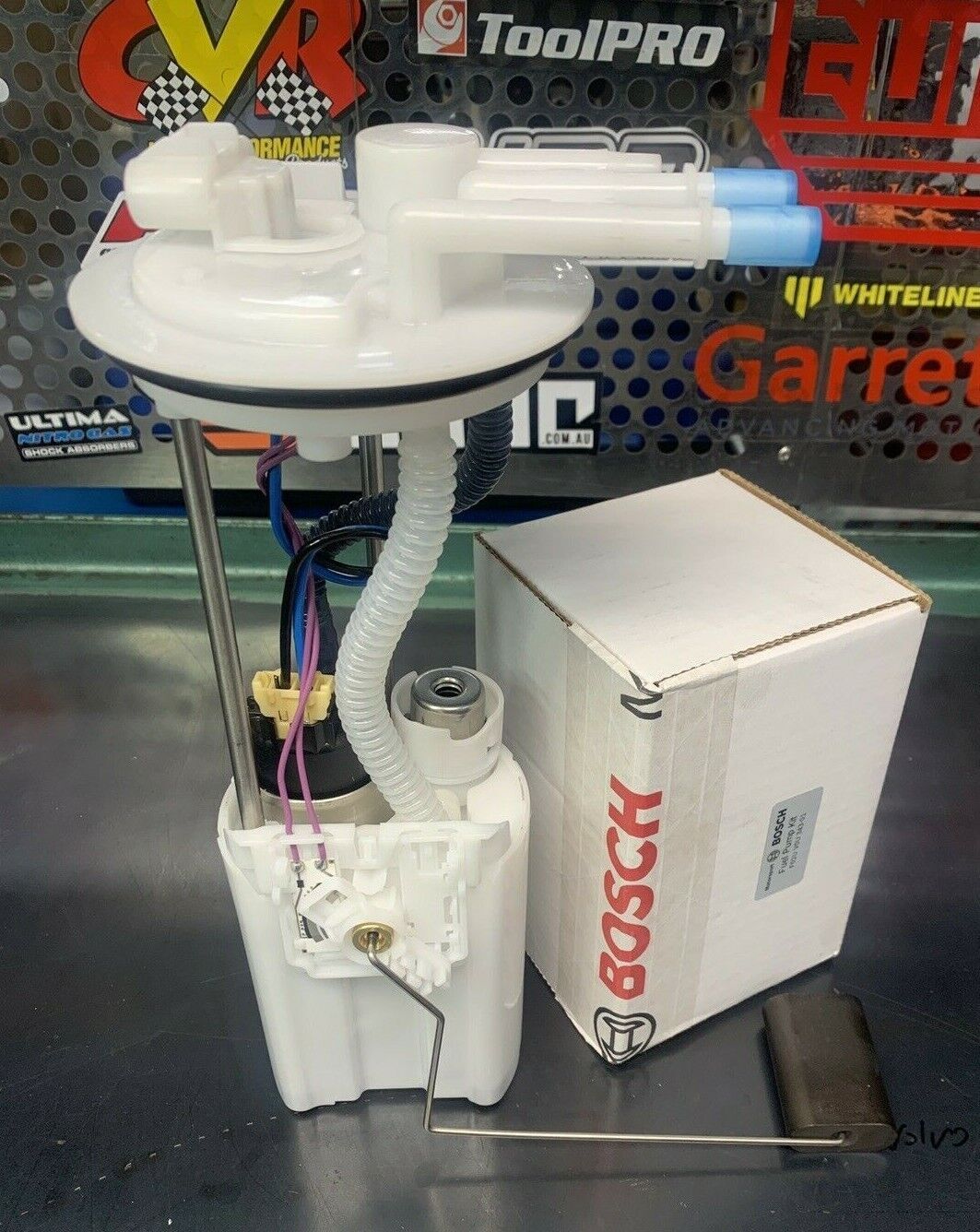

UP FOR SALE IS OUR BOSCH MOTORSPORT & SNIPER-PERFORMANCE CUSTOM BUILT FUEL PUMP ASSEMBLY TO SUIT HOLDEN COMMODORE VY V8 5.7L LS1 UTE.

FITTED WITH A BOSCH MOTORSPORT 400-LPH E85 FUEL PUMP IT ALSO SUITES PETROL.

THIS ASSEMBLY IS MADE BY SNIPER PERFORMANCE AND FITTED WITH A BOSCH MOTORSPORT 400-LPH E85 CAN SUPPORT BETWEEN 750 TO 1000-BHP BUT PLEASE CHECK WITH YOUR TUNER FOR CORRECT SIZE FOR YOUR APPLICATION.

OUR ASSEMBLY IS CUSTOM MADE THAT'S DIFFERENT IN THE SWIRL-POD AREA, MADE TO STOP SURGING UNDER EXTREME TAKE OFF'S AND AROUND CORNERS WHICH IS A COMMON PROBLEM WITH THE FACTORY SWIRL POD. AS THE FACTORY MRI UNIT DOSE NOT HAVE THE RIGHT PLUMING FOR AFTERMARKET HIGH FLOW PUMPS THAT CAUSES THEM TO SUCK AIR AND SURGE UNDER HALF A TANK OF FUEL. THIS SET UP WILL STOP THE SURGING PROBLEM BY 100%.

IT HAS BEEN RACE TRACK TESTED, 1/4 MILE, CIRCUIT AND DRIFT.

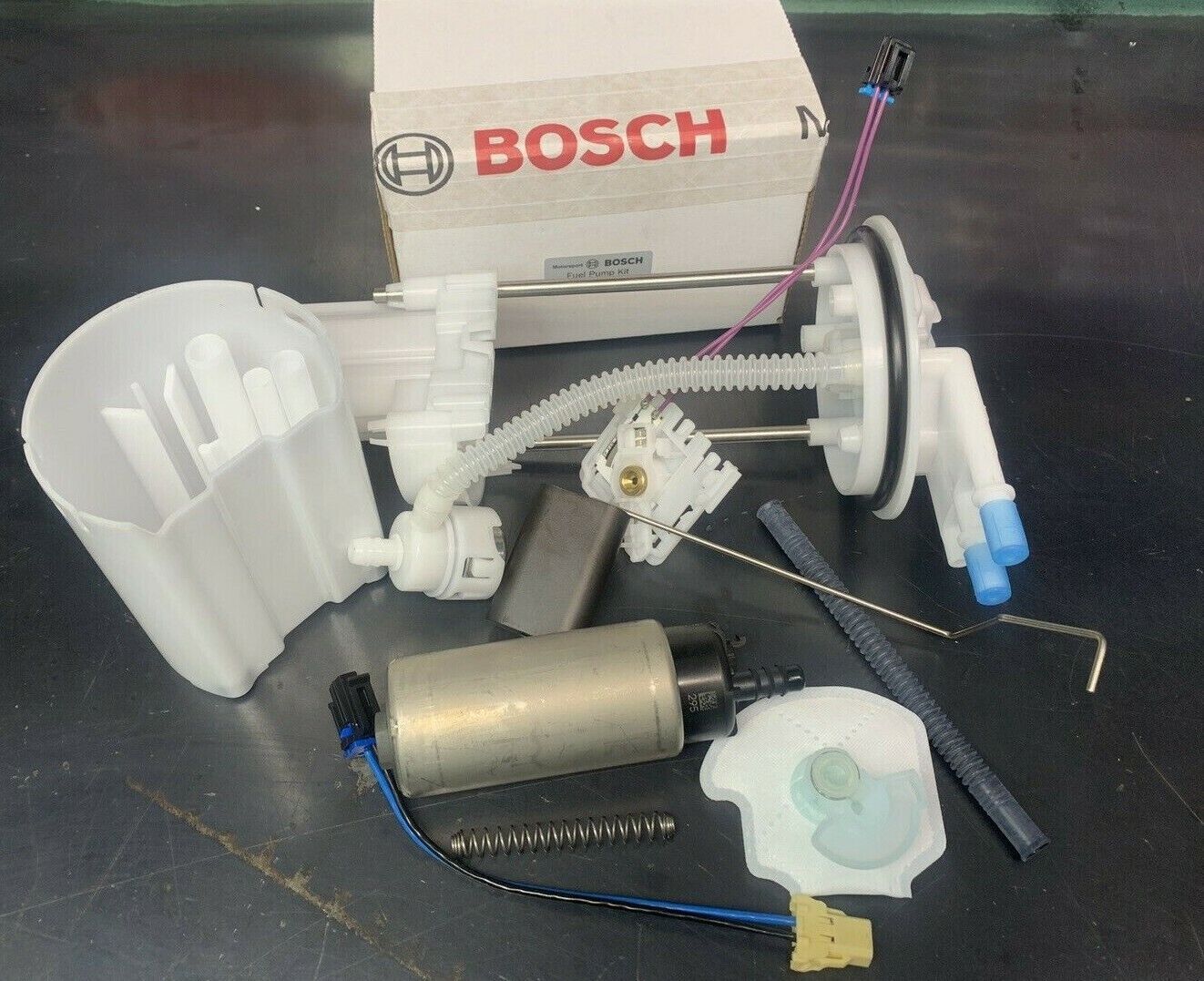

THIS ASSEMBLY CONSIST OF ONLY THE BEST OF THE BEST PARTS AVAILABLE AND HAND ASSEMBLED IN MELBOURNE.

THE ASSEMBLY IS MADE OF THE BEST DUPONT POLLIMER AVALABLE AND ITS E85 & METHANOL APPROVED.

OUR FUEL HOSES ARE RATED AT 2 TO 3 TIMES THE BURST PRESSURE OF THE FACTORY HOSES, HIGH FLOWING & ANTY STATIC.

FITTED WITH ONE PIECE WIRING LOOM WITH STAINLESS STEEL TERMINALS.

STAINLESS STEEL COMPRESSION SPRING, HOSE CLAMP & GUIDE PINS FITTED FOR NO CHANCE OF CORROSION.

HIGH MICRON HIGH FLOW DUPONT NYLONG STRAINER.

HIGH FLOW MODIFIED FUEL RETURN VALVE TO KEEP THE RETURN PRESSURE AS LOW AS POSSIBLE AND TO FILL THE SWIRL POD IN HALF THE NORMAL TIME IT WOULD USALY TAKE.

PLEASE CHECK DESCRIPTION, PART NUMBER AND VIN NUMBER BEFORE PURCHASE.

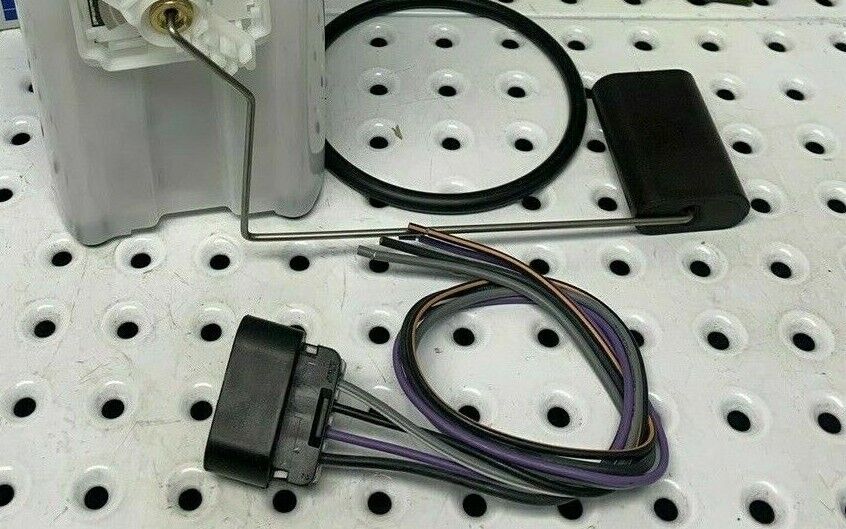

THIS UNIT IS ALSO SUPPLED WITH A NEW WIRING PLUG WITH BIGGER TERMINALS AS THE 400, 460 & 525-LPH PUMPS DRAW MORE CURENT AND WILL MELT THE ORIGINAL PLUG. IT WILL NEED TO BE REWIRED.

TO SUIT UTE ONLY.

HOLDEN COMMODORE S SS VU 12/2000-09/2002 V8 5.7L LS1 GENIII V8 2-DOOR UTE.

HSV MALOO R8 VU 03/2001-09/2002 V8 5.7L LS1 GENIII V8 2-DOOR UTE.

HSV MALOO VU 03/2001-09/2002 V8 5.7L LS1 GENIII V8 2-DOOR UTE.

OUR PART NUMBER: MOD-016A. X-REF MOD-037.

GM PART NUMBER: 92158014, 92156789.

OTHER PART NUMBERS: EFP-129, GE114.

SPECIFICATIONS. MOD-016A-400. WAS MOD-037.

FUEL PUMP PART NUMBER: F02UV0U343-01 400-LPH.

PRESSURE AND FLOW RATE: - Up to 540 l/h @ open flow, - Up to 460 l/h @ 40Psi (2.75bar), - Up to 380 l/h @ 80Psi, (5.5bar), - Up to 270l/h @ 145Psi (10.0bar). supports 750-1000 BHP at the flywheel.

VOLTS & AMP CONSUMPTION: - Draws ~16A @ 40Psi (2.75bar), ~19A @ 80Psi (5.5bar), ~24A @ 145Psi (10.0bar)

ASSEMBLY PART NUMBER: Sniper Performance MOD-013A.

ASSEMBLY HEIGHT: Base to Flange 265-mm Compressed 215-mm.

ASSEMBLY CAPACITY: POD 500-millilitres as the factory unit.

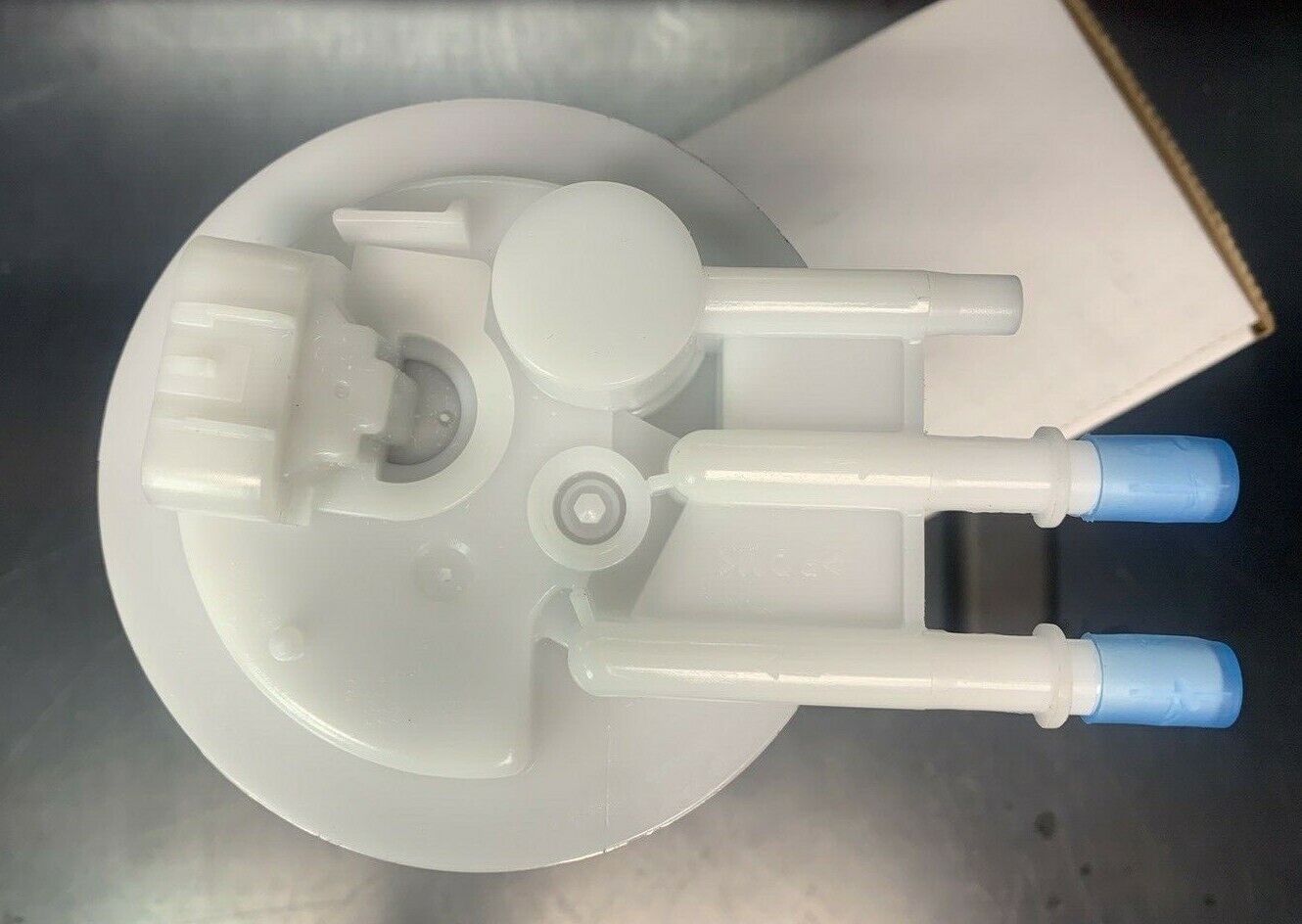

ASSEMBLY HOSE FITTINGS: Left Returnee (10-mm c-lock). Centre (8-mm c-lock) Charcoal Canister. Right (10-mm c-lock) Fuel out.

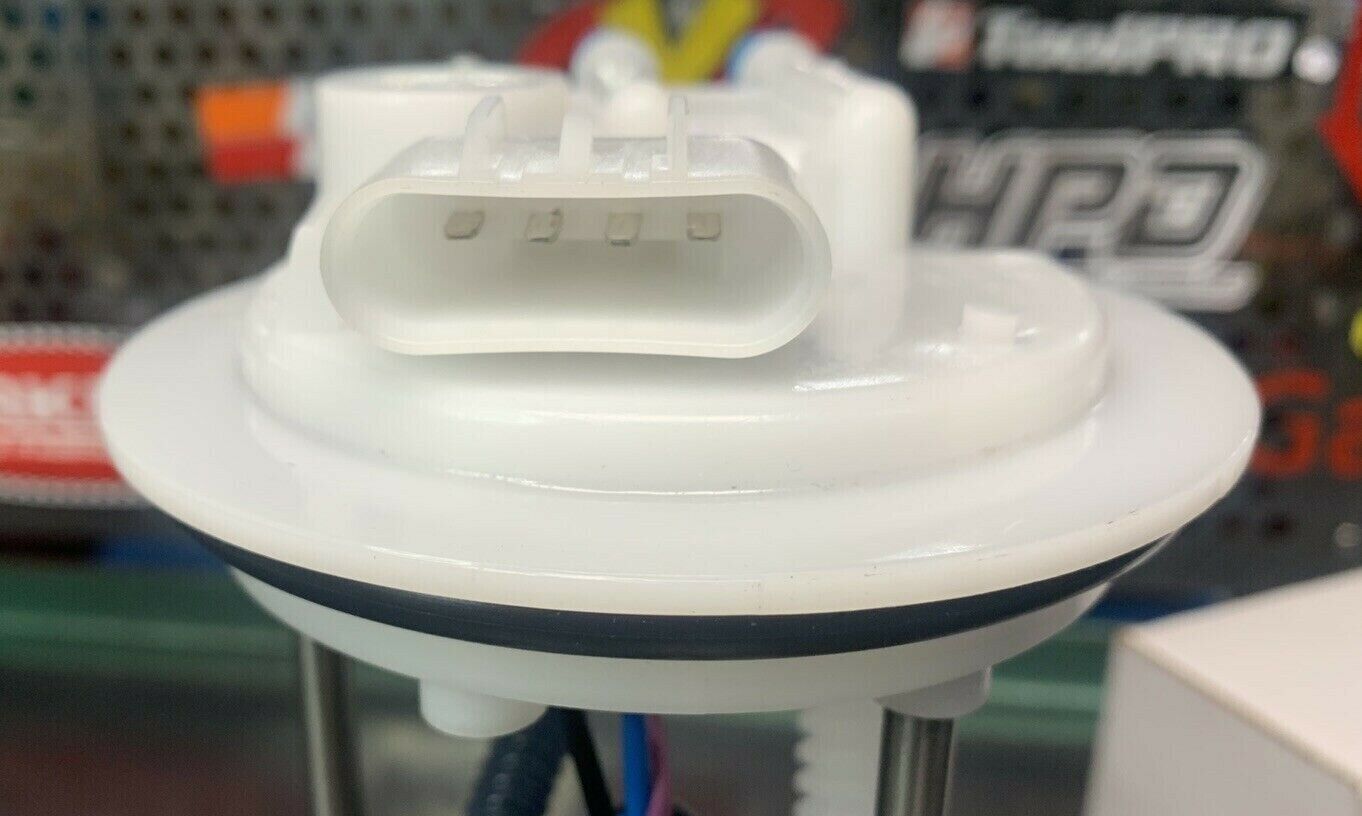

WIARING PLUG: High amp Oval side by side 4 pin 2.2-mm.

WIARING HARNEST: One piece wiring loom Delphi to Bosch with stainless steel braid and terminals.

PRESSURE HOSES: High pressure, high burst, high flow white submersible fuel hoses made in the EU, 210mm long.

FUEL GAUGE READINGS: Up-full 255-ohms -+5. Down-empty 40-ohms -+5.

WE CAN ALSO SUPPLY THIS ASSEMBLY WITH THE WALBRO 342 255-LPH, GSS352 350-LPH AND THE WALBRO E85 460-LPH, 525-LPH E85 PUMP. MESSAGE US FOR A PRICE $$$. AS ITS A CUSTOM BUILT APPLICATION WITH A NEW WIRING UPDATED PLUG.

Walbro GSS342 Fuel Pump In-Tank 255LPH High Pressure Electric – Fuelpumps.com

ALL ASSEMBLYS COME FULLY ASSEMBELD WITH ALL E85 APROUVED PARTS FITTED READY TO DROP IN.

We also sell performance and standard fuel pumps, Injectors VDO & Bosch 280cc to 2400cc, Sniper Performance Coils, Garret Turbo, Turbosmart Full Range, Vic agent for AeroFlow fittings & hoses, Crow Cams, APR bolts, K&N Air Filters, NOS Kits & Filling, Auto Meter, Intercoolers, Custom Piping, Center Line & Weld Racing Wheels, Mickie Thompson Race Tyres, Red Line Oils and many more.

Message us with your details and we will get back to you ASAP.

WE ARE ALSO WHITELINE DEALERS SO ANY SUSPENSION PARTS WE CAN HELP AT THE BEST POSIBLE PRICE.

Image result for WHITELINE

Warranty. 12 Months or 20,000 km Warranty.

Payment. We accept : Pay on Pickup, PayPal, Bank Transaction, credit card over the phone from 9 to 5 Monday to Friday Money Order as payment methods. Please use your eBay Username as a transaction reference.

Postage. Local Pickup (message us for address and pick up times) Domestic: Fixed Rate we use Couriers please, Fastway, Australia Post Regular Post and express. please contact us of which you prefer on purchase in order details ore if not we will post out with the one we think would be the best to use. International: POA, Please contact us via eBay for a quote. All items sent with tracking and insurance for lost ore damaged in transit.

Fitting services. Available in our modern and well equipped work shop.

For General Enquires: Customer Support ,technical support and bookings & pickups we are located at 45 Charles street north Coburg Melbourne Victoria 3058. Always best to call first.

Contact through eBay message leave us your details and we will get back to you ASAP.

PH: 03. 93.54. 29. 62.

PH: 04. 17. 30. 37.75.
