PLEASE NOTE WILL NEED MODIFICATIONS TO FIT MANY MODELS AND MAKES.

UP FOR SALE IS BOSCH'S NEW MOTORSPORT 750-1000 BHP FUEL PUMP E85, METHANOL & PUMP FUEL (PETROL).


WE ALSO SELL THIS PUMP IN A COMPLETE ASSEMBLY, FOR FALCON AND COMMODORE UP TO VZ, CUSTOM MADE BY SNIPER PERFORMANCE AND FITTED WITH THIS BOSCH PUMP, THAT CAN SUPPORT UP TO 1000 BHP.

 THIS ASSEMBLY IS SPECIALLY MADE WITH DuPont POLYMER TO SUIT E85, METHANOL & WILL ALSO SUIT PUMP FUEL (98 PETROL).






SPECIFICATIONS.

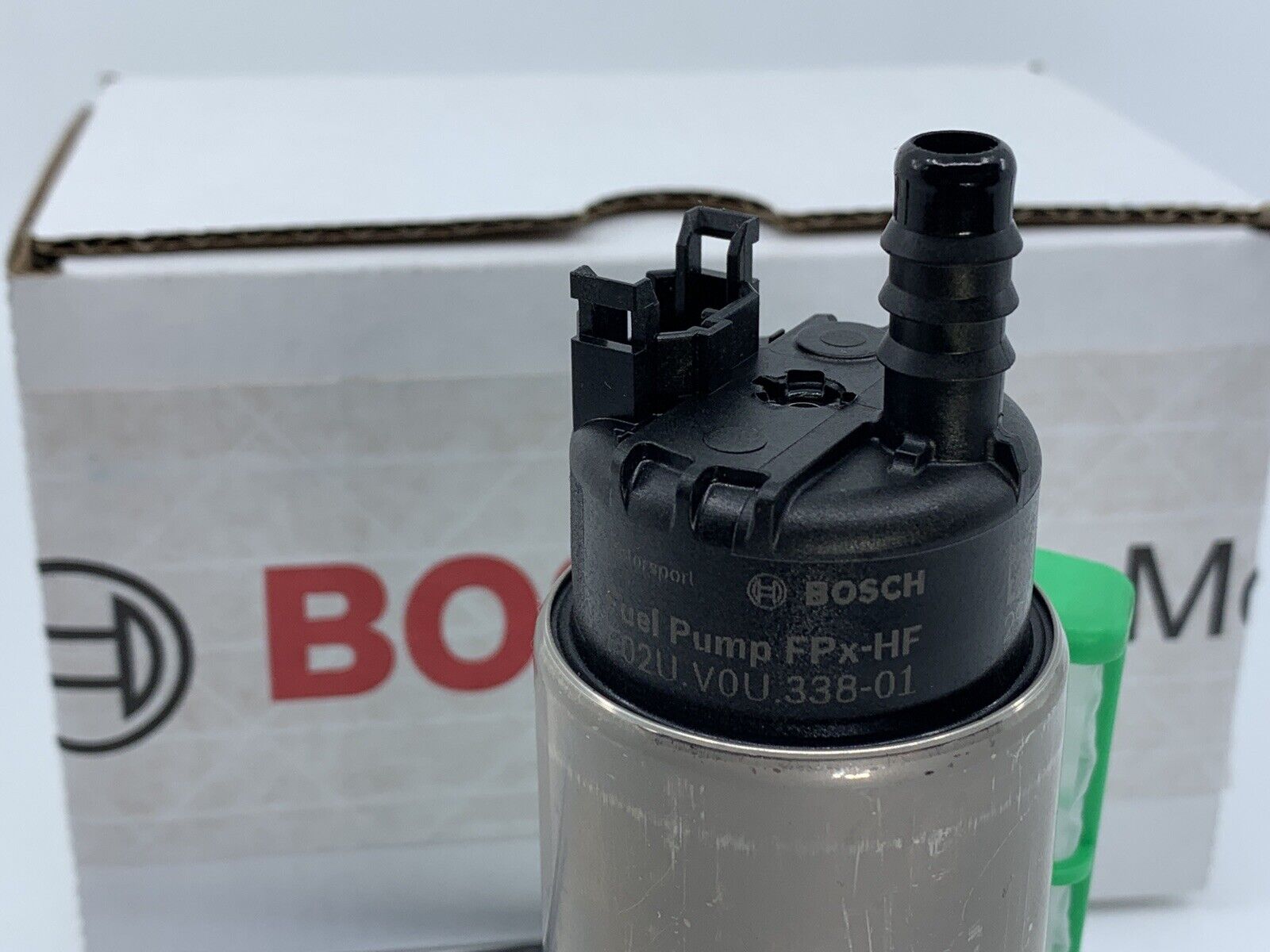

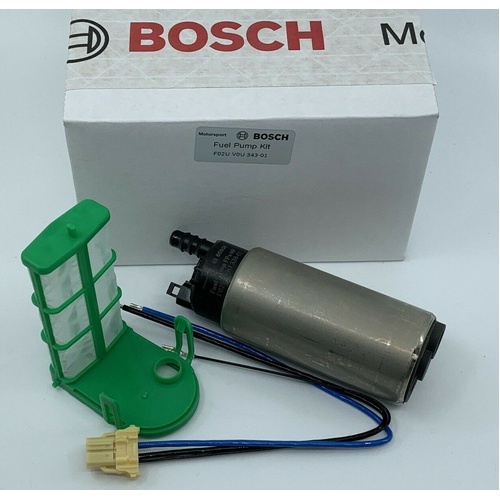

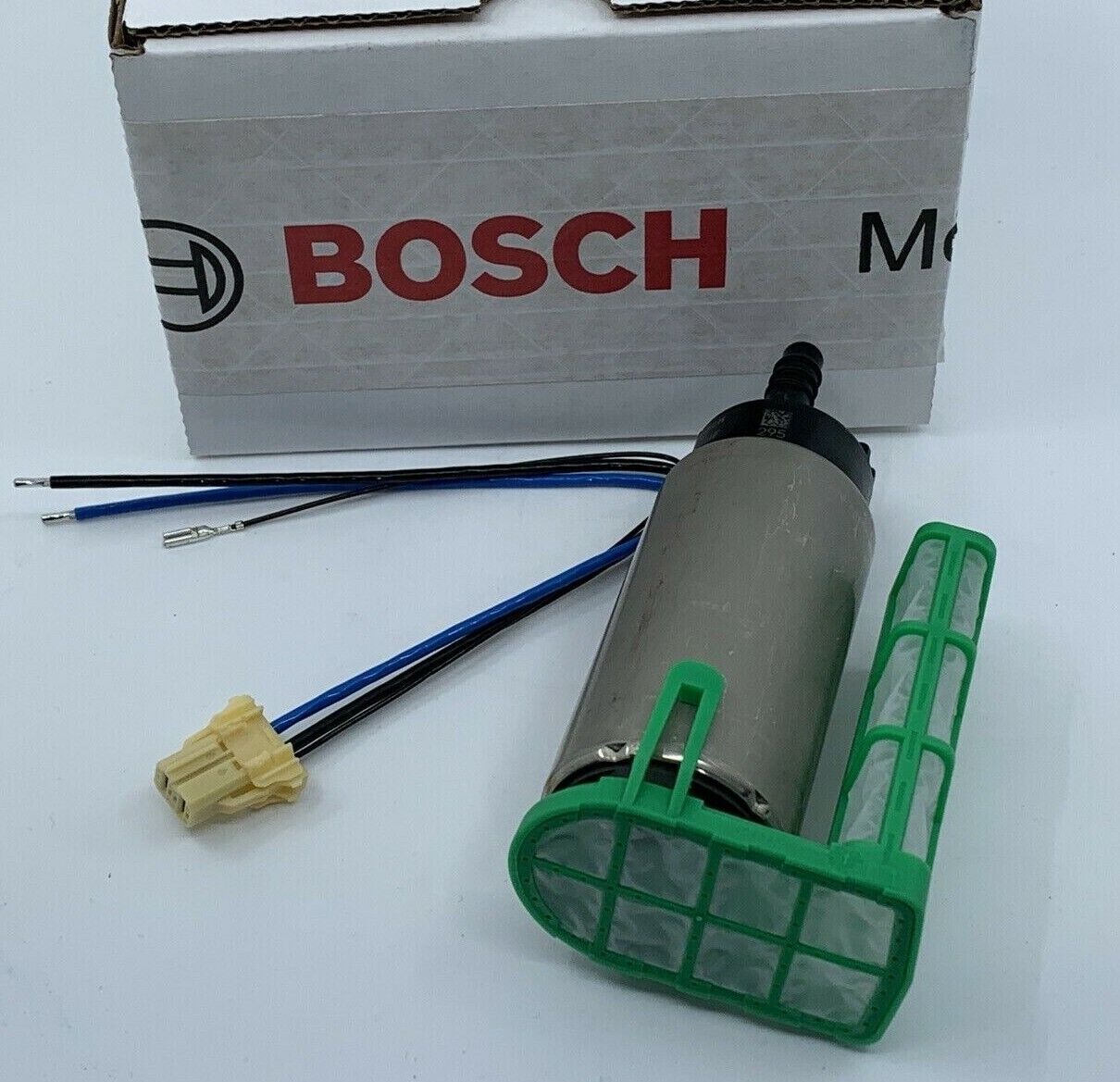

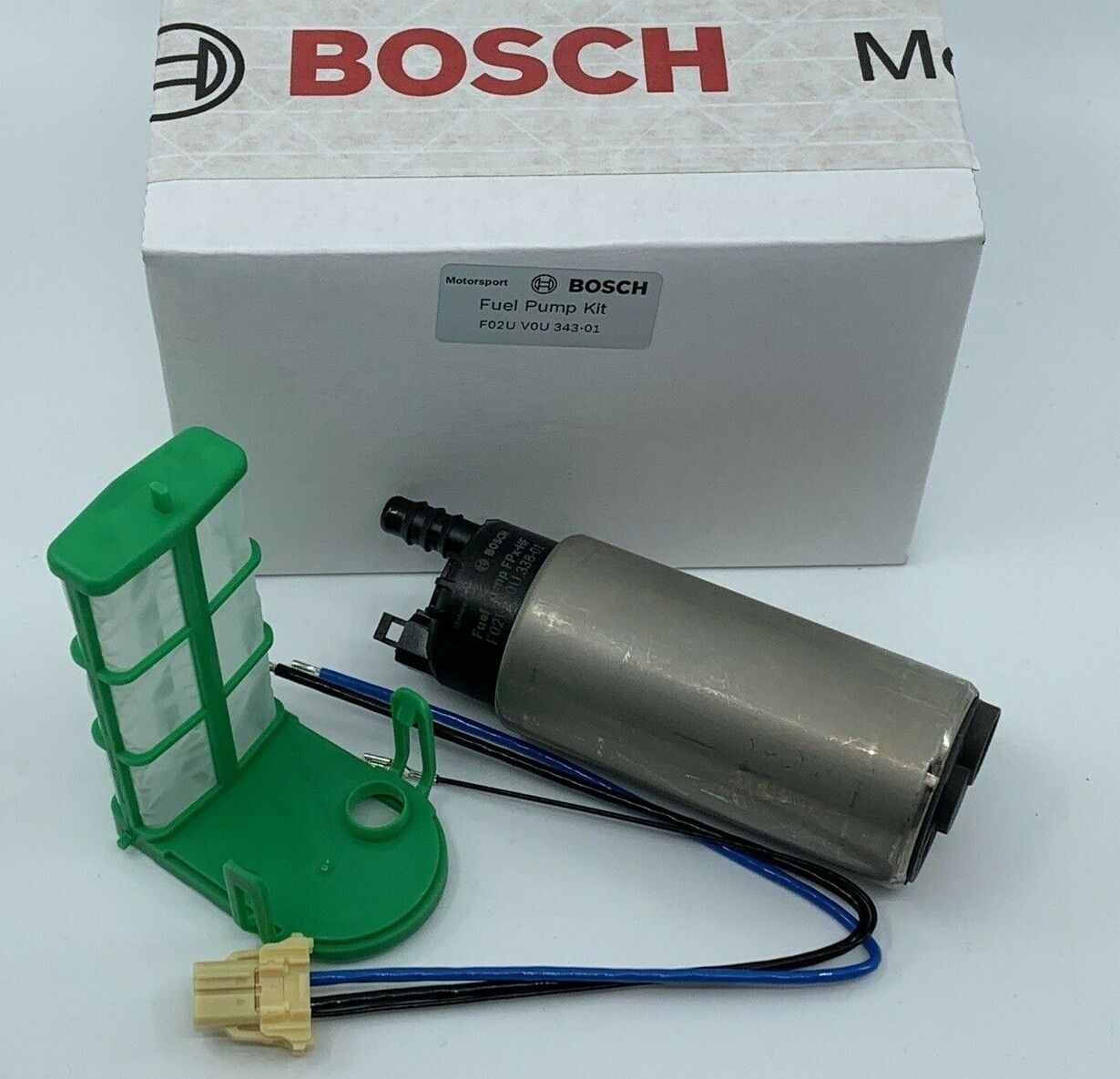

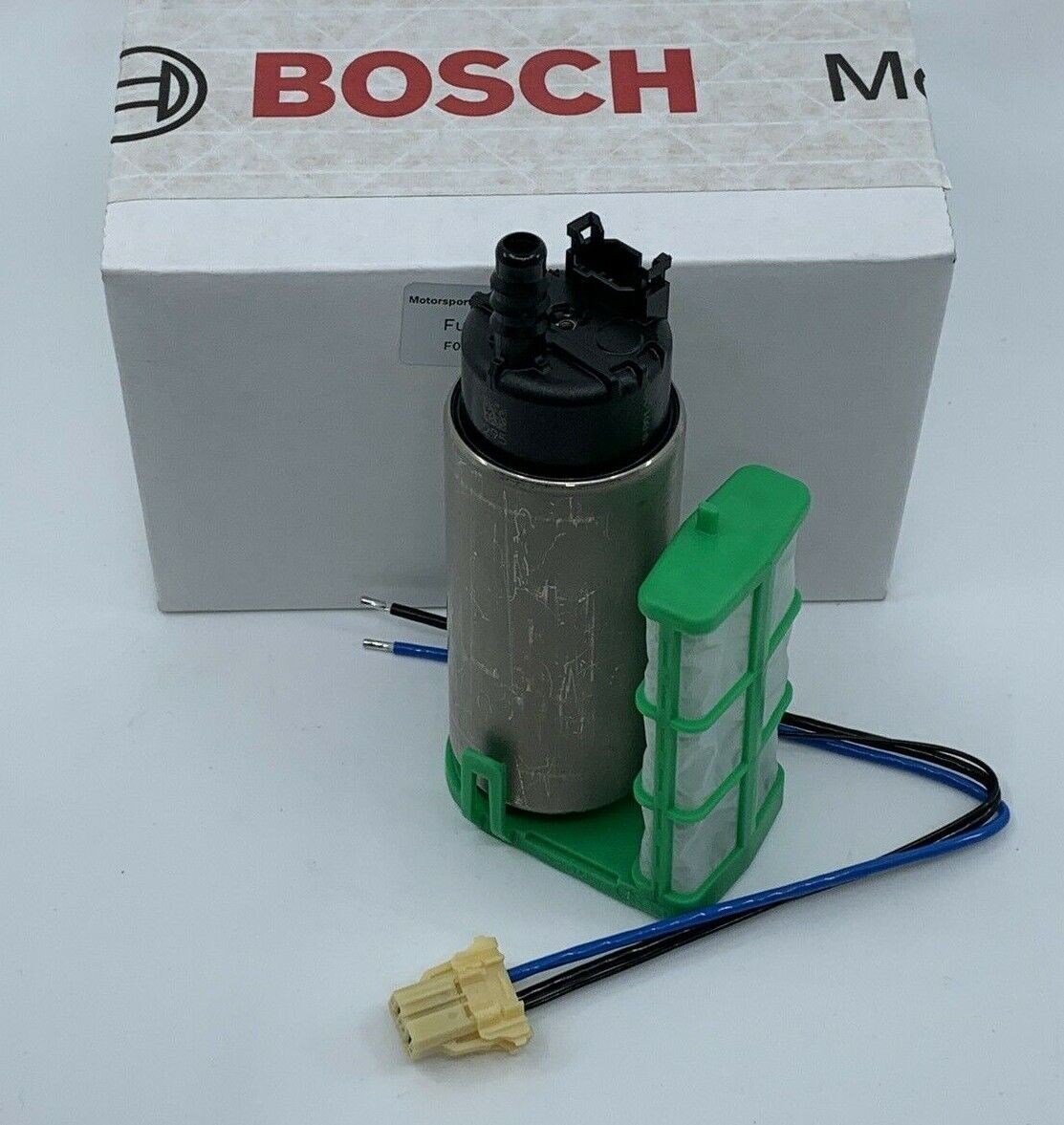

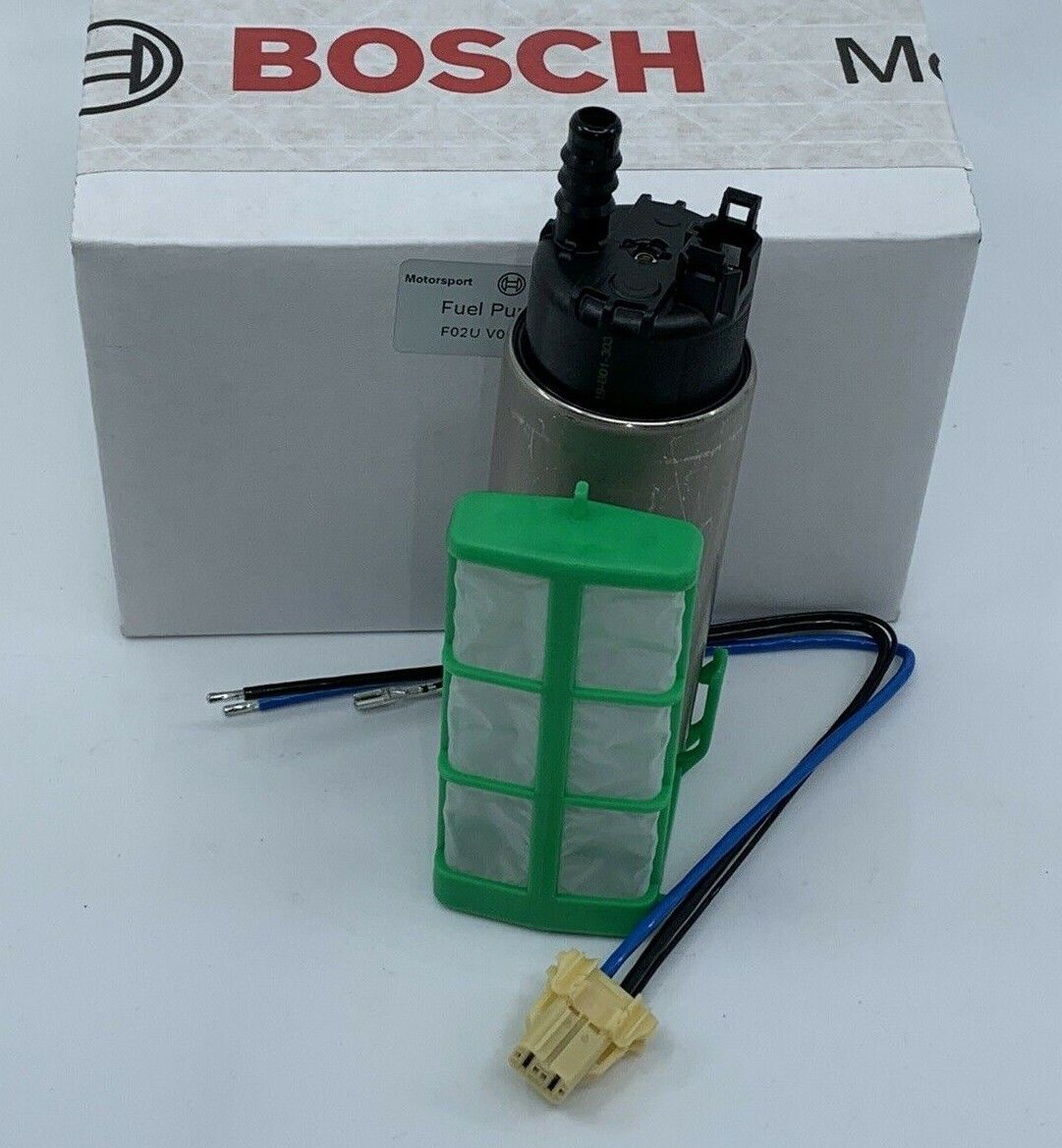

BOSCH PUMP PART NUMBER: F02UV0U343-01 Made in Germany by Bosch Motorsport. Exceeds specifications of SAEJ1537 Compatible with pump gas, e85, and race fuels Carbon commutators and brushes, fully encapsulated machine balanced armature, composite turbine impeller.

PRESSURE AND FLOW RATE: - Up to 540 l/h @ open flow, - Up to 460 l/h @ 40Psi (2.75bar), - Up to 380 l/h @ 80Psi,  (5.5bar), - Up to 270l/h @ 145Psi (10.0bar). supports 750-1000 BHP at the flywheel.

VOLTS & AMP CONSUMPTION: - Draws ~16A @ 40Psi (2.75bar), ~19A @ 80Psi (5.5bar), ~24A @ 145Psi (10.0bar)

DIMENSIONS
Pump height: Overall end to end  141-mm, Overall end to end 150-mm with filter attached, Width 46-mm, Width with filter attached 72-mm X 56-mm.

PUMP OUTLET: 9-mm & 11-mm on edge of barb, 22-mm long.
PUMP INLET: 13.5-mm inside diameter.

WIRING HARNESS: One piece wiring plug with tail, Positive lead negative lead & static earth, stainless steel braid 2-mm internal wire thickens, end to end 280-mm long.

STRAINER: High Micron high flow Nylon.

We also sell performance and standard fuel pumps, Injectors VDO & Bosch 280cc to 2400cc, Sniper Performance Coils, Garret Turbo, Turbosmart Full Range, Vic agent for AeroFlow fittings & hoses, Crow Cams, APR bolts, K&N Air Filters, NOS Kits & Filling, Auto Meter,  Inter-coolers, Custom Piping, Center Line & Weld Racing Wheels, Mickie Thompson Race Tyres, Red Line Oils and many more.

Message us with your details and we will get back to you.


For General Enquires :Customer Support ,technical support and bookings & pickups we are located at 45 Charles street north Coburg Melbourne Victoria 3058. Always best to call first.

Warranty. 12 Months or 20,000 km Warranty on Passenger  Vehicles.

Payment. We accept : Pay on Pickup, PayPal, Bank Transaction, credit card over the phone from 9 to 5 Monday to Friday & Money Order as payment methods. Please use your EBay Username as a transaction reference.

Postage. Local Pickup (message for address and pick up times)   Domestic :  Fixed Rate we use Couriers please, Australia Post (Regular Post) and express. International : POA , Please contact us via EBay for a quote.  All items sent with tracking no and insurance.

Fitting services.  Available in our modern and well equipped work shop.

For General Enquires :Customer Support ,technical support and bookings

      Contact through EBay message

Ph : (61) 03.93.54.29.62.   Ph :  04.17.30.37.75.




SKU F02UV0U34301_1
Brand BOSCH MOTORSPORT, SNIPER PERFORMANCE, ULTROTECH
Unit Of Measure ea
