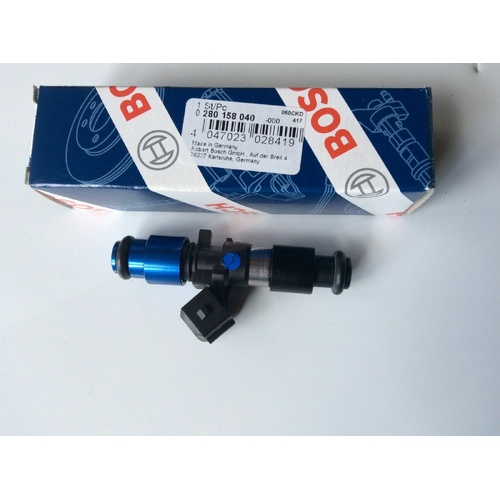

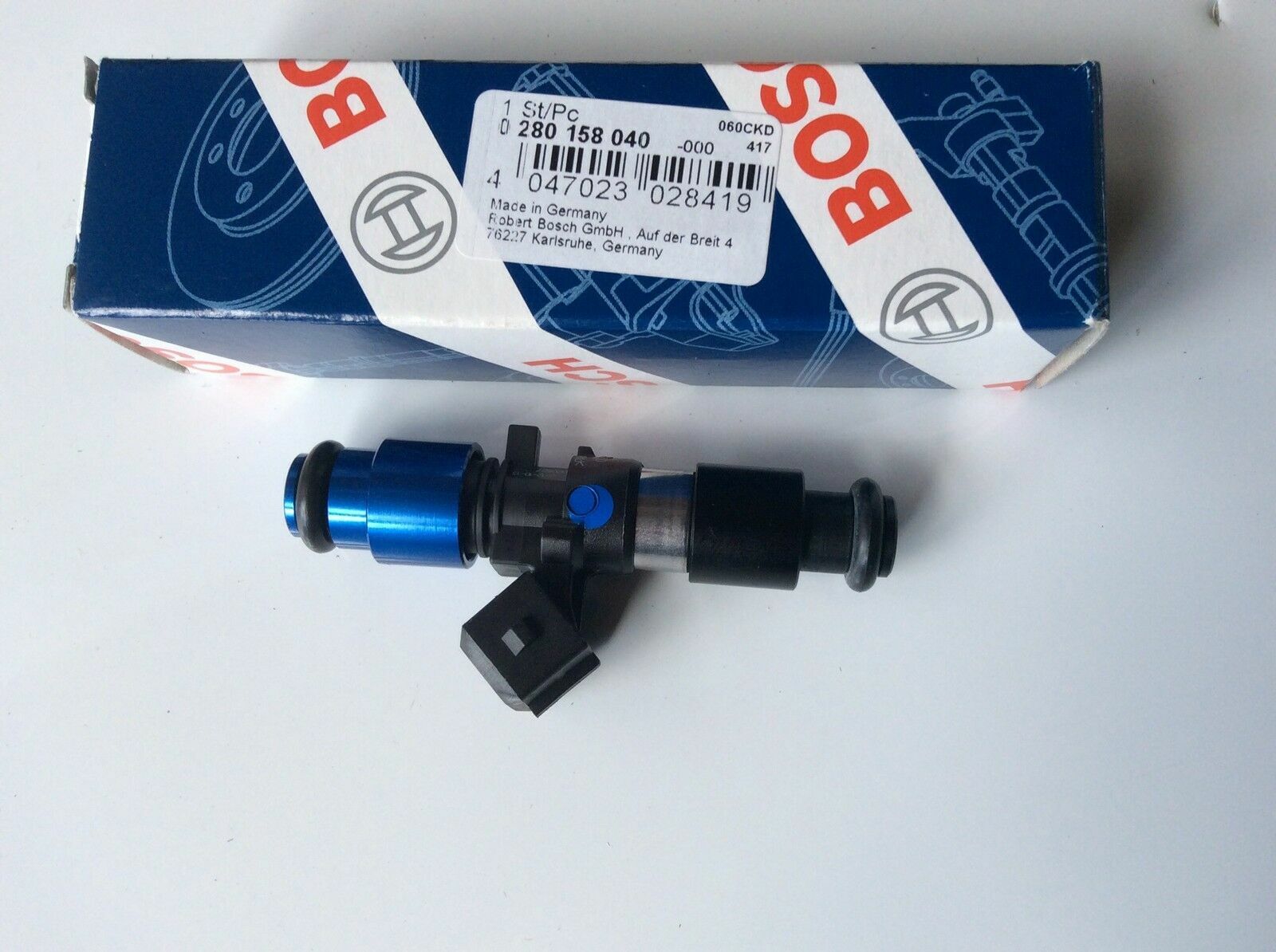

NOTE: THIS IS BOSCH'est NEWEST TECHNOLOGY GENUINE 0280158040 BOSCH EV14-LONG NOZZLE FUEL INJECTOR - UNMODIFIED TO SUIT ANYTHING THAT HAS A FULL LENGTH 14mm INJECTOR. NEW DESINE 7 HOLE INJECTOR NOSSEL.SUITS A LARGE VARIATY OF CARS SUCH AS THE HOLDEN COMMODORE VS VT VX VY VZ WITH THE LS1 5.7L ENGINE. DIRECT FIT WITH NO MODIFICATIONS. CAN BE USED BETWEEN 3 to 8 BAR OF PRESSURE, AND WILL FLOW BETWEEN 980cc to 1170cc DEPENDING ON THE PRESSURE,THE SPRAY PATERN IS ONE OF THE BEST 7 HOLE PINTAL PERFICT FOR BIG HP, LIGHTNING FAST ACCELERATION AND SMOUTH IDEL. E85 APROUVED. CAN SUPPLY 1 to 100, WIARING ADAPPTORS AND INJECTOR TOPS ALSO AVALABLE.

BOSCH LISTS THIS INJECTOR AT:
"670g/min-980cc/min at 3 BAR".
Actual flow rate is -
670g/min, 3 BAR which equates to -
980cc/min, 3 BAR,
1150-1170cc/min, 5 BAR

Injector type: EV14-LONG NOZZLE, w/internal filter
Nozzle: Exclusive 7-hole disc
Part number: 0280158040
Flow Rates: 980 cc/min-83lbs/hr at 43.5 PSI (3 bar)
Resistance: 12.8-14.5 Ohms
Voltage: 8-15 Volts, Nominal 13.5 Volts
Pressure: Min. 36 PSI (2.5 bar), Max. 116 PSI (8 bar)
Surface finish: Black composite
Connector: EV1, Minitimer
All 14 mm Viton o-rings Included for installation.

WE CAN SUPPLY THIS INJECTOR AS A 11mm TOP APLICATIONS FOR MOST TOP FEED JAP CARS.

ANY QUESTIONS PLEASE MESSAGE US.
