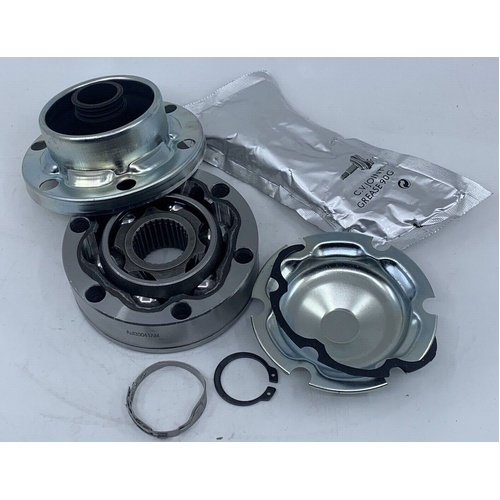

GENUINE FORD NEW REAR & CENTRE CV TO SUIT FORD FALCON BA, BF, FG FITTED WITH THE M86 DIFF, REAR & CENTRE.

ALSO USED ON BA, BF UTE XR6 TURBO & XR8 ON THE CENTER OF THE TAIL SHAFT.

THIS PART MUST BE CHECKED BY MESURMENT & SPLINE COUNT AS THERE IS NO BREAKDOWN OF WHICH ONE IS FITTED PLEASE CHECK LIST BELOW. THE 28mm INNER RACE IS VERY IMPORTAINT AS IT COULD BE EITHER 28mm CV-822 ORE 32mm CV-898.

THIS ONE LISTED IS.
  • PART NO. CV-882.

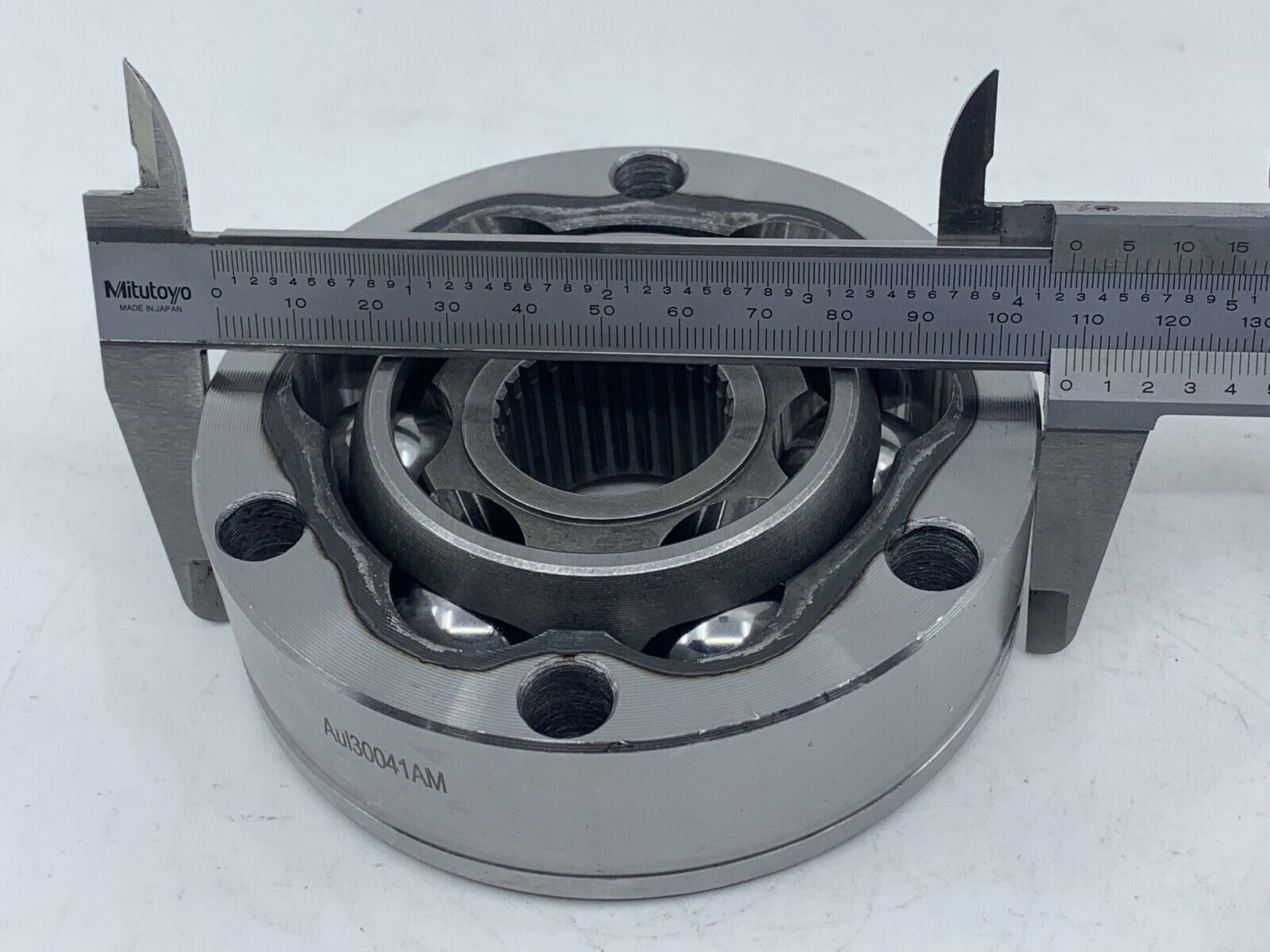

  • Outside race diameter. 108mm pic 4.
  • Number of splines. 28 pic 3.
  • Outer Race Width.  32mm pic 2.
  • Inner Race Width.  28mm pic 5.
  • Plunging  YES.
  • Bolt thickness. 10mm.

  • THE OTHERE PART NO. CV-898.
  • Outside race diameter. 108mm pic 4.
  • Number of splines. 28 pic 3.
  • Outer Race Width.  32mm pic 2.
  • Inner Race Width.  32mm. pic 5
  • Plunging  YES.
  • Bolt thickness. 10mm. pic 6.


THERE ARE ANOTHERE 2 LISTED FOR THE FORD FALCON BA BF FG BELOW.


  • THIS ONE IS PN CV-861.
  • Outside race diameter. 100mm.
  • Number of splines. 25.
  • Outer Race Width.  30mm.
  • Inner Race Width.  23mm.
  • Plunging  NO.
  • Bolt thickness. 8mm.


  • THIS ONE IS PN CV-894.
  • Outside race diameter. 100mm.
  • Number of splines. 33.
  • Outer Race Width.  34mm.
  • Inner Race Width.  23mm.
  • Plunging  YES.
  • Bolt thickness. 10mm.


Warranty. 24 Months or 20,000 km Warranty on Passenger  Vehicles.

Payment. We accept: Pay on Pickup, PayPal, Bank Transaction, credit card over the phone from 9 to 5 mon to fri & Money Order as payment methods. Please use your eBay Username as a transaction reference.

Postage. Local Pickup (message for address and pick up times) Domestic: Fixed Rate we use Various Couriers, Australia Post (Regular Post) and express. International: POA, Please contact us via eBay for a quote. All items sent with tracking no and insurance.

Fitting services.   Available in our modern and well equipped work shop.

For General Enquires :Customer Support ,technical support and bookings

      Contact through eBay message ore call.

PH: 03., 9354., 29., 62.   PH: 04., 17., 303., 775.











Posted with eBay Mobile

Posted with eBay Mobile

SKU CV-882_4
Brand Ford, Dana, Spicer.
Unit Of Measure ea
