GENUINE WALBRO E85 FUEL PUMP STRAINER 460LPH HSV FPV STI EVO RX7 RX3 R33 200SX

Click Here. Double your traffic. Get Vendio Gallery - Now FREE!
I

Part Name

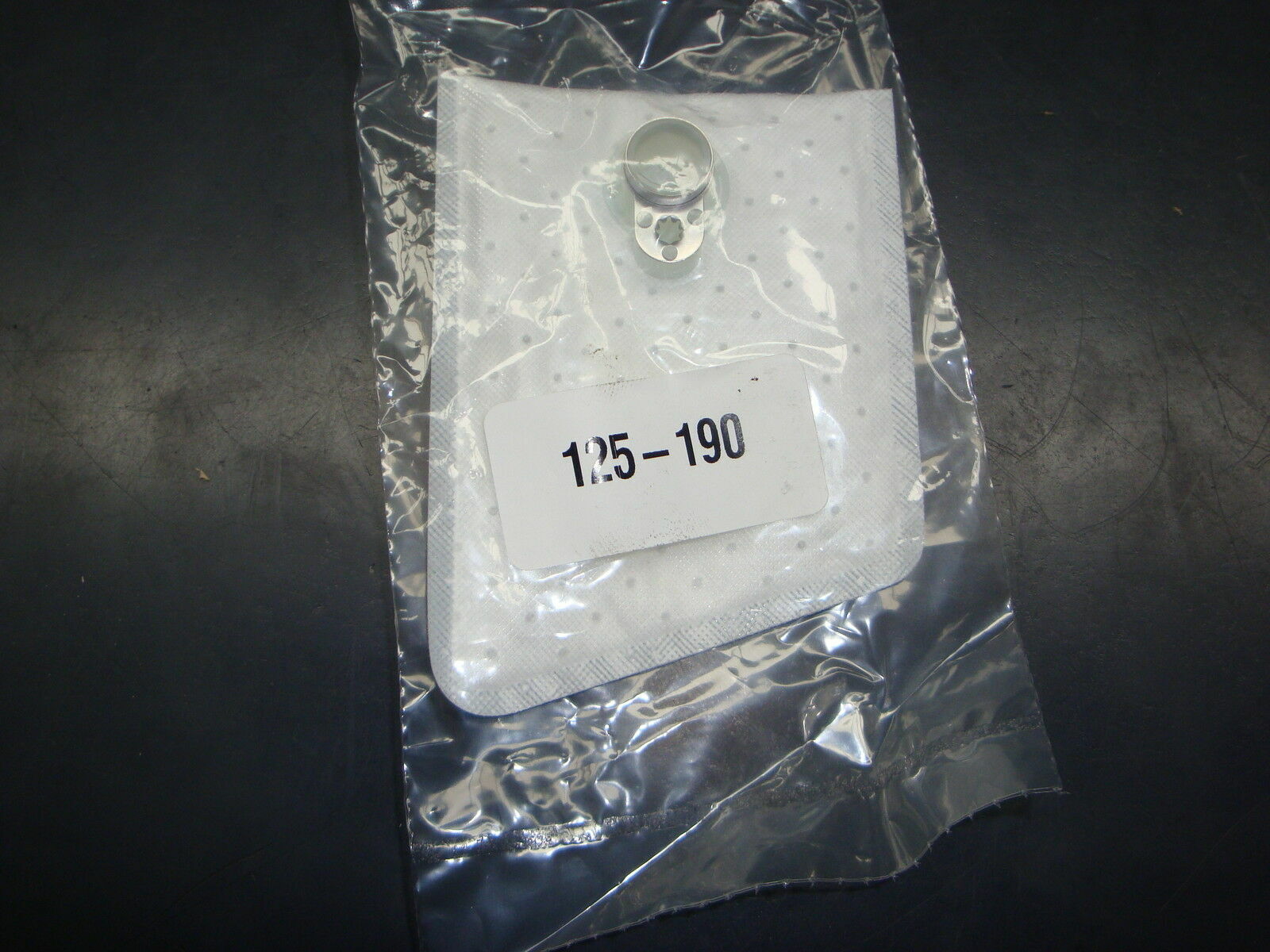

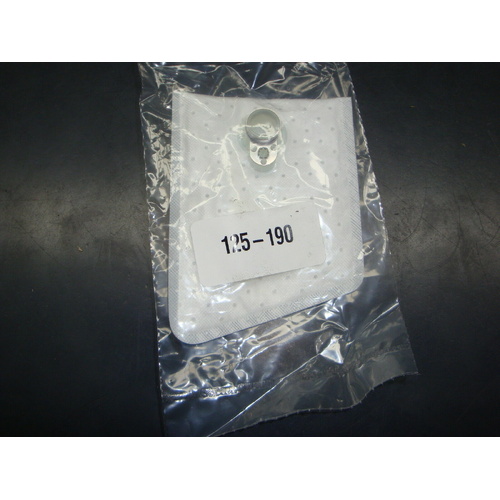

WALBRO TIA485-2 E85 Fuel Pump STRAINER

Manufacturer

WALBRO, Made in USA

Walbro Part #

TIA-WALBRO 125-190

Condition:

Brand new.

Part Description

· WALBRO TIA485-2 E85 Fuel Pump STRAINER, FILTER, FILTER SOCK,

Part Specifications

· MADE FOR Maximum flow rate = 400+litres/hour

· Support applications up to 700HP ON E85

This Sale is for The Walbro TIA485-2 460lph-E85 Fuel Pump E85 STRAINER THAT NEEDS TO BE REPLACED EVERY SIX MONTH THIS IS THE ONLY FILTER THATS MADE SPECIFIKLTY FOR E85 THAT'S CAPABLE OF SUPPLYING A STEADY FLOW OF FUEL TO THE PUMP ITS RATED AT A WHOPING 460LPH

SUITS MOST IN TANK APPLICATIONS AND SUITS MOST CARS.

Check out our store for more WALBRO pumps and fuel pump assemblies to suit a wide range of vehicles including the Ford Falcon BA BF FG & HSV WITH THE COMPLEAT WITH THE MODULE.

UPGRADE TO THE TIA485-2

---

BRAND NEW GENUINE WALBRO 460LPH E85 FUEL PUMP.

MADE IN USA. CAN SHIPS SAME DAY!

WALBRO PART # TIA485-2

**DESIGNED FOR USE WITH GASOLINE OR E85**

EXPRESS OVERNIGHT AVAILABLE WE SHIP WORLDWIDE

SPECIFICATIONS:

Part Number: Walbro TIA485-2

Condition: 100% BRAND NEW MADE IN USA

Design: Intank Turbine Style (Safe for E85)

Installation Kit Included: Yes
Flow: 460LPH
Minimum Voltage: 12V
Operating Pressure: 15-120 PSI

(final fuel pressure set by regulator)

The Walbro TIA485-2 460LPH pump is the highest flowing intank fuel pump on the market, and is E85 safe to boot. Walbro designed the pump to meet the requirements of modern turbocharged applications where a single 255LPH fuel pump is insufficient. The pump uses a turbine style design which incorporates two composite plastic blades, just like our HFP 255LPH pumps, as well as the Aeromotive 340LPH pump introduced last year. The turbine design lends itself to extremely quiet operation, especially compared to Walbro's previous "gerator" pump design that had metal gears which were notorious for a very loud whining noise which could easily be heard over even the loudest aftermarket exhaust setups.

The Walbro 460LPH pump can flow anywhere from 0-100psi (the bypass valve is set higher than Walbro's previous fuel pumps, which were around 85psi). Final fuel pressure is determined by your fuel pressure regulator. Please note that this is an aftermarket fuel pump, and some modifications may be required to get it to fit. The overal size is very similar to Walbro's previous generation GSS340/GSS341/GSS342, however the base is slightly enlarged as shown in the pictures. Please email us with any installation questions. We specialize in fuel systems, and can help out with any questions, or spare parts you may need.

Horsepower capabilities? No other intank pump on the market can come close. This pump can support over 800hp using larger than stock fuel lines. This pump can still support significantly more power than a Walbro 255LPH pump even when using stock fuel lines. Due to the higher amperage draw of this pump, a hotwire kit should be used.Which we can supply An aftermarket Fuel Pressure Regulator (FPR) is also highly recommended. We stock USA-made Phenix and other brands universal bypass regulators for EFI applications with any fittings you need (-6AN, -8AN, etc). Give us a call with any questions!

INTERNAL FUEL HOSE

PLEASE NOTE WE HAVE 2 DIFFRERENT SIZES 150mm BY 8mm ID. AND 270mm BY 8mm ID. THERE SOLD SEPERETLY AND THERE $20.00 EACH PLEASE TELL US WHICH ONE YOU NEED.

MADE IN GERMANY, THIS TWO PICE HOSE IS MADE FOR E85 ITS BURST PRESSURE IS 3 TIMES MORE THAN STANDARD HOSES, IT PREVENTS STATIC ELECTRICITY CHARGERS FROM BUILDING WHICH COULD OTHERWISE CAUSE A CATASTROPHIC SPARK IN AN EXPLOSIVE ENVIRONMENT.CONDUCTIVE FUEL LINES DELIVER SAFETY, DISSAPATING STATIC ELECTRICITY WHILE BELOW DANGEROUS LEVELS, IMPROVE THE SAFETY OF YOUR FUEL LINE APPLICATIONS, ESPECIALLY WHEN USING ETHONOL MIXED FUELS.

OTHER HOSES WE HAVE IN STOCKG

PLEASE IF YOU NEED IT IN 3/8 id MESSAGE US ONCE ITS PAID FOR AS WE WOULD NORMALY BE SENDING OUT THE 5/16 id.

PLEASE NOTE THIS HOSE COMES IN 5/16 and 3/8 Id AND IS SOLD IN ONE METRE LENGTHS THATS $25.00 PER METERE ALSO AVALABLE AEROFLOW FUEL FITTINGS THAT ARE MADE TO SUIT E85 IF YOU GO TO THE Aeroflow web site for part numbers at - aeroflowperformance.com - GIVE US THE PART NUMBERS AND WE WILL NOT BE BEATEN ON PRICE ON ALL AIROFLOW PRODUCTS. AND WE ALSO ARE A AUSTRALIAN AGENT FOR WALBRO/TI INDUSTRIES WICH IS THE LEADING FUEL PUMP MANUFACTURE IN E85 APPROVED PERFORMANCE FUEL PUMPS

Check out our store for more WALBRO pumps and fuel pump assemblies to suit a wide range of vehicles including the Ford Falcon FG.

We also sell a huge range of genuine and aftermarket parts including standard and performance injectors, fuel pumps, suspension and steering parts at the best prices. Check out our store for all your auto parts needs.
