HSV WALBRO GSS341 255LPH PERFORMANCE FUEL PUMP COMMODORE VY MALOO R8 5.7L LS1

Image result for walbro performance fuel pumps

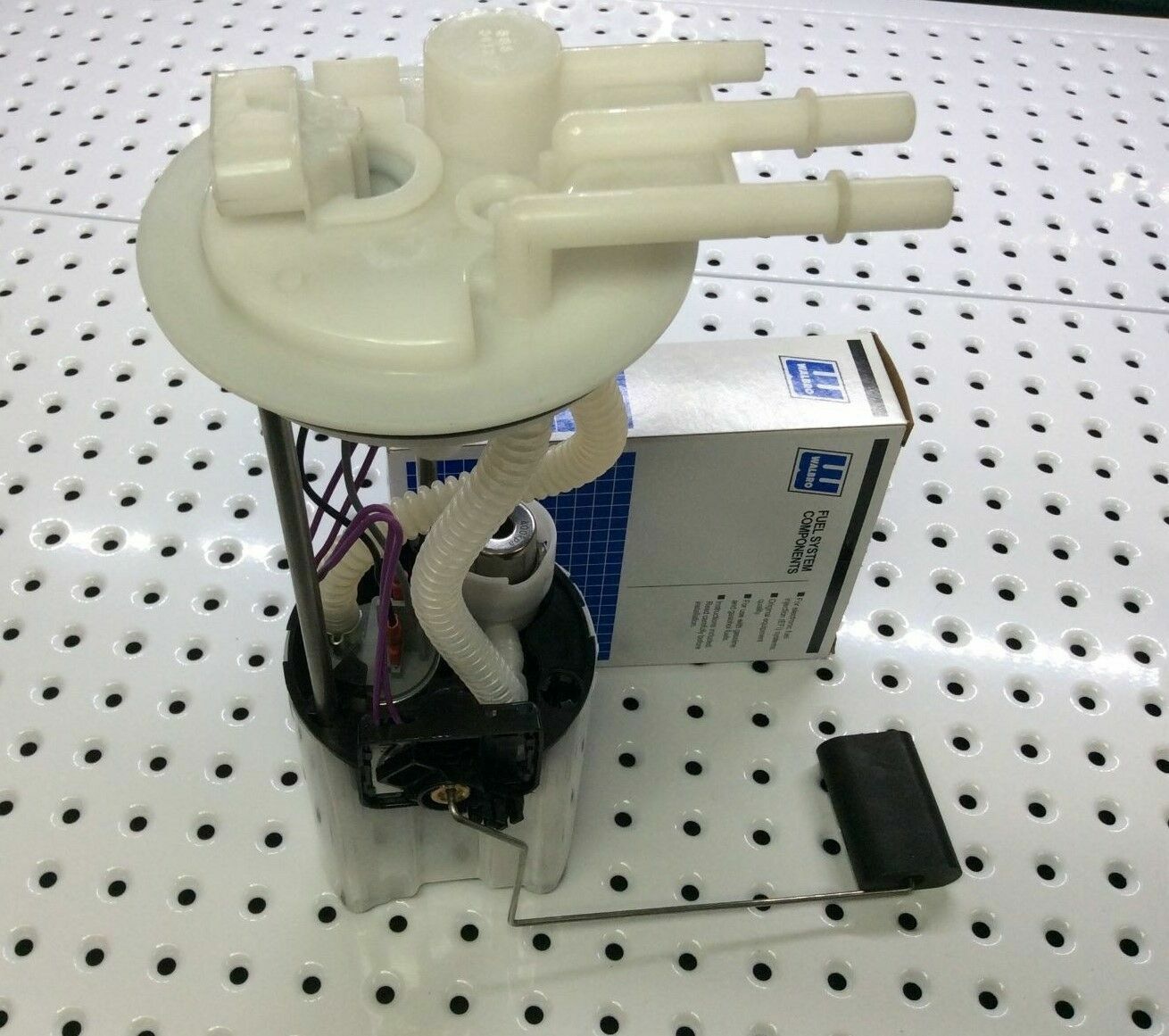

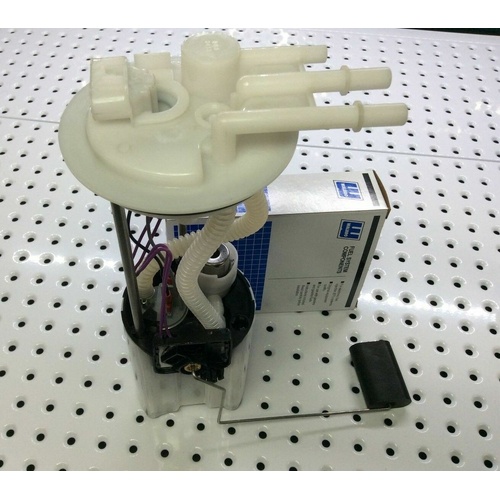

UP FOR SALE IS OUR SNIPER-PERFORMANCE & WALBRO CUSTOM BUILT FUEL PUMP ASSEMBLY TO SUIT HOLDEN COMMODORE VY UTE.

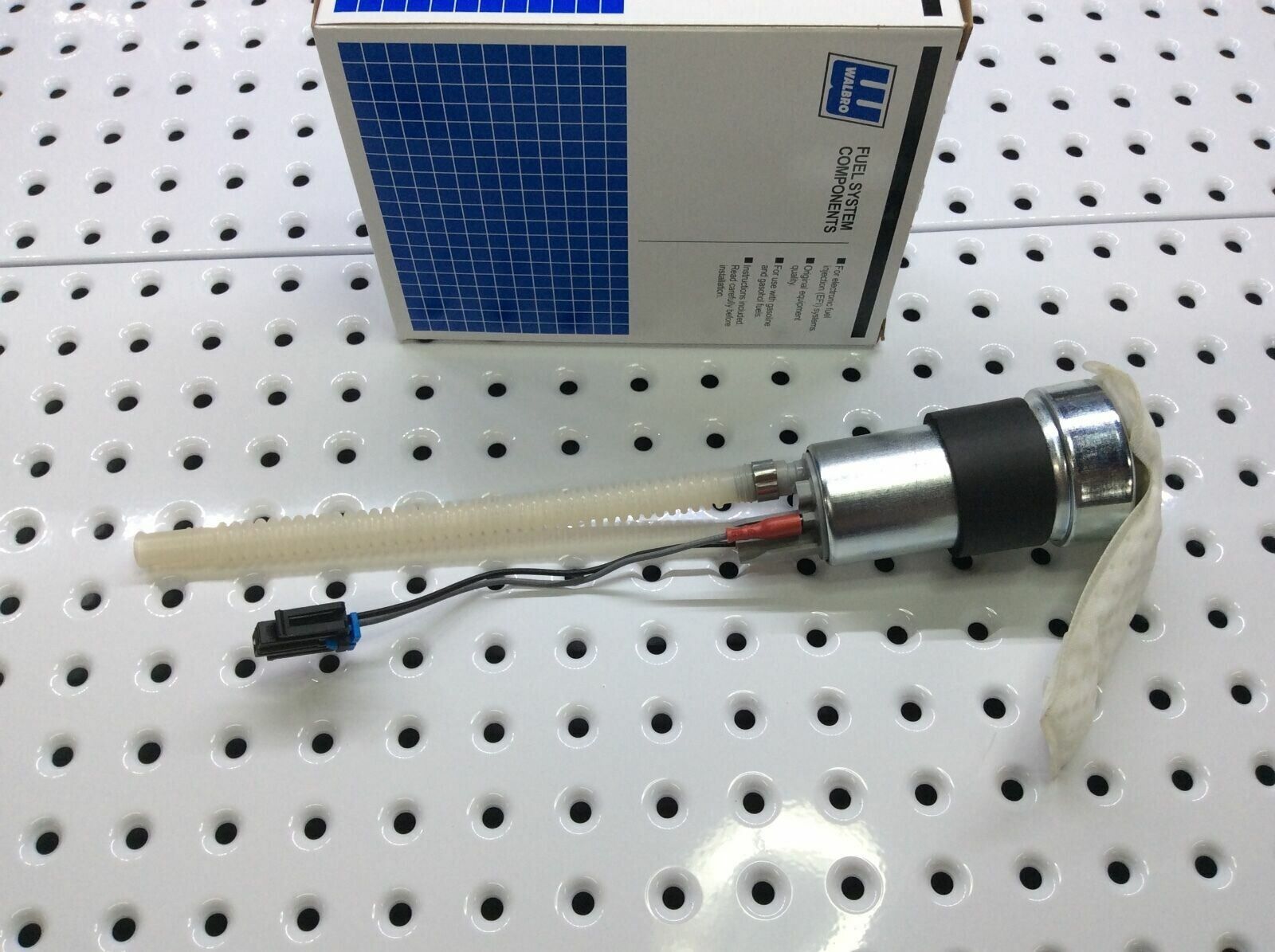

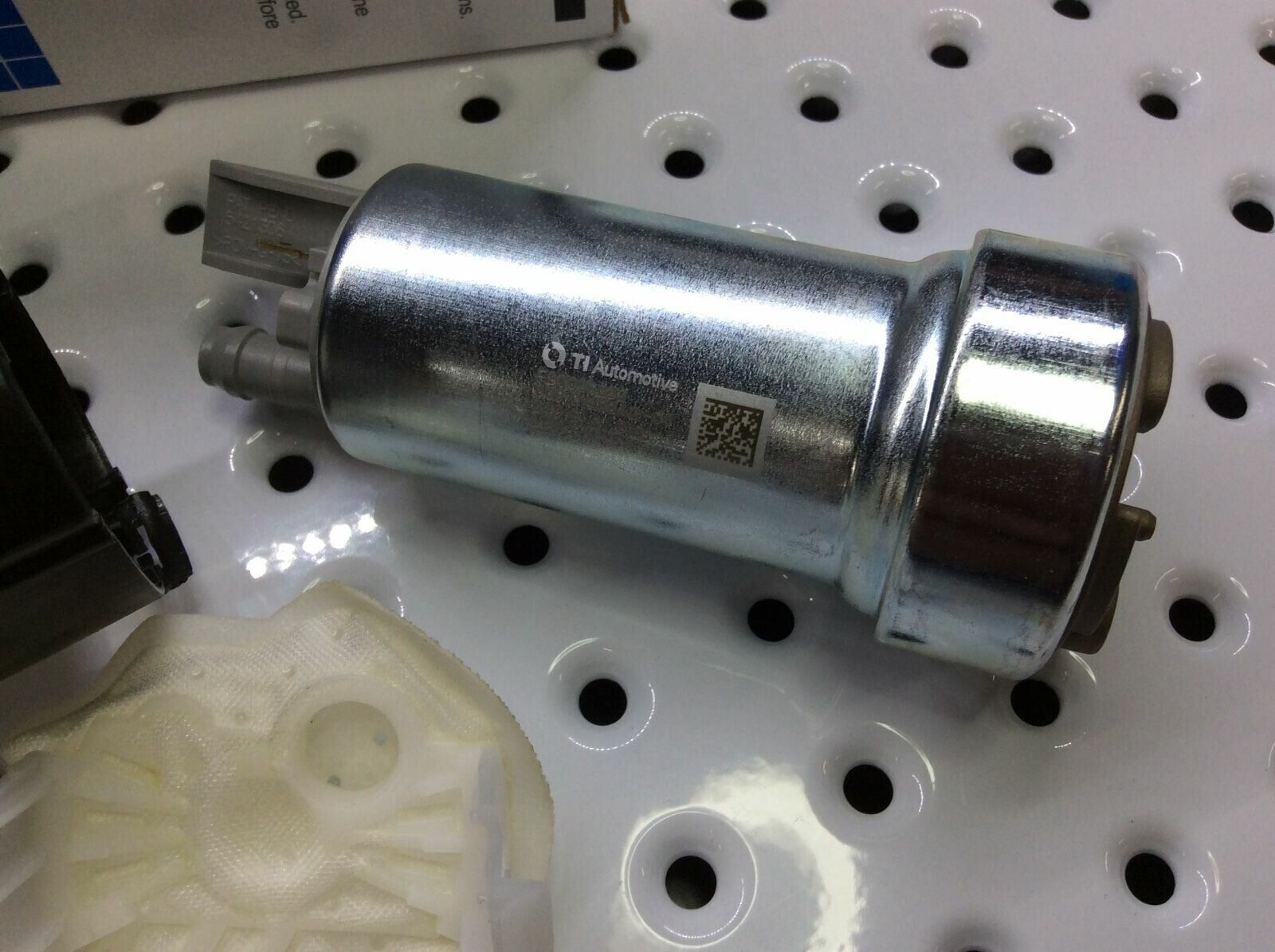

FITTED WITH A WALBRO GSS341 550-BHP 255LPH suits (PUMP FUEL (PERTOL) ONLY NON E85 WITH THIS PUMP.

THIS ASSEMBLY IS CUSTOM MADE BY SNIPER PERFORMANCE AND FITTED WITH A GENUINE WALBRO 255-LPH GSS341 AND CAN SUPPORT UP TO 550 BHP.

GENUINE WALBRO MADE IN THE USA.

OUR ASSEMBLY IS CUSTOM MADE IN THE SWIRL-POD AREA MODIFIED TO STOP SURGING UNDER EXTREME TAKE OFFS AND AROUND CORNERS WHICH IS A COMMON PROBLEM WITH THE FACTORY SWIRL POD.

STOPS THE SURGING PROBLEM BY 100%.

IT HAS BEEN DYNO TESTED & RACE TRACK TESTED 1/4 MILE, CIRCUIT AND DRIFT.

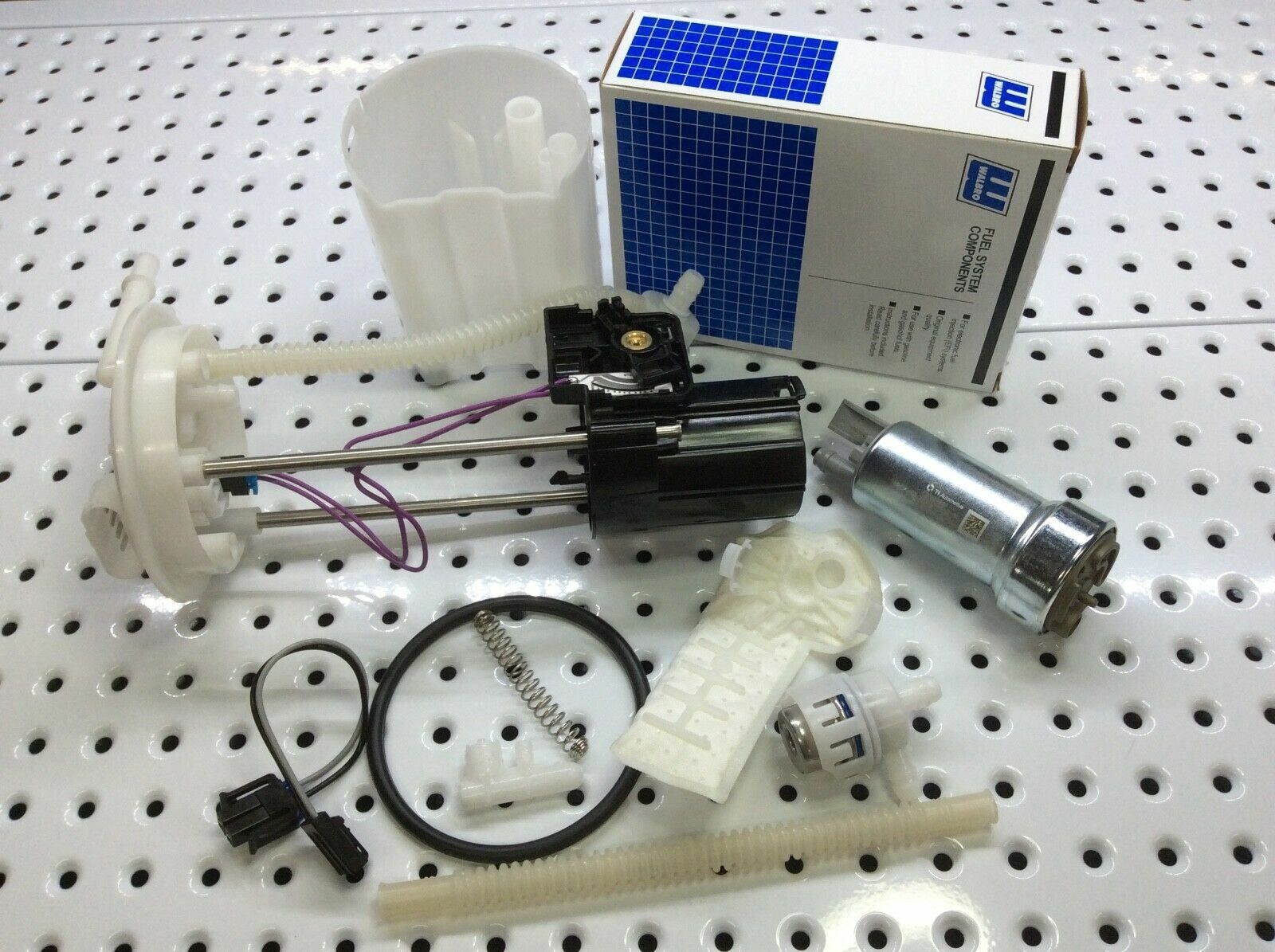

THIS ASSEMBLY CONSIST OF ONLY THE BEST OF THE BEST PARTS AVAILABLE AND HAND ASSEMBLED IN MELBOURNE. THE ASSEMBLY IS MADE OF THE BEST POLLIMER AVALABLE AND ITS E85 & METHANOL APPROVED.

WE ARE THE ONLY ONES THAT OFFER ASSEMBLY WITH A SPECIAL CLIP LOCK PUMP RETANER THAT MOUNTS THE PUMP 10mm ABOVE THE BOTTOM OF THE SWIRL POD THIS KEEPS THE FILTER-STRAINER CLEAN AND ALLOWS THE PUMP ITS FULL POWER POTENTIAL. ALSO KEEPS THE PUMP QUIETER WITH NO CHANCE OF MOVING AROUND OR COMING LOOSE.

THE FUEL HOSES USED IN THIS ASSEMBLY ARE MADE IN THE EU THE WHITE HOSES ARE RATED AT TWICE THE BURST PRESSURE OF THE FACTORY HOSE AND IS A HIGH FLOW.

ONE PIECE WIRING PLUG (NO JOINS) WITH STAINLESS STEEL BRAID & TERMINALS.

STAINLESS STEEL COMPRESSION SPRING & GUIDE PINS FITTED FOR NO CHANCE OF CORROSION.

HIGH MICRON HIGH FLOW NYLONG STRAINER.

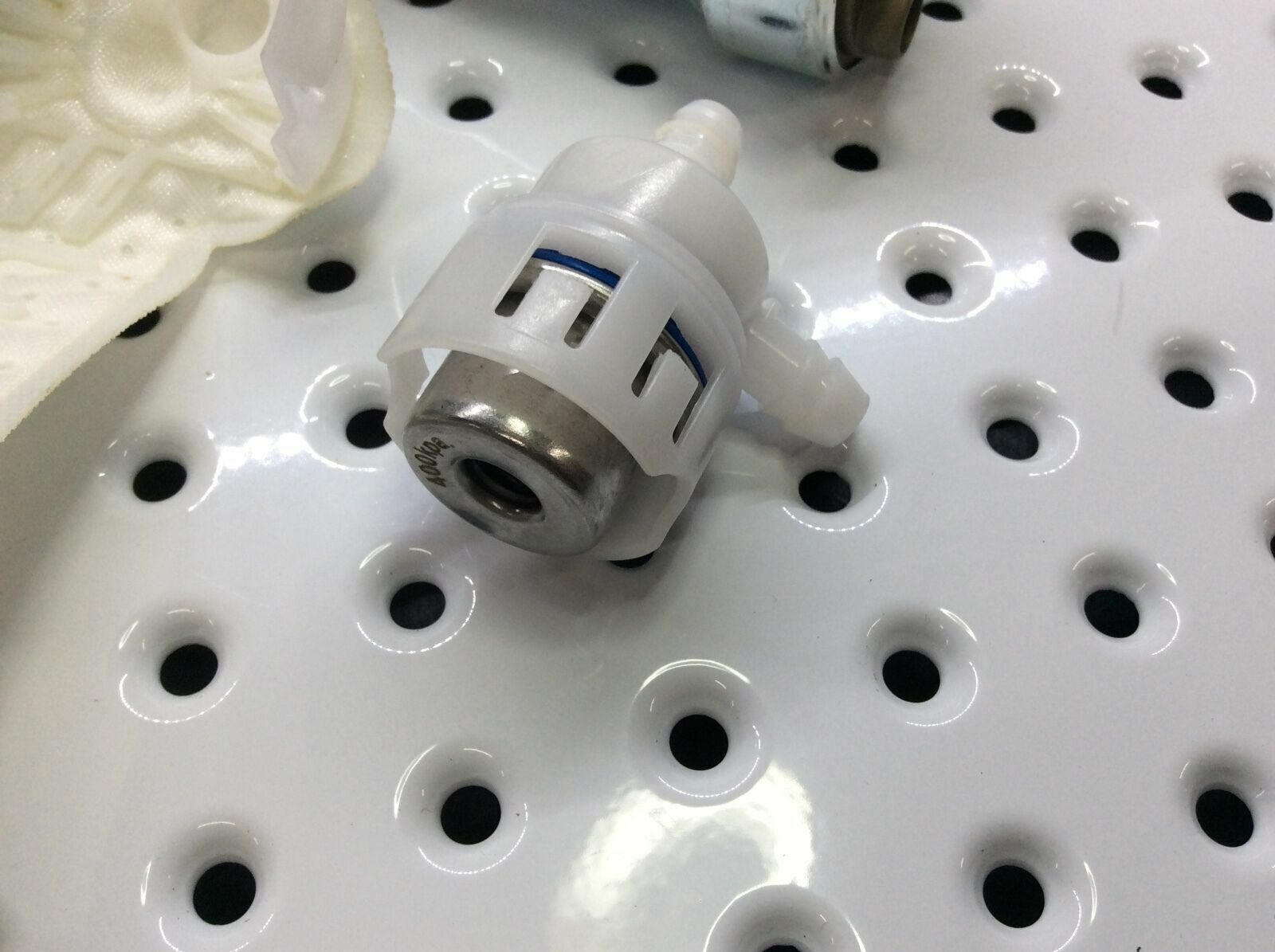

HIGH FLOW, MODIFIED FUEL RETURN VALVE TO KEEP THE RETURN PRESSURE LOW AND TO FILL THE SWIRL POD IN HALF THE NORMAL TIME IT WOULD USALY TAKE.

HIGH FLOW FUEL PRESSURE REGULATOR FITTED TO THIS ASSEMBLY.

SUITS

COMMODORE S UTE VY 09/2002-07/2004 V8 5.7L, LS1 GENIII. UP TO VIN NUMBER 4L156715.

COMMODORE SS UTE STYLESIDE VY 08/2003-07/2004 5.7L V8, LS1 GENIII UP TO VIN NUMBER 4L156715.

COMMODORE MALOO UTE VY 08/2003-07/2004 5.7L V8, LS1 GENIII UP TO VIN NUMBER 4L156715.

COMMODORE MALOO R8 UTE VY 08/2003-07/2004 5.7L V8, LS1 GENIII UP TO VIN NUMBER 4L156715.

MOD-016-A

SPECIFICATIONS.

FUEL PUMP PART NUMBER: WALBRO 255-LPH GSS342.

PRESSURE AND FLOW RATE: 255-LPH AT 3-BAR 43.3-PSI 12.5-V supports up to 550-BHP.

ASSEMBLY PART NUMBER: SNIPER PERFORMANCE MOD-016-A-255

ASSEMBLY HEIGHT: BACE TO FLANGE 265-mm COMPRESSED 215-mm.

ASSEMBLY CAPACITY: POD 500-millilitres as the factory unit.

ASSEMBLY HOSE FITTINGS: Left Returnee (10-mm c-lock). Centre (10-mm c-lock) Fuel out. Right blocked.

WIARING HARNEST: One piece wiring loom Delphi to Walbro with stainless steel braid and terminals.

PRESSURE HOSES: High pressure, high burst, high flow white submersible fuel hoses made in the EU, 210mm long.

FUEL GAUGE READINGS: Up-full 40-ohms. Down-empty 255-ohms.

The Walbro GSS-341 255LPH pump is one of the most popular high flowing in-tank fuel pump on the market, Walbro also make a 400lph and a 460lph that's suits E85, Methanol and Petrol. Walbro designed the pump to meet the requirements of modern turbocharged & H-Performance applications where factory fuel pump is insufficient.

HSV-WALBRO-GSS341-255LPH-PERFORMANCE-FUEL-PUMP-ASSEMBLY-COMMODORE-VZ-UTE-5-7L

WE CAN ALSO SUPPLY THIS ASSEMBLY WITH THE WALBRO F90000274 700-BHP 400LPH PUMP FUEL & THE WALBRO TIA485-2 750+BHP 460LPH E85 PUMP. MESSAGE US FOR A PRICE $$$. ALL CUSTOM APPLICATIONS WILLING WELCOME TO BUILD.

COMES FULLY ASSEMBELD WITH ALL E85 APROUVED PARTS FITTED

We also sell performance and standard fuel pumps, Injectors VDO & Bosch 280cc to 2400cc, Sniper Performance Coils, Garret Turbo, Turbosmart Full Range, Vic agent for AeroFlow fittings & hoses, Crow Cams, APR bolts, K&N Air Filters, NOS Kits & Filling, Auto Meter, Intercoolers, Custom Piping, Center Line & Weld Racing Wheels, Mickie Thompson Race Tyres, Red Line Oils and many more.

Message us with your details and we will get back to you ASAP.

For General Enquires :Customer Support, technical support and bookings & pickups we are located at 45 Charles street north Coburg Melbourne Victoria 3058. Always best to call first.

Contact through EBay message leave us your details and we will get back to you ASAP.

ALL MODELS MAY HAVE LONG OR SHORT SUCTION CONTROL VALVES. BEFORE YOU PURCHASE THIS SCV PLEASE EMAIL OR CALL US ON 03 9354 2962 WITH A VIN NO. OR SCV NO. SO WE CAN MAKE SURE TO PROVIDE YOU WITH THE CORRECT VALVE.

BRAND NEW AFTERMARKET SUCTION CONTROL VALVE 294200-0360
THIS BRAND NEW PART COMES WITH SCREWS, RUBBERS AND SEALS TO FIT
SUITS

- Ford Transit C/R ENGINE WITH THE SHORT SCV VALVE
- Mitsubishi Triton, Pajero (2006-2014) 2.5L / 3.2L C/R MITSUBISHI ENGINE.
- Holden Rodeo 3.0L.
- Toyota Hilux 1KD-FTV.
- Nissan Navara, pathfinder D40 SUIT 2.5L C/R NISSAN ENGINE WITH THE SHORT SCV VALVE.
- Isuzu D-Max 3.0L.
- Mazda 2.0L, 3.0, 3.2, 6.0, 6.2L Diesel.
- FIAT DUCATO 2.2L 2006 on.
- CITROEN JUMPER 2.2L 2006 on.
- LAND ROVER DEFENDER 2.4L.

This part can usually be replaced without removing the pump from your vehicle. 90% of faults are with the suction control valve rather than the actual pump which can be costly. Some symptoms of a faulty valve can be that there is a diesel leak or that your vehicle will not start or will cut out when running. There could also be blue / black smoke coming from your exhaust and poor fuel economy.
Compatible with the following fuel pumps: (# can be any number)
294000-0400
294000-0402
294000-023#
294000-033#
294000-034# 294000-041#
294000-042#
294000-062#
294000-064#
294000-066# 294000-095#

If you're not sure it it's what your looking for ore need more info call us on 04.17.30.37.75.-- 03.93.54.29.62.

We also sell performance and standard fuel pumps, injectors, coils and many other ford parts.

Warranty. 12 Months or 20,000 km Warranty on Passenger Vehicles.

Payment. We accept : Pay on Pickup, PayPal, Bank Transaction, credit card over the phone from 9 to 5 mon to fri & Money Order as payment methods. Please use your EBay Username as a transaction reference.

Postage. Local Pickup (message for address and pick up times) Domestic : Fixed Rate we use Couriers please, Australia Post ( Regular Post) and express. International : POA , Please contact us via EBay for a quote. All items sent with tracking no and insurance.

Fitting services Available in our modern and well equipped work shop.

For General Enquires :Customer Support ,technical support and bookings

Contact through EBay message

Ph : (61) 03.93.54.29.62 bh 9am to 5pm

Ph : 04.17.30.37.75.

Listing and template services provided by inkFrog

SKU	MOD-016-A_4
Brand	WALBRO. SNIPER PERFORMANCE
Shipping Weight	3.0000kg
Shipping Width	0.200m
Shipping Height	0.150m
Shipping Length	0.300m
Unit Of Measure	ea
