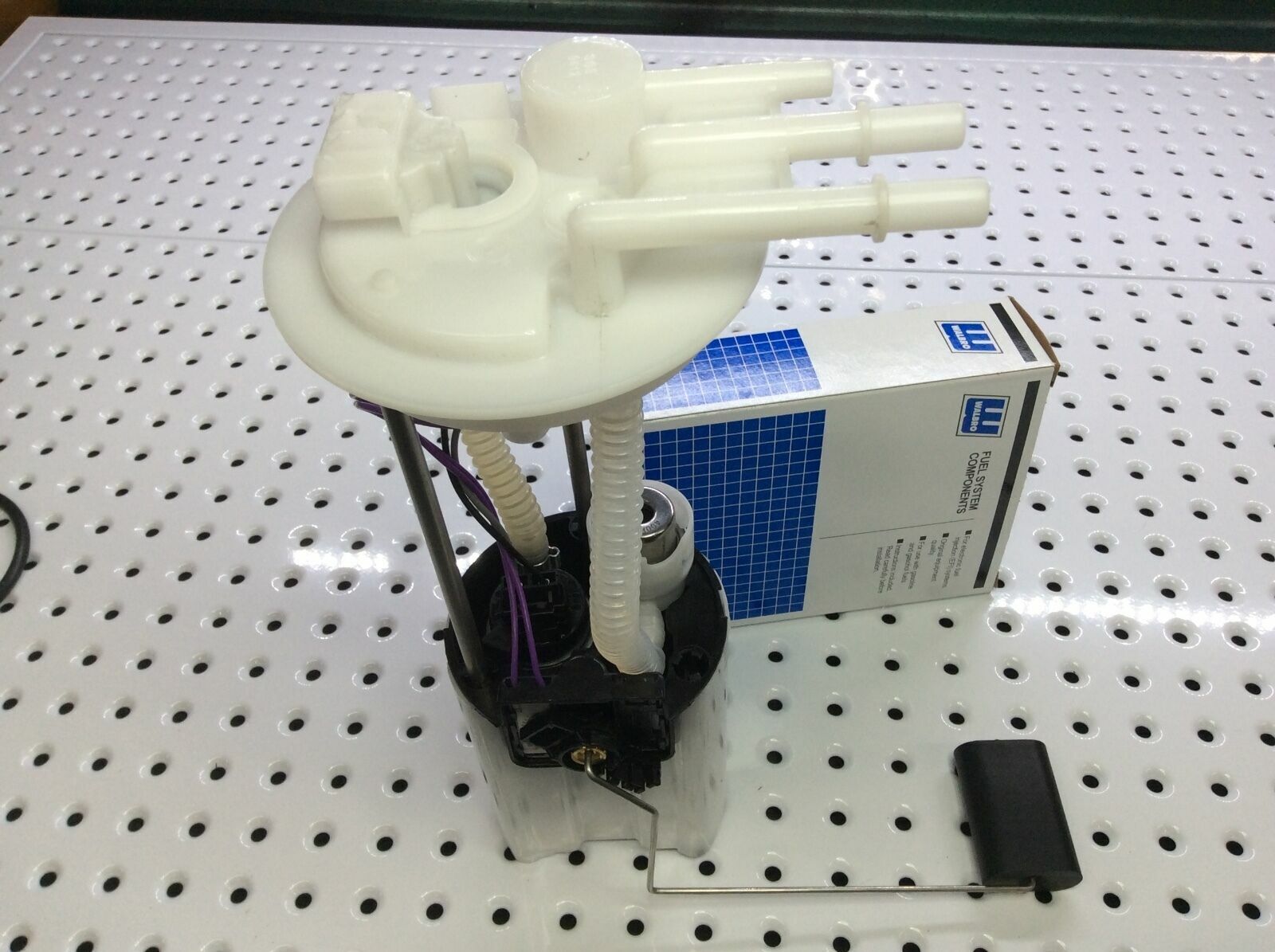

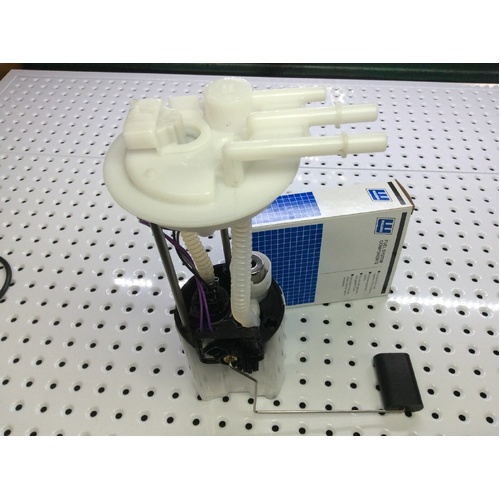

UP FOR SALE IS OUR SNIPER-PERFORMANCE CUSTOM BUILT FUEL PUMP ASSEMBLY TO SUIT HOLDEN COMMODORE VY, VZ 6CL 3.6L & V8 5.7L LS1 & 6.0L.

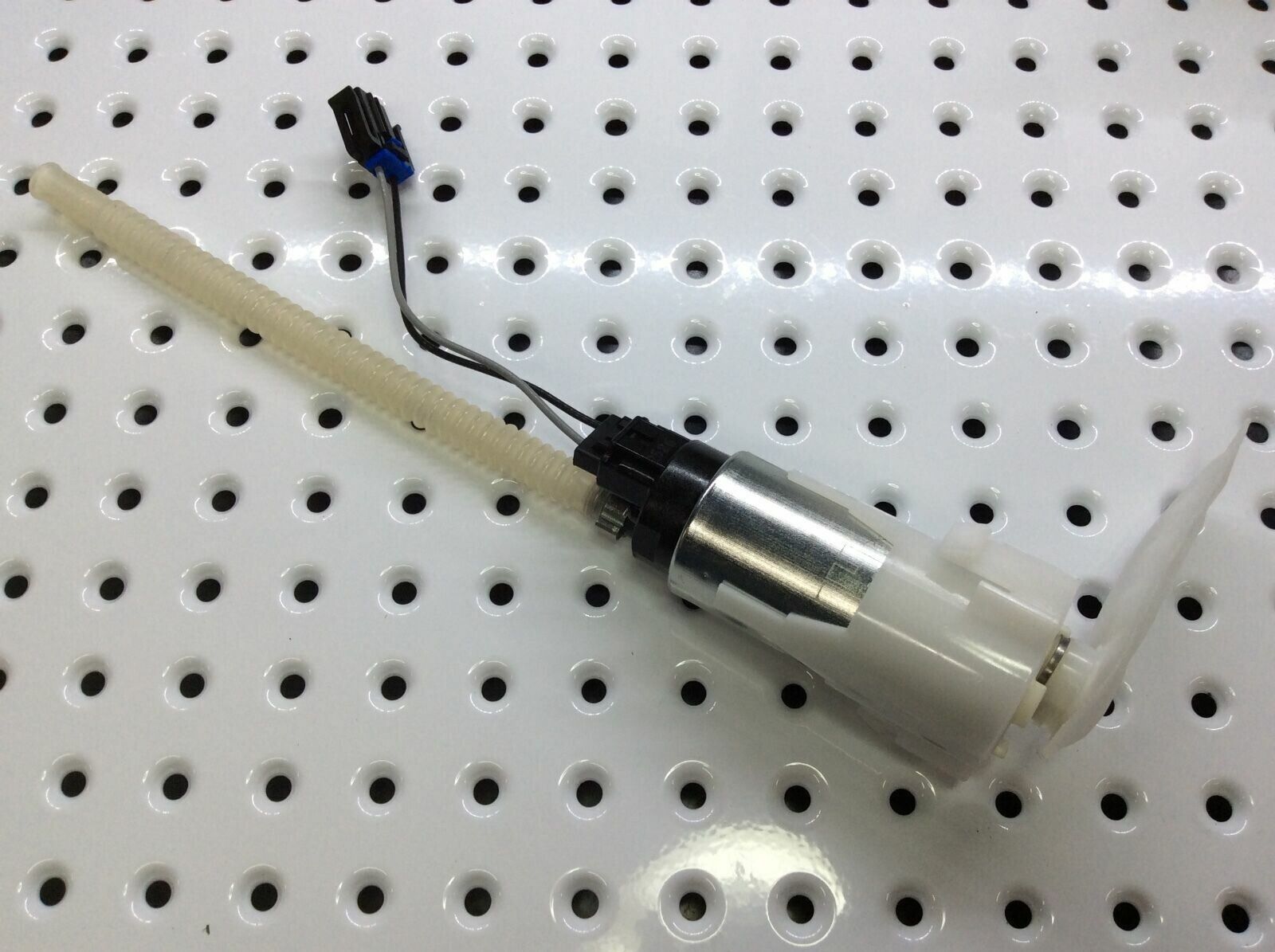

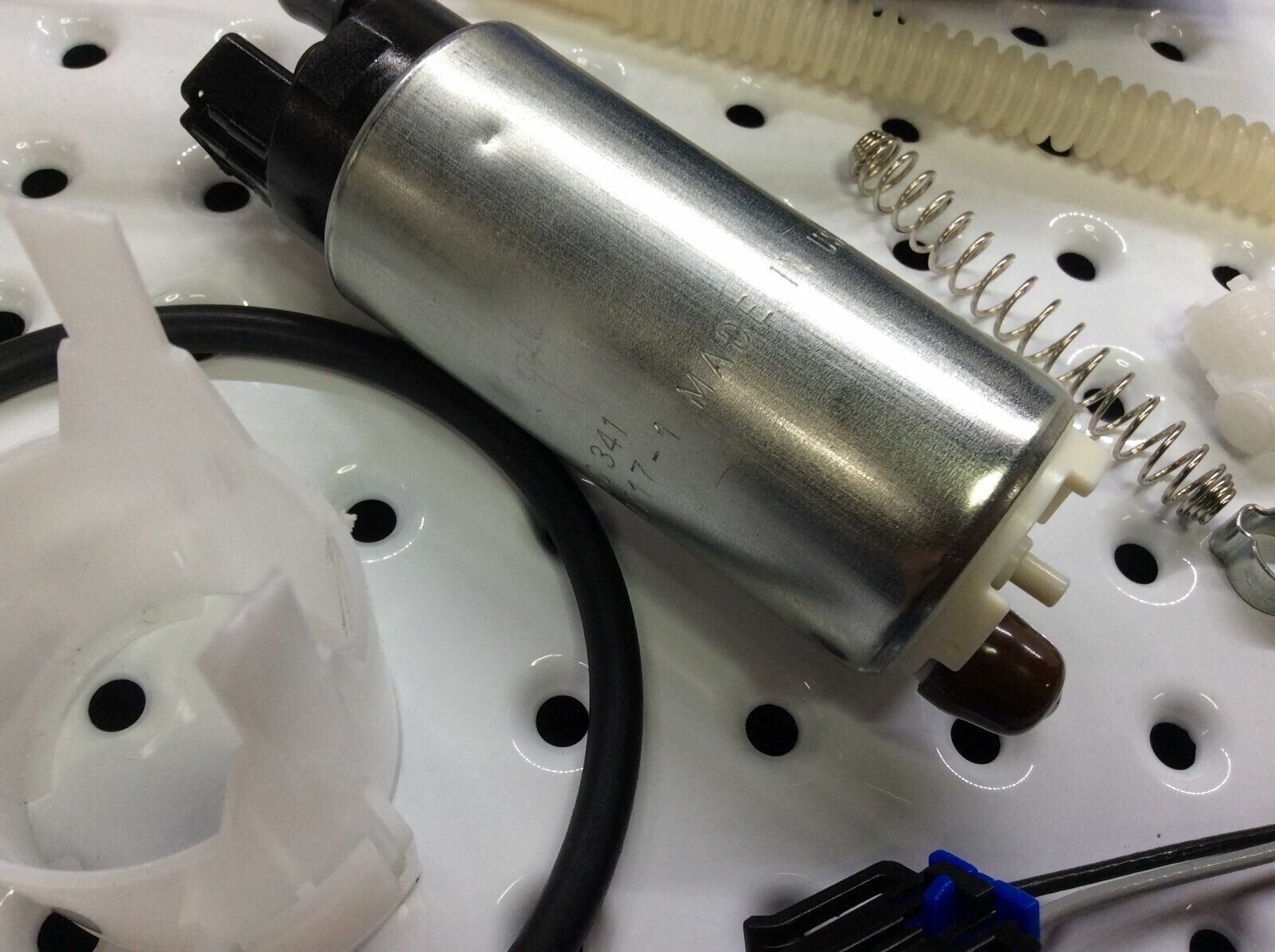

FITTED WITH THE NEW WALBRO GSS352 350-LPH FUEL PUMP IS TO SUITES PETROL. NOT E85.

THIS ASSEMBLY IS MADE BY SNIPER PERFORMANCE AND FITTED WITH A WALBRO 350-LPH AT 43.3-PSI 3-BAR 12.5v. CAN SUPPORT UP TO 650+BHP BUT PLEASE CHECK WITH YOUR TUNER FOR CORRECT SIZE FOR YOUR APPLICATION.

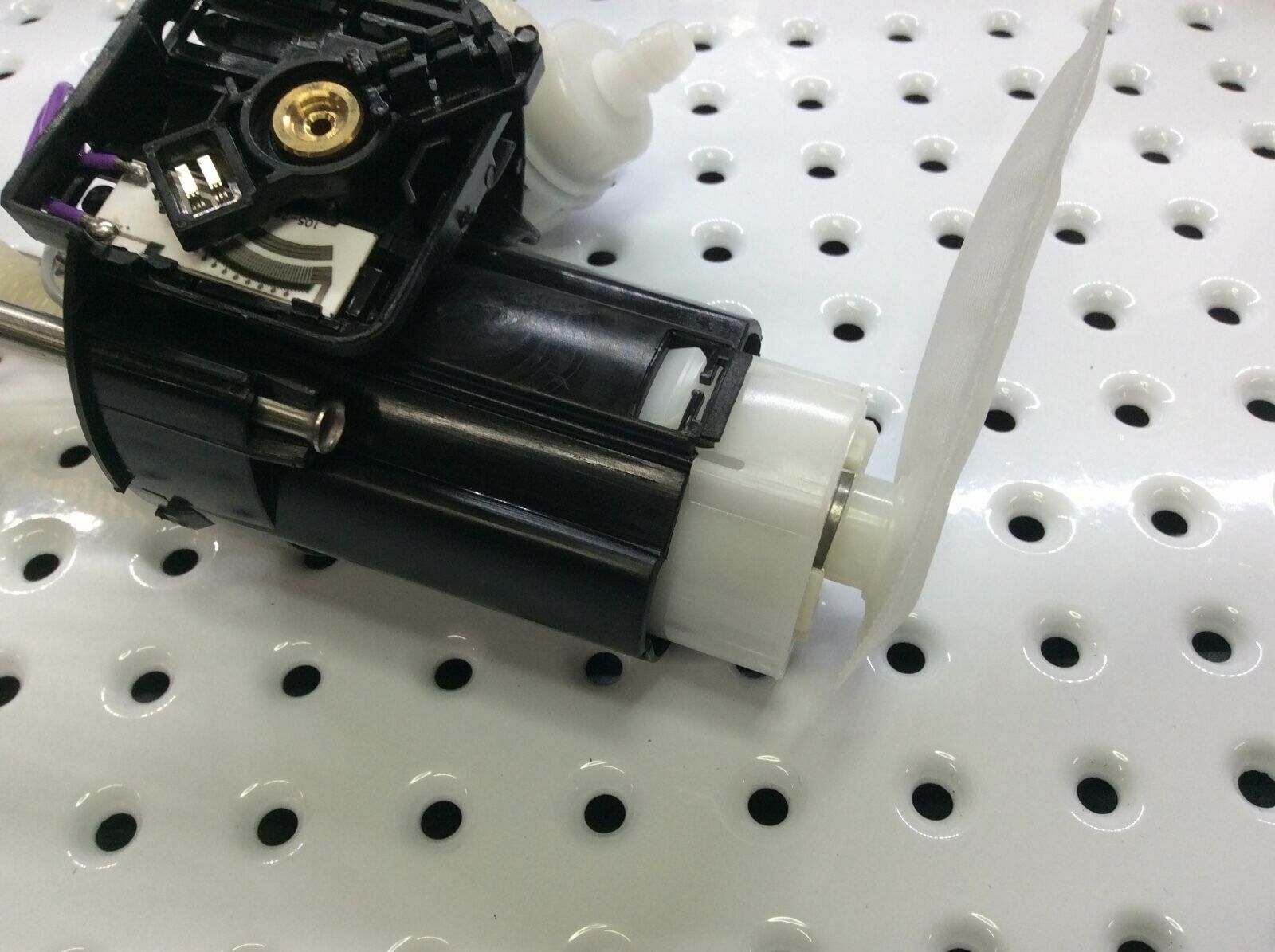

OUR ASSEMBLY IS CUSTOM MADE THAT'S DIFFERENT IN THE SWIRL-POD AREA, MADE TO STOP SURGING UNDER EXTREME TAKE OFF'S AND AROUND CORNERS WHICH IS A COMMON PROBLEM WITH THE FACTORY SWIRL POD. AS THE FACTORY MRI UNIT DOSE NOT HAVE THE RIGHT PLUMING FOR AFTERMARKET HIGH FLOW PUMPS THAT CAUSES THEM TO SUCK AIR AND SURGE UNDER HALF A TANK OF FUEL. THIS SET UP WILL STOP THE SURGING PROBLEM BY 100%.

IT HAS BEEN RACE TRACK TESTED, 1/4 MILE, CIRCUIT AND DRIFT.

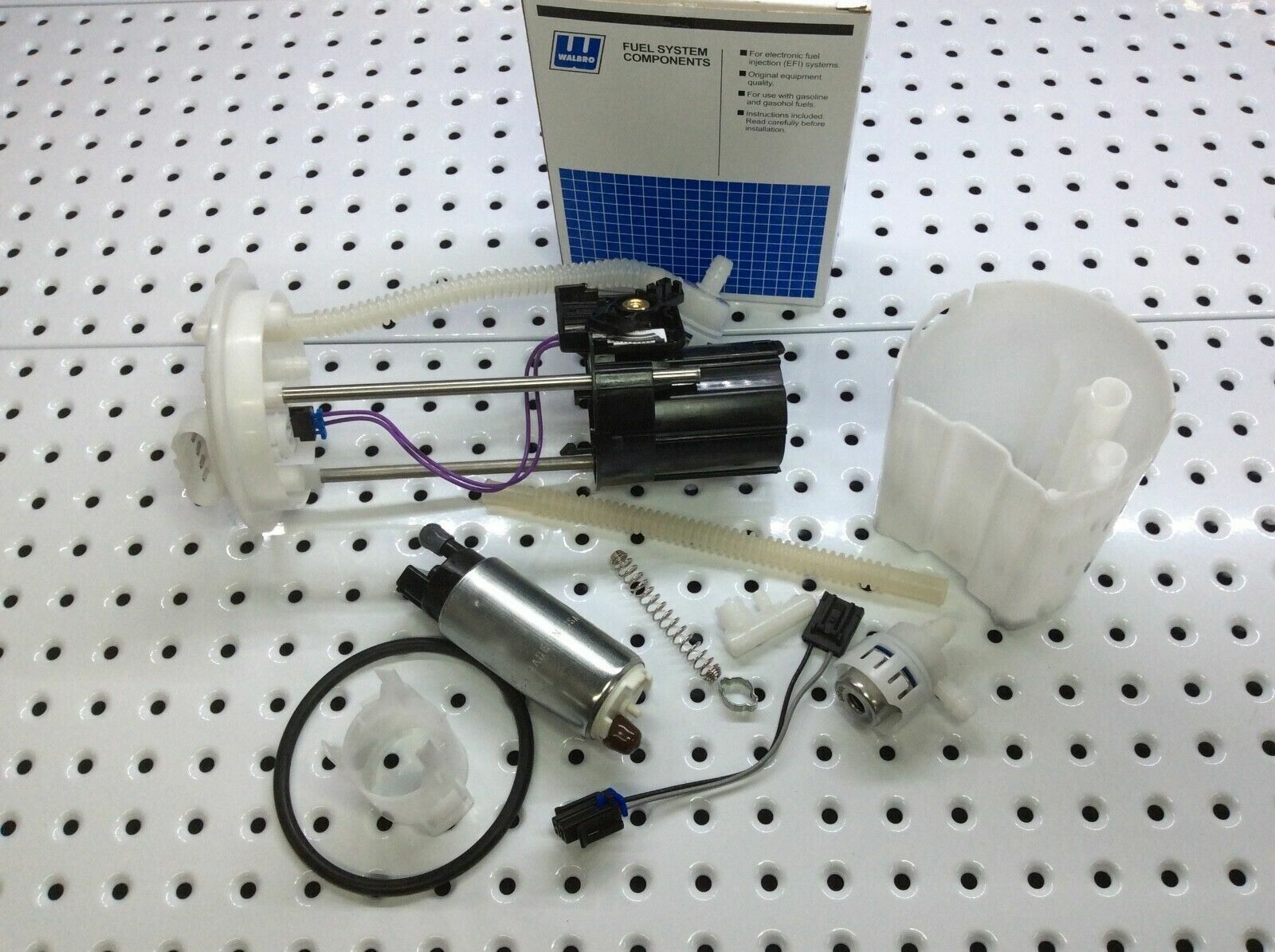

THIS ASSEMBLY CONSIST OF ONLY THE BEST OF THE BEST PARTS AVAILABLE AND HAND ASSEMBLED IN MELBOURNE.

THE ASSEMBLY IS MADE OF THE BEST DUPONT POLLIMER AVALABLE AND ITS E85 & METHANOL APPROVED.

OUR FUEL HOSES ARE RATED AT 2 TO 3 TIMES THE BURST PRESSURE OF THE FACTORY HOSES, HIGH FLOWING & ANTY STATIC.

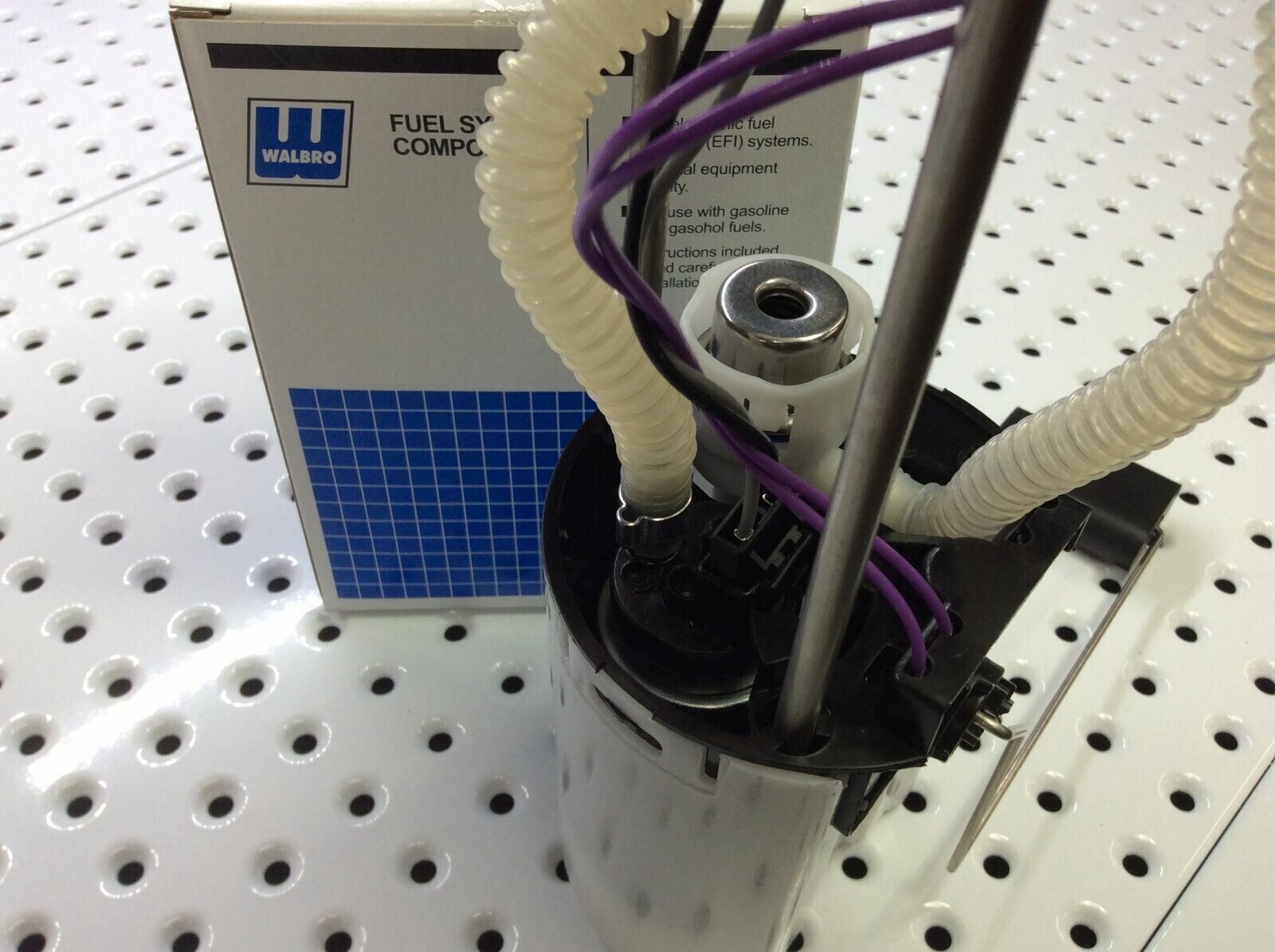

FITTED WITH ONE PIECE WIRING LOOM WITH STAINLESS STEEL TERMINALS.

STAINLESS STEEL COMPRESSION SPRING, HOSE CLAMP & GUIDE PINS FITTED FOR NO CHANCE OF CORROSION.

HIGH MICRON HIGH FLOW DUPONT NYLONG STRAINER.

HIGH FLOW MODIFIED FUEL RETURN VALVE TO KEEP THE RETURN PRESSURE AS LOW AS POSSIBLE AND TO FILL THE SWIRL POD IN HALF THE NORMAL TIME IT WOULD USALY TAKE.

SUITS

COMMODORE S UTE VY 09/2002-07/2004 V8 5.7L LS1 GEN3 BUILT AFTER VIN: 4L156716 --> ON.

COMMODORE SS UTE STYLESIDE VY 08/2003-07/2004 5.7L V8 LS1 GEN3 BUILT AFTER VIN: 4L156716 --> ON.

COMMODORE MALOO UTE VY 08/2003-07/2004 5.7L V8 LS1 GEN3 BUILT AFTER VIN: 4L156716 --> ON.

COMMODORE MALOO R8 UTE VY 08/2003-07/2004 5.7L V8 LS1GEN3 BUILT AFTER VIN: 4L156716 --> ON.

COMMODORE UTE STYLESIDE VZ  7/2004-2007 3.6L LEO/LY7 V6.

COMMODORE UTE STYLESIDE VZ  7/2004-2007 5.7L GEN3 LS1 V8.

COMMODORE UTE  STYLESIDE VZ  2006 6.0L Gen4 LS2 V8.

COMMODORE UTE STYLESIDE VZ  2007 6.0L Gen4 LS2 V8.

COMMODORE UTE STYLESIDE VZ  2006-2007 6.0L L76/L98 V8.

COMMODORE UTE  STYLESIDE VZ  2006-2007 6.0L L76/L98 V8.

COMMODORE UTE  MALOO VZ  07/2004-2007 6.0L L76 / L98 V8.

COMMODORE UTE S SS VZ  7/2004-2007 5.7L GEN3 LS1 V8.

HSV MALOO R8 VY 10/2002-09/2003 5.7L LS1 GEN3 V8 BUILT AFTER VIN: 4L156716 --> ON.

HSV MALOO R8 VY 10/2003-09/2004 5.7L litre LS1 GEN3 V8 BUILT AFTER VIN: 4L156716 --> ON.

HSV MALOO VY 10/2002-09/2003 5.7L LS1 GEN3 V8 BUILT AFTER VIN: 4L156716 --> ON.

HSV MALOO VY 10/2003-09/2004 5.7L LS1 GEN3 V8 BUILT AFTER VIN: 4L156716 --> ON.

HSV MALOO VY 2004-2004 5.7L LS1 C4B V8 BUILT AFTER VIN: 4L156716 --> ON.

HSV MALOO R8 VZ 10/2004-09/2007 6.0L LS2 V8.

HSV MALOO VZ 10/2004-09/2007 6.0L LS2 V8.
