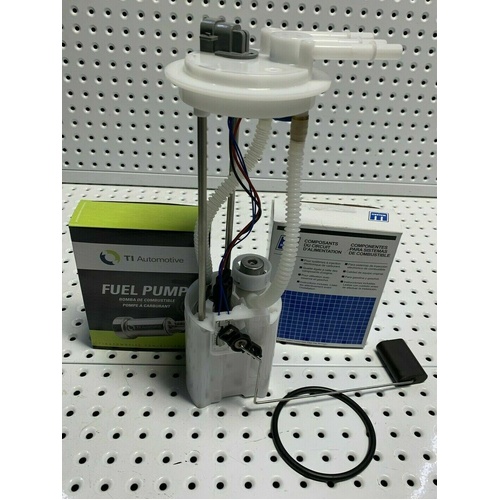

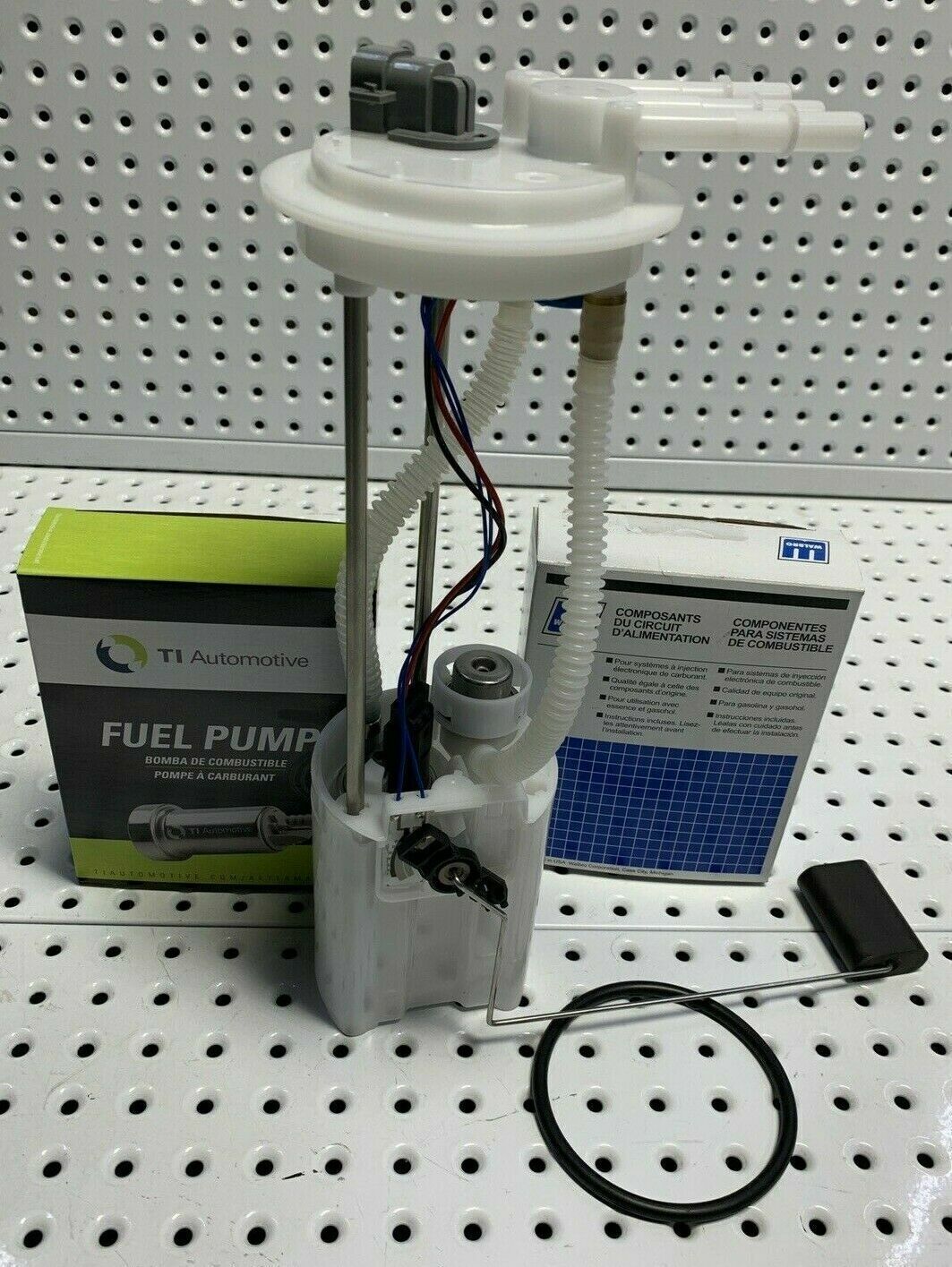

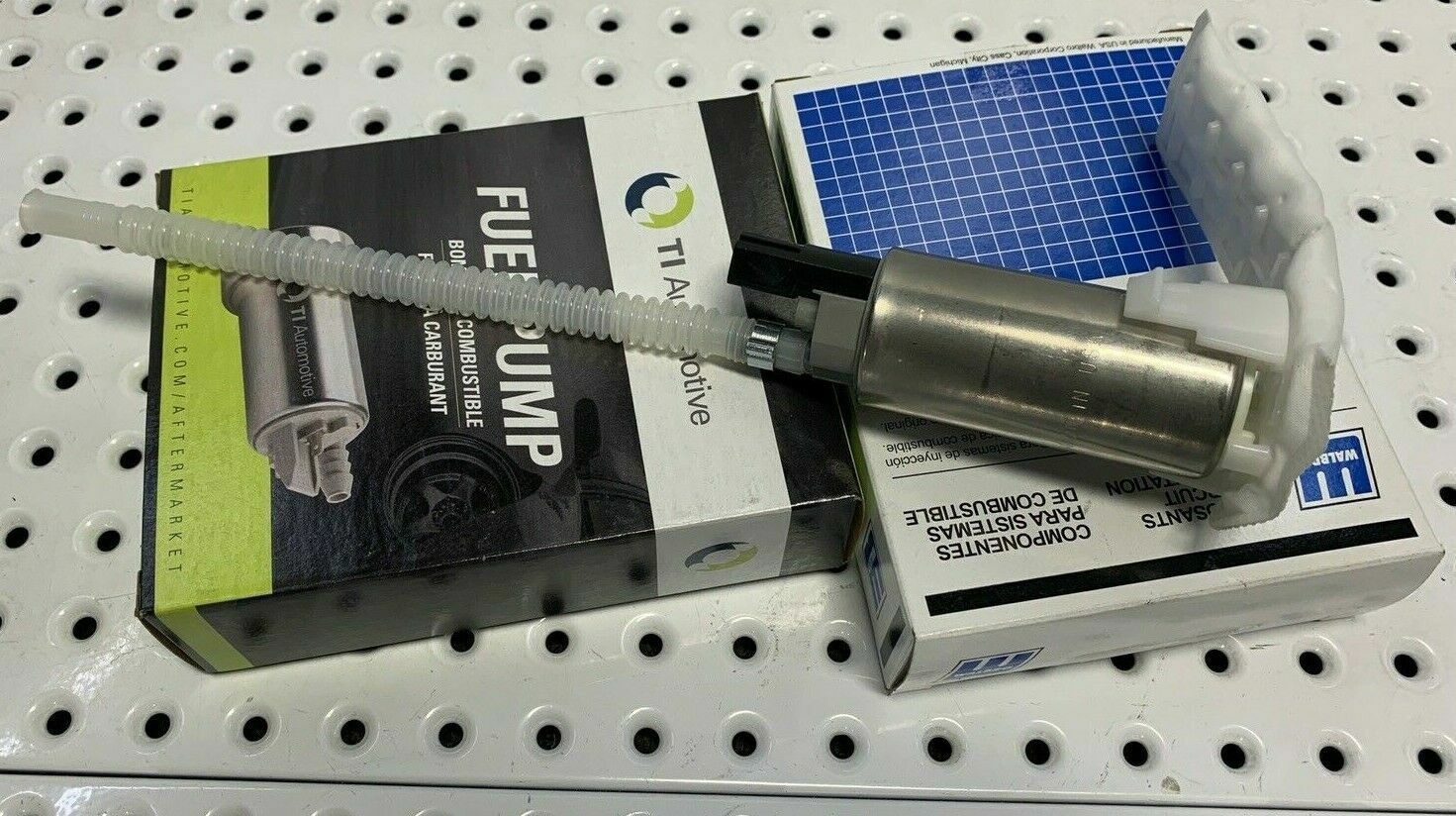

UP FOR SALE IS OUR SNIPER-PERFORMANCE & WALBRO CUSTOM BUILT FUEL PUMP ASSEMBLY TO SUIT HOLDEN COMMODORE VT VX V2 MONARO SEDAN & WAGON. FITTED WITH A WALBRO GSS341 550-BHP 255LPH suits (PUMP FUEL (PERTOL) ONLY NON E85 WITH THIS PUMP. THIS ASSEMBLY IS CUSTOM MADE BY SNIPER PERFORMANCE AND FITTED WITH A GENUINE WALBRO 255-LPH GSS341 AND CAN SUPPORT UP TO 550 BHP.

GENUINE WALBRO MADE IN THE USA.

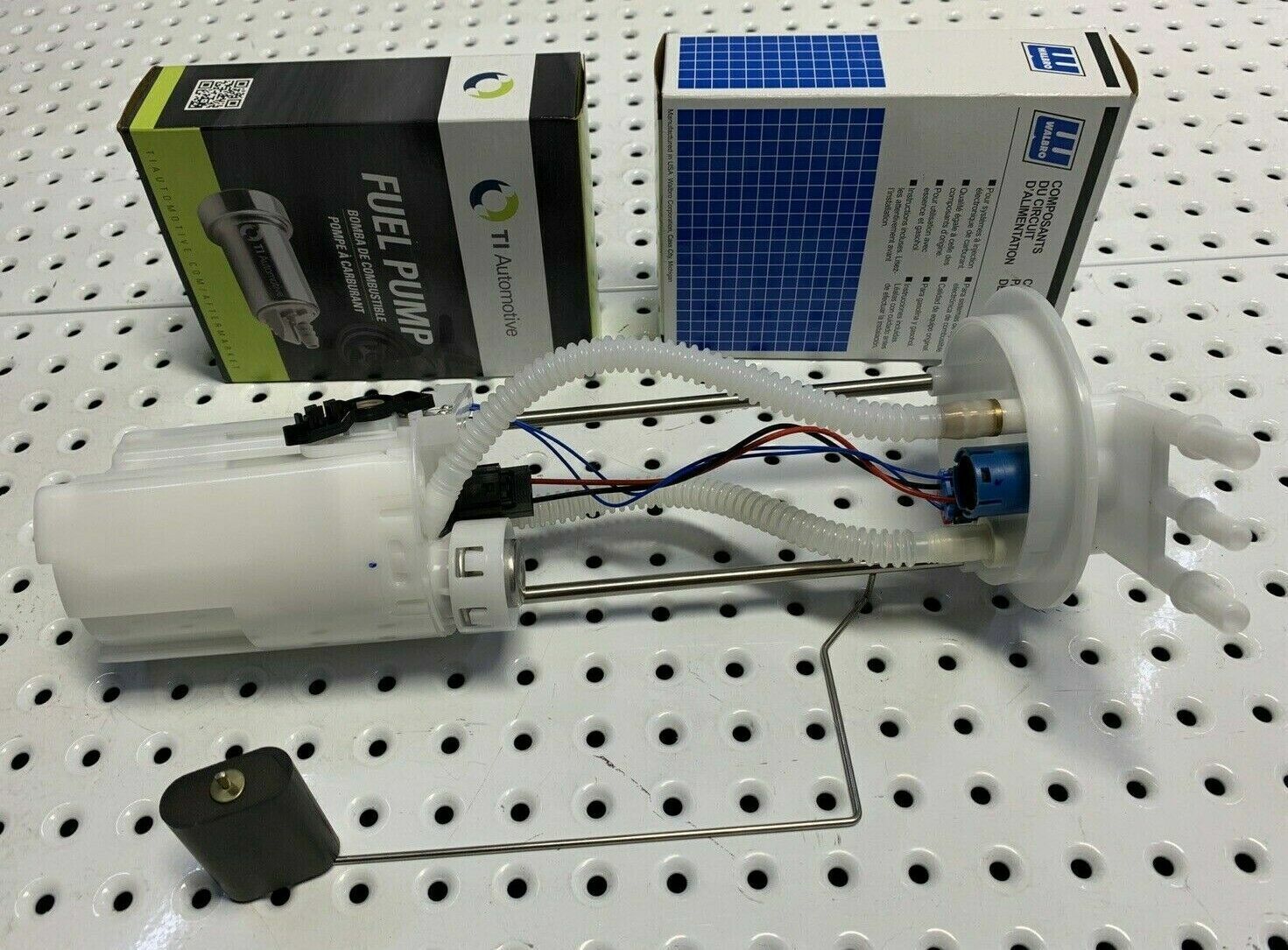

OUR ASSEMBLY IS CUSTOM MADE IN THE SWIRL-POD AREA MODIFIED TO STOP SURGING UNDER EXTREME TAKE OFFS AND AROUND CORNERS WHICH IS A COMMON PROBLEM WITH THE FACTORY SWIRL POD.

STOPS THE SURGING PROBLEM BY 100%. IT HAS BEEN DYNO TESTED & RACE TRACK TESTED 1/4 MILE, CIRCUIT AND DRIFT. THIS ASSEMBLY CONSIST OF ONLY THE BEST OF THE BEST PARTS AVAILABLE AND HAND ASSEMBLED IN MELBOURNE. THE ASSEMBLY IS MADE OF THE BEST POLLIMER AVALABLE AND ITS E85 & METHANOL APPROVED.

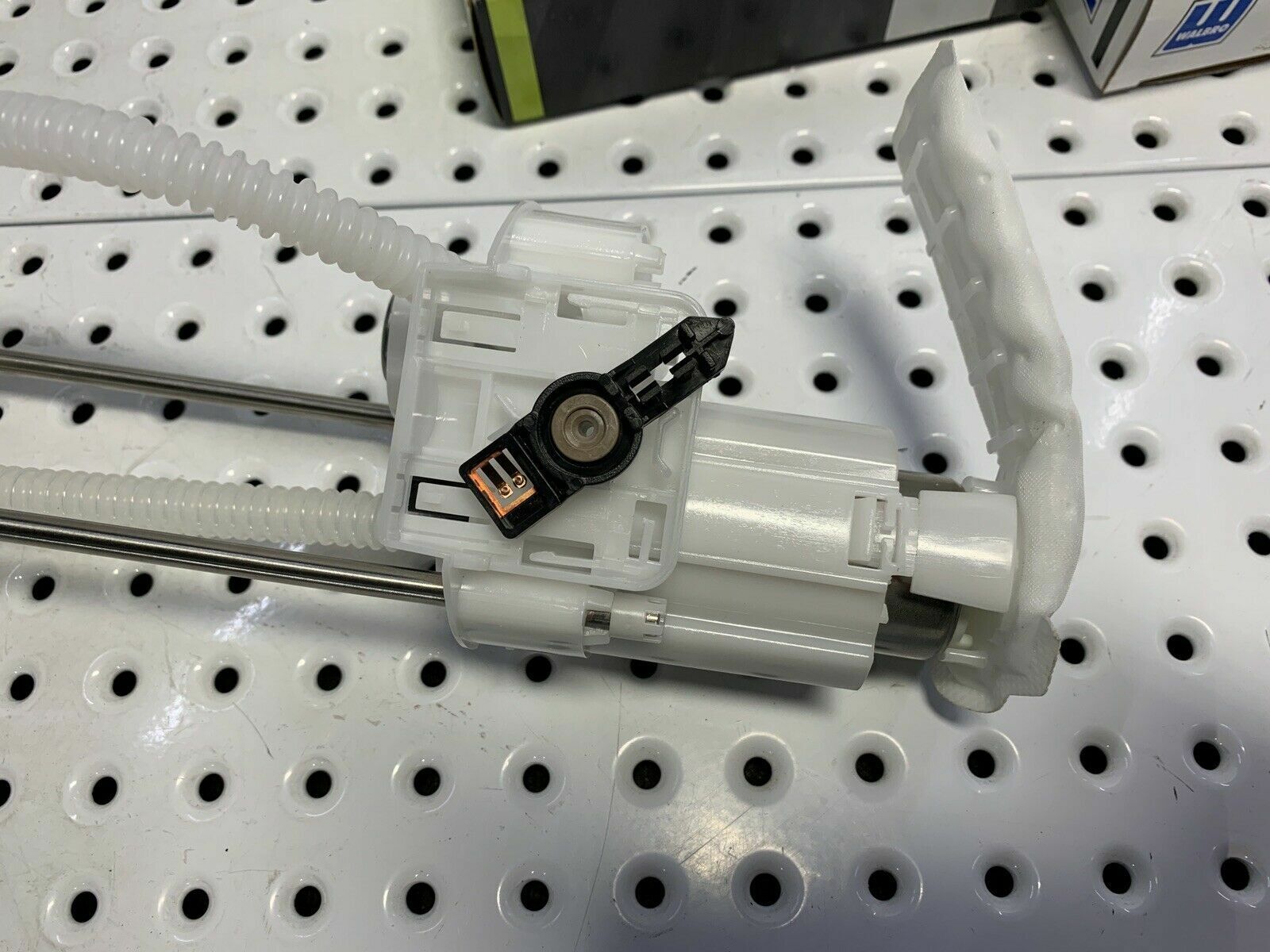

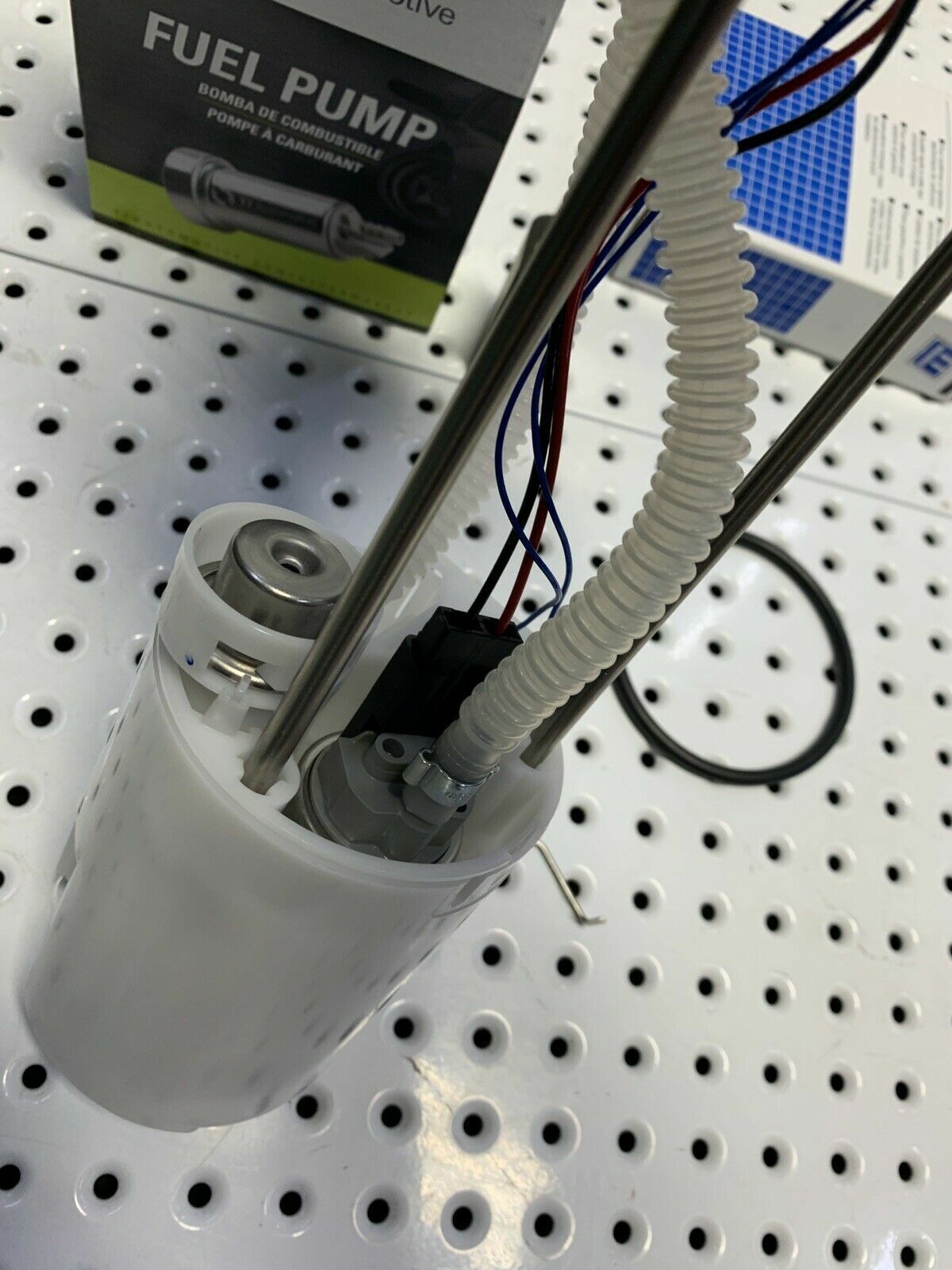

WE ARE THE ONLY ONES THAT OFFER ASSEMBLY WITH A SPECIAL CLIP LOCK PUMP RETANER THAT MOUNTS THE PUMP 10mm ABOVE THE BOTTOM OF THE SWIRL POD THIS KEEPS THE FILTER-STRAINER CLEAN  AND ALLOWS THE PUMP ITS FULL POWER POTENTIAL. ALSO KEEPS THE PUMP QUIETER WITH NO CHANCE OF MOVING AROUND OR COMING LOOSE.

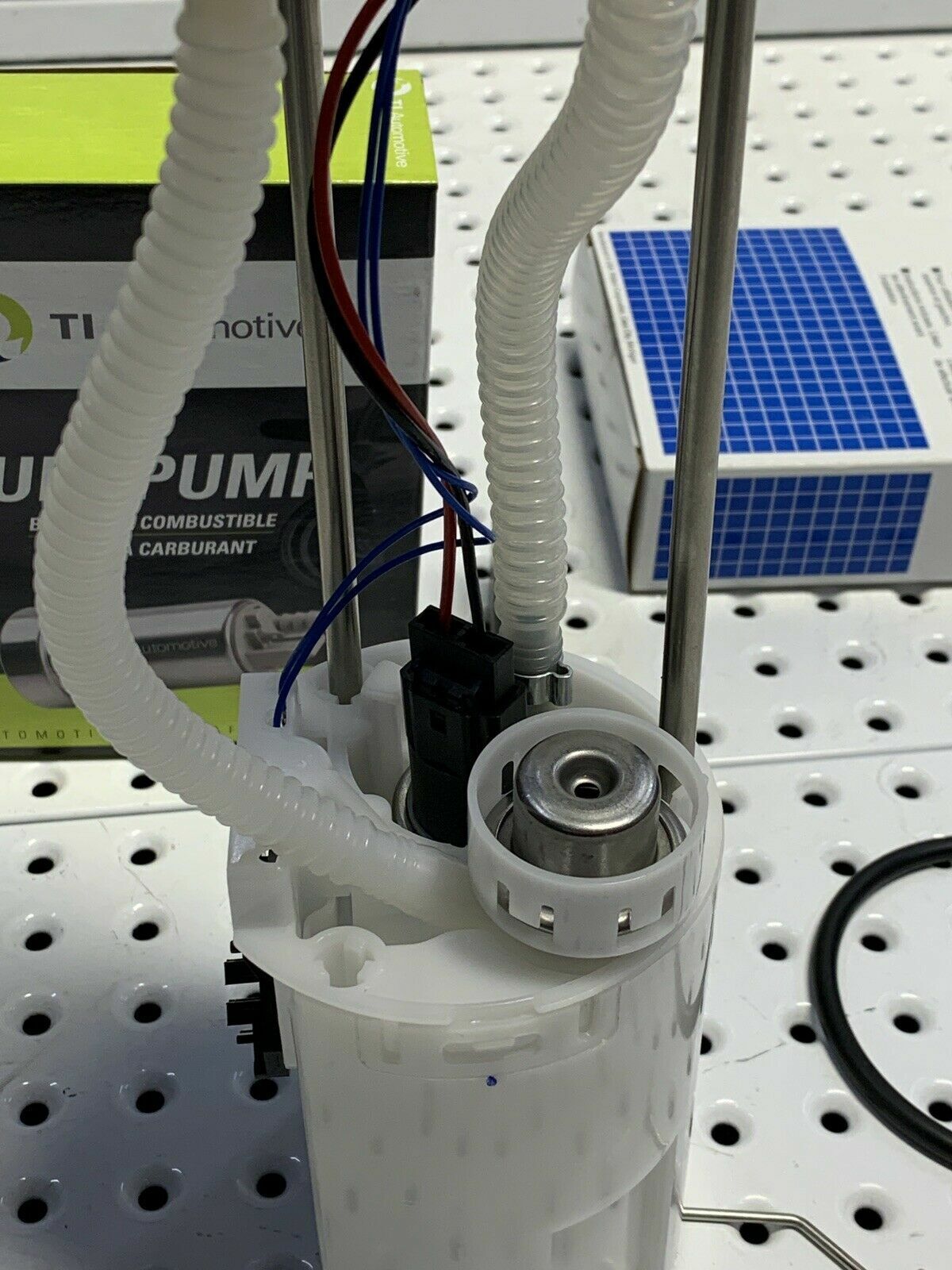

THE FUEL HOSES USED IN THIS ASSEMBLY ARE MADE IN THE EU THE WHITE HOSES ARE RATED AT TWICE THE BURST PRESSURE OF THE FACTORY HOSE AND IS A HIGH FLOW. ONE PIECE  WIRING PLUG (NO JOINS) WITH STAINLESS STEEL BRAID & TERMINALS. STAINLESS STEEL COMPRESSION SPRING & GUIDE PINS FITTED FOR NO CHANCE OF CORROSION.

HIGH MICRON HIGH FLOW NYLONG STRAINER.

HIGH FLOW, MODIFIED FUEL RETURN VALVE TO KEEP THE RETURN PRESSURE LOW AND TO FILL THE SWIRL POD IN HALF THE NORMAL TIME IT WOULD USALY TAKE. HIGH FLOW FUEL PRESSURE REGULATOR FITTED TO THIS ASSEMBLY.



- TO SUIT SEDAN & WAGON.
COMMODORE VT I II 7/1999-10/2000  LS1 GEN3 5.7L.

COMMODORE VT I II BERLINA 7/1999-10/2000 LS1 GEN3 5.7L.

COMMODORE VT I II CALAIS 7/1999-10/2000  LS1 GEN3 5.7L.

COMMODORE VT I II CLUBSPORT R8 7/1999-10/2000 LS1 GEN3 5.7L.

COMMODORE VT I II EXECUTIVE 7/1999-10/2000 LS1 GEN3
5.7L.

COMMODORE VT I II POLICE 7/1999-10/2000 LS1 GEN3
5.7L.

COMMODORE VT I II SS 7/1999-10/2000  LS1 GEN3 5.7L.

COMMODORE VT I II GTS 4/2000-10/2000  LS1 GEN3 5.7L.

COMMODORE VT I II GTS-R 4/2000-10/2000  LS1 GEN3 5.7L.

COMMODORE VT I II HSV 7/1999-10/2000  LS1 GEN3 5.7L.

COMMODORE VT HSV SV99 7/1999-10/2000  LS1 GEN3 5.7L.

COMMODORE VX 9/2000-9/2002  LS1 GEN3 5.7L UP TO VIN NO L891247.

COMMODORE VX BERLINA 9/2000-9/2002  LS1 GEN3 5.7L UP TO VIN NO L891247.

COMMODORE VX CALAIS 9/2000-9/2002  LS1 GEN3 5.7L UP TO VIN NO L891247.

COMMODORE VX CLUBSPORT R8 9/2000-9/2002  LS1 GEN3 5.7L UP TO VIN NO L891247.

COMMODORE VX EXECUTIVE 9/2000-9/2002  LS1 GEN3 5.7L UP TO VIN NO L891247.

COMMODORE VX GTS 9/2000-8/2001  LS1 GEN3 5.7L UP TO VIN NO L763313.

COMMODORE VX GTS-R 9/2000-8/2001 LS1 GEN3 5.7L UP TO VIN NO L763313.

COMMODORE VX POLICE 9/2000-9/2002  LS1 GEN3 5.7L UP TO VIN NO L763313.

COMMODORE VX SS 9/2000-9/2002 LS1 GEN3 5.7L UP TO VIN NO L891247.

COMMODORE VX HSV 9/2000-9/2002  LS1 GEN3 5.7L UP TO VIN NO L891247.

COMMODORE VX HSV SV300 9/2000-9/2002  LS1 GEN3 5.7L UP TO VIN NO L891247.

COUPE GTO V2 12/2001-9-2004 LS1 GEN3 5.7L UP TO VIN    NO L891247.

COUPE GTS V2 12/2001-9/2004 LS1 GEN3 5.7L UP TO VIN NO L891247.

GRANGE WH 7/1999-7/2003 LS1 GEN3 5.7L UP TO VIN NO L891247.

MONARO V2  2002  LS1 GEN3 5.7L UP TO VIN NO L891247.

SENATOR VT HSV 7/1999-10/2000 LS1 GEN3 5.7L.

SENATOR VX HSV 9/2000-9/2002  LS1 GEN3 5.7L UP TO VIN NO L891247.

SENATOR 300 VX HSV 9/2000-9/2002  LS1 GEN3 5.7L UP TO VIN NO L891247.

SENATOR SIGNATURE VX HSV 9/2000-9/2002  LS1 GEN3 5.7L UP TO VIN NO L891247.

STATESMAN/CAPRICE WH 6/1999-7/2002 LS1 GEN3 5.7L UP TO VIN NO L981247.

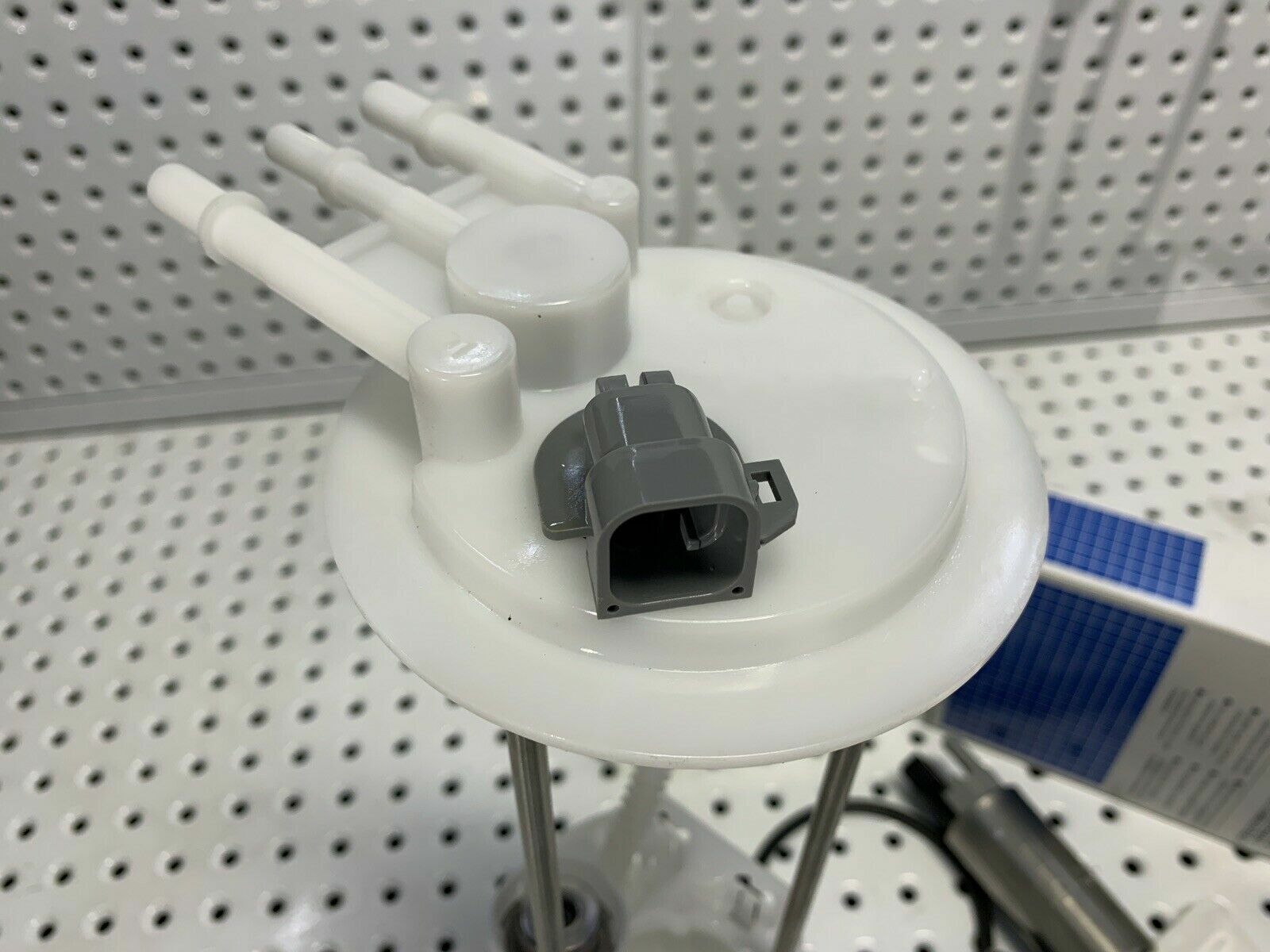

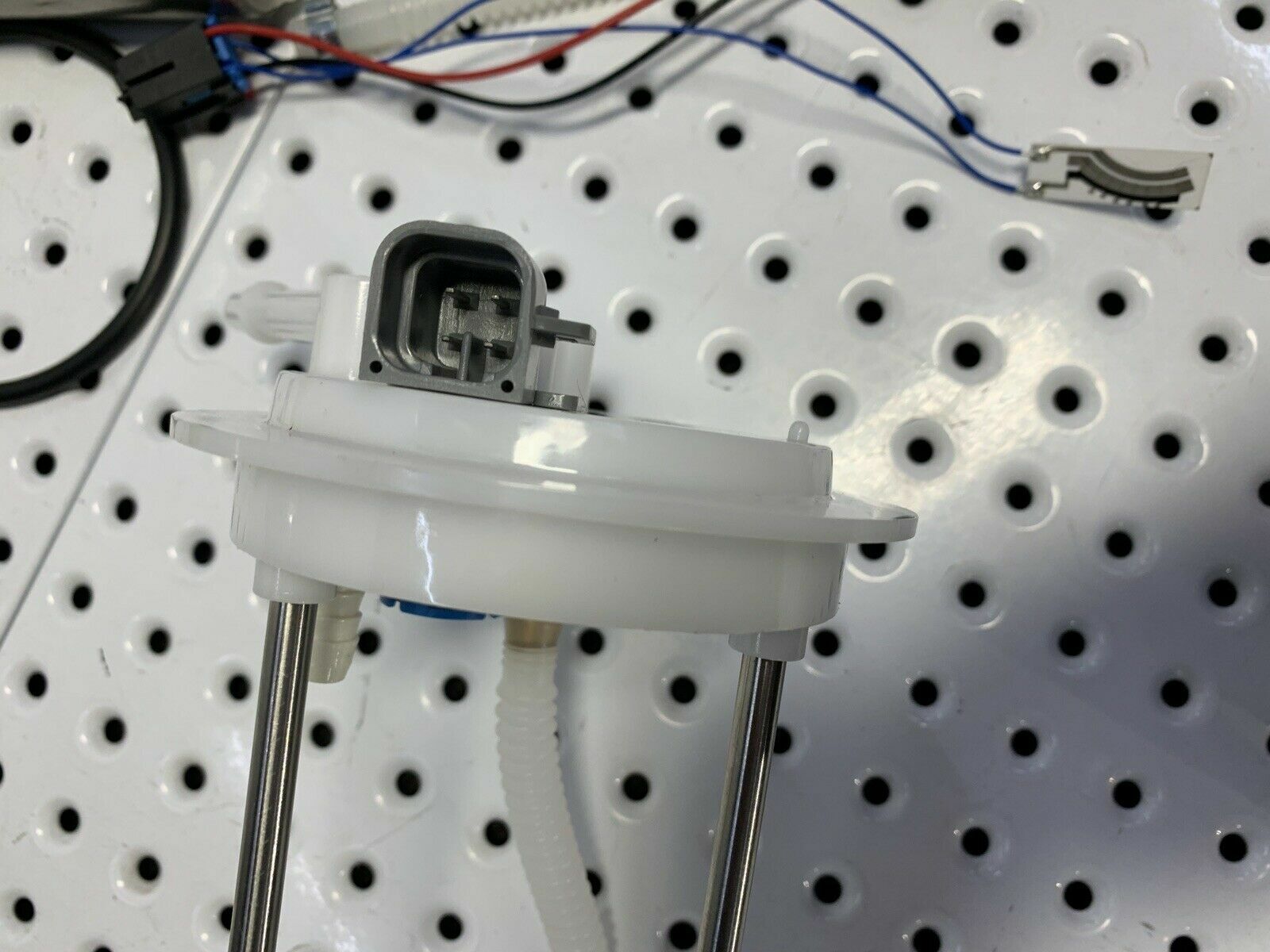

PLEASE NOTE THIS ONE IS WITH THE SQUARE ELECTRICAL PLUG AS PICTURED. AS THERE IS A LATER PUMP FROM THE LAST SEVEN NUMBERS OF YOUR VIN NO UP TO L891247 IS THIS ONE LISTED AND AFTER VIN NO L891248 IS THE OVAL PLUG PLEASE CHECK PICTURE. AND IF YOU NEED THE LATER ONE (MOD-031-A) WITH THE OVAL PLUG ITS IN OUR STORE ORE CALL US.


MOD-010  GSS-341
SPECIFICATIONS.
FUEL PUMP PART NUMBER: WALBRO 255-LPH GSS341.
PRESSURE AND FLOW RATE: 255-LPH AT 3-BAR 43.3-PSI 12.5-V supports up to 550-BHP.
ASSEMBLY PART NUMBER: SNIPER PERFORMANCE MOD-010-255.
ASSEMBLY HEIGHT: BACE TO FLANGE 325-mm COMPRESSED 240-mm.
ASSEMBLY CAPACITY: POD 500-millilitres as the factory unit.
ASSEMBLY HOSE FITTINGS: Left Returnee (10-mm c-lock). Centre (8-mm c-lock) Charcoal Canister. Right (10-mm c-lock) Fuel out.

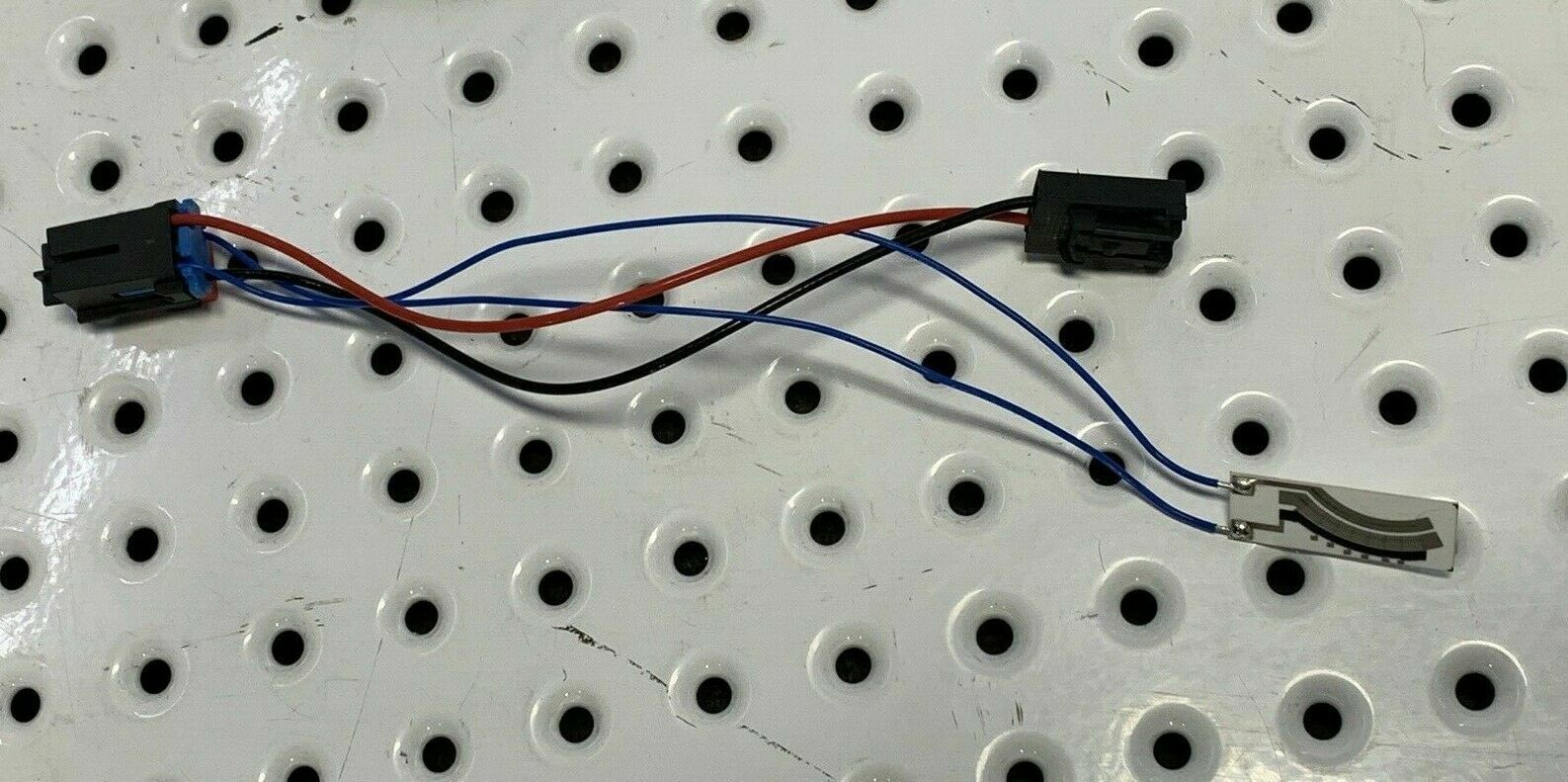

WIARING HARNEST: One piece wiring loom Delphi to Walbro with stainless steel braid and terminals.
PRESSURE HOSES: High pressure, high burst, high flow white submersible fuel hoses made in the EU, 210mm long.
FUEL GAUGE READINGS: Up-full 255-ohms. Down-empty 39-ohms.


The Walbro GSS-341 255LPH pump is one of the most popular high flowing in-tank fuel pump on the market, Walbro also make a 460lph and a 525lph that's suits E85, Methanol and Petrol. Walbro designed the pump to meet the  requirements of modern turbocharged & H-Performance applications where factory fuel pump is insufficient.



Now available AT A EXTRA PRICE IS THE MOTHER OF ALL INTERNAL PUMPS BIG H-POWER THE 460LPH & 525LPH E85 WALBRO PUMPS FITTED IN THE UPDATED ASSEMBLY OUR PART NUMBER IS MOD-013-A+KIT WITH THE OVAL PLUG. PLEASE CONTACKT US FOR MORE DETAILS.

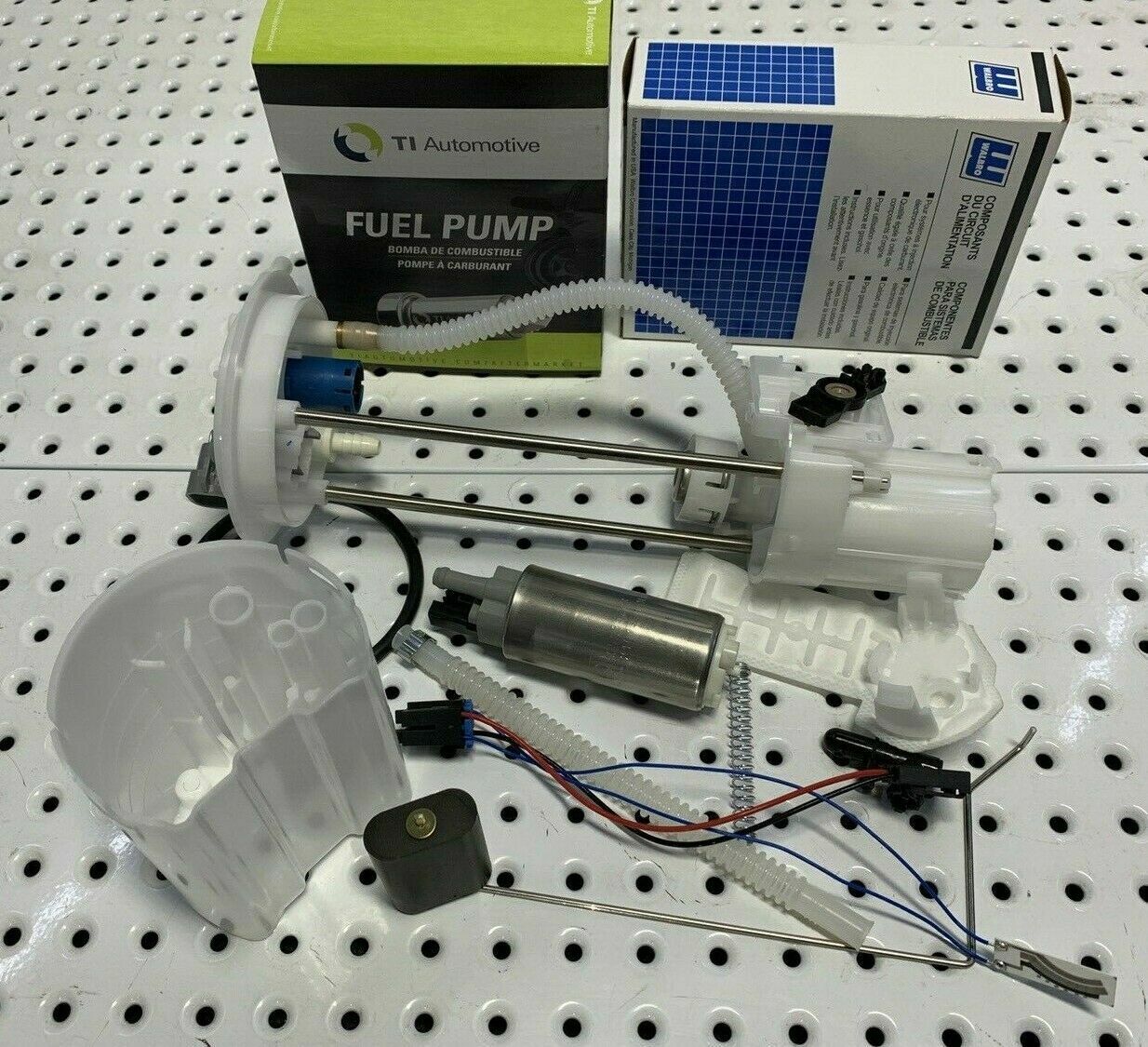

COMES FULLY ASSEMBELD WITH ALL E85 APROUVED PARTS FITTED



CALL US FOR MORE INFO 03.93.54.29.62.  04.17.30.37.75.



We also sell performance and standard fuel pumps, Injectors VDO & Bosch 280cc to 2400cc, Sniper Performance Coils, Garret Turbo, Turbosmart Full Range, Vic agent for AeroFlow fittings & hoses, Crow Cams, APR bolts, K&N Air Filters, NOS Kits & Filling, Auto Meter,  Intercoolers, Custom Piping, Centre Line & Weld Racing Wheels, Mickie Thompson Race Tyres, Red Line Oils and many more.

Message us with your details and we will get back to you ASAP.


For General Enquires :Customer Support, technical support and bookings & pickups we are located at 45 Charles street north Coburg Melbourne Victoria 3058. Always best to call first.

      Contact through EBay message leave us your details and we will get back to you ASAP.


 Warranty

  12 Months or 20,000 km Warranty on Passenger  Vehicles.

Payment

 We accept : Pay on Pickup, PayPal, Bank Transaction, credit card over the phone from 9 to 5 mon to fri & Money Order as payment methods. Please use your EBay Username as a transaction reference.

 Postage  Local Pickup (message us for address and pick up times)

  Domestic :  Fixed Rate we use Couriers please, Fastway, Australia Post (Regular Post) and express. please contact us of which you prefer on purchase in order details ore if not we will post out with the one we think would be the best to use.

  International : POA , Please contact us via EBay for a quote.

  All items sent with tracking no and insurance except when sent with Australia post which is only covered for $50.00 for lost ore damaged in transit.

Fitting services   Available in our modern and well equipped work shop.

For General Enquires :Customer Support ,technical support and bookings

      Contact through EBay message

Ph : (61) 03.93.54.29.62  bh 9am to 5pm

    PH :  04.17.30.37.75

SKU MOD-010-255_31
Brand Walbro
Shipping Weight 3.0000kg
Shipping Width 0.200m
Shipping Height 0.150m
Shipping Length 0.300m
Unit Of Measure ea
