PCV VALVE DIAPHRAGM CRANKCASE VENTILATION AUDI Q7 FSI QUATTRO 4L 2006-2010 3.6L
PCV VALVE FOR CRANKCASE VENTILATION.
PCV VALVE, DIAPHRAGM, CRANKCASE
VENTILATION, CRANKCASE BREATHER OIL TRAP.
TO SUIT.
AUDI Q7 FSI QUATTRO 4L 09/2006-09/2010 3.6L BHK V6 24vDOHC VVT Direct Inj AWD 4-D SUV..
SKODA SUPERB FSI, 191 FSI 3T 05/2009-05/2015 3.6L CDVA V6 24v DOHC Direct Inj AWD 4-D HATCH..
VOLKSWAGEN GOLF R32 MK 5 1K 07/2006-03/2010 3.2L BUB V6 24v DOHC MPFI AWD 2 & 4-D Hatch..
VOLKSWAGEN GOLF R32 MK 4 1J 03/2004-07/2004 3.2L BML V6 24v DOHC MPFI AWD 2-D Hatch..
VOLKSWAGEN TOUAREG V6 7L 09/2003-2004 3.2L BKJ V6 24v DOHC MPFI 4WD 4-D SUV..
VOLKSWAGEN TOUAREG V6 7L 2004-10/2006 3.2L BMV V6 24v DOHC MPFI 4WD 4-D SUV..
VOLKSWAGEN TOUAREG V6 FSI 7L 11/2006-08/2010 3.6L BHK V6 24v DOHC VVT MPFI 4WD 4-D SUV..
VOLKSWAGEN TOUAREG V6 FSI 7P 07/2011-08/2012 3.6L CGRA V6 24v DOHC VVT MPFI AWD 4-D SUV..
VOLKSWAGEN PASSAT V6 FSI B6, B7 3C 03/2006-03/2011 3.2L AXZ V6 24v DOHC Direct Inj AWD 4-D SEDAN & WAGON..
VOLKSWAGEN PASSAT R36, V6 FSI HIGHLINE B6, B7 3C 06/2008-01/2015 3.6L BWS V6 24v DOHC VVT MPFI AWD 4-D SEDAN & WAGON.
VOLKSWAGEN PASSAT CC V6 FSI 3C 02/2009-06/2012 3.6L BWS V6 24v DOHC VVT MPFI AWD 4-D COUPE.
Sourced from the OE supplier made in Europe.
Over time, the PCV VALVE diaphragm dries and breaks.
Once Torn through the diaphragm the engine gets unaccounted air mass flowing through the air mass sensor. As a result, the engine can be difficult to start, unstable (especially at idle) can be misfiring, ore staling. If a whistle is heard in the area of the rocker cover, then the diaphragm is torn.
Replacement instructions:
Remove the valve cover. Remove the valve crankcase ventilation (mounted inside the valve cover). Remove the rocker cover, remove the cover and exchange the new PCV assembly. Assemble in reverse order.
During the first run, after replacing the PCV assembly, the engine may not work steady (This is due to the fact that when the PCV assembly was torn the ECU will need to reconfigure the computer, in accordance with the lambda probes that detect increases in oxygen content). After replacing the PCV assembly it would need some time to adjust itself. Allowed the engine to run for a while, switch off the ignition and start again, the engine must reach normal operation.

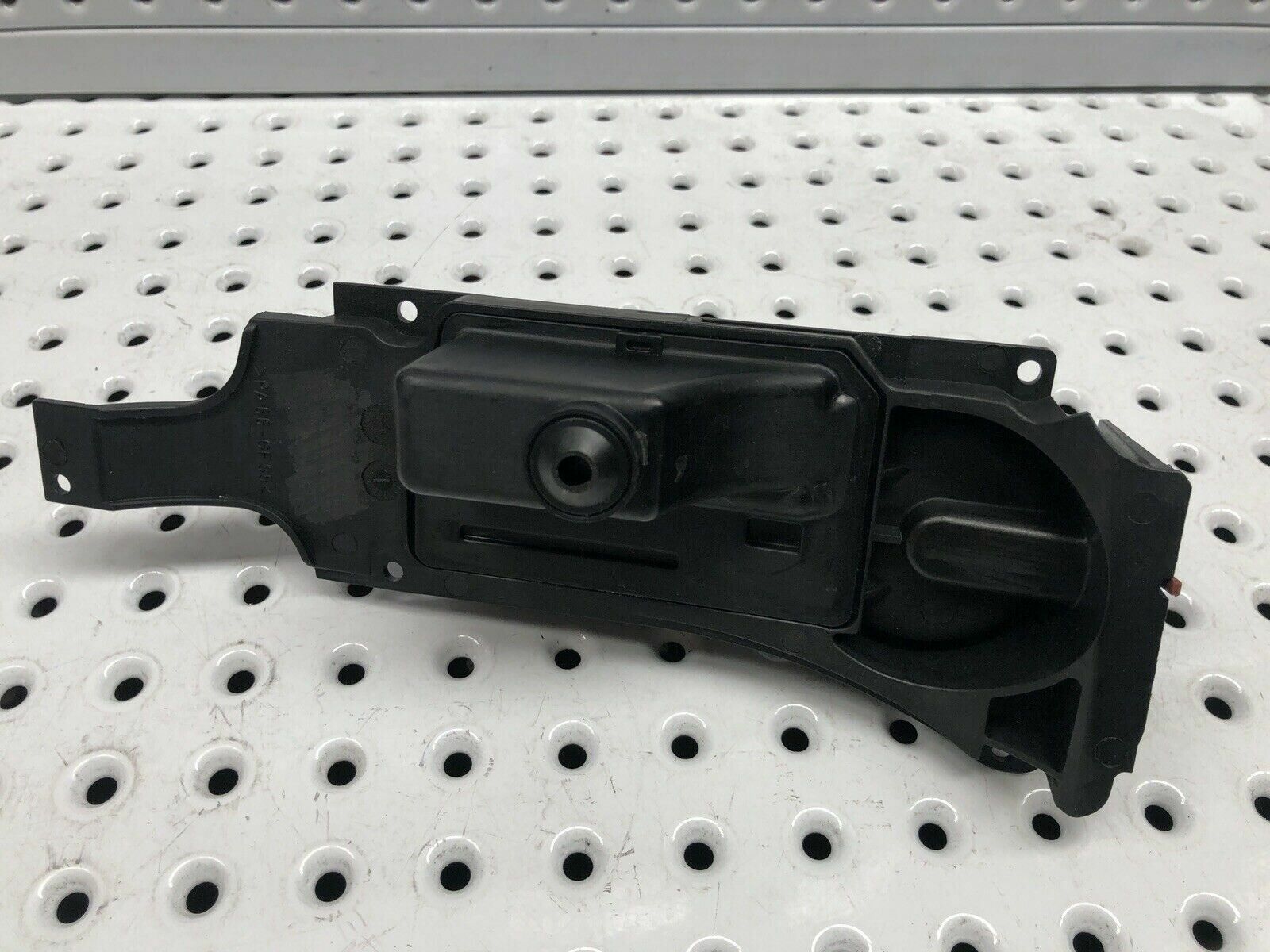

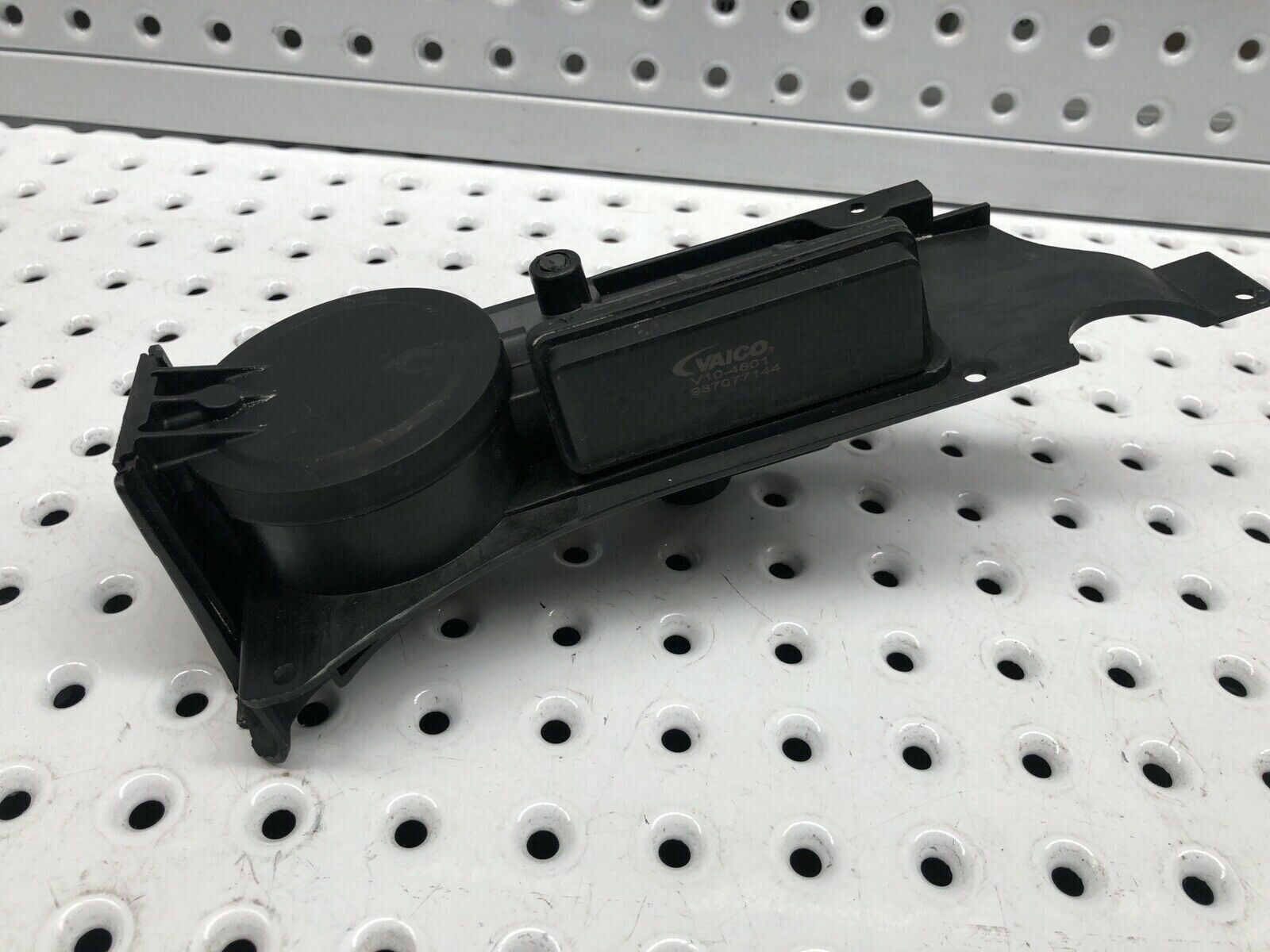

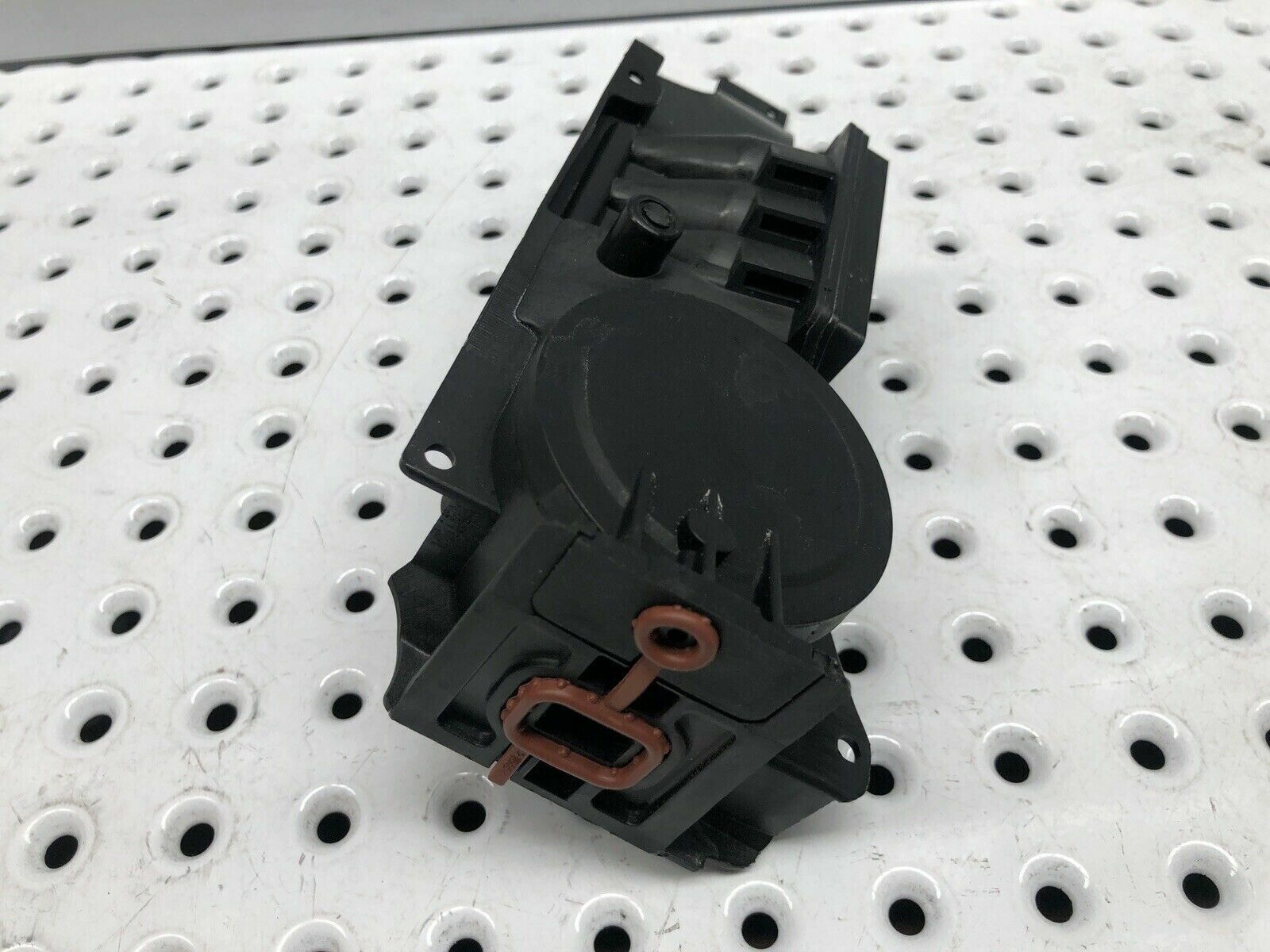

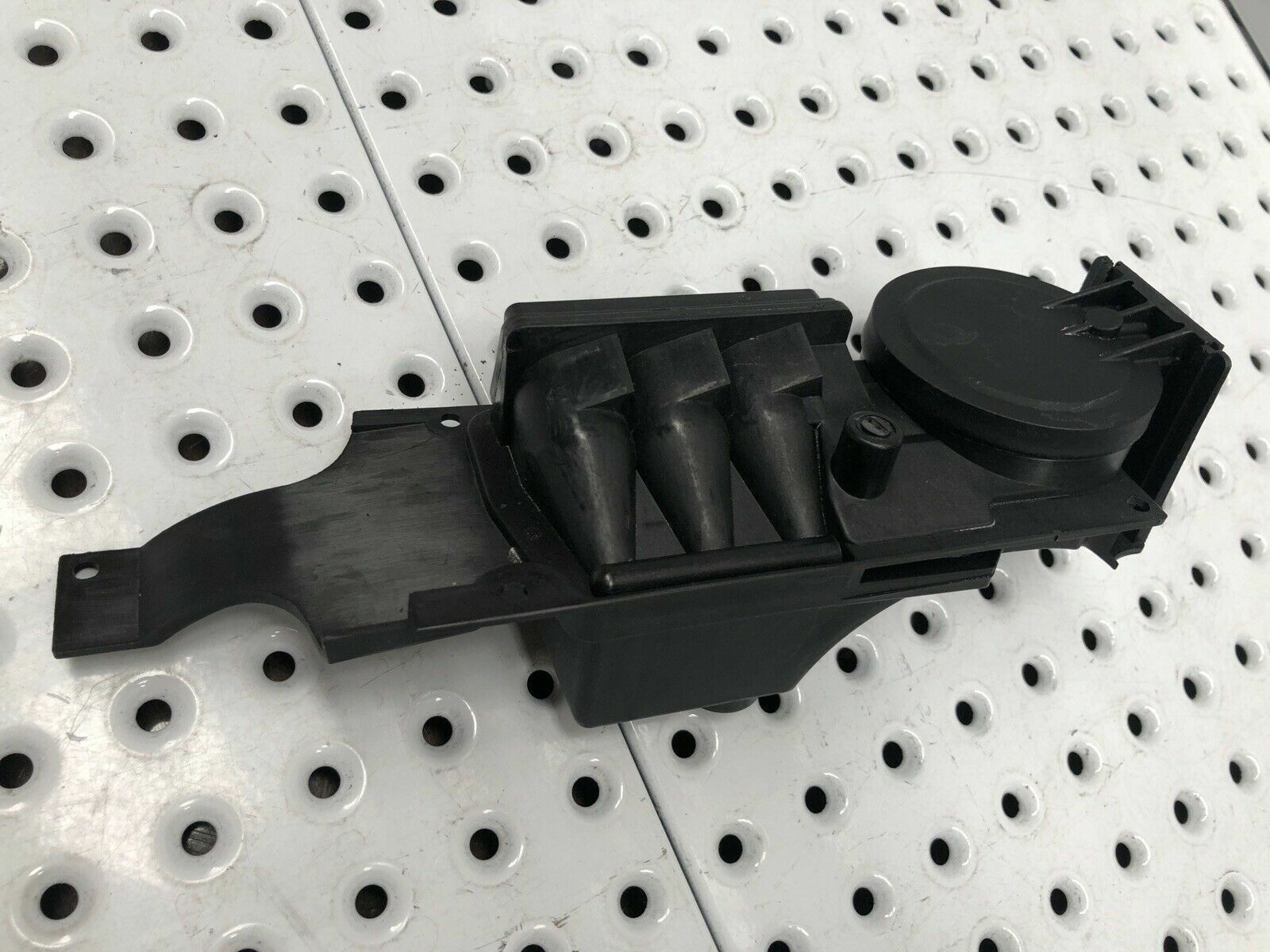

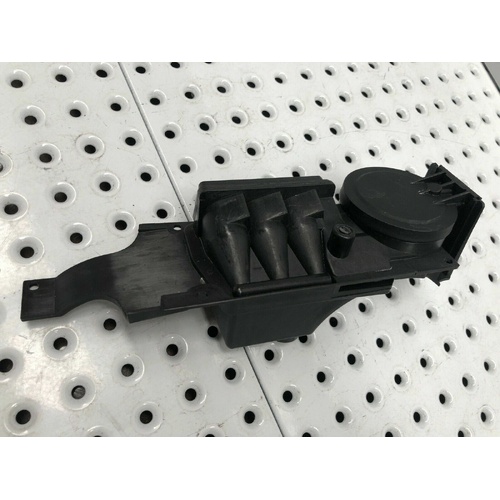

- Item Name: Oil Trap crankcase breather.
- Part Brand: VAICO.
- OEM Numbers: 022103515A, 22103515A, 95510513500, 9551053501, 95510513530.
- Observe technical data:
- Valve Type: Breather Valve.
- Width [mm]: 100 mm.
- Weight [kg]: 0.19 kg.
- Height [mm]: 90 mm.
- Length [mm]: 250 mm.
- Observe service information:
- Fitting Position: Cylinder Head / Rocker cover.
- Operating Mode: Pressure Controlled.
- Supplementary Article/Supplementary Info: With seal.
- Recommended change interval [km]: 60000 km.
- Recommended replace interval [years]: 3 Years.
- Observe the vehicle manufacturer specifications:
- Housing material: Polyamide 6.6.
- Seal material: FPM (fluoride rubber) / ACM (polyacrylate rubber).
- Remarks: Products supplied by us are without exception intended for the designated use. Please note that our products are usually delivered without installation instructions. Installation may only be carried out by trained specialist personnel. There is no guarantee for inappropriate, improper or unintended use.
We also sell standard and performance injectors,fuel pumps, air flow meters, engine sensors, spark plugs, spark plug leads, engine mounts, power steering units and many more genuine parts.
Warranty. 12 Months or 20,000 km Warranty on Passenger Vehicles.
Payment. We accept : Pay on Pickup, PayPal, Bank Transaction, credit card over the phone from 9 to 5 mon to fri & Money Order as payment methods. Please use your Ebay Username as a transaction reference.
Postage. Local Pickup (message for address and pick up times) Domestic: Fixed Rate we use Couriers please, Fastway couriers, Australia Post (Regular Post) and express. International : POA , Please contact us via Ebay for a quote. All items sent with tracking no and insurance.
Fitting services. Available in our modern and well equipped work shop.
For General Enquires :Customer Support ,technical support and bookings & pickups we are located at 45 Charles street north Coburg Melbourne Victoria 3058. Always best to call first.
Contact through Ebay message leave us your details and we will get back to you ASAP.
PH: 03. 9.354.29.62 PH: 0.4.1.730.377.5
