PCV VALVE DIAPHRAGM CRANKCASE VENTILATION AUDI TT 3.2 QUATTRO 8J 2006-2010 3.2L
NEW PCV VALVE FOR CRANKCASE VENTILATION. PCV VALVE, BREATHER DIAPHRAGM, CRANKCASE VENTILATION, CRANKCASE BREATHER OIL TRAP.
TO SUIT.
AUDI TT 3.2 QUATTRO 8J 11/2006-01/2010 3.2L BUB V6 24v DOHC MPFI AWD 2-DOOR COUPE.
AUDI Q7 3.6 FSI QUATTRO 4L 09/2006-09/2010 3.6L BHK V6 24v DOHC VVT DIRECT INJECTION AWD 4-DOOR SUV.
Sourced from the OE supplier made in Europe.
Over time, the PCV VALVE diaphragm dries and breaks.
Once Torn through the diaphragm the engine gets unaccounted air mass flowing through the air mass sensor. As a result, the engine can be difficult to start, unstable (especially at idle) can be misfiring, ore staling. If a whistle is heard in the area of the rocker cover, then the diaphragm is torn.
Replacement instructions:
Remove the valve cover. Remove the valve crankcase ventilation (mounted inside the valve cover). Remove the rocker cover, remove the cover and exchange the new PCV assembly. Assemble in reverse order.
During the first run, after replacing the PCV assembly, the engine may not work steady (This is due to the fact that when the PCV assembly was torn the ECU will need to reconfigure the computer, in accordance with the lambda probes that detect increases in oxygen content). After replacing the PCV assembly it would need some time to adjust itself. Allowed the engine to run for a while, switch off the ignition and start again, the engine must reach normal operation.

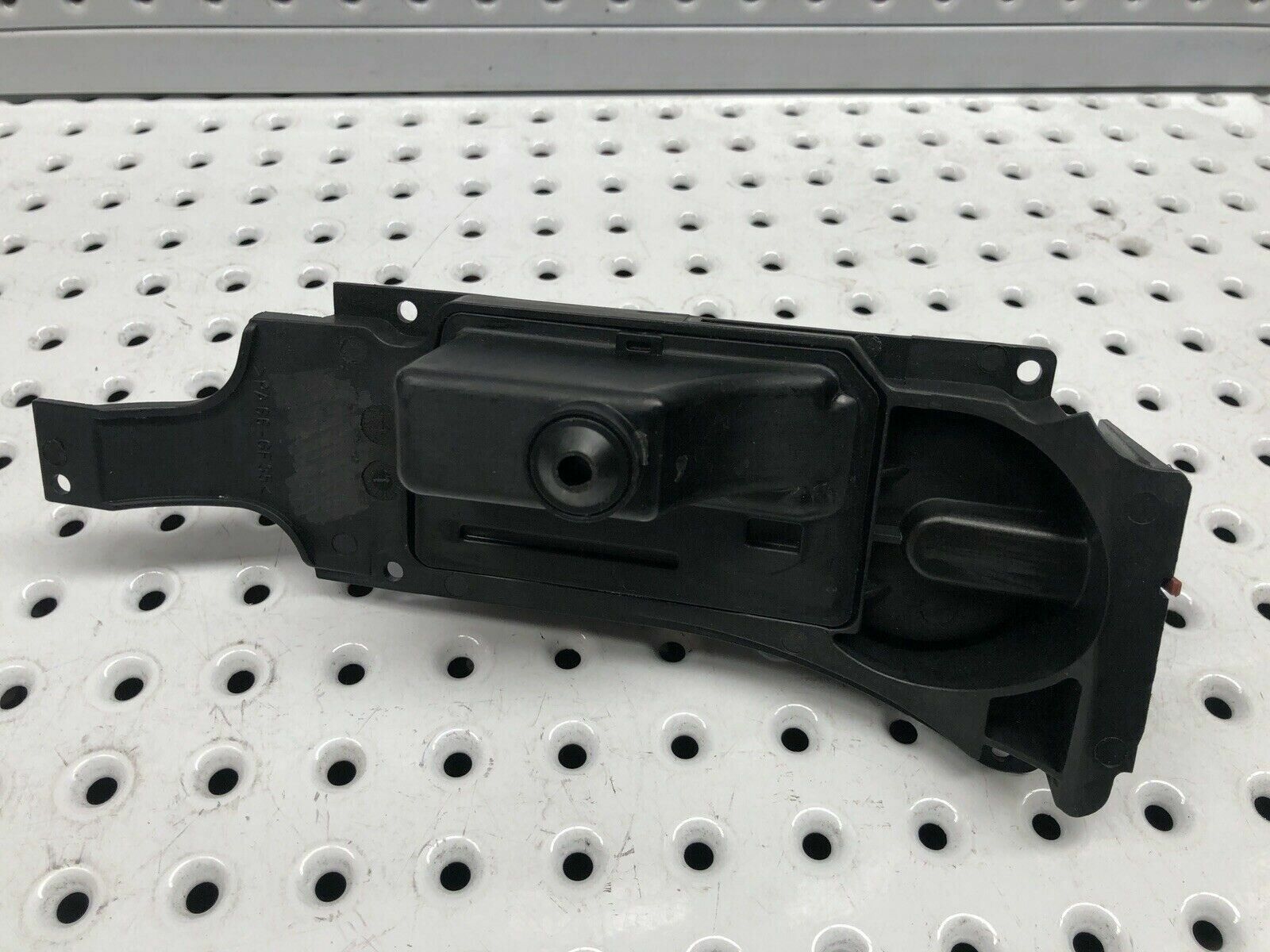

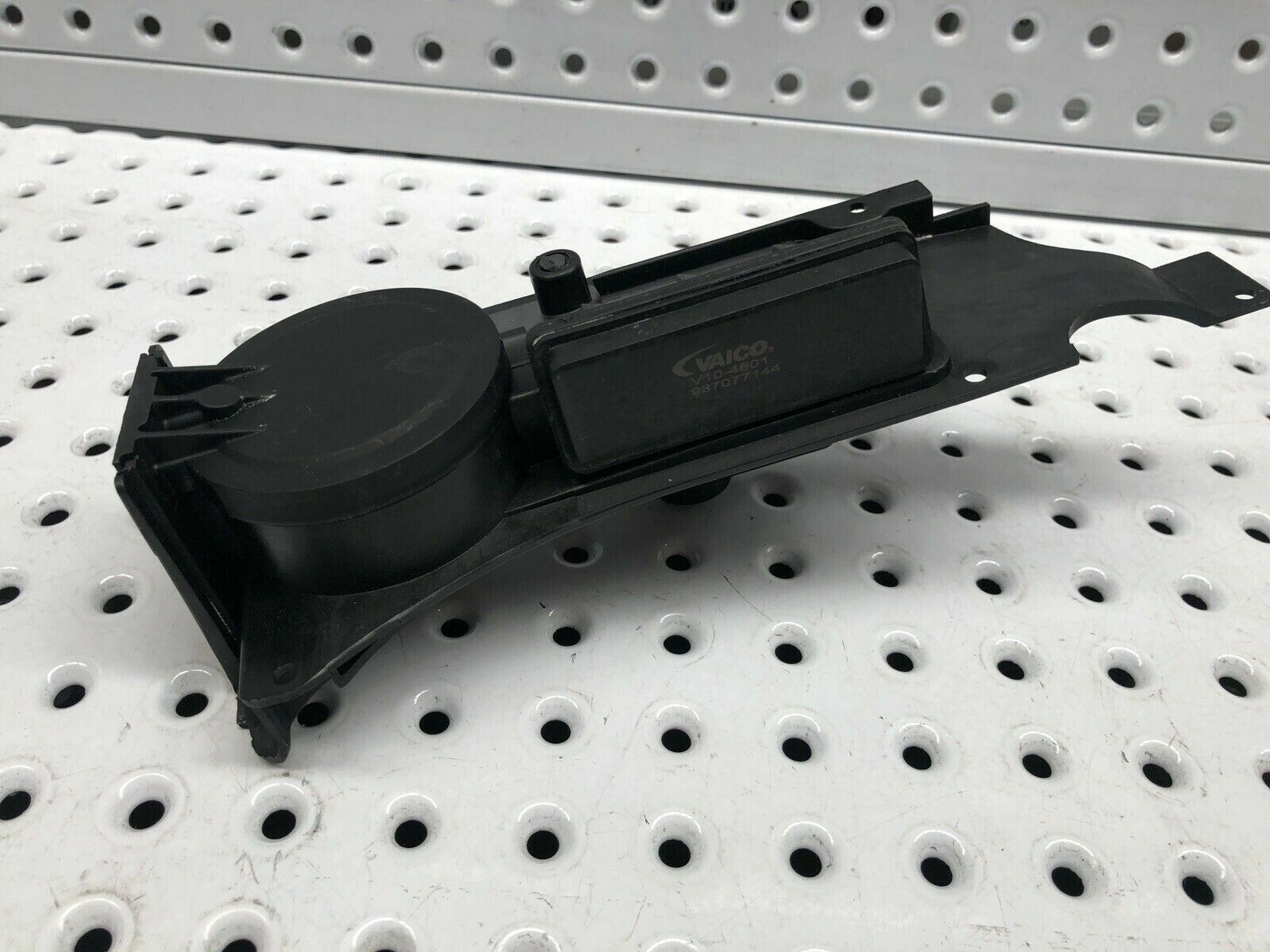

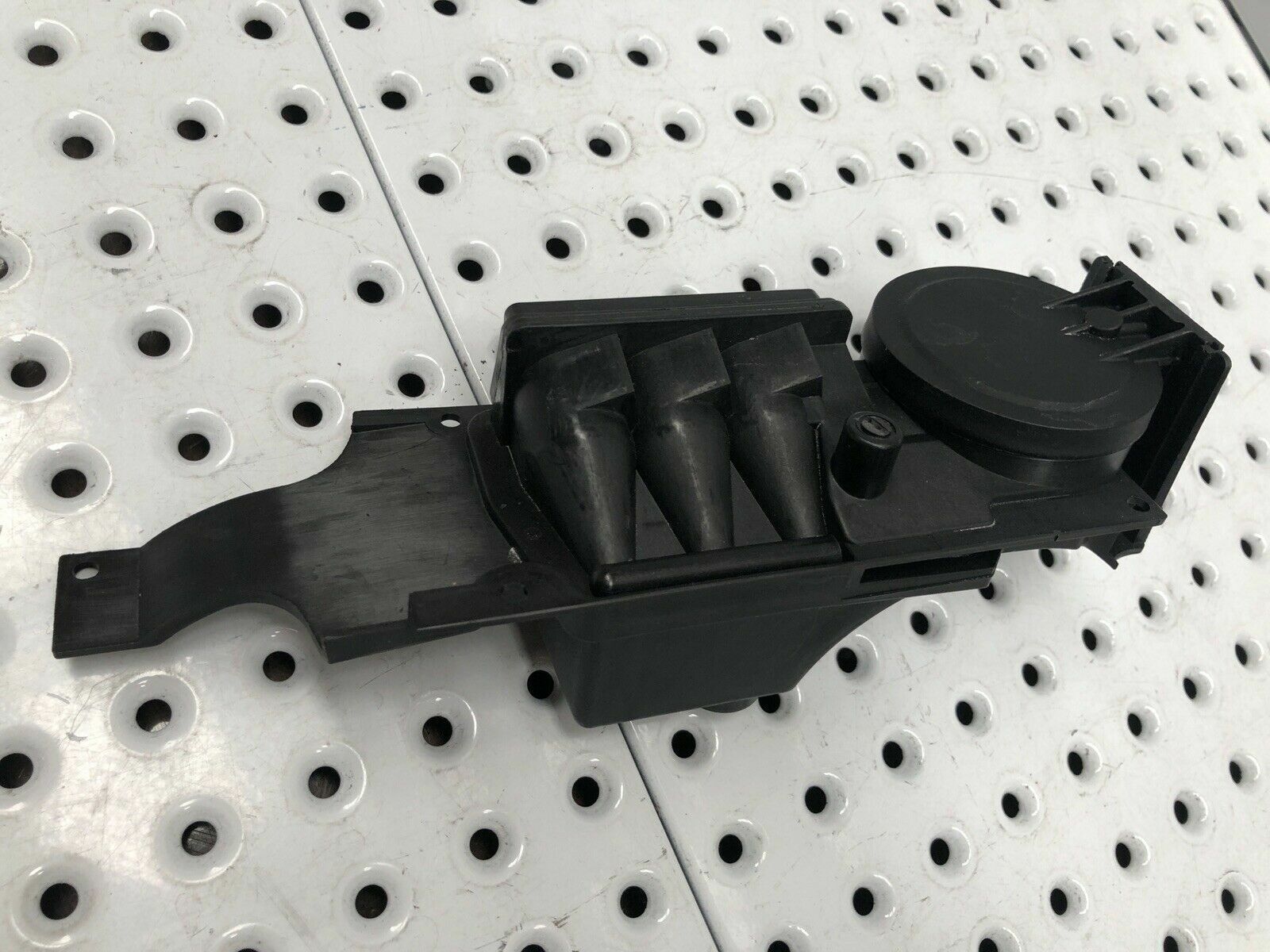

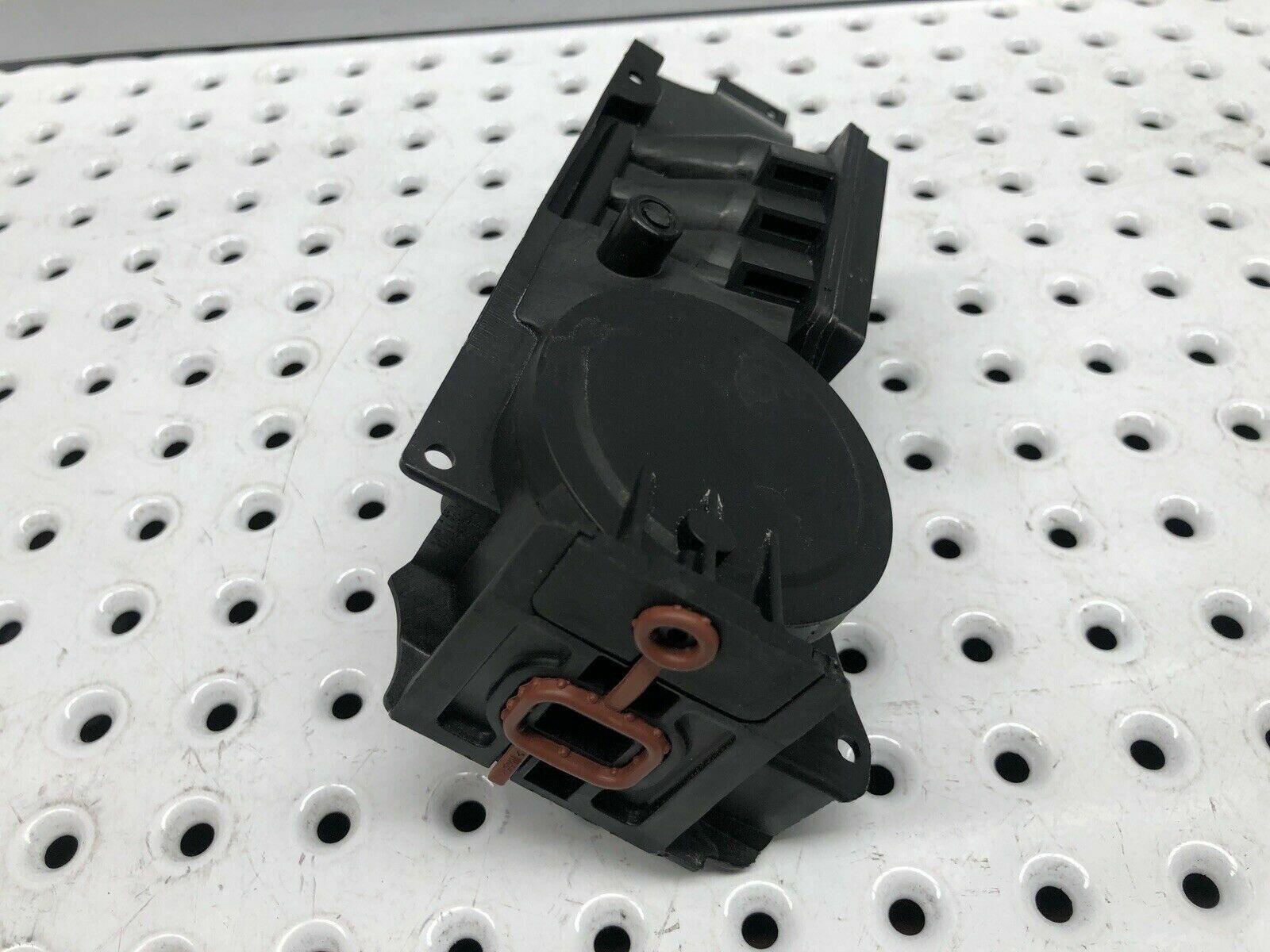

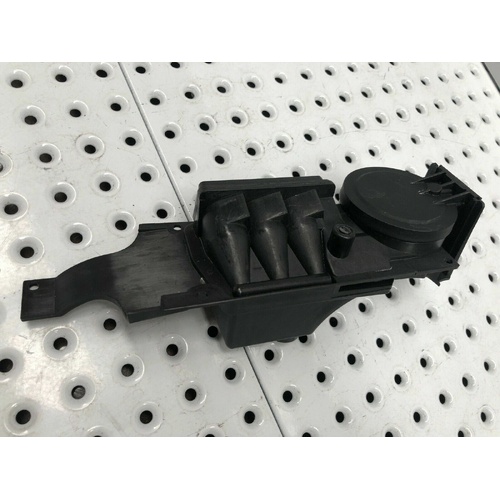

- Item Name: Oil Trap crankcase breather.
- Part Brand: VAICO.
- OEM Numbers: 022103515A, 22103515A, 95510513500, 9551053501, 95510513530.
- Observe technical data:
- Valve Type: Breather Valve.
- Width [mm]: 100 mm.
- Weight [kg]: 0.19 kg.
- Height [mm]: 90 mm.
- Length [mm]: 250 mm.
- Observe service information:
- Fitting Position: Cylinder Head / Rocker cover.
- Operating Mode: Pressure Controlled.
- Supplementary Article/Supplementary Info: With seal.
- Recommended change interval [km]: 60000 km.
- Recommended replace interval [years]: 3 Years.
- Observe the vehicle manufacturer specifications:
- Housing material: Polyamide 6.6.
- Seal material: FPM (fluoride rubber) / ACM (polyacrylate rubber).
- Remarks: Products supplied by us are without exception intended for the designated use. Please note that our products are usually delivered without installation instructions. Installation may only be carried out by trained specialist personnel. There is no guarantee for inappropriate, improper or unintended use.
