PERFORMANCE WALBRO E85 525LPH FUEL PUMP FORD FALCON RTV BA UTE 2003-09/2005 5.4L

Image result for walbro performance fuel pumps

Image result for BA FORD UTE SUPER PURSUIT

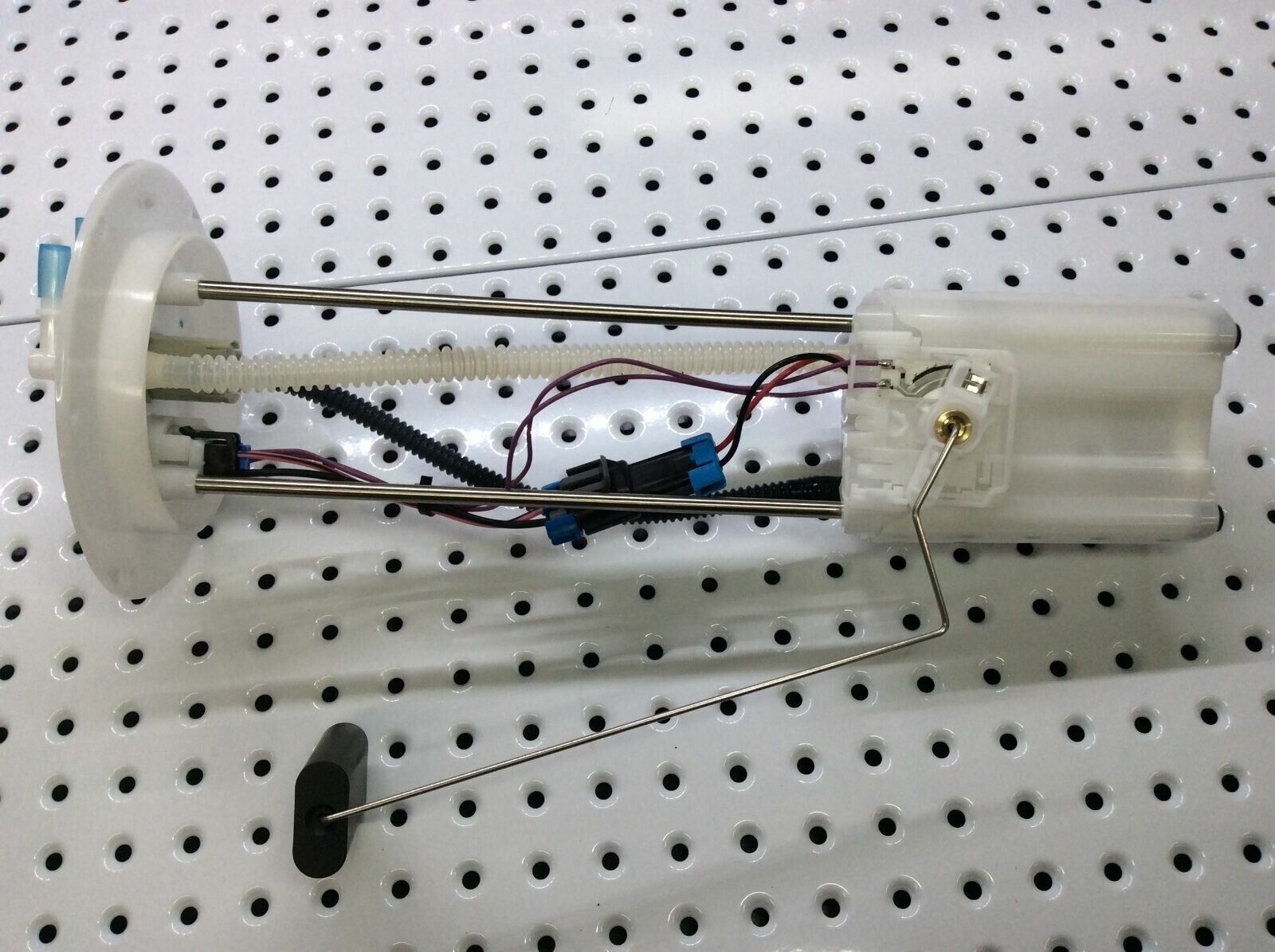

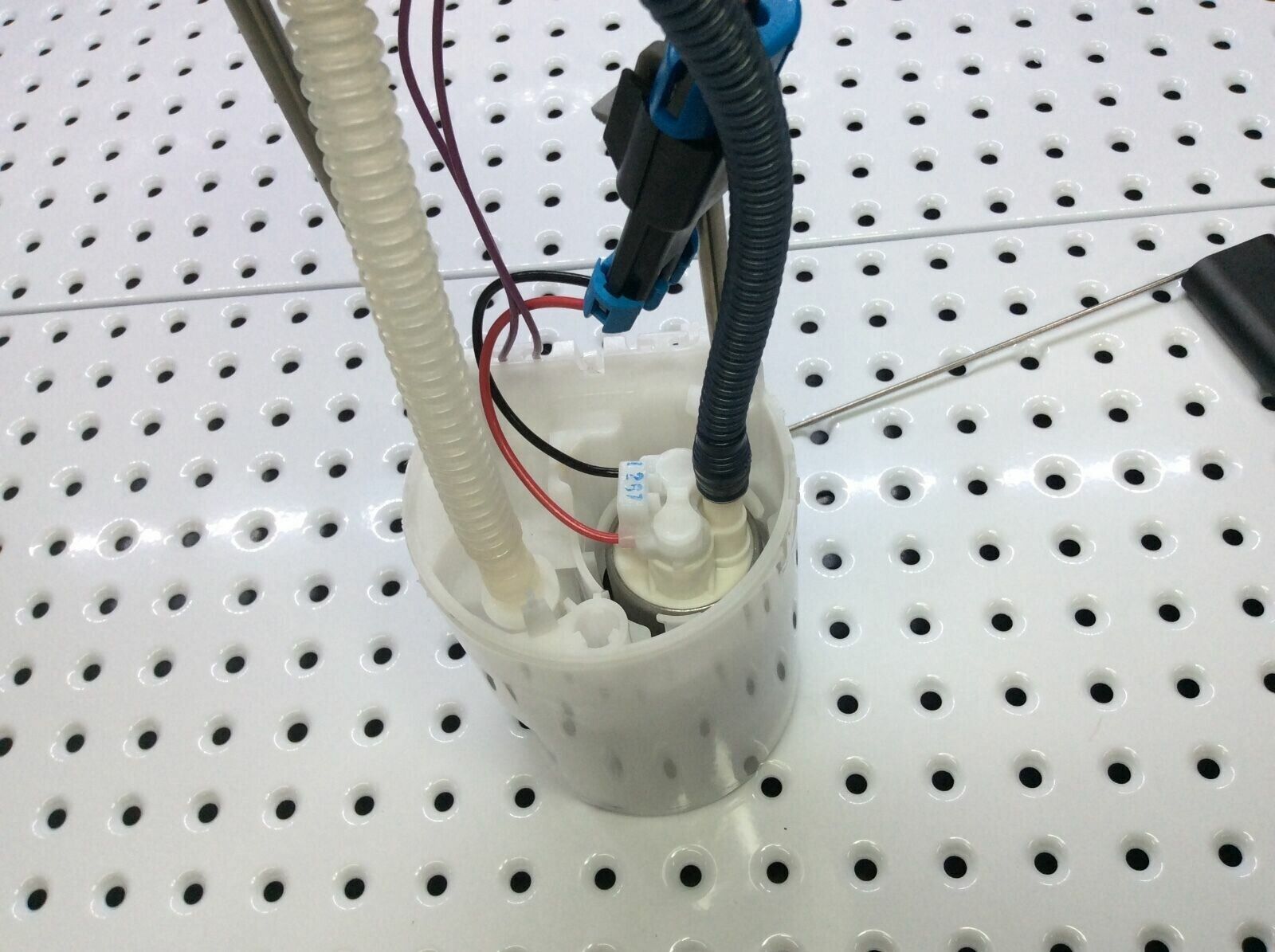

UP FOR SALE IS OUR SNIPER-PERFORMANCE & WALBRO FUEL PUMP ASSEMBLY TO SUIT BA, BF UP TO 09-2007 UTE.

WALBRO 525-LPH F90000285 900+BHP SUITED FOR E85, METHANOL & PUMP FUEL (PERTOL) WITH THIS PUMP.

THIS ASSEMBLY IS CUSTOM MADE BY SNIPER PERFORMANCE AND FITTED WITH A GENUINE WALBRO 525-LPH F90000285 AND CAN SUPPORT UP TO 820 + BHP at the flywheel.

THE NEW GENUINE F90000285 WALBRO MADE IN THE USA.

IT HAS BEEN DYNO, RACETRACK TESTED, 1/4 MILE, CIRCUIT AND DRIFT.

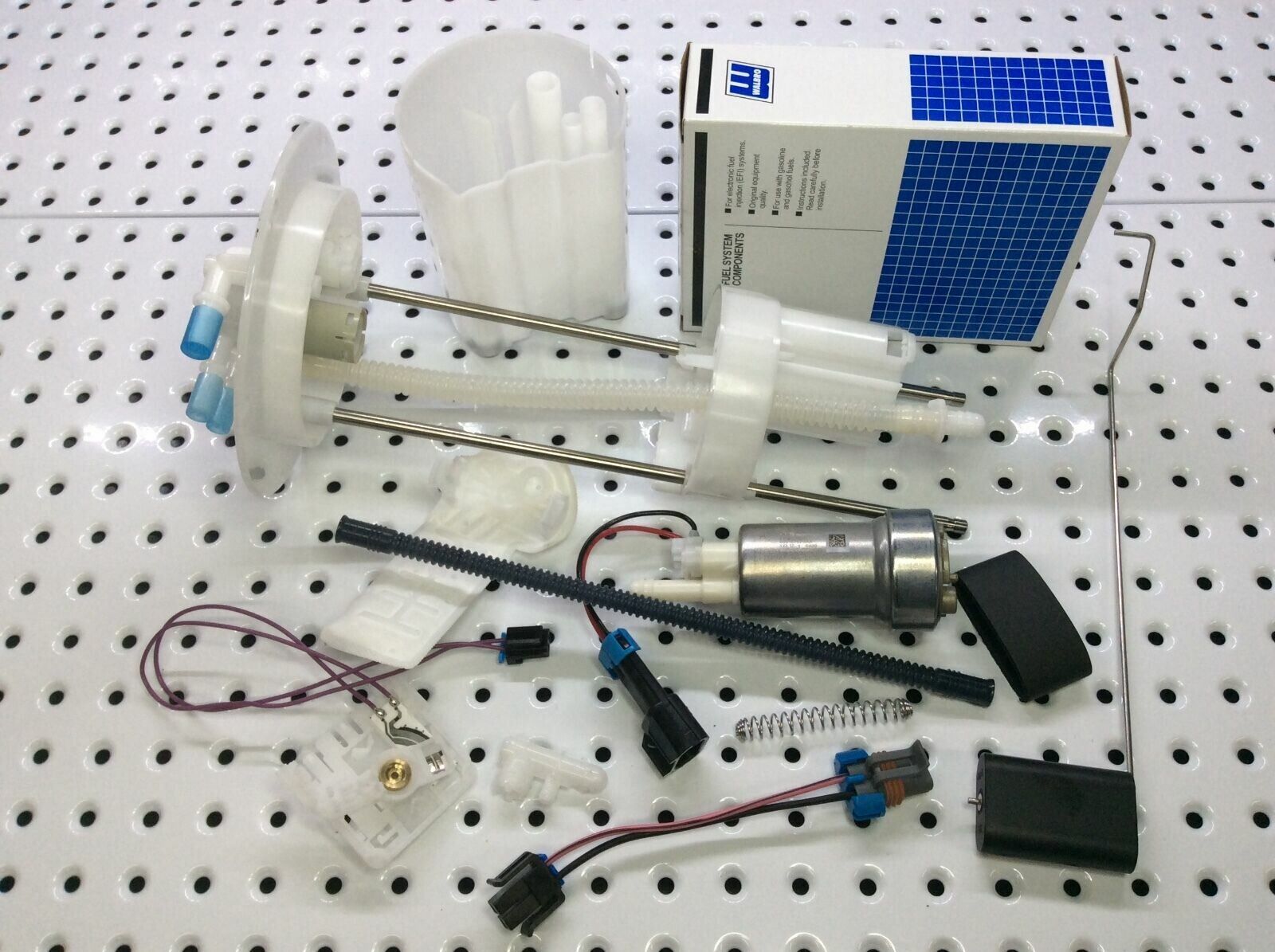

THIS ASSEMBLY CONSIST OF ONLY THE BEST OF THE BEST PARTS AVAILABLE AND HAND ASSEMBLED AND MODIFIED IN MELBOURNE.

THE FUEL HOSES USED IN THIS ASSEMBLY ARE MADE IN THE EU THE BLACK FEED E85 HOSE IS A LINED 2 LAYER HOSE MADE IN GERMANY THAT HAS A 3X BURST PRESSURE OF THE STANDARD HOSE. THE WHITE RETURN HOSE IS RATED AT TWICE THE BURST PRESSURE OF THE FACTORY HOSE AND BOTH ARE HIGH FLOW.

WE SPECIFICALLY FIT THE PUMP WITH A NEW DELPHI FACTORY WIRING PLUG (NO JOINS ON PUMP) WITH STAINLESS STEEL TERMINALS.

STAINLESS STEEL COMPRESSION SPRING & GUIDE PINS FITTED FOR NO CHANCE OF CORROSION.

HIGH MICRON HIGH FLOW NYLONG STRAINER FOR MAXIMUM FILTRATION AND FLOW.

HIGH FLOW MODIFIED VENTURI HOUSING & FUEL RETURN JET VALVE TO KEEP THE RETURN PRESSURE LOW AS POSSIBLE & TO KEEP THE SWIRL POD FLOWING 3X THE NORMAL RATE.

Will suit ALL the following Vehicles: And Custom Applications.

Make	Model	Series	Engine	Date
Ford	Falcon BA/BF	XT UTE	4.0L 6cy	2002 to 09-2007
Ford	Falcon BA/BF	FALCON UTE	4.0L 6cy	2002 to 09-2007
Ford	Falcon BA/BF	XR6, XR6 Turbo UTE	4.0L 6cyTurbo	2002 to 09-2007
Ford	Falcon BA/BF	XR8 UTE	5.4L V8	2002 to 09-2007
Ford	BA/BF	SUPER PURSUIT UTE	4.0L 6cy	2002 to 09-2007

SPECIFICATIONS.

FUEL PUMP PART NUMBER: WALBRO E85 525-LPH F90000285.

HORSEPOWER: 900+ at 60PSI. naturally aspirated applications.

FLOW RATE: 470LPH AT 40PSI & CAPABLE OF 525-LPH.

OVER ALL PUMP LENGTH: 131mm. FUEL INLET AND OUTLET DIAMETER: 11mm.

ASSEMBLY PART NUMBER: SNIPER PERFORMANCE MOD-034-520LPH UTE.

ASSEMBLY HEIGHT: BACE TO FLANGE 370-mm COMPRESSED 330-mm.

ASSEMBLY CAPACITY: POD 500ml as factory assembly.

ASSEMBLY HOSE FITTINGS: Left Returnee (8-mm c-lock). Centre (8-mm c-lock) vent to charcoal canister. Right (10-mm c-lock) Fuel out.

WIARING HARNEST: One piece wiring loom Delphi to Walbro with stainless steel braid & terminals 100-mm long.

PRESSURE HOSES: High pressure, high burst, high flow white & black submersible fuel hose made in the EU, 155mm long.

FUEL SENDER READINGS: Full 233-ohms -+5. Empty 39-ohms -+5.

The NEW WALBRO E85 525-LPH F90000285 pump is the highest flowing in-tank fuel pump on the market, and is E85 & Methanol approved. Walbro designed the pump to meet the requirements of modern turbocharged applications where a single 255LPH fuel pump is insufficient. The pump uses a turbine style design which incorporates two composite plastic blades. The turbine design lends itself to extremely quiet operation and a massive flow rate.

CHECK THIS OUT.

WE ALSO DO A PERFORMANCE UP-GRADE TO SUIT BA BF UTE WITH OUR BIG POD ASSEMBLY ITS CUSTOM MADE BY SNIPER-PERFORMANCE ITS BIGGER IN THE SWIRL-POD AREA 1-LT COMPARED TO FACTORY ONE THATS 500-ML THIS WILL STOP SURGING UNDER EXTREME TAKE OFFS AND AROUND CORNERS WHICH IS A COMMON PROBLEM WITH THE FACTORY SWIRL POD THAT HOLDS 1/2-LT AS THE FACTORY MRI UNIT DOSE NOT HOLD ENOUGH FUEL FOR A AFTERMARKET HIGH FLOW PUMPS. WHICH CAUSES THEM TO SUCK AIR AND SURGE UNDER HALF A TANK OF FUEL. THIS WILL STOP THE SURGING PROBLEM BY 100%. CHECK OUT THE PICTURES BELOW THE ONE ON THE LEFT IS OUR BIGPOD AND ITS IN OUR STORE.

CHECK IT OUT.

WE CAN ALSO SUPPLY THIS ASSEMBLY WITH THE WALBRO TIA485-2 460-LPH, & F90000274 700-BHP 400LPH PUMP FUEL & THE WALBRO GSS341 550-BHP 255-LPH . MESSAGE US FOR A PRICE $$$. ALL CUSTOM APPLICATIONS WILLING WELCOME TO BUILD.

COMES FULLY ASSEMBELD READY TO DROP IN.

We also sell performance and standard fuel pumps, Injectors VDO & Bosch 280cc to 2400cc, Sniper Performance Coils, Garret Turbo, Turbosmart Full Range, Vic agent for AeroFlow fittings & hoses, Crow Cams, APR bolts, K&N Air Filters, NOS Kits & Filling, Auto Meter, Intercoolers, Custom Piping, Center Line & Weld Racing Wheels, Mickie Thompson Race Tyres, Red Line Oils and many more.

Message us with your details and we will get back to you.

WE ALSO HAVE IN OUR STORE FOR SALE IS OUR NEW PRODUCT.

YEARS IN DEVELOPMENT AND WITH EXTENSIVE VEHICLE AND DYNO TESTING, MADE IN JAPAN WITH AIRCRAFT GRADE ELECTRONICS. AND SUPPLIED WITH VDO SILICON GREASE.

SET OF 6 PERFORMANCE IGNITION COILS TO SUIT FALCON XR6 TURBO BA BF & TERRITORY TURBO MODELS. WE ARE SO CONFIDENT OF THIS PRODUCT IF YOU ARE NOT 100% SATISFIED WE OFFER A FULL MONEY BACK GUARANTY.

Our coils connect directly to the factory connectors. Once installed, you’ll have the power and performance of a higher energy spark with 15% more spark and multiple spark discharge.

Increased spark KV'S and voltage along with multiple spark capabilities, the time it takes to fire once it gets the signal is one Millisecond which is five times quicker than standard. That helps improve the combustion process of the fuel mixture to create an efficient burn.

Perfect spark from 500 rpm to 12,000 rpm This results in improved throttle response.

Stops Pre-Ignition and Pinning when used

with E85 applications.

Smooth idle and quick starts, plus increased hard acceleration and high rpm without misfiring.

SNIPER HI PERFORMANCE!

MISFIRING PROBLEMS

SOLVED EASY!!!

Made in Japan with a 2 year

Warranty $210.00 a set of 6.

WE ARE ALSO WHITELINE DEALERS SO ANY SUSPENSION PARTS WE CAN HELP AT THE BEST POSIBLE PRICE.

Image result for WHITELINE

For General Enquires :Customer Support ,technical support and bookings & pickups we are located at 45 Charles street north Coburg Melbourne Victoria 3058. Always best to call first.

Contact through EBay message leave us your details and we will get back to you ASAP.

Warranty

  12 Months or 20,000 km Warranty on Passenger Vehicles.
Payment
We accept : Pay on Pickup, PayPal, Bank Transaction, credit card over the phone from 9 to 5 mon to fri & Money Order as payment methods. Please use your EBay Username as a transaction reference.
Postage  Local Pickup (message us for address and pick up times)
Domestic :  Fixed Rate we use Couriers please, Fastway, Australia Post (Regular Post) and express. please contact us of which you prefer on purchase in order details ore if not we will post out with the one we think would be the best to use.
  International : POA , Please contact us via EBay for a quote.
All items sent with tracking no and insurance except when sent with Australia post which is only covered for $50.00 for lost ore damaged in transit.
Fitting services   Available in our modern and well equipped work shop.

For General Enquires :Customer Support ,technical support and bookings & pickups we are located at 45 Charles street north Coburg Melbourne Victoria 3058. Always best to call first.
      Contact through EBay message leave us your details and we will get back to you ASAP.

Listing and template services provided by inkFrog

SKU	MOD-034-520_2
Brand	WALBRO. SNIPER PERFORMANCE
Shipping Weight	3.0000kg
Shipping Width	0.200m
Shipping Height	0.150m
Shipping Length	0.300m
Unit Of Measure	ea
