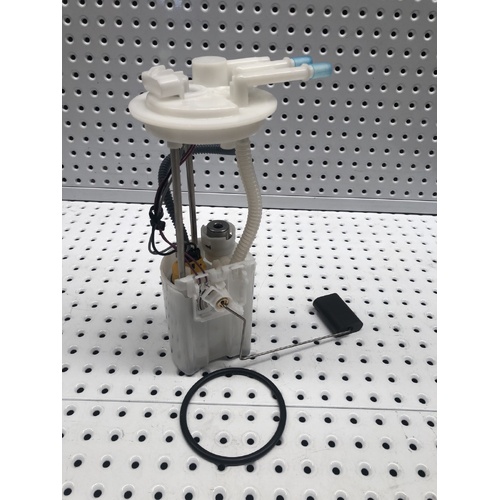

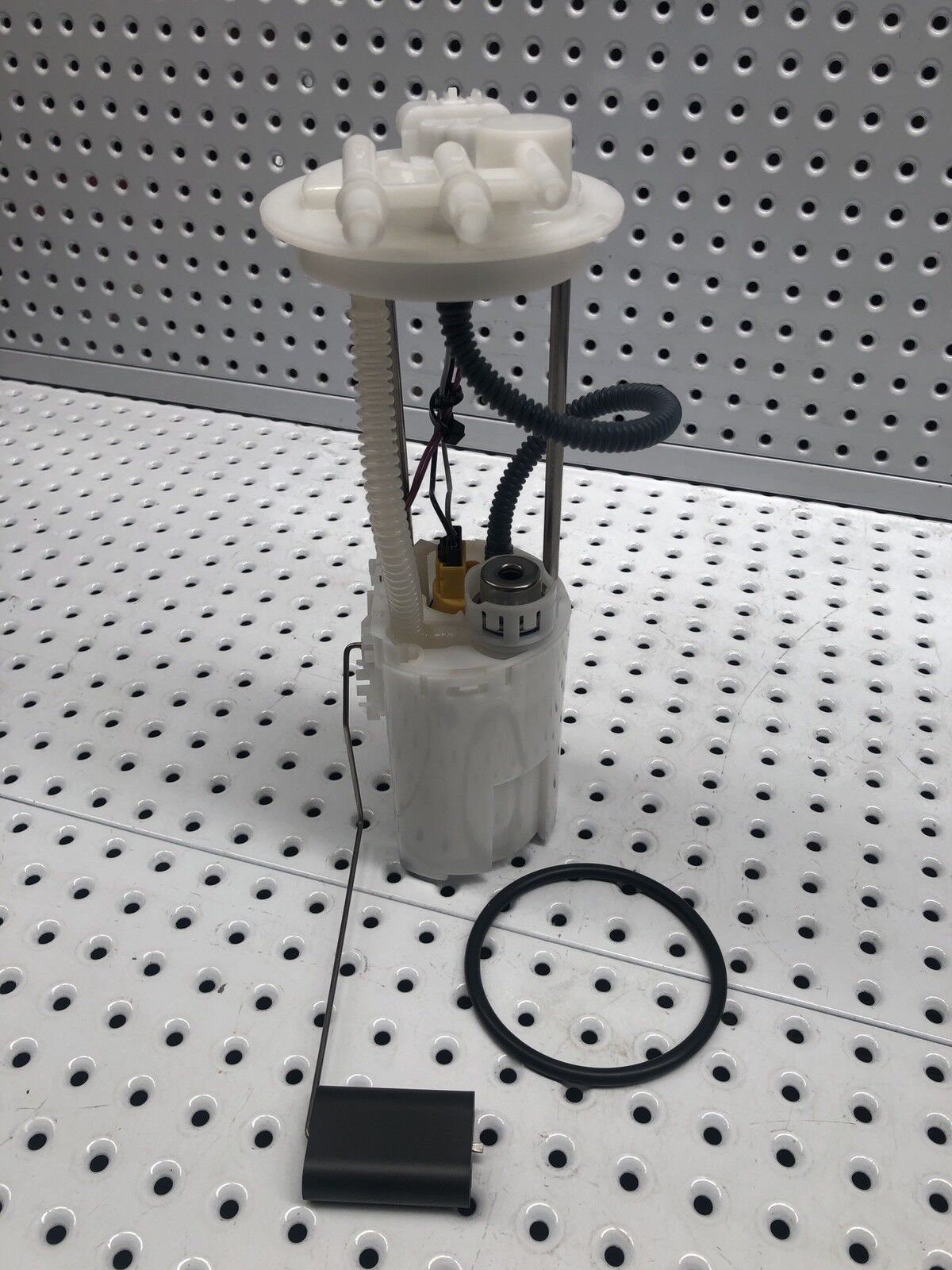

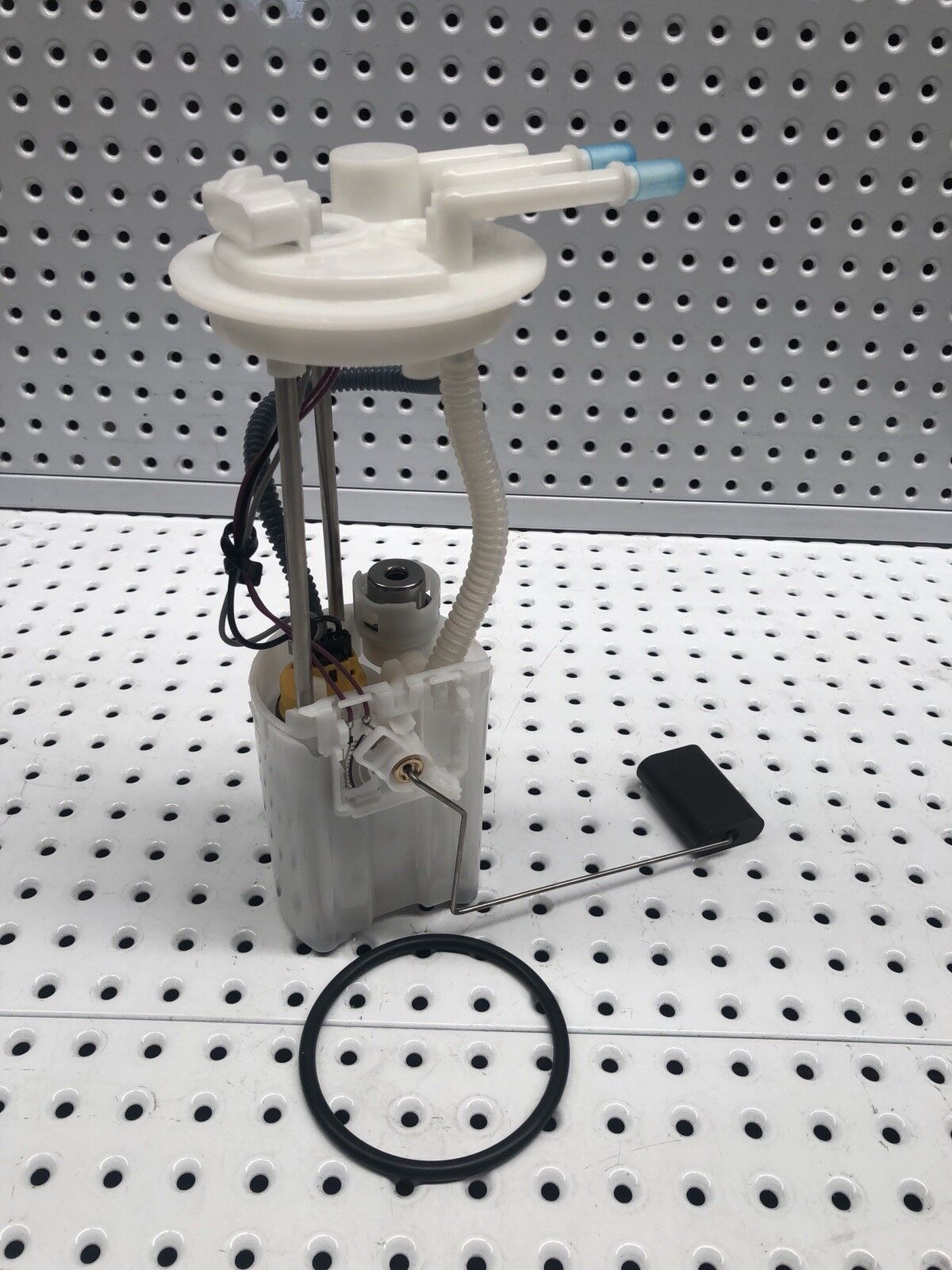

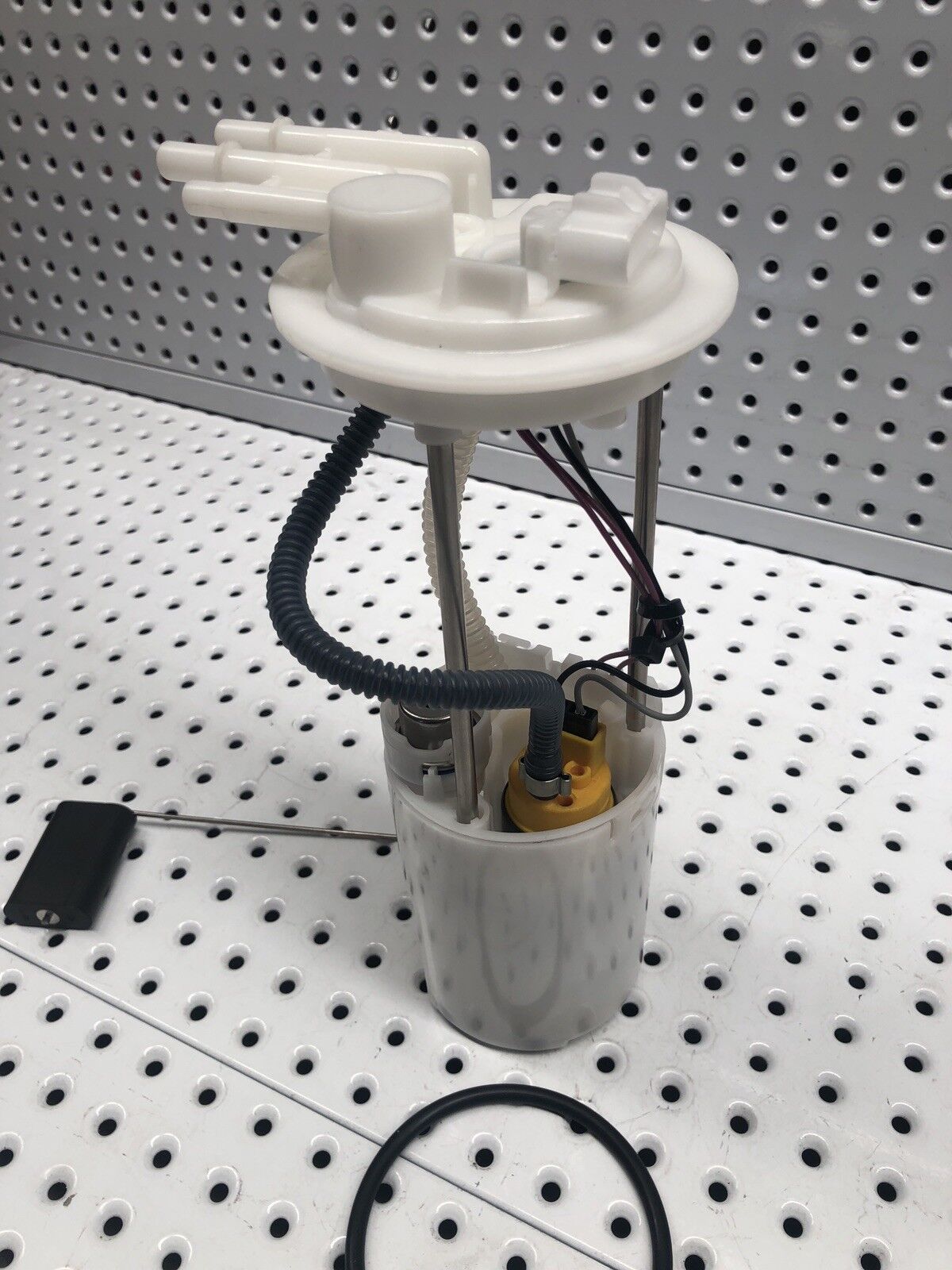

SNIPER 320-LPH PERFORMANCE FUEL PUMP COMMODORE MALOO R8 UTE VY 2003-2004 5.7L

UP FOR SALE IS OUR SNIPER HIGH PERFORMANCE CUSTOM BUILT FUEL PUMP ASSEMBLY TO SUIT HOLDEN COMMODORE VY VZ UTE.

FITTED WITH A SNIPER 620-BHP 320LPH HIGH PERFORMANCE FUEL PUMP TO SUIT PERTOL & E85 WITH THIS PUMP.

OUR ASSEMBLYS ARE CUSTOM MADE IN THE SWIRL-POD AREA MODIFIED TO STOP SURGING UNDER EXTREME TAKE OFFS AND AROUND CORNERS WHICH IS A COMMON PROBLEM WITH THE FACTORY SWIRL POD.

STOPS THE SURGING PROBLEM BY 100%.

IT HAS BEEN DYNO TESTED & RACE TRACK TESTED 1/4 MILE, CIRCUIT AND DRIFT.

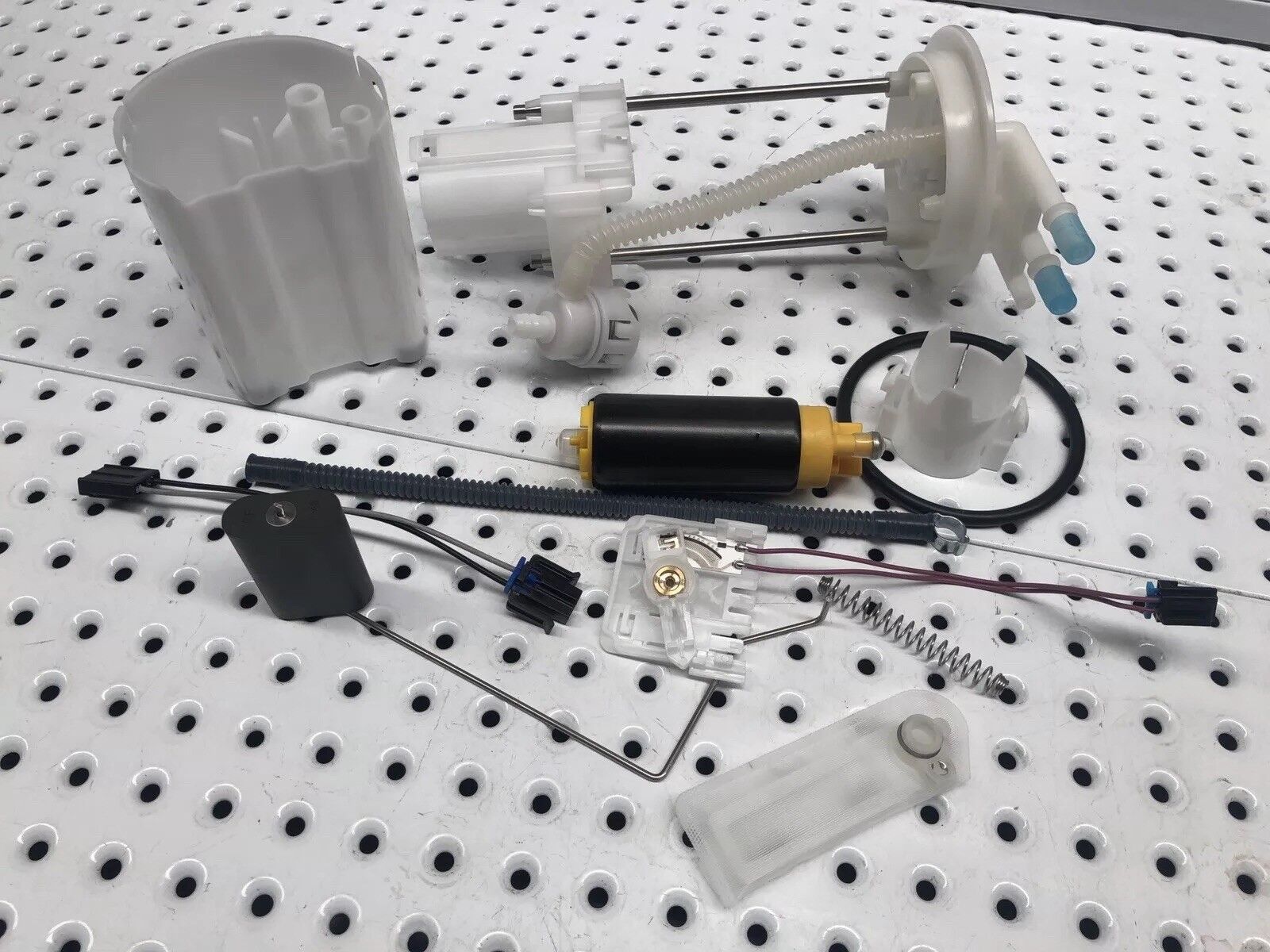

THIS ASSEMBLY CONSIST OF ONLY THE BEST OF THE BEST PARTS AVAILABLE AND HAND ASSEMBLED IN MELBOURNE. THE ASSEMBLY IS MADE OF THE BEST POLLIMER AVALABLE AND ITS E85 & METHANOL APPROVED.

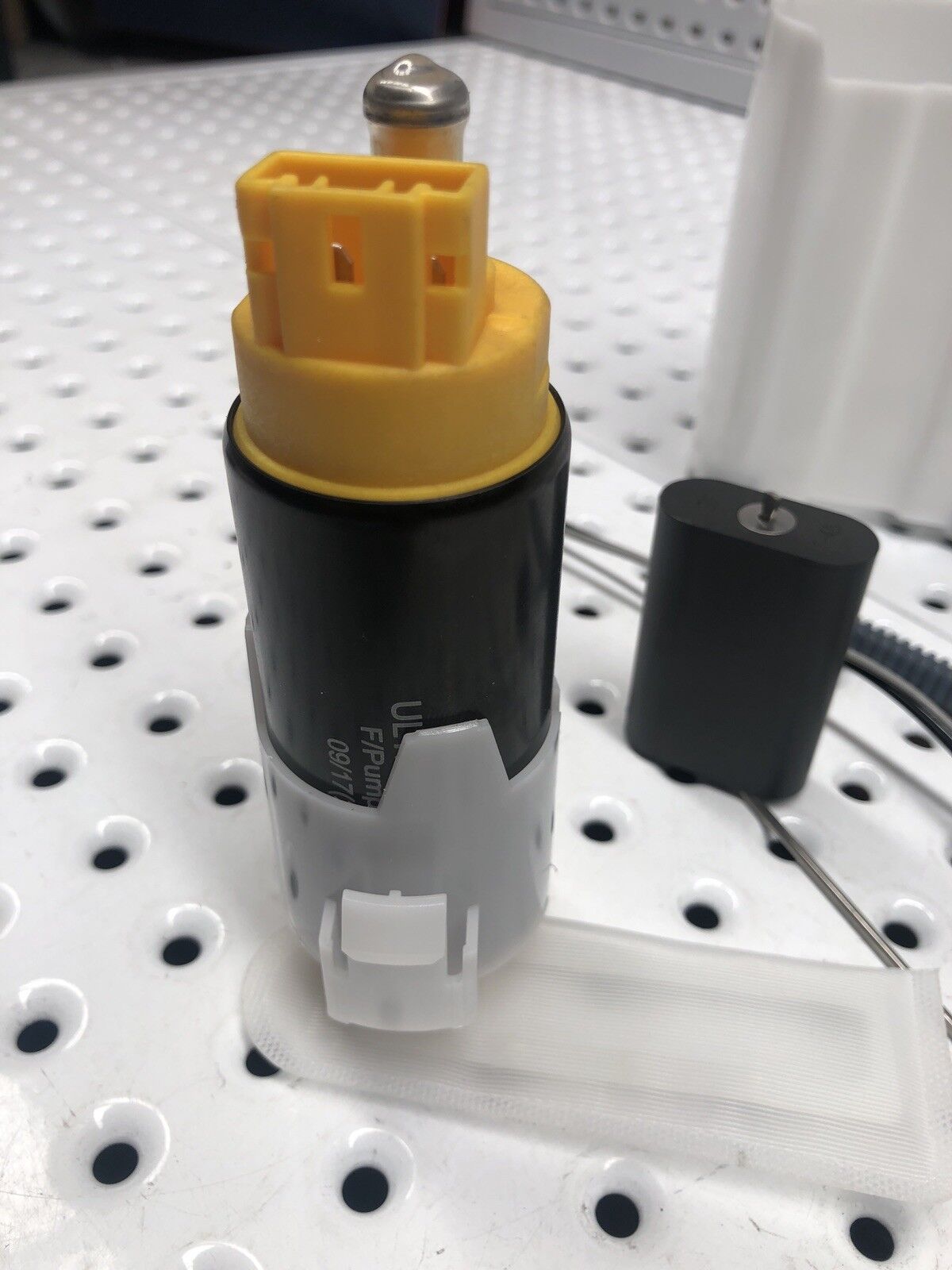

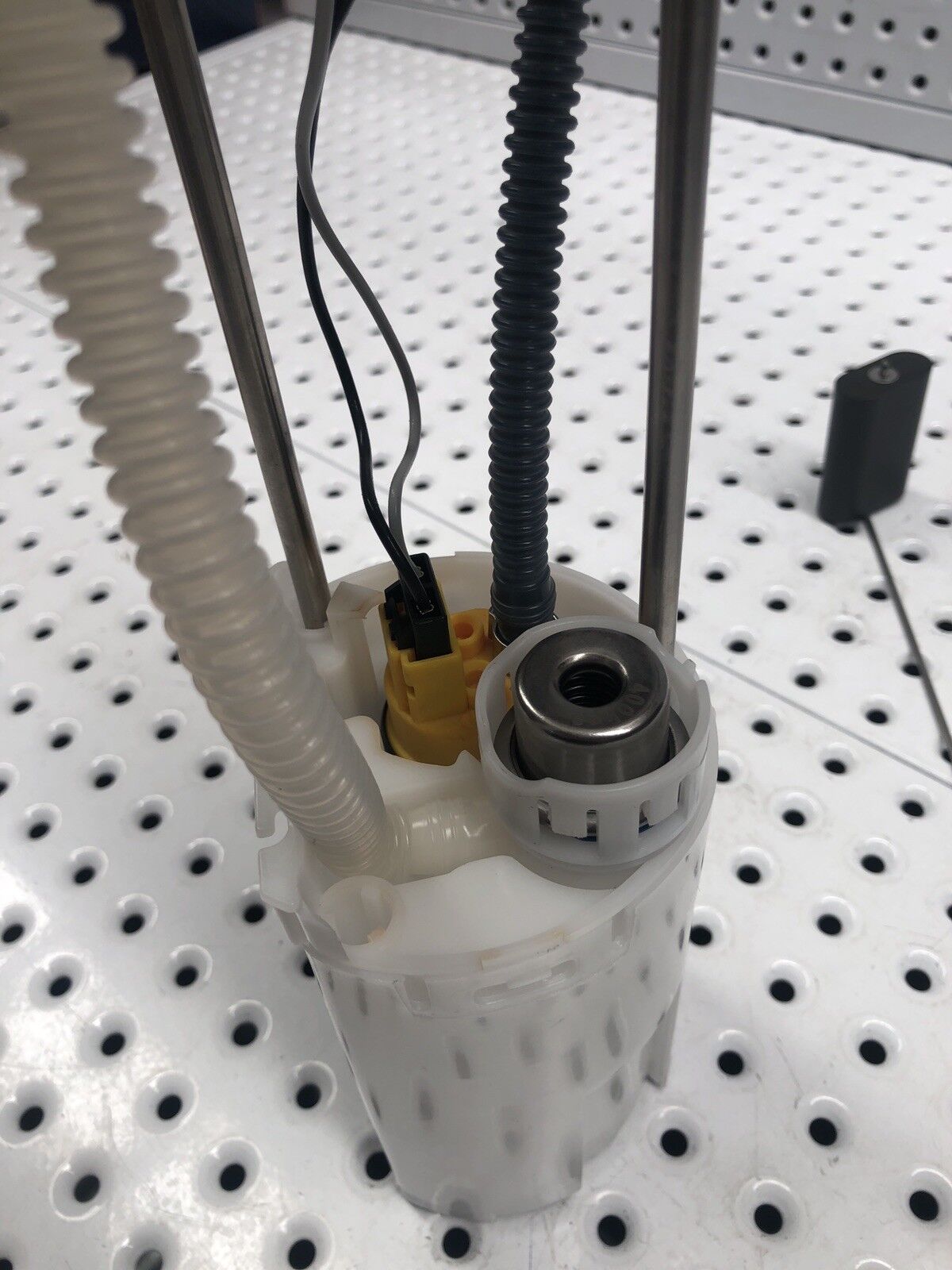

WE ARE THE ONLY ONES THAT OFFER ASSEMBLY WITH A SPECIAL CLIP LOCK PUMP RETANER THAT MOUNTS THE PUMP 10mm ABOVE THE BOTTOM OF THE SWIRL POD THIS KEEPS THE FILTER-STRAINER CLEAN AND ALLOWS THE PUMP ITS FULL POWER POTENTIAL. ALSO KEEPS THE PUMP QUIETER WITH NO CHANCE OF MOVING AROUND OR COMING LOOSE.

THE FUEL HOSES USED IN THIS ASSEMBLY ARE MADE IN THE EU THE WHITE HOSES ARE RATED AT TWICE THE BURST PRESSURE OF THE FACTORY HOSE AND IS A HIGH FLOW.

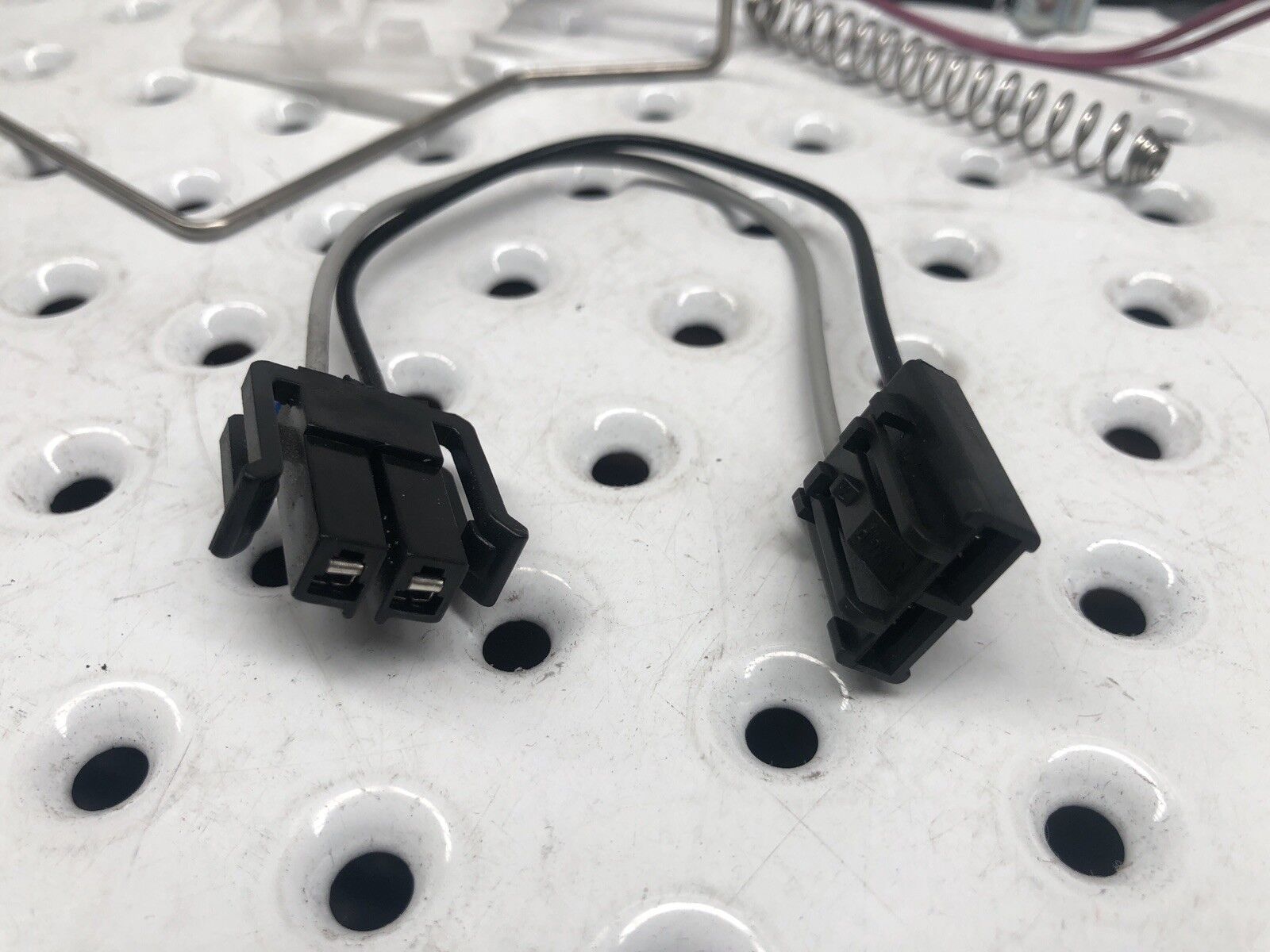

WE SUPPLY THIS UNIT WITH A ONE PIECE WIRING PLUG (NO JOINS) WITH STAINLESS STEEL BRAID & TERMINALS.

STAINLESS STEEL COMPRESSION SPRING & GUIDE PINS FITTED FOR NO CHANCE OF CORROSION.

HIGH MICRON HIGH FLOW NYLONG STRAINER.

HIGH FLOW, MODIFIED FUEL RETURN VALVE TO KEEP THE RETURN PRESSURE LOW AND TO FILL THE SWIRL POD IN HALF THE NORMAL TIME IT WOULD USALY TAKE.

HIGH FLOW FUEL PRESSURE REGULATOR FITTED TO THIS ASSEMBLY.

SUITS

COMMODORE S UTE VY 09/2002-07/2004 V8 5.7L LS1 GENIII. FROM VIN NUMBER 4L156716 ON..

COMMODORE SS UTE STYLESIDE VY 08/2003-07/2004 5.7L V8, LS1 GENIII FROM VIN NUMBER 4L156716 0N..

COMMODORE MALOO UTE VY 08/2003-07/2004 5.7L V8, LS1 GENIII FROM VIN NUMBER 4L156716 ON..

COMMODORE MALOO R8 UTE VY 08/2003-07/2004 5.7L V8, LS1 GENIII FROM VIN NUMBER 4L156716 ON..

COMMODORE UTE STYLESIDE VZ 7/2004-2007 3.6L LEO/LY7 V6..

COMMODORE UTE STYLESIDE VZ 7/2004-2007 5.7L Gen3 ls1 V8..

COMMODORE UTE STYLESIDE VZ 2006 6.0L Gen4 ls2 V8..

COMMODORE UTE STYLESIDE VZ 2007 6.0L Gen4 ls2 V8.

COMMODORE UTE STYLESIDE VZ 2006-2007 6.0L L76 / L98 V8.

COMMODORE UTE MALOO VZ 07/2004-2007 6.0L L76 / L98 V8..

COMMODORE UTE S SS VZ 7/2004-2007 5.7L Gen3 ls1 V8.

MOD-016 SN-341

SPECIFICATIONS.

FUEL PUMP PART NUMBER: SNIPER 320-LPH SN-341.

PRESSURE AND FLOW RATE: 320-LPH AT 3-BAR 43.3-PSI 12.5-V supports up to 620-BHP.

ASSEMBLY PART NUMBER: SNIPER PERFORMANCE MOD-016-320.

ASSEMBLY HEIGHT: BACE TO FLANGE 265-mm COMPRESSED 215-mm.

ASSEMBLY CAPACITY: POD 500-millilitres as the factory unit.

ASSEMBLY HOSE FITTINGS: Left Returnee (10-mm c-lock). Centre (10-mm c-lock) Fuel out. Right blocked.

WIARING HARNEST: One piece wiring loom Delphi to Walbro with stainless steel braid and terminals.

PRESSURE HOSES: Black E85 High pressure, composite high burst, high flow submersible fuel hoses made in the EU, 280mm long.

FUEL GAUGE READINGS: Up-full 40-ohms. Down-empty 255-ohms.

The Sniper SN-341 320LPH pump is one of the most popular high flowing in-tank fuel pump we sell that's suits E85, Methanol and Petrol. This pump is designed to meet the requirements of modern turbocharged & H-Performance applications where factory fuel pump is insufficient.

WE CAN ALSO SUPPLY THIS ASSEMBLY WITH THE WALBRO GSS-341 255LPH ORE F90000274 700-BHP 400LPH PUMP FUEL & THE WALBRO TIA485-2 750+BHP 460LPH E85 AND THE NEW WALBRO 525LPH PUMP. MESSAGE US FOR A PRICE $$$. ALL CUSTOM APPLICATIONS WILLING WELCOME TO BUILD.

Image result for walbro performance fuel pumps

COMES FULLY ASSEMBELD WITH ALL E85 APROUVED PARTS FITTED

We also sell performance and standard fuel pumps, Injectors VDO & Bosch 280cc to 2400cc, Sniper Performance Coils, Garret Turbo, Turbosmart Full Range, Vic agent for AeroFlow fittings & hoses, Crow Cams, APR bolts, K&N Air Filters, NOS Kits & Filling, Auto Meter, Intercoolers, Custom Piping, Center Line & Weld Racing Wheels, Mickie Thompson Race Tyres, Red Line Oils and many more.

Message us with your details and we will get back to you ASAP.

WE ARE ALSO WHITELINE DEALERS SO ANY SUSPENSION PARTS WE CAN HELP AT THE BEST POSIBLE PRICE.

Image result for WHITELINE

For General Enquires :Customer Support, technical support and bookings & pickups we are located at 45 Charles street north Coburg Melbourne Victoria 3058. Always best to call first.

Contact through Ebay message leave us your details and we will get back to you ASAP.

Warranty

  12 Months or 20,000 km Warranty on Passenger Vehicles.
Payment
We accept : Pay on Pickup, Paypal, Bank Transaction, credit card over the phone from 9 to 5 mon to fri & Money Order as payment methods. Please use your Ebay Username as a transaction reference.
Postage  Local Pickup (message us for address and pick up times)
Domestic :  Fixed Rate we use Couriers please, Fastway, Australia Post (Regular Post) and express. please contact us of which you prefer on purchase in order details ore if not we will post out with the one we think would be the best to use.
  International : POA , Please contact us via Ebay for a quote.
All items sent with traking no and insurance except when sent with Australia post which is only covered for $50.00 for lost ore damaged in transit.
Fitting services   Avalable in our modern and well equipt work shop.

For General Enquires :Customer Support, technical support and bookings & pickups we are located at 45 Charles street north Coburg Melbourne Victoria 3058. Always best to call first.
      Contact through Ebay message leave us your details and we will get back to you ASAP.
