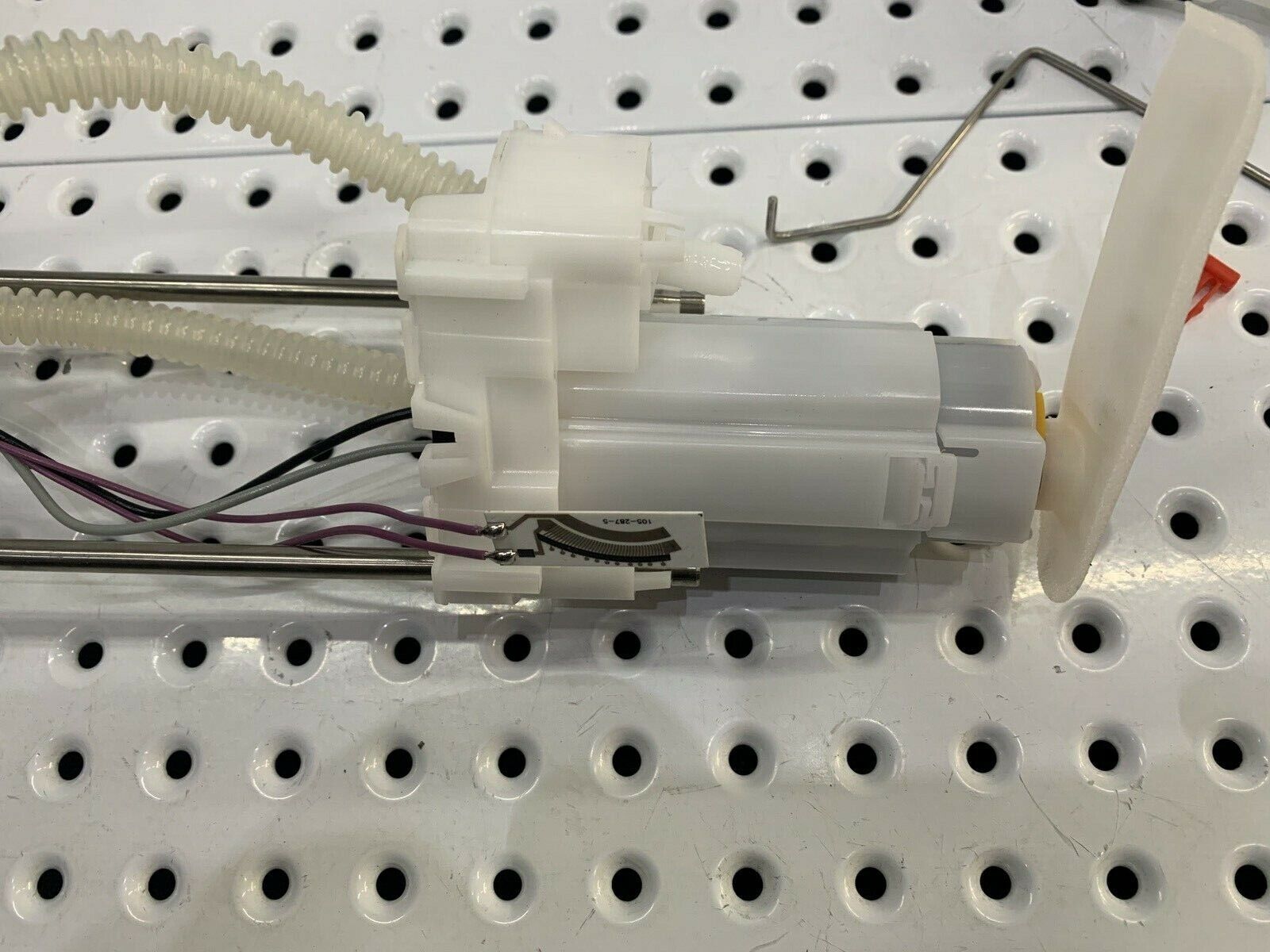

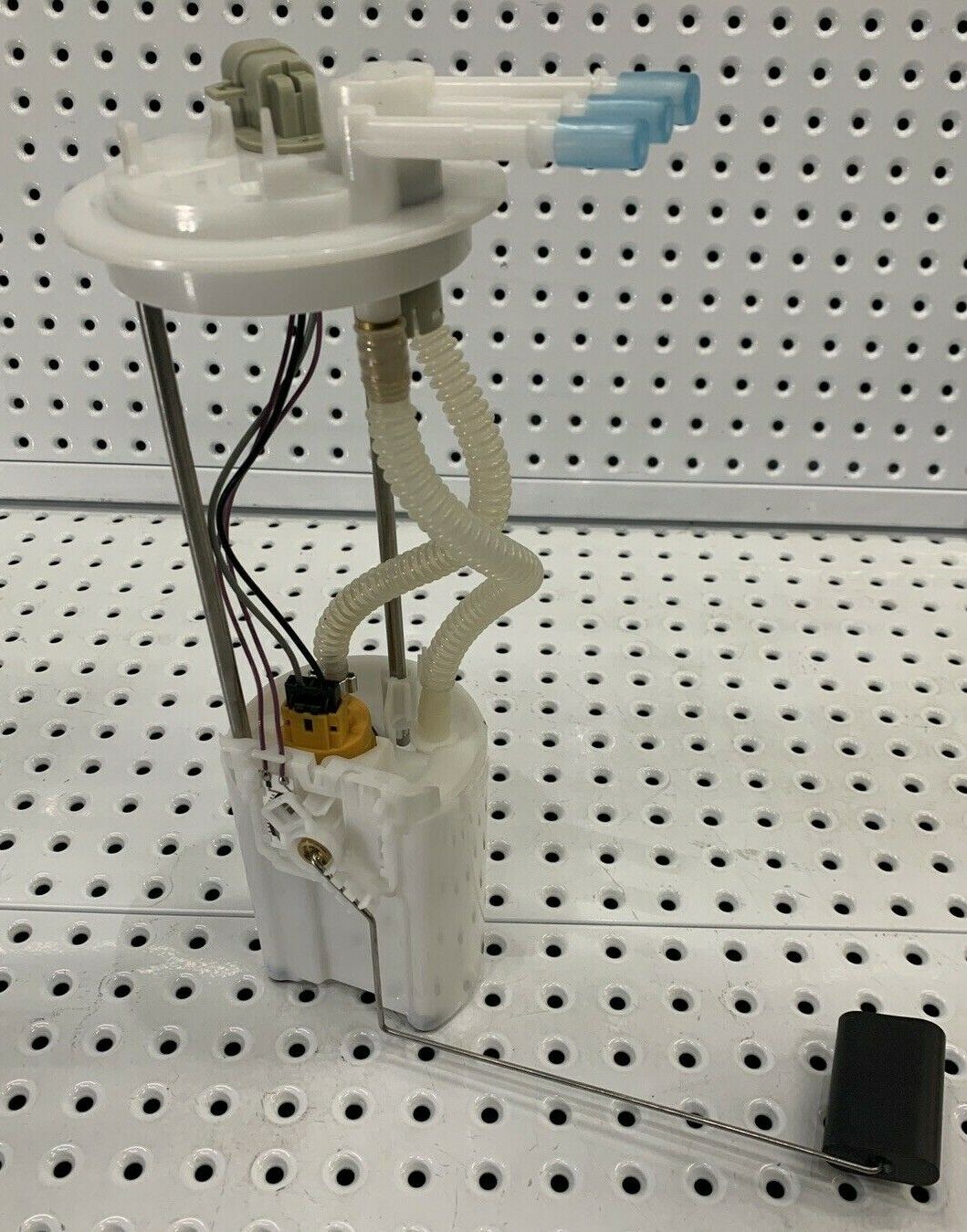

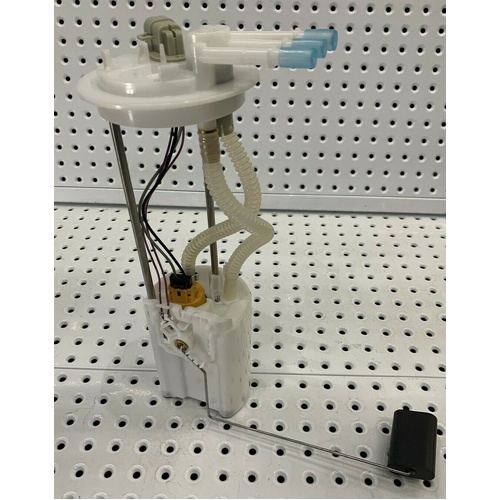

UP FOR SALE IS OUR PREMIUM SNIPER PERFORMANCE - ULTROTECH 320-LPH FUEL PUMP WITH ASSEMBLY TO SUIT HOLDEN COMMODORE SEDAN & WAGON.


SN-341-320 320LPH SUITS BOTH PUMP FUEL 98 & E85 WITH THIS PUMP.

THIS ASSEMBLY IS MADE BY SNIPER PERFORMANCE AND FITTED WITH SNIPER-ULTROTECH SN-341-320 THAT FLOWS 320LPH AT 43.3-PSI 3-BAR 12.5v AND CAN SUPPORT UP TO 640BHP.

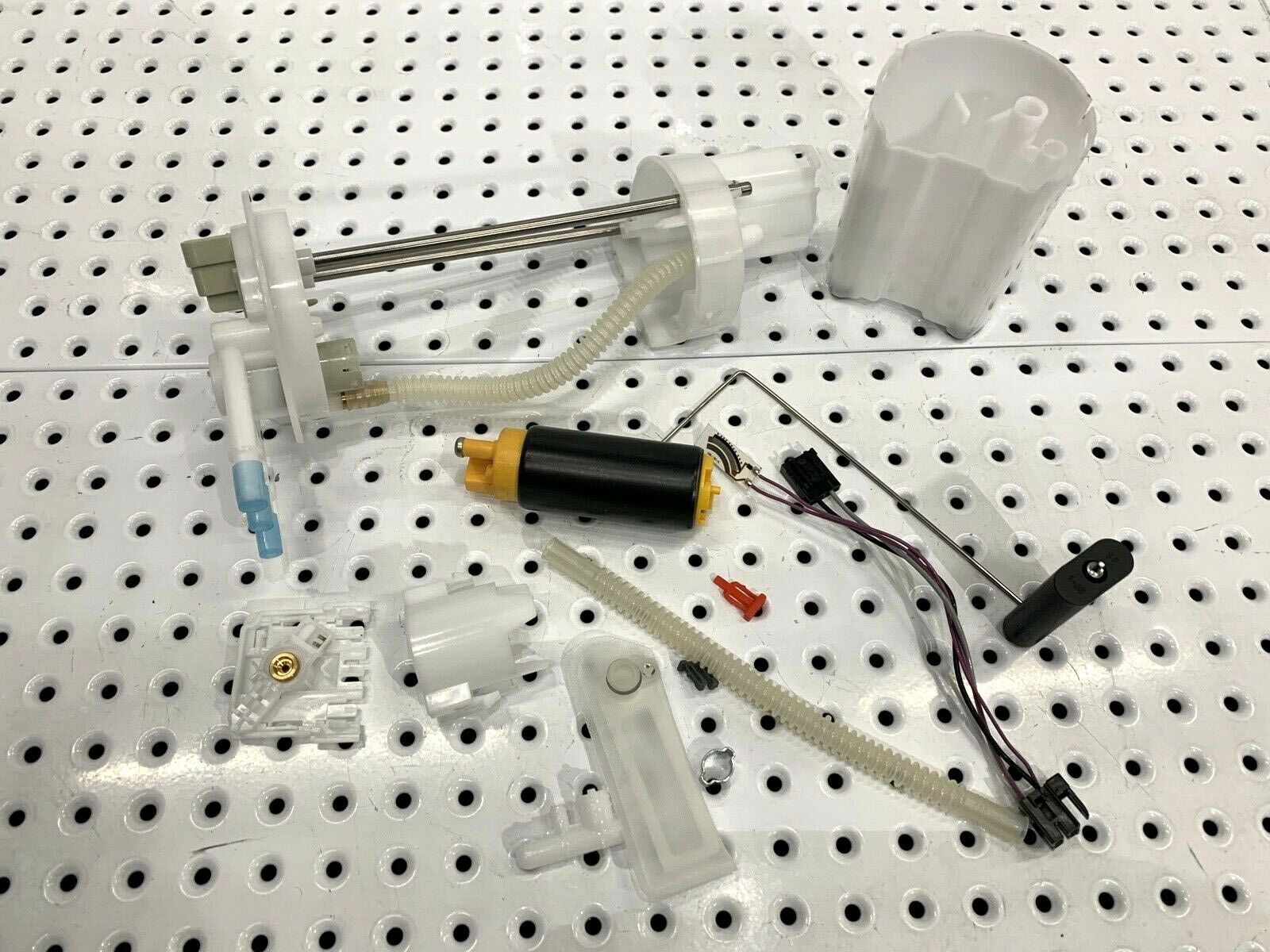

IT HAS BEEN DYNO & RACE TRACK TESTED. 1/4 MILE, CIRCUIT AND DRIFT. THIS ASSEMBLY CONSIST OF ONLY THE BEST OF THE BEST PARTS AVAILABLE AND HAND ASSEMBLED IN MELBOURNE. THE ASSEMBLY IS MADE OF THE BEST POLYMER AVAILABLE FROM DuPont E85 & METHANOL RESISTANT.

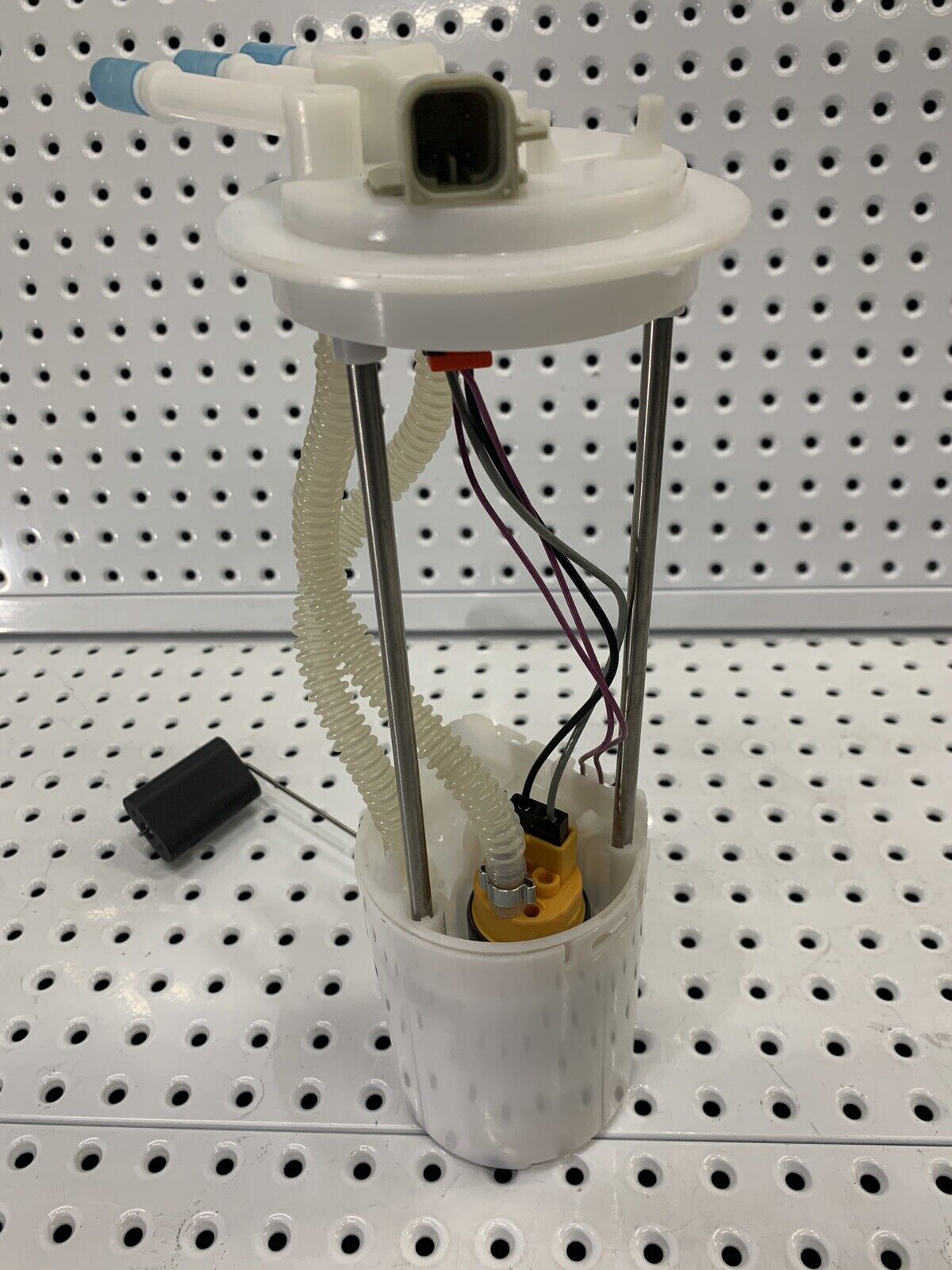

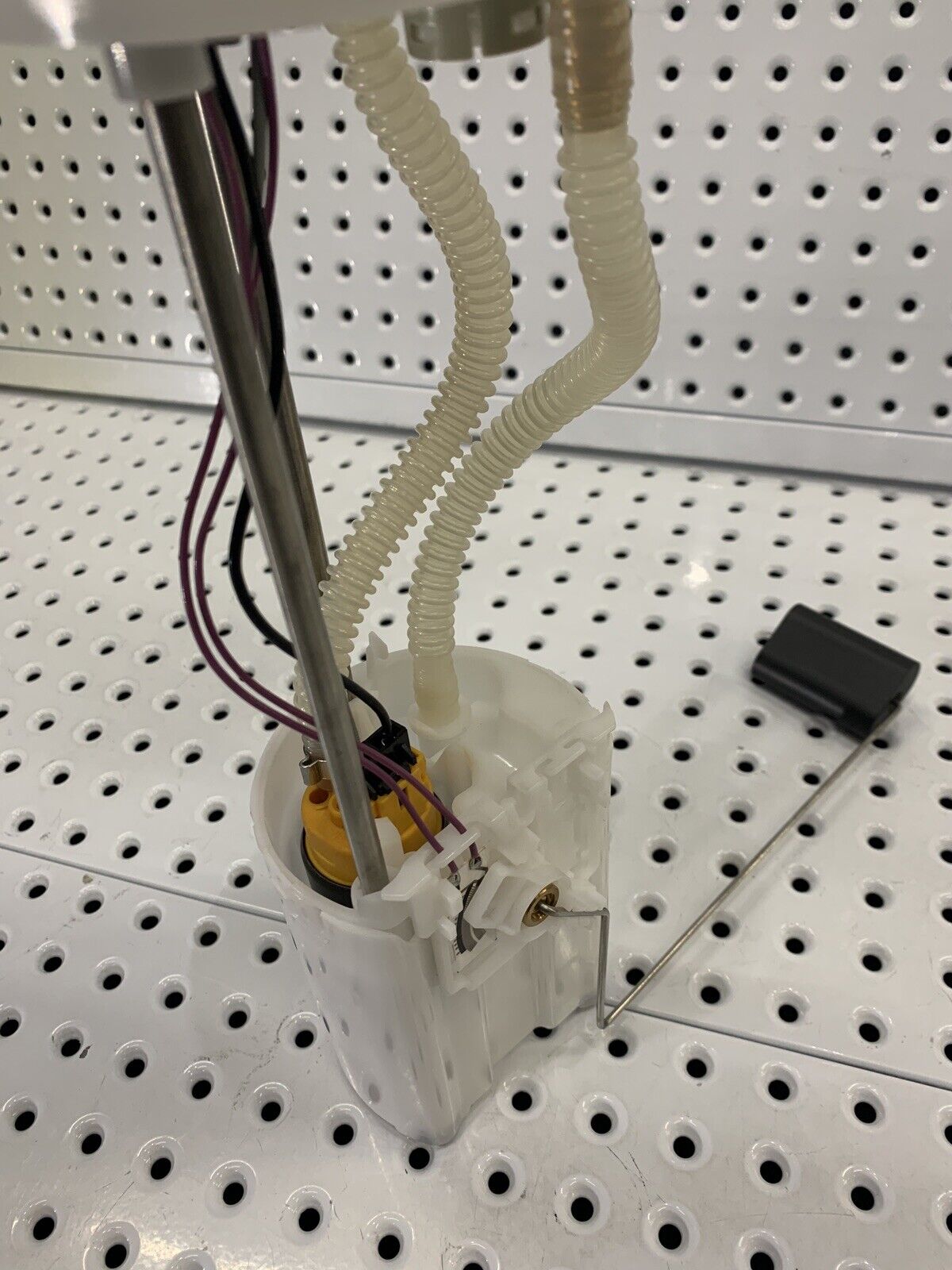

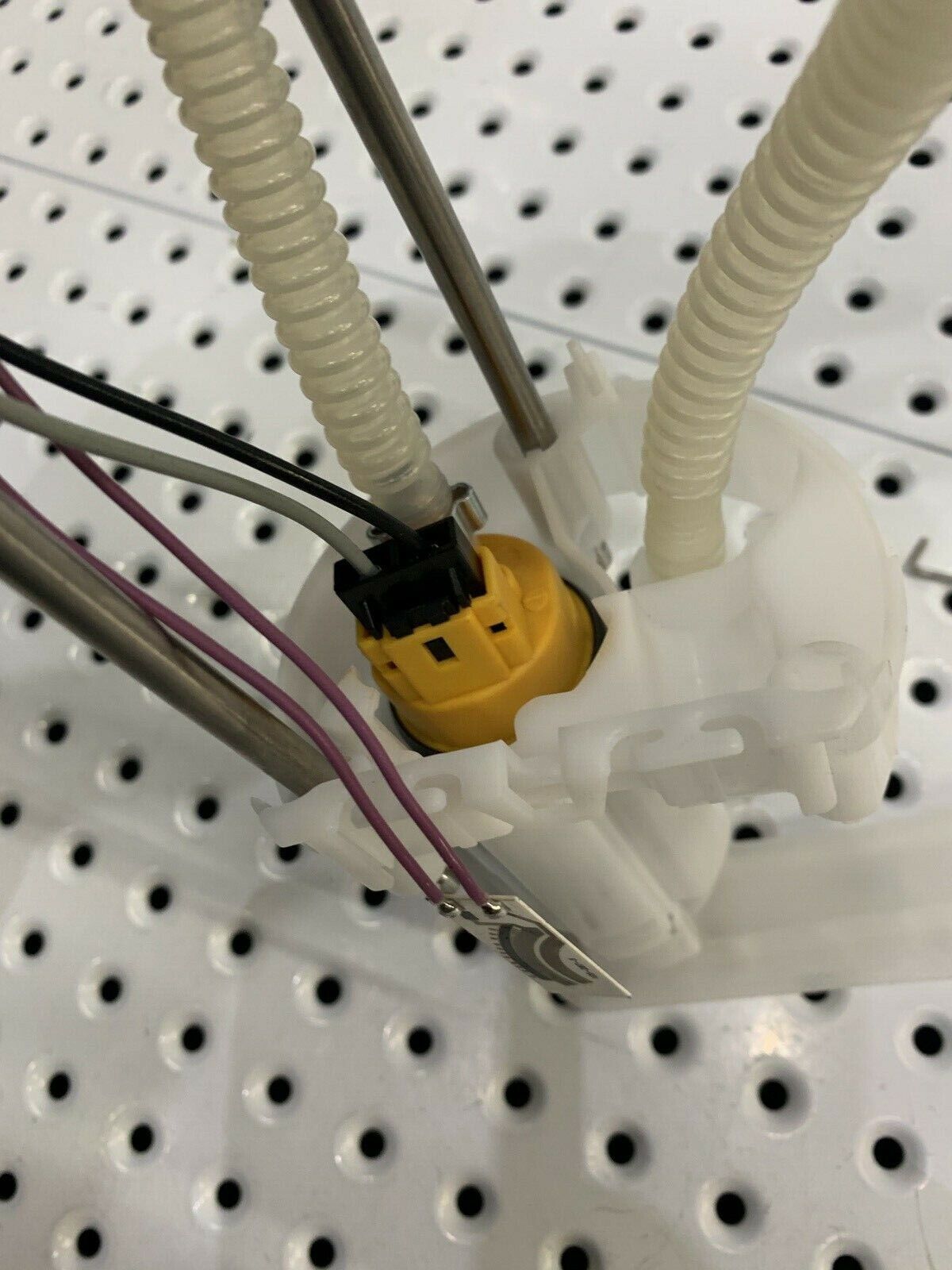

WE ARE THE ONLY ONES THAT OFFER THIS ASSEMBLY WITH A SPECIAL CLIP LOCK PUMP RETAINER THAT MOUNTS THE PUMP 10mm ABOVE THE BOTTOM OF THE SWIRL-POD THIS KEEPS THE FILTER-STRAINER CLEAN  AND ALLOWS THE PUMP ITS FULL POWER POTENTIAL. ALSO KEEPS THE PUMP QUIETER WITH NO CHANCE OF VIBRATION ORE MOVING AROUND & COMING LOOSE.


THE HOSES ARE RATED AT TWICE THE BURST PRESSURE OF THE FACTORY HOSES AND ARE HIGH FLOWING.

FITTED WITH ONE PIECE WIRING LOOM WITH STAINLESS STEEL TERMINALS.

STAINLESS STEEL COMPRESSION SPRING, HOSE CLAMP & GUIDE PINS FITTED FOR NO CHANCE OF CORROSION.

HIGH MICRON HIGH FLOW NYLON STRAINER.

HIGH FLOW MODIFIED FUEL RETURN VALVE TO KEEP THE RETURN PRESSURE LOW AND TO FILL THE SWIRL POD IN HALF THE NORMAL TIME IT WOULD USUALLY TAKE.


SPECIFICATIONS.

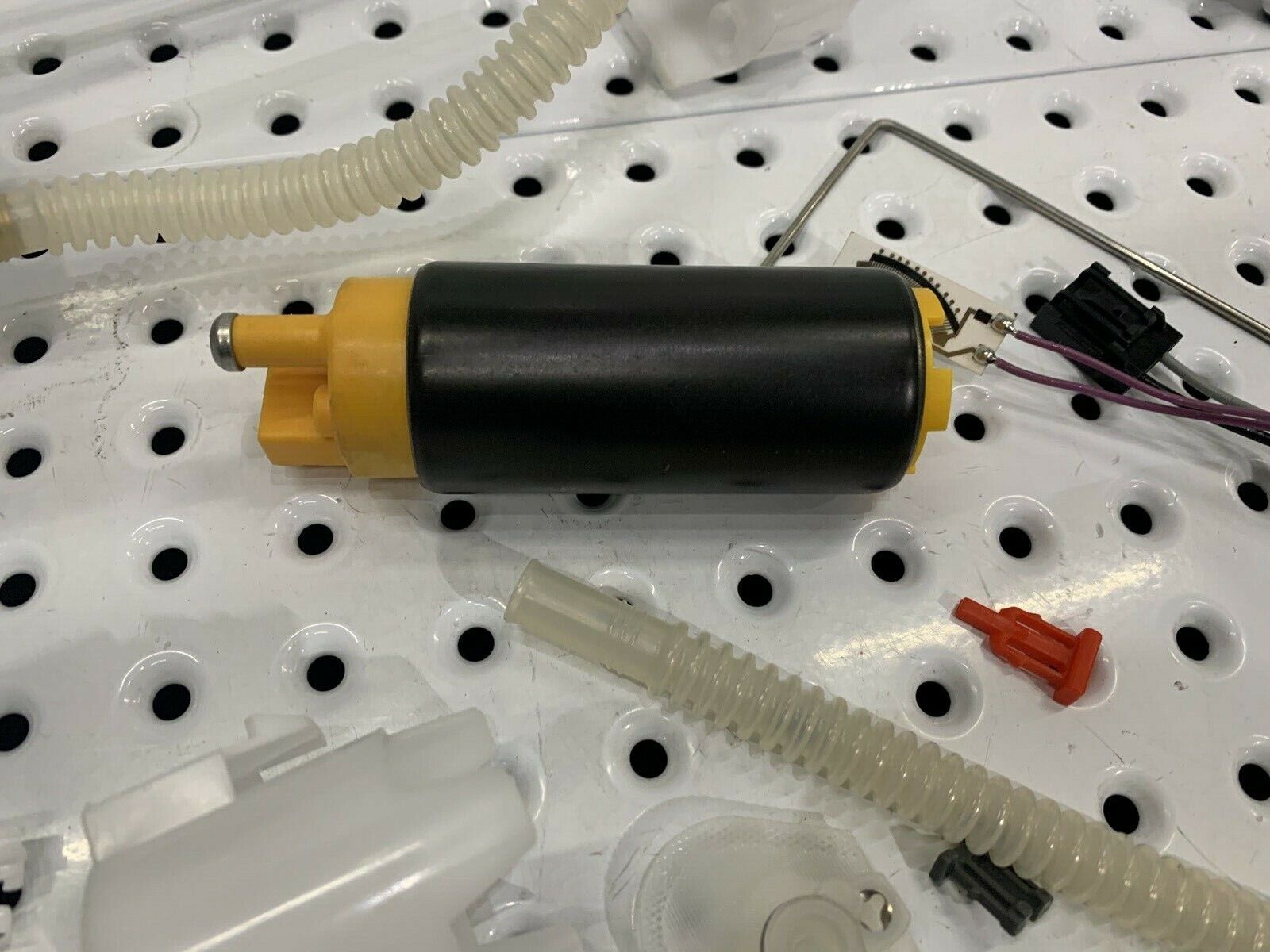

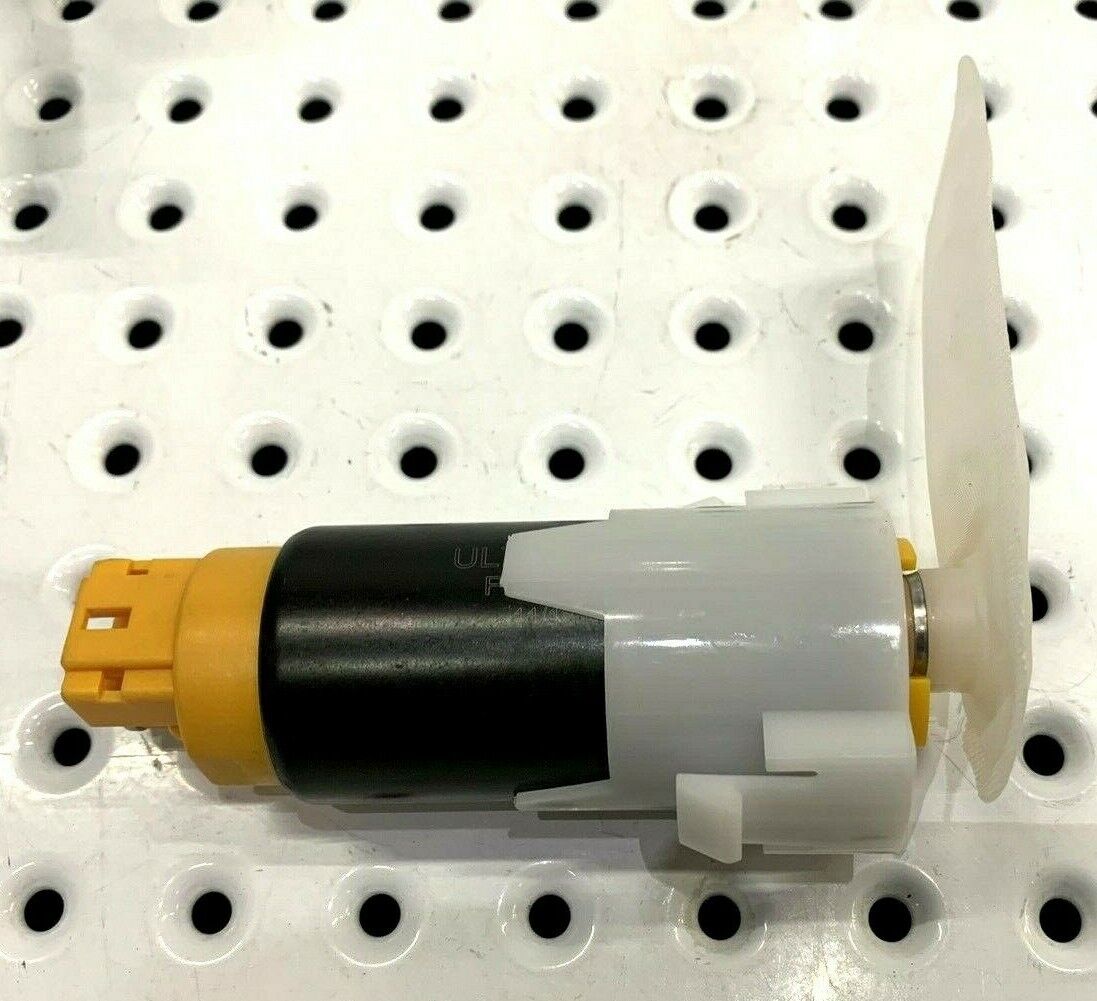

FUEL PUMP PART NUMBER: Sniper SN-341-320.
VOLTS AND AMP CONSUMPTION: 12.5-V, 6.5A with standard wiring and relay.
PRESSURE & FLOW: 320-LPH AT 3-BAR 43.3-PSI supports up to 640-BHP at flywheel.
ASSEMBLY PART NUMBER: Sniper Performance MOD-002-320LPH.
ASSEMBLY HEIGHT: Base to Flange 330-mm Compressed 240-mm.
FUEL GAUGE READINGS: Up-full-255-ohms. Down-empty-39-ohms.
ASSEMBLY CAPACITY: POD 500-millilitres as the factory unit.

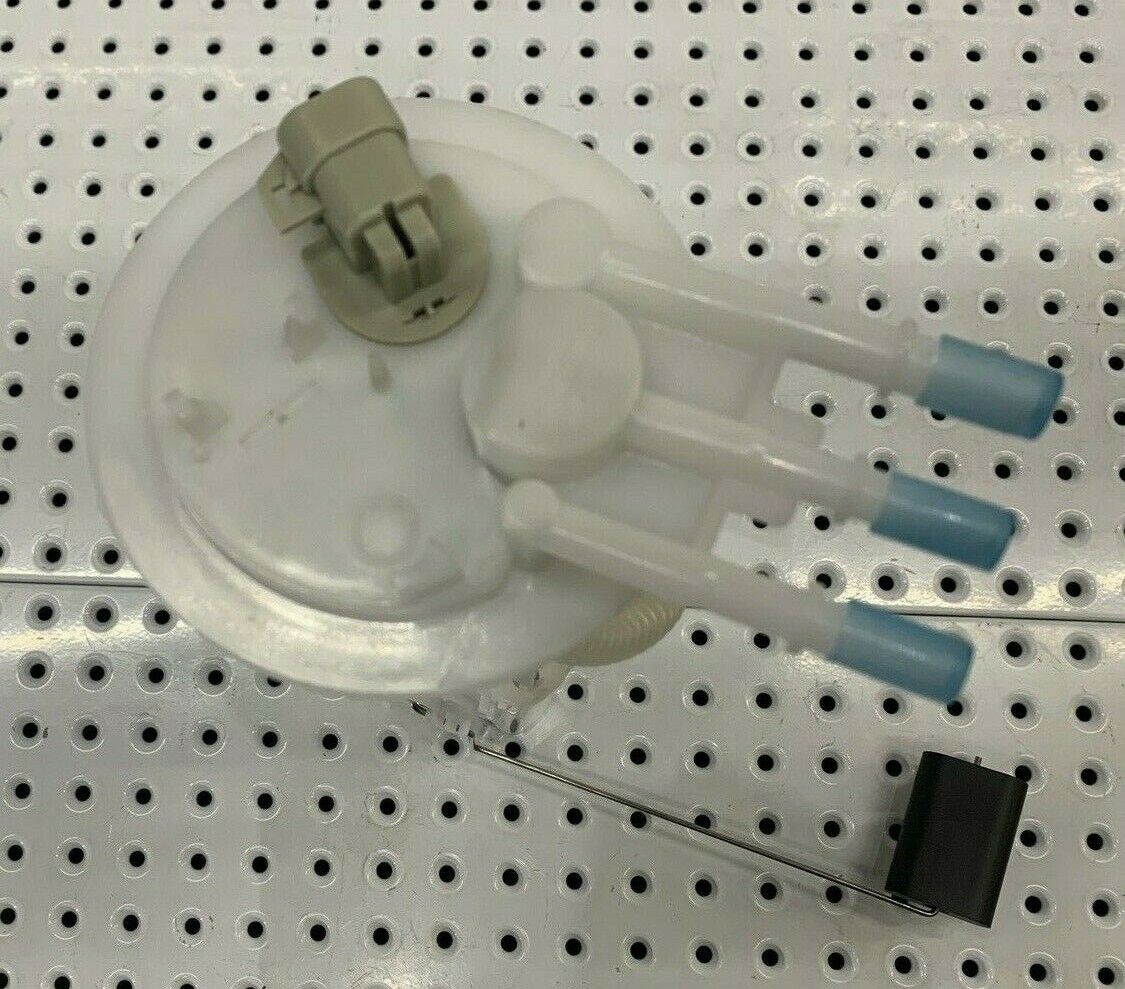

ASSEMBLY HOSE FITTINGS: Left  fuel Returnee (8-mm c-lock). Centre (8-mm c-lock) vent to charcoal canister. Right (10-mm c-lock) Fuel out.

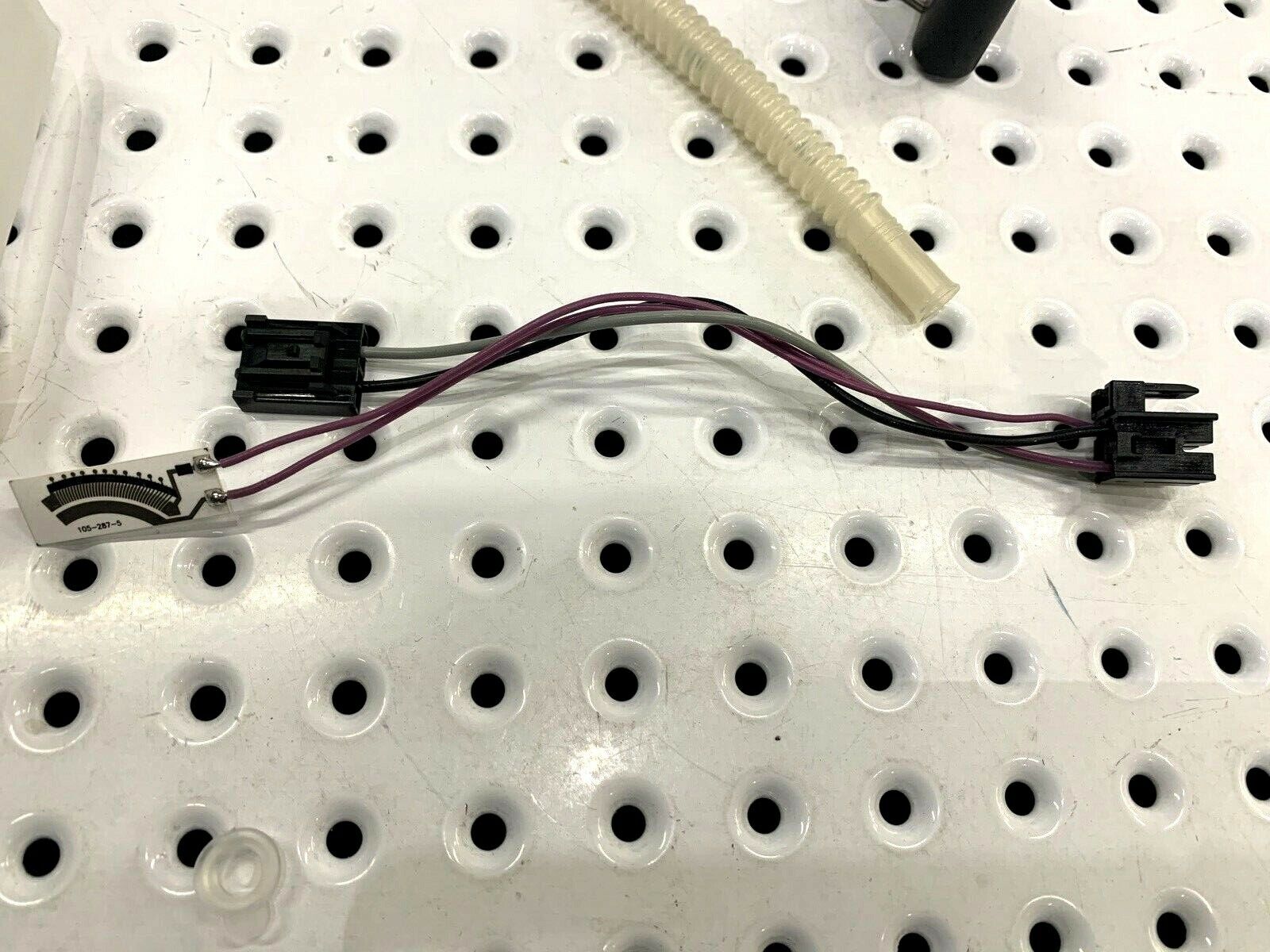

WIRING HARNESS: One piece wiring loom with stainless steel braid & terminals 200-mm long.
PRESSURE HOSES: High pressure, high burst, high flow white submersible full fuel hose made in the EU, 135 mm long.

PLEASE NOTE THIS IS THE SQUARE ELECTRICAL PLUG TYPE PLEASE CHECK PART NUMBER, VIN NUMBER, PICTURE AND DESCRIPTION BEFORE PURCHASE. IF YOU ARE NOT SURE PLEASE MESSAGE US.

TO SUIT.

COMMODORE VT 09/1997-10/2000 4-D SEDAN & WAGON 3.8L LN3 (L36) V6..

COMMODORE BERLINA VT 09/1997-10/2000 4-D SEDAN & WAGON 3.8L LN3 (L36) V6.

COMMODORE BERLINA VT 09/1997-06/1999 4-D SED & WAGON 5.0L 304 (LB9) V8..

COMMODORE EXECUTIVE VT 09/1997-06/1999 4-D SEDAN & WAGON 5.0L 304 (LB9) V8..

COMMODORE SS, EXECUTIVE VT 09/1997-06/1999 4-D SEDAN & WAGON 5.0L 304 (LB9) V8..

COMMODORE BERLINA VT 09/1997-06/1999 4-D SEDAN & WAGON 5.0L 304 (LB9) V8..

COMMODORE SS, EXECUTIVE VT 09/1997-06/1999 4-D SEDAN & WAGON 5.0L 304 (LB9) V8.

COMMODORE VX 10/2000-07/2002 UP TO VIN NUMBER L892098 4-D SEDAN & WAGON 3.8L LN3 (L36) V6.

COMMODORE BERLINA VX 10/2000-07/2002 UP TO VIN NUMBER L892098 4-D SEDAN & WAGON 3.8L LN3 (L36) V6.
