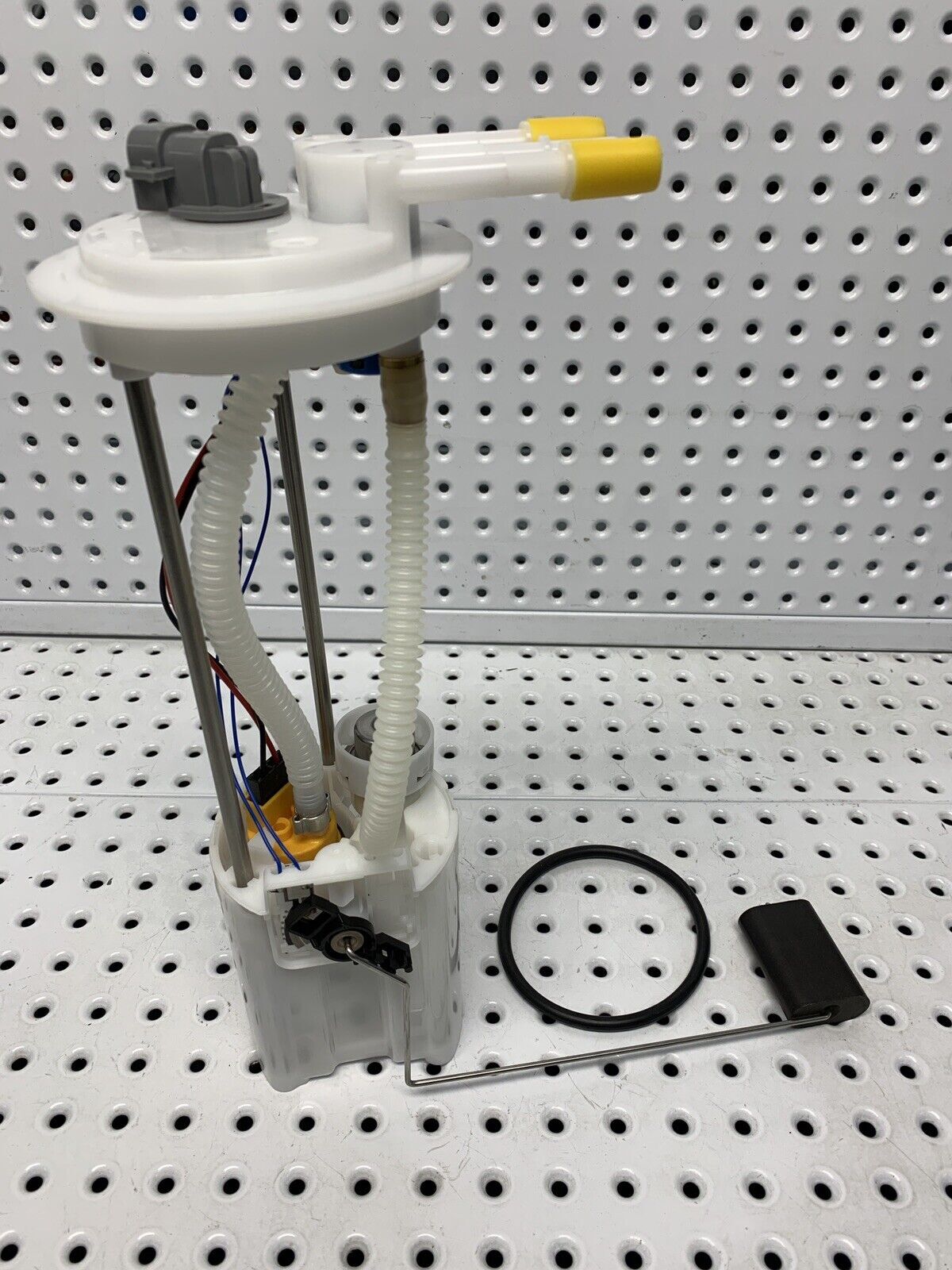

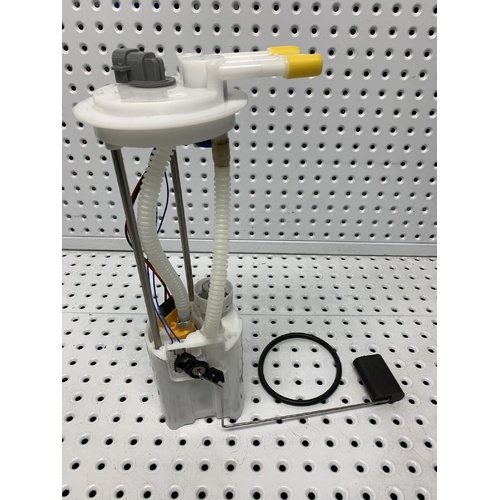

UP FOR SALE IS OUR SNIPER-PERFORMANCE CUSTOM BUILT FUEL PUMP ASSEMBLY TO SUIT HOLDEN COMMODORE VT, VX V8 5.7L LS1.

SNIPER-PERFORMANCE 320-LPH FUEL PUMP SNP-341-320LPH IS ALSO SUITED FOR E85.

THIS ASSEMBLY & PUMP IS MADE BY SNIPER PERFORMANCE AND FITTED WITH A 320-LPH AT 43.3-PSI 3-BAR 12.5v. CAN SUPPORT UP TO 620BHP BUT PLEASE CHECK WITH YOUR TUNER FOR CORRECT SIZE FOR YOUR APPLICATION.


OUR ASSEMBLY IS CUSTOM MADE THAT'S DIFFERENT IN THE SWIRL-POD AREA, MADE TO STOP SURGING UNDER EXTREME TAKE OFF'S AND AROUND CORNERS WHICH IS A COMMON PROBLEM WITH THE FACTORY SWIRL POD. AS THE FACTORY MRI UNIT DOSE NOT HAVE THE RIGHT PLUMING FOR AFTERMARKET HIGH FLOW PUMPS THAT CAUSES THEM TO SUCK AIR AND SURGE UNDER HALF A TANK OF FUEL. THIS WILL STOP THE SURGING PROBLEM BY 100%.

IT HAS BEEN RACE TRACK TESTED, 1/4 MILE, CIRCUIT AND DRIFT.

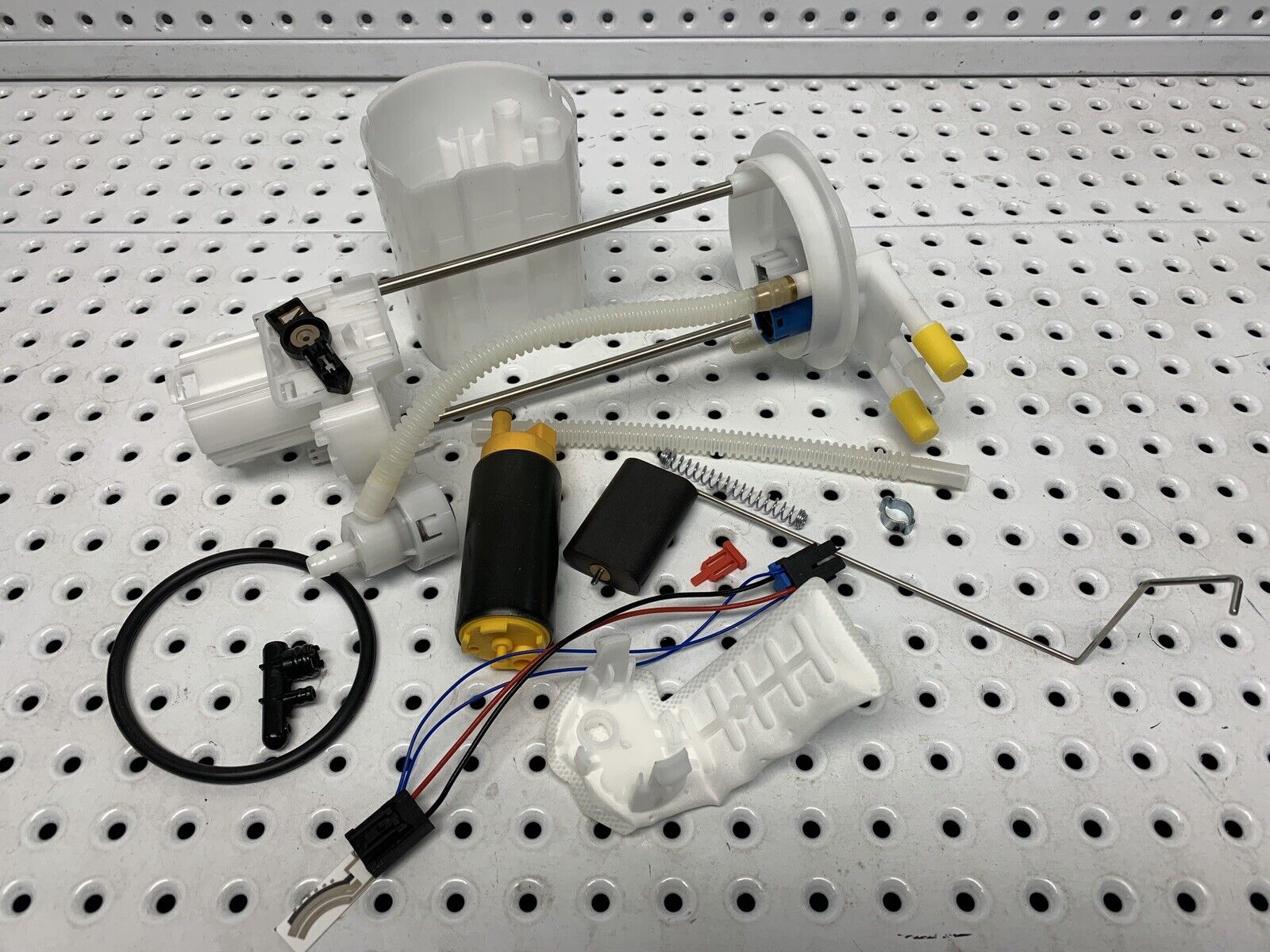

THIS ASSEMBLY CONSIST OF ONLY THE BEST OF THE BEST PARTS AVAILABLE AND HAND ASSEMBLED IN MELBOURNE.

THE ASSEMBLY IS MADE OF THE BEST DUPONT POLLIMER AVALABLE AND ITS E85 & METHANOL APPROVED.

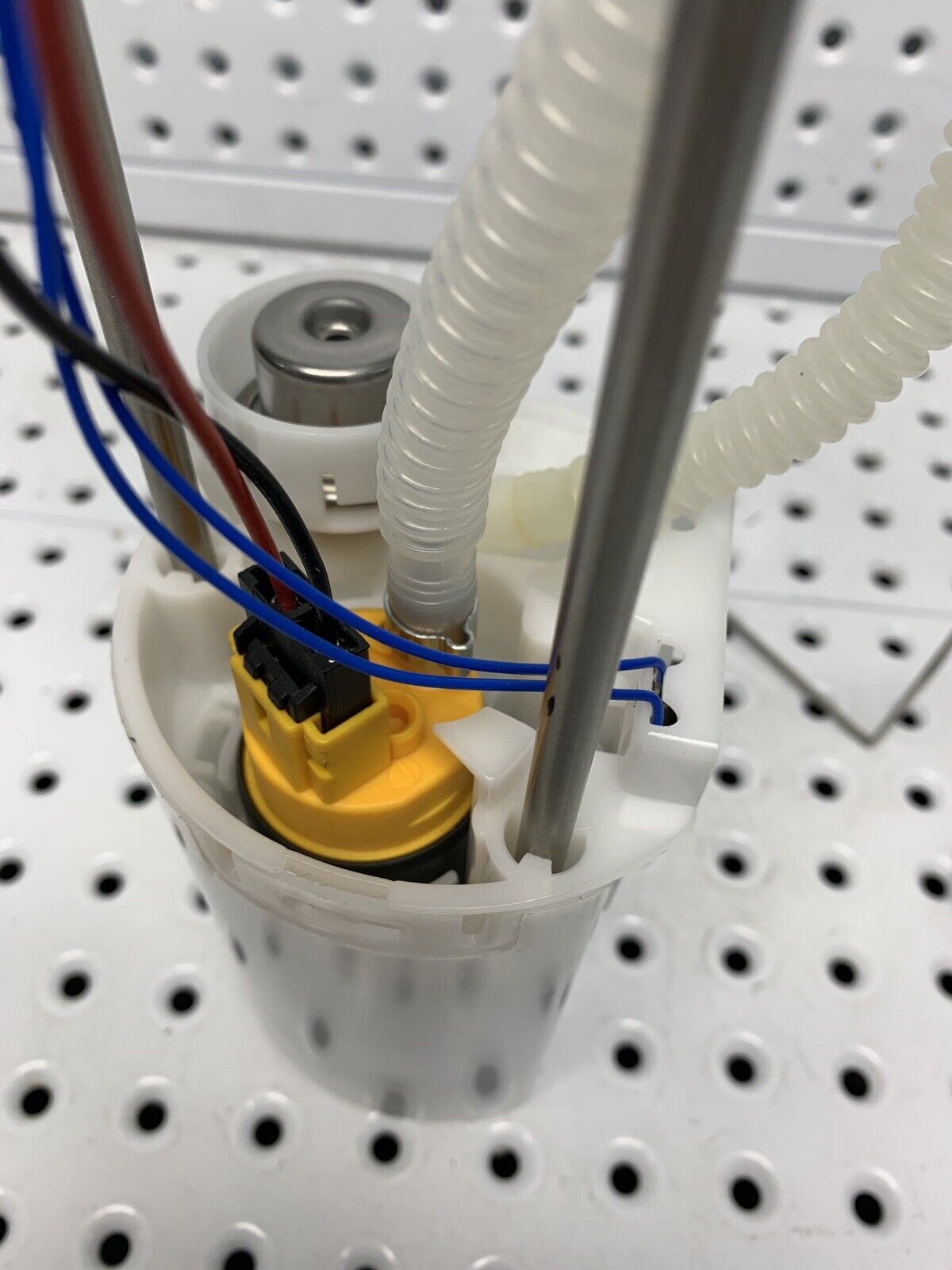

WE ARE THE ONLY ONES THAT OFFER THIS ASSEMBLY WITH A SPECIAL CLIP LOCK PUMP RETANER THAT MOUNTS THE PUMP 10mm ABOVE THE BOTTOM OF THE SWIRL POD THIS KEEPS THE FILTER-STRAINER CLEAN AND ALLOWS THE PUMP ITS FULL POWER POTENTIAL. ALSO KEEPS THE PUMP QUIETER WITH NO CHANCE OF MOVING AROUND OR COMING LOOSE.

OUR FUEL HOSES ARE RATED AT TWICE THE BURST PRESSURE OF THE FACTORY HOSES AND ARE HIGH FLOWING.

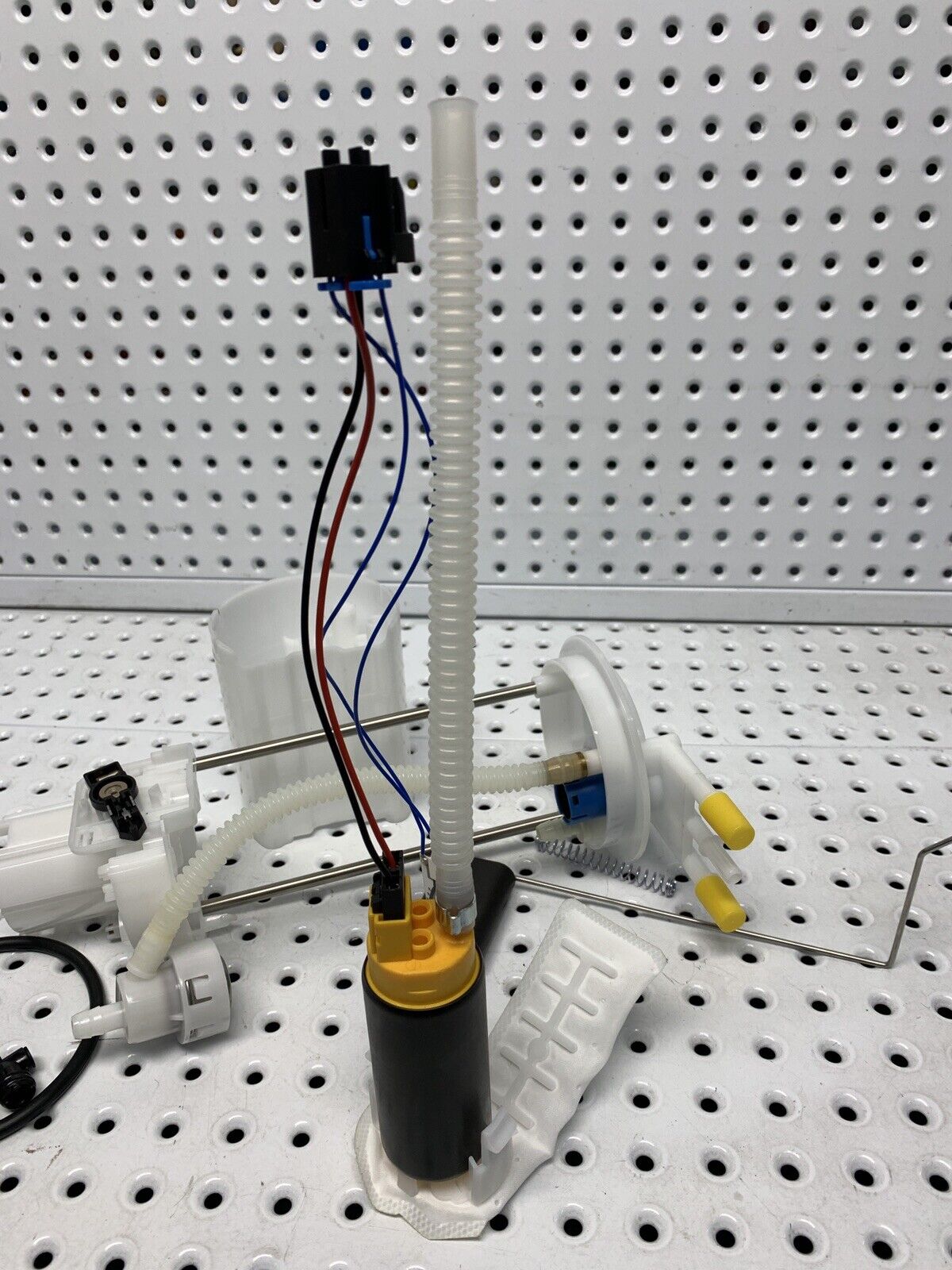

FITTED WITH ONE PIECE WIRING LOOM WITH STAINLESS STEEL TERMINALS.

STAINLESS STEEL COMPRESSION SPRING, HOSE CLAMP & GUIDE PINS FITTED FOR NO CHANCE OF CORROSION.

HIGH MICRON HIGH FLOW DUPONT NYLONG STRAINER.

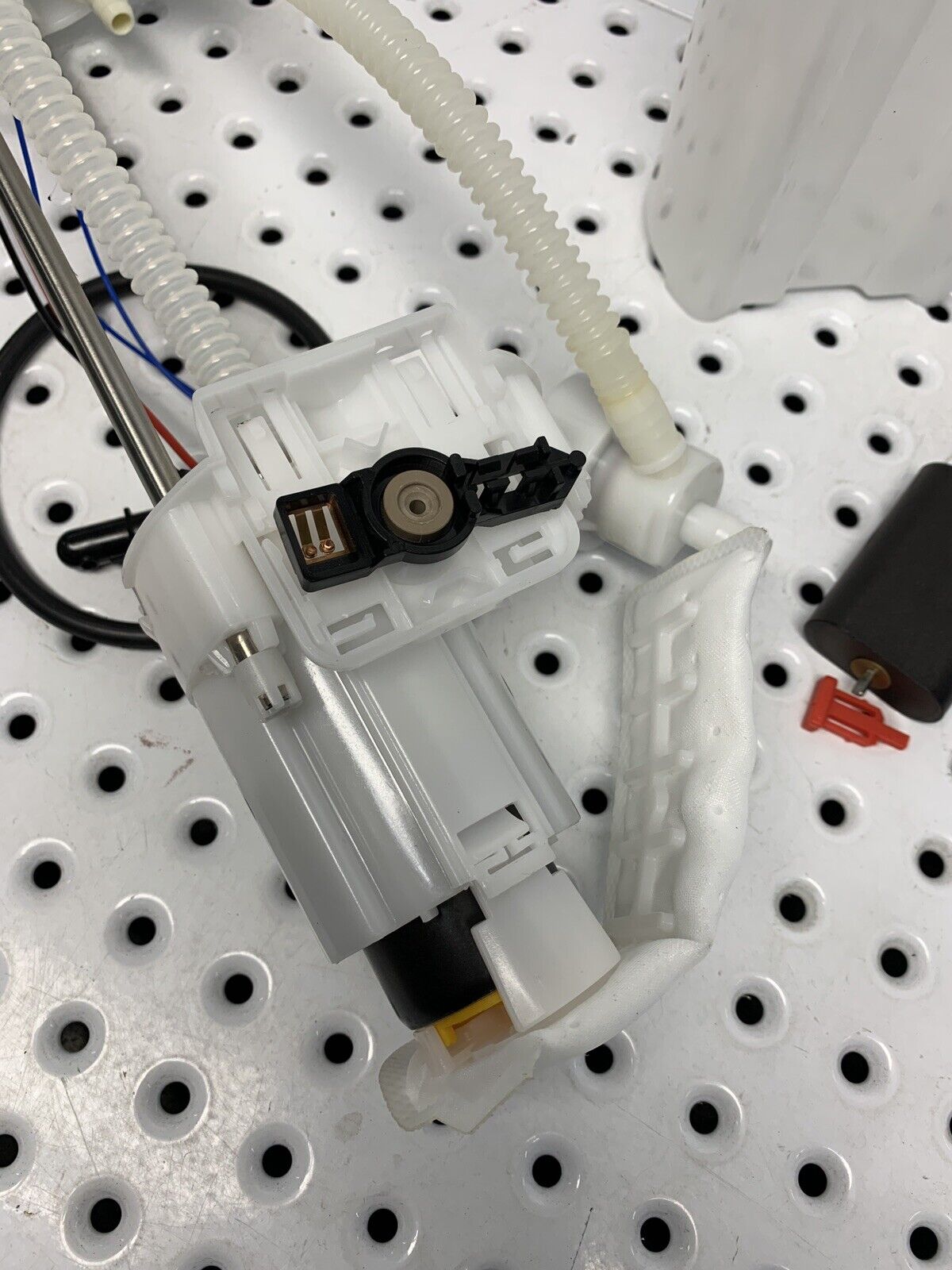

HIGH FLOW MODIFIED FUEL RETURN VALVE TO KEEP THE RETURN PRESSURE LOW AND TO FILL THE SWIRL POD IN HALF THE NORMAL TIME IT WOULD USALY TAKE.



- TO SUIT SEDAN & WAGON.
COMMODORE VT I II 7/1999-10/2000  LS1 GEN3 5.7L.

COMMODORE VT I II BERLINA 7/1999-10/2000 LS1 GEN3 5.7L.

COMMODORE VT I II CALAIS 7/1999-10/2000  LS1 GEN3 5.7L.

COMMODORE VT I II CLUBSPORT R8 7/1999-10/2000 LS1 GEN3 5.7L.

COMMODORE VT I II EXECUTIVE 7/1999-10/2000 LS1 GEN3
5.7L.

COMMODORE VT I II POLICE 7/1999-10/2000 LS1 GEN3
5.7L.

COMMODORE VT I II SS 7/1999-10/2000  LS1 GEN3 5.7L.

COMMODORE VT I II GTS 4/2000-10/2000  LS1 GEN3 5.7L.

COMMODORE VT I II GTS-R 4/2000-10/2000  LS1 GEN3 5.7L.

COMMODORE VT I II HSV 7/1999-10/2000  LS1 GEN3 5.7L.

COMMODORE VT HSV SV99 7/1999-10/2000  LS1 GEN3 5.7L.

COMMODORE VX 9/2000-9/2002  LS1 GEN3 5.7L UP TO VIN NO L891247.

COMMODORE VX BERLINA 9/2000-9/2002  LS1 GEN3 5.7L UP TO VIN NO L891247.

COMMODORE VX CALAIS 9/2000-9/2002  LS1 GEN3 5.7L UP TO VIN NO L891247.

COMMODORE VX CLUBSPORT R8 9/2000-9/2002  LS1 GEN3 5.7L UP TO VIN NO L891247.

COMMODORE VX EXECUTIVE 9/2000-9/2002  LS1 GEN3 5.7L UP TO VIN NO L891247.

COMMODORE VX GTS 9/2000-8/2001  LS1 GEN3 5.7L UP TO VIN NO L763313.

COMMODORE VX GTS-R 9/2000-8/2001 LS1 GEN3 5.7L UP TO VIN NO L763313.

COMMODORE VX POLICE 9/2000-9/2002  LS1 GEN3 5.7L UP TO VIN NO L763313.

COMMODORE VX SS 9/2000-9/2002 LS1 GEN3 5.7L UP TO VIN NO L891247.

COMMODORE VX HSV 9/2000-9/2002  LS1 GEN3 5.7L UP TO VIN NO L891247.

COMMODORE VX HSV SV300 9/2000-9/2002  LS1 GEN3 5.7L UP TO VIN NO L891247.

COUPE GTO V2 12/2001-9-2004 LS1 GEN3 5.7L UP TO VIN    NO L891247.

COUPE GTS V2 12/2001-9/2004 LS1 GEN3 5.7L UP TO VIN NO L891247.

GRANGE WH 7/1999-7/2003 LS1 GEN3 5.7L UP TO VIN NO L891247.

MONARO V2  2002  LS1 GEN3 5.7L UP TO VIN NO L891247.

SENATOR VT HSV 7/1999-10/2000 LS1 GEN3 5.7L.

SENATOR VX HSV 9/2000-9/2002  LS1 GEN3 5.7L UP TO VIN NO L891247.

SENATOR 300 VX HSV 9/2000-9/2002  LS1 GEN3 5.7L UP TO VIN NO L891247.

SENATOR SIGNATURE VX HSV 9/2000-9/2002  LS1 GEN3 5.7L UP TO VIN NO L891247.

STATESMAN / CAPRICE WH 6/1999-7/2002 LS1 GEN3 5.7L UP TO VIN NO L981247.

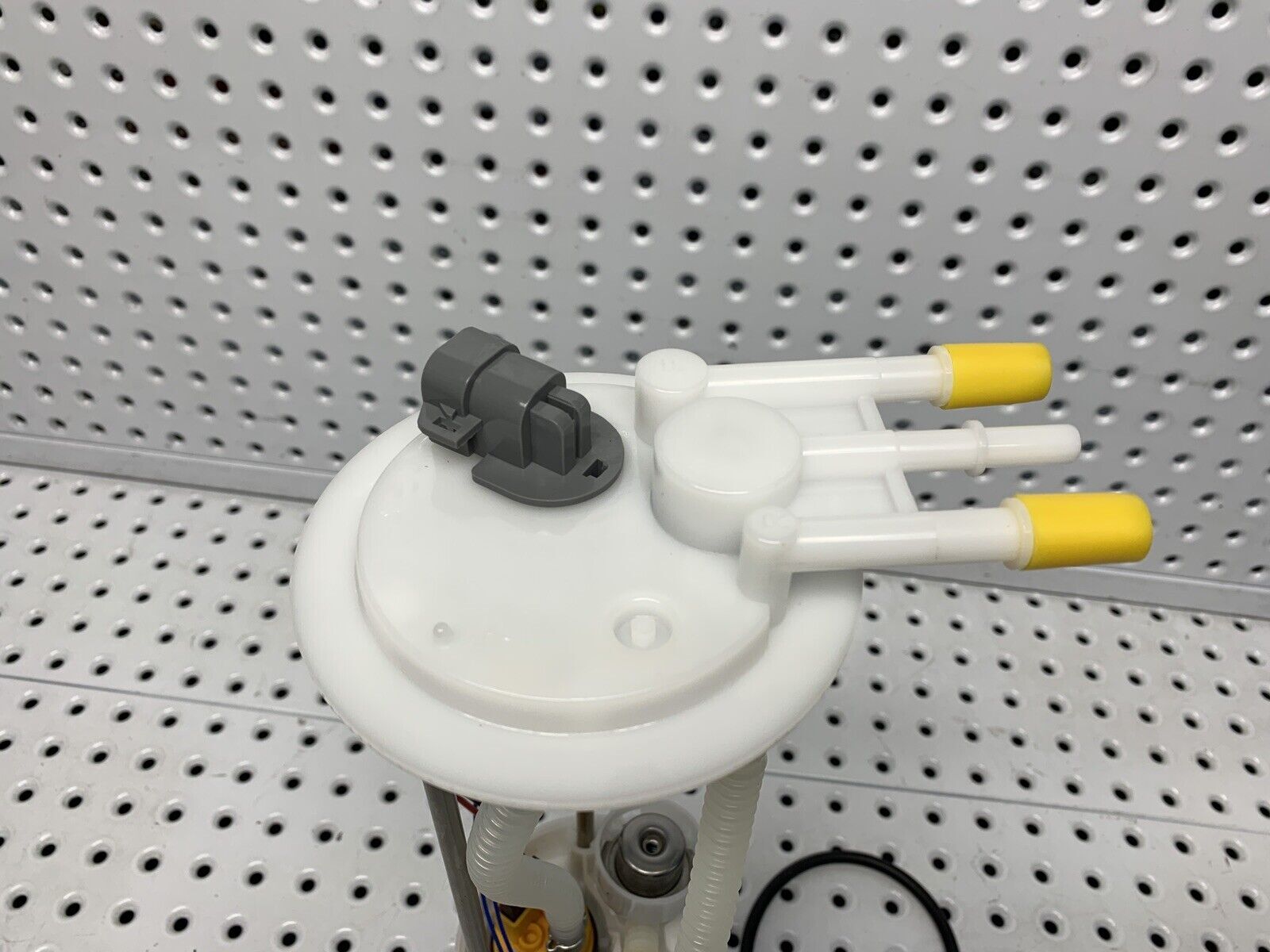

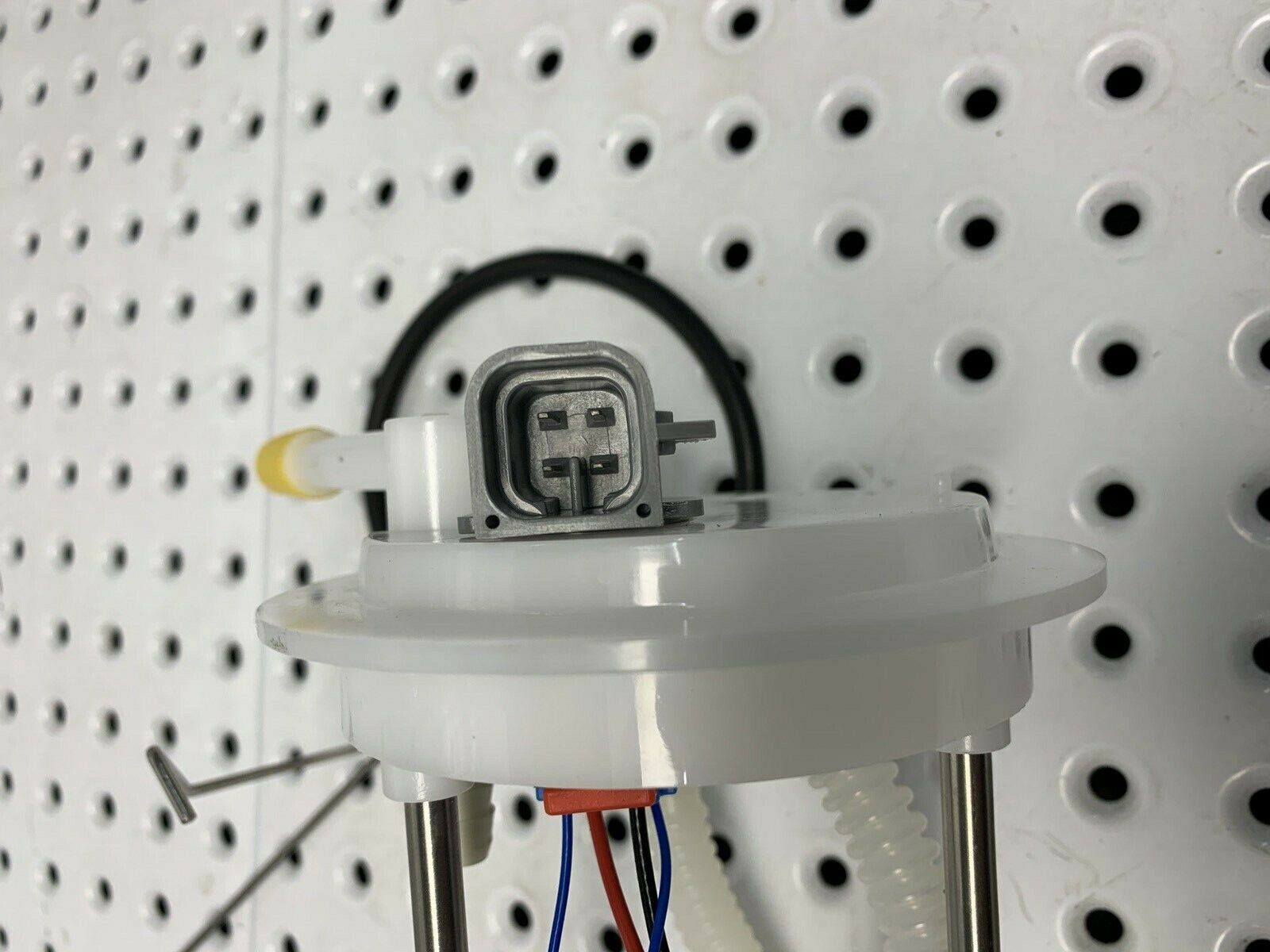

PLEASE NOTE THIS ONE IS WITH THE SQUARE ELECTRICAL PLUG AS PICTURED. AS THERE IS A LATER PUMP FROM THE LAST SEVEN NUMBERS OF YOUR VIN NO UP TO L891247 IS THIS ONE LISTED AND AFTER VIN NO L891248 IS THE OVAL PLUG PLEASE CHECK PICTURE. AND IF YOU NEED THE LATER ONE (MOD-031-A-350) WITH THE OVAL PLUG ITS IN OUR STORE ORE CALL US.


SPECIFICATIONS. MOD-010-320.
FUEL PUMP PART NUMBER: SNIPER 320-LPH SNP-341.
PRESSURE - FLOW RATE: 320-LPH @ 3-BAR 43.3-PSI 12.5-V supports up to 620-BHP at the flywheel.
ASSEMBLY PART NUMBER: SNIPER PERFORMANCE MOD-010-320.
ASSEMBLY HEIGHT: BACE TO FLANGE 325-mm COMPRESSED 240-mm.
ASSEMBLY CAPACITY: POD 500-millilitres as the factory unit.
ASSEMBLY HOSE FITTINGS: Left Returnee (10-mm c-lock). Centre (8-mm c-lock) Charcoal Canister. Right (10-mm c-lock) Fuel out.
WIARING HARNEST: One piece wiring loom Delphi to Walbro with stainless steel braid and terminals.
PRESSURE HOSES: High pressure, high burst, high flow white submersible fuel hoses made in the EU, 210mm long.
FUEL GAUGE READINGS: Up-full 255-ohms. Down-empty 39-ohms.


WE CAN ALSO SUPPLY THIS ASSEMBLY WITH THE WALBRO GSS340, 341, 342 255LPH AND THE WALBRO TIA485-2 750+BHP 460LPH E85 PUMP, WALBRO UPTO 900 BHP F90000285 525LPH PUMP.  MESSAGE US FOR A PRICE $$$. AS ITS A CUSTOM BUILT APPLICATION WITH A NEW WIRING UPDATED PLUG.
   Image result for walbro performance fuel pumps           Walbro / TI Automotive F90000285 High Pressure In-Tank Fuel Pump 900hp+ E85 Compatible
COMES FULLY ASSEMBELD WITH ALL E85 APROUVED PARTS FITTED READY TO DROP IN.

We also sell performance and standard fuel pumps, Injectors VDO & Bosch 280cc to 2400cc, Sniper Performance Coils, Garret Turbo, Turbosmart Full Range, Vic agent for AeroFlow fittings & hoses, Crow Cams, APR bolts, K&N Air Filters, NOS Kits & Filling, Auto Meter,  Intercoolers, Custom Piping, Center Line & Weld Racing Wheels, Mickie Thompson Race Tyres, Red Line Oils and many more.

Message us with your details and we will get back to you.

For General Enquires :Customer Support ,technical support and bookings & pickups we are located at 45 Charles street north Coburg Melbourne Victoria 3058. Always best to call first.

      Contact through eBay message leave us your details and we will get back to you ASAP.


Warranty.  24 Months or 40,000 km Warranty.

Payment. We accept : Pay on Pickup, PayPal, Bank Transaction, credit card over the phone from 9 to 5 Monday to Friday Money Order as payment methods. Please use your eBay Username as a transaction reference.

Postage.  Local Pickup (message us for address and pick up times) Domestic: Fixed Rate we use Couriers please, Fastway, Australia Post Regular Post and express. please contact us of which you prefer on purchase in order details ore if not we will post out with the one we think would be the best to use. International: POA, Please contact us via eBay for a quote.  All items sent with tracking and insurance  for lost ore damaged in transit.

Fitting services.   Available in our modern and well equipped work shop.


For General Enquires: Customer Support ,technical support and bookings & pickups we are located at 45 Charles street north Coburg Melbourne Victoria 3058. Always best to call first.

      Contact through eBay message leave us your details and we will get back to you ASAP.

PH: 03 93 54 29 62.  PH: 04 17 30 37 75.
