WITH A 3 YEAR WARRANTY

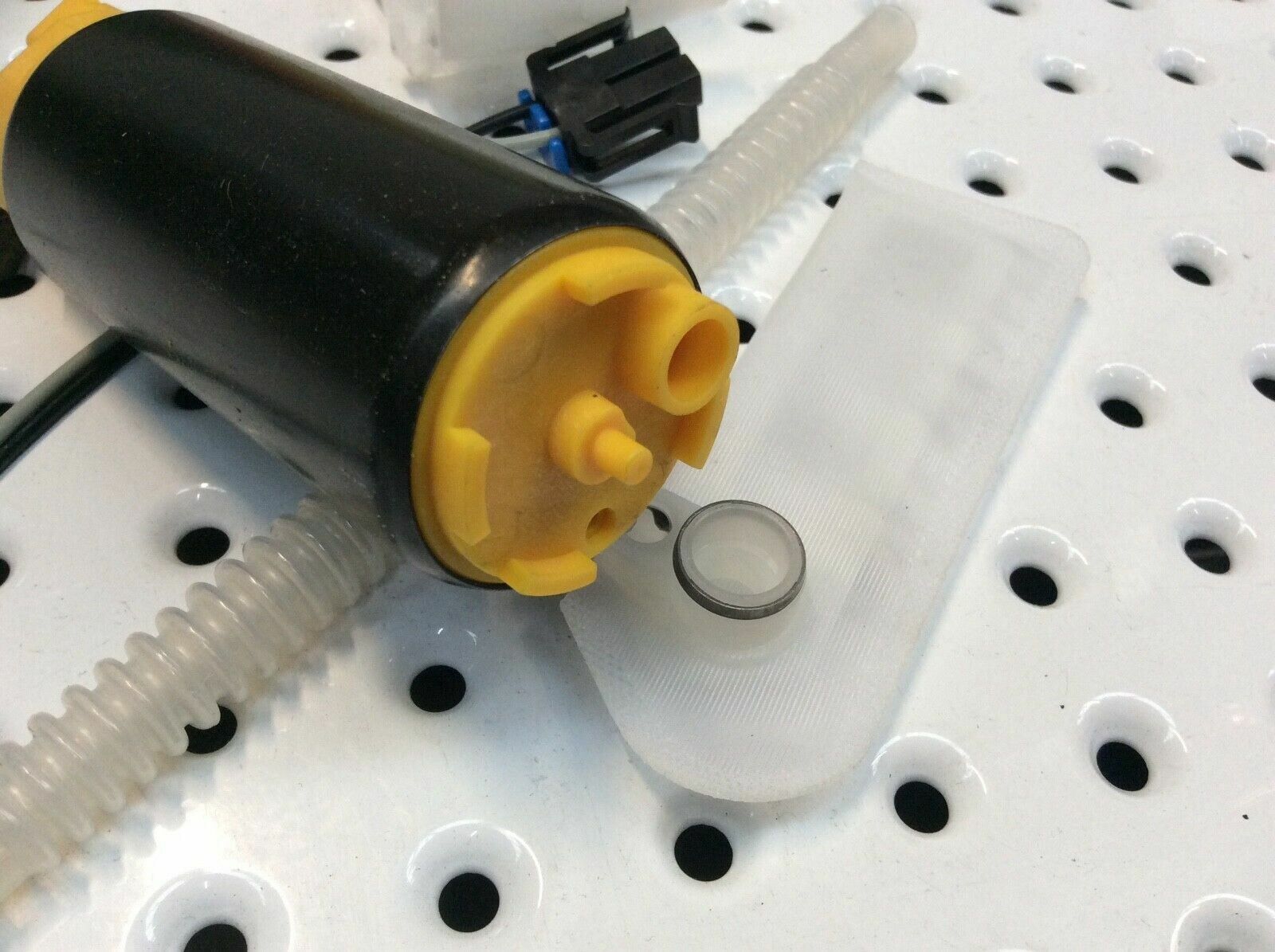

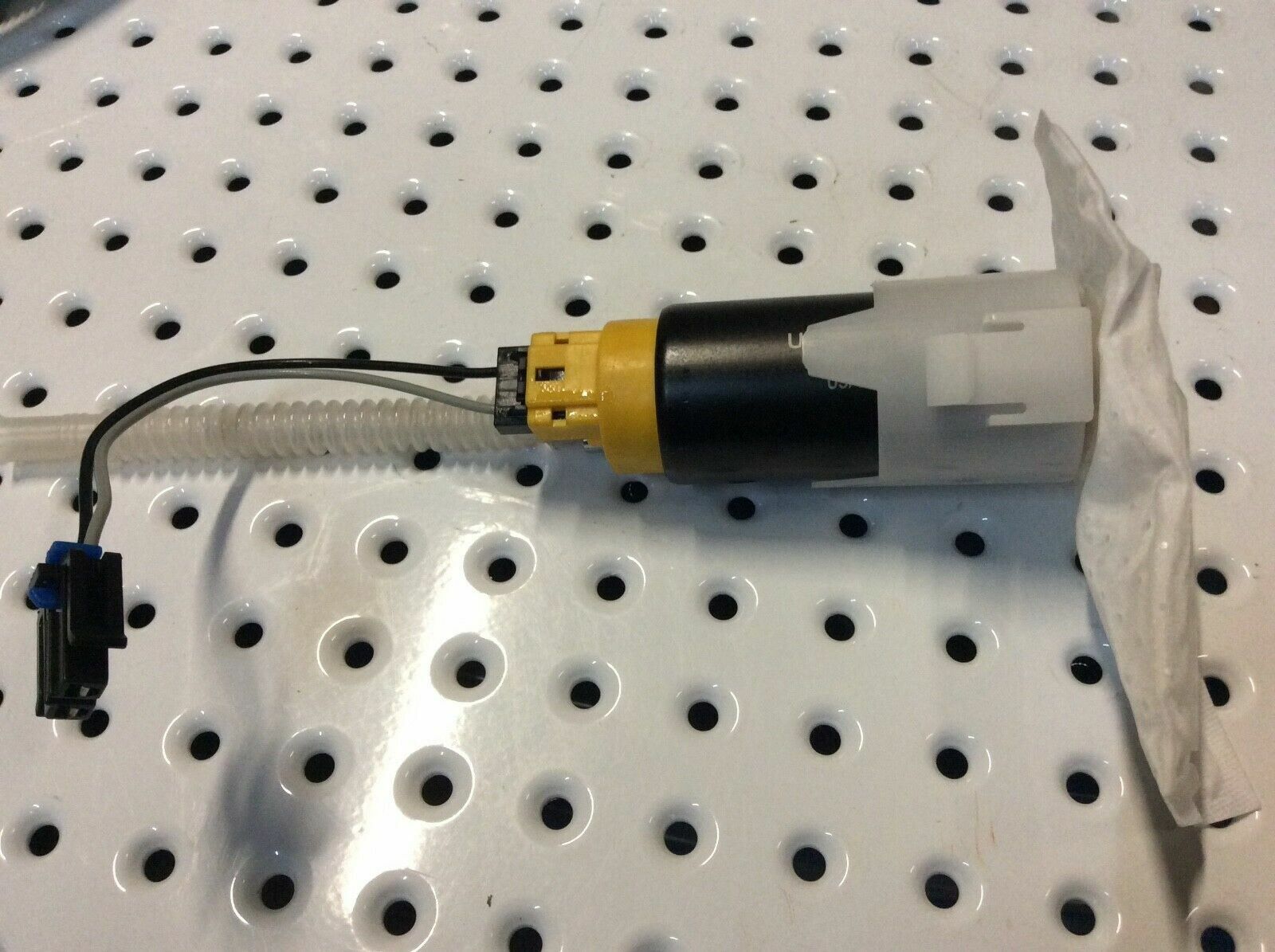

UP FOR SALE IS OUR SNIPER HIGH PERFORMANCE FUEL PUMP & FITTING KIT TO SUIT GM, GMH, HOLDEN COMMODORE, HSV.

THIS PUMP & KIT REQUIRES NO CUTTING, JOINING OR MODIFYING. PUMP AND PARTS MADE BY SNIPER PERFORMANCE MADE IN JAPAN.

WALBRO STYLE PUMP GSS340 FLOWS AT 320LPH AT 43.3-PSI 3-BAR 12.5v AND CAN SUPPORT UP TO 630BHP AT THE FLYWHEEL ON NORMAL FUEL & E85.


WE ARE THE ONLY ONES THAT OFFER THIS KIT WITH A SPECIAL CLIP LOCK PUMP RETAINER THAT CLIPS THE PUMP INTO THE FACTORY ASSEMBLY AND HOLDS THE PUMP 10mm ABOVE THE BOTTOM OF THE SWIRL POD THIS KEEPS THE FILTER-STRAINER CLEAN  AND ALLOWS THE PUMP ITS FULL POWER POTENTIAL. ALSO KEEPS THE PUMP QUIETER WITH NO CHANCE OF MOVING AROUND OR VIBRATING.


SUPPLYED WITH FACTORY STYLE HIGH PRESSURE HOSE THATS RATED AT TWICE THE BURST PRESSURE OF THE STANDARD HOSE AND IS A HIGH FLOW HOSE.


SUPPLYED WITH ONE PIECE WIRING LOOM THAT PLUGS INTO BOTH SIDES AS THE FACTORY HARNESS, WIRE IS HIGH GRADE STAINLESS STEEL BRAID WITH STAINLESS STEEL TERMINALS.



SUPPLED WITH A E85 APPROUVED HIGH MICRON HIGH FLOW NYLONG STRAINER.


SUITS.

COMMODORE 1999-2005 VT, VU, VX, VY, VZ INC ALL HSV MODELS V6 & V8 Sedan, Wagon and Ute. Please note may not suit some VT modules please contact us for more info for VT.


STATESMAN 2000-2005 WH, WK, WL V6 & V8. Please note may not suit some WH modules please contact us for more info for WH.


CAPRICE 2000-2005 WH, WK, WL V6 & V8. Please note may not suit some WH modules please contact us for more info for WH.


MONARO V2 VY 2001-2004 V6 S-CHARGED & V8.


 ADVENTRA CX8, LX8, VY, VZ, 2003-2006 Wagon V6 & V8.


CALAIS VT, VX, VY, VZ V6 & V8. Please note may not suit some VT modules please contact us for more info for VT.



THIS PUMP & KIT REQUIRES NO CUTTING, JOINING OR MODIFYING PUMP AND PARTS MADE BY SNIPER PERFORMANCE.

WALBRO STYLE PUMP GSS341 FLOWS AT 320LPH AT 43.3-PSI 3-BAR 12.5v AND CAN SUPPORT UP TO 630BHP ON NORMAL FUEL & E85.


WE ARE THE ONLY ONES THAT OFFER THIS KIT WITH A SPECIAL CLIP LOCK PUMP RETAINER THAT CLIPS THE PUMP INTO THE FACTORY ASSEMBLY AND HOLDS THE PUMP 10mm ABOVE THE BOTTOM OF THE SWIRL POD THIS KEEPS THE FILTER-STRAINER CLEAN  AND ALLOWS THE PUMP ITS FULL POWER POTENTIAL. ALSO KEEPS THE PUMP QUIETER WITH NO CHANCE OF MOVING AROUND OR VIBRATING.


SUPPLYED WITH FACTORY STYLE HIGH PRESSURE HOSE THATS RATED AT TWICE THE BURST PRESSURE OF THE STANDARD HOSE AND IS A HIGH FLOW HOSE.


SUPPLYED WITH ONE PIECE WIRING LOOM THAT PLUGS INTO BOTH SIDES AS THE FACTORY HARNESS, WIRE IS HIGH GRADE STAINLESS STEEL BRAID WITH STAINLESS STEEL TERMINALS.



SUPPLED WITH A E85 APPROUVED HIGH MICRON HIGH FLOW NYLONG STRAINER.




SPECIFICATIONS.
E85 APPROUVED: YES CAN RUN ON E85 AND PUMP FUEL.
FUEL PUMP PART NUMBER: SNIPER SP-341-320.
PRESSURE AND FLOW RATE: 320-LPH AT 3-BAR 43.3-PSI 12.5-V supports up to 630-BHP.
FITTING KIT PART NUMBER: SNIPER PERFORMANCE. KIT-HOLD-SEDAN.
CLIP LOCK PUMP RETAINER: SNIPER. CLR-39mm.
WIARING HARNEST: SNIPER: One piece wiring loom Delphi to Walbro with stainless steel braid & terminals 200-mm long.
PRESSURE HOSES: SNIPER: High pressure, high burst, high flow white submersible full fuel hose made in the EU, 210 mm long.

The SNIPER SP341 320LPH high flow in-tank fuel pump is the most sort after pump for its size. Its designed to meet the  requirements of modern turbocharged applications. The turbine design lends itself to extremely quiet operation and a massive flow rate.

We also sell performance and standard fuel pumps, Injectors VDO & Bosch 280cc to 2400cc, Sniper Performance Coils, Garret Turbo, Turbosmart Full Range, Vic agent for AeroFlow fittings & hoses, Crow Cams, APR bolts, K&N Air Filters, NOS Kits & Filling, Auto Meter,  Intercoolers, Custom Piping, Centre Line & Weld Racing Wheels, Mickie Thompson Race Tyres, Red Line Oils and many more.


WE CAN ALSO SUPPLY THIS PUMP ORE A GENUINE WALBRO IN A COMPLEAT ASSEMBLY AS PICTURED. PLEASE CHECK OUR STORE FOR MORE DETAILS.
thumbnail 1 - WALBRO GSS342 255LPH PERFORMANCE FUEL PUMP HOLDEN COMMODORE VY 10/2002-2004 3.8L   thumbnail 2 - WALBRO GSS341 255LPH PERFORMANCE FUEL PUMP CALAIS HSV VY VZ SS 5.7L 6.0L SENATOR

YES WE CAN ALSO SUPPLY THIS TYPE OF FUEL PUMP & ASSEMBLY WITH THE WALBRO F90000274 700-BHP 400LPH PUMP FUEL & THE GSS341, GSS342. GSS340 WALBRO THE TIA485-2 750+BHP 460LPH E85 PUMP AND THE BOSCH MOTORSPORT 400LPH HIGH PRESSURE E85 PUMP. MESSAGE US FOR A PRICE $$$. ALL CUSTOM APPLICATIONS WILLING ABLE TO BUILD.
Image result for walbro performance fuel pumps            Image result for F90000274      Image result for gss341

COMES FULLY ASSEMBELD WITH ALL E85 APROUVED PARTS FITTED READY TO DROP IN.

Image 1 - WALBRO GSS341 255LPH PERFORMANCE FUEL PUMP CALAIS HSV VY VZ SS 5.7L 6.0L SENATOR

The Walbro TIA485-2 460LPH pump is the highest flowing in-tank fuel pump on the market, and is E85 & Methanol safe.  Walbro designed the pump to meet the  requirements of modern turbocharged applications where a single 255LPH fuel pump is insufficient.  The pump uses a turbine style design which incorporates two composite plastic blades. The turbine design lends itself to extremely quiet operation and a massive flow rate.

We also sell performance and standard fuel pumps, Injectors VDO & Bosch 280cc to 2400cc, Sniper Performance Coils, Garret Turbo, Turbosmart Full Range, Vic agent for AeroFlow fittings & hoses, Crow Cams, APR bolts, K&N Air Filters, NOS Kits & Filling, Auto Meter,  Intercoolers, Custom Piping, Center Line & Weld Racing Wheels, Mickie Thompson Race Tyres, Red Line Oils and many more.

Message us with your details and we will get back to you.

Warranty. 36 Months or 50,000 km Warranty on Passenger  Vehicles.

Payment.  We accept : Pay on Pickup, PayPal, Bank Transaction, credit card over the phone from 9 to 5 mon to fri & Money Order as payment methods. Please use your eBay Username as a transaction reference.

Postage. Local Pickup (message for address and pick up times)  Domestic :  Fixed Rate we use Couriers please, Australia Post (Regular Post)and express.  International : POA , Please contact us via eBay for a quote.  All items sent with tracing no and insurance.

Fitting services.  Available in our modern and well equipped work shop.
