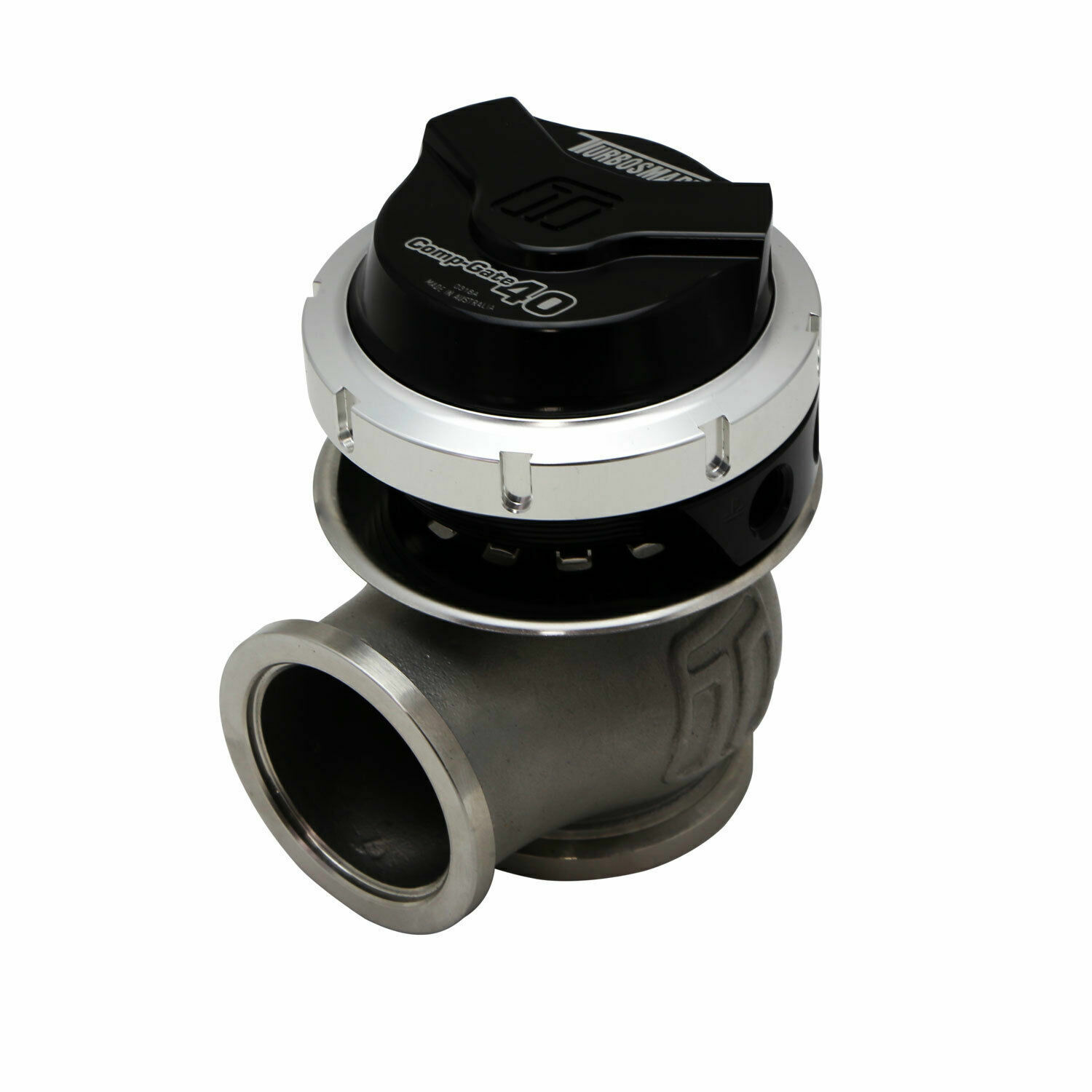

The Gen-V WG40 Comp-Gate40 external wastegate is a cost effective, high performing 40mm external wastegate.

The Gen-V provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.

A direct fit upgrade to all 4th-generation Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base, strap-type V-band clamps, liquid-cooling, 1/8″ NPT ports, and are provided with a range of springs.

They are also available in Motorsport and compressed gas-only versions for those requiring specific applications.

• Liquid cooling provision

• Strap type V-band clamps

• User adjustable actuator position

• Modular actuator design

• Motorsport Endurance / Compressed Gas configurations available

• Wastegate unit (pre-assembled with spring as per order)

• SS316 Valve seat

• Inlet V-Band

• Inlet SS304 weld flange

• Outlet V-Band

• Outlet SS304 weld flange

• Collar tool (master/slave)

• 17/7 PH 3, 5, 7, 14 psi spring kit (1x spring installed)

• 4x 1/8” NPT plugs (1x installed) / 2x 1/8” NPT nipples

• Sticker

• Instruction card
