ULTRO-TECH E85 E98 SURGE TANK FEED PUMP 225L FORD FALCON BF XR8 TURBO FPV GT GTP
 UP FOR SALE IS OUR SNIPER-PERFORMANCE & ULTROTECH E-85 CUSTOM BUILT FUEL PUMP ASSEMBLY. TO SUIT A SURGE TANK THIS IS A FEED PUMP ASSEMBLY TO SUIT FORD FALCON BF BUILT AFTER 09-2007 AND ALL FG FGX & FPV MODELS SEDAN ONLY. THIS UNIT SUITS PUMP FUEL (PERTOL), E85 & METHANOL. THIS ASSEMBLY IS CUSTOM MADE BY SNIPER PERFORMANCE AND FITTED WITH A ULTROTECH 230LPH UNREGULATED FUEL PUMP 230LPH AT 18-PSI 1-BAR 12.5v AND CAN SUPPORT A 4LT SURGE TANK. FEATURES COMES FULLY ASSEMBLED NEW TECHNOLOGY CERAMIC INTERNAL PARTS. E-85 APPROVED ASSEMBLY WITH STAINLESS STEEL PINS. ANTY DRAIN BACK EXTENDED WIRING. FLOW RATE 230 LPH AT 1 BAR 18-PSI UN REGULATED, AT 12.5 VOLTS DRAWS 4.7 AMPS. E-85 APPROVED STRAINER AND SPECIAL CORROSION COATED BODY. SLIM BODY 38mm WIDE. 112mm LONG. AND + 15mm FOR THE STRANER. OUTLET 8mm BARBED. INLET 11mm OUTER SLEVED. FITTING KIT ALL E-85 APPROUVED TO SUIT BA BF XR6 XR8 SEDAN. E-85 APPROVED HI BURST PRESSURE HOSE BLACK MADE IN THE EU. OUR ASSEMBLY IS CUSTOM MADE TO STOP SURGING UNDER EXTREME TAKE OFFS AND AROUND CORNERS WHICH IS A COMMON PROBLEM WITH THE FACTORY SWIRL. THIS WILL STOP THE SURGING PROBLEM BY 100%. IT HAS BEEN DYNO & RACE TRACK TESTED, 1/4 MILE, CIRCUIT AND DRIFT. THIS ASSEMBLY CONSIST OF ONLY THE BEST OF THE BEST PARTS AVAILABLE AND HAND ASSEMBLED IN MELBOURNE. THE ASSEMBLY IS MADE OF THE BEST POLLIMER AVALABLE AND ITS E85 & METHANOL APPROVED. WE ARE THE ONLY ONES THAT OFFER THIS ASSEMBLY AND WITH A SPECIAL CLIP LOCK PUMP RETANER THAT MOUNTS THE PUMP 10mm ABOVE THE BOTTOM OF THE SWIRL POD THIS KEEPS THE FILTER-STRAINER CLEAN AND ALLOWS THE PUMP ITS FULL POWER POTENTIAL. ALSO KEEPS THE PUMP QUIETER WITH NO CHANCE OF MOVING AROUND OR COMING LOOSE ORE VIBRATING. THE HOSES ARE RATED AT TWICE THE BURST PRESSURE OF THE FACTORY HOSES AND ARE HIGH FLOWING. FITTED WITH ONE PIECE WIRING LOOM WITH STAINLESS STEEL BRAID & TERMINALS. STAINLESS STEEL COMPRESSION SPRING, HOSE CLAMP & GUIDE PINS FITTED FOR NO CHANCE OF CORROSION. HIGH MICRON HIGH FLOW NYLONG STRAINER. HIGH FLOW MODIFIED FUEL RETURN VALVE TO KEEP THE RETURN PRESSURE LOW AND TO FILL THE SWIRL POD IN HALF THE NORMAL TIME IT WOULD USALY TAKE.
SPECIFICATIONS. SNIPER-ULTROTECH E85 FUEL PUMP PART NUMBER: ULTROTECH-E85. PRESSURE AND FLOW RATE: 230-LPH AT 1-bar, 18-PSI 12.5-V supports up to a 4lt tank. ASSEMBLY PART NUMBER: SNIPER PERFORMANCE MOD-043-230-E85. ASSEMBLY HEIGHT: BACE TO FLANGE 230-mm COMPRESSED 190-mm. ASSEMBLY CAPACITY: POD 1-litre. ASSEMBLY HOSE FITTINGS: Left Returnee (8-mm c-lock). Centre blocked. Right (10-mm c-lock) Fuel out. WIARING HARNEST: One piece wiring loom Delphi plug, stainless steel wiring terminals fitted to pump. PRESSURE HOSES: High pressure, high burst, high flow white & black submersible fuel hose made in the EU, 155mm long.     WE CAN ALSO SUPPLY THIS ASSEMBLY WITH THE WALBRO GSS341 255LPH 550BHP. ORE WITH WALBRO F90000274 700-BHP 400LPH PUMP FUEL & THE WALBRO TIA485-2 750+BHP 460LPH E85 PUMP. MESSAGE US FOR A PRICE $$$. ALL CUSTOM APPLICATIONS WILLING WELCOME TO BUILD.  COMES FULLY ASSEMBELD WITH ALL E85 APROUVED PARTS FITTED READY TO DROP IN. The Walbro GSS-341 255LPH pump is a flowing in-tank fuel pump Walbro designed the pump to meet the requirements of modern turbocharged & H-Performance applications. The Walbro F90000274 400LPH pump is one of the highest flowing in-tank fuel pump on the market, Walbro also make a 460lph E85, Methanol and Petrol approved pump. Walbro designed the pump to meet the requirements of modern turbocharged & H-Performance applications where a single 255LPH fuel pump is insufficient. This pump uses a turbine style design which incorporates two composite plastic blades. The turbine design lends itself to extremely quiet operation and a massive flow rate. The Walbro TIA485-2 460LPH pump is the highest flowing in-tank fuel pump on the market, and is E85 & Methanol safe. Walbro designed the pump to meet the requirements of modern turbocharged applications where a single 255LPH fuel pump is insufficient. The pump uses a turbine style design which incorporates two composite plastic blades. The turbine design lends itself to extremely quiet operation and a massive flow rate. We also sell performance and standard fuel pumps, Injectors VDO & Bosch 280cc to 2400cc, Sniper Performance Coils, Garret Turbo, Turbosmart Full Range, Vic agent for AeroFlow fittings & hoses, Crow Cams, APR bolts, K&N Air Filters, NOS Kits & Filling, Auto Meter, Intercoolers, Custom Piping, Center Line & Weld Racing Wheels, Mickie Thompson Race Tyres, Red Line Oils and many more. Message us with your details and we will get back to you ASAP. WE ALSO HAVE IN OUR STORE FOR SALE IS OUR NEW PRODUCT. YEARS IN DEVELOPMENT AND WITH EXTENSIVE VEHICLE AND DYNO TESTING, MADE IN JAPAN WITH AIRCRAFT GRADE ELECTRONICS. AND SUPPLIED WITH VDO SILICON GREASE. SET OF 6 PERFORMANCE IGNITION COILS TO SUIT FALCON XR6 TURBO FG FGX & TERRITORY TURBO MODELS. WE ARE SO CONFIDENT OF THIS PRODUCT IF YOU ARE NOT 100% SATISFIED WE OFFER A FULL MONEY BACK GUARANTY.
Increased spark KV'S and voltage along with multiple spark capabilities, the time it takes to fire once it gets the signal is one Millisecond which is five times quicker than standard. That helps improve the combustion process of the fuel mixture to create an efficient burn. Perfect spark from 500 rpm to 12,000 rpm This results in improved throttle response. Stops Pre-Ignition and Pinning when used with E85 applications. Smooth idle and quick starts, plus increased hard acceleration and high rpm without misfiring.
MISFIRING PROBLEMS SOLVED EASY!!!
Warranty $210.00 a set of 6. For General Enquires :Customer Support ,technical support and bookings & pickups we are located at 45 Charles street north Coburg Melbourne Victoria 3058. Always best to call first. Contact through EBay message leave us your details and we will get back to you ASAP. Warranty 12 Months or 20,000 km Warranty on Passenger Vehicles. Payment We accept : Pay on Pickup, PayPal, Bank Transaction, credit card over the phone from 9 to 5 mon to fri & Money Order as payment methods. Please use your EBay Username as a transaction reference. Postage Local Pickup (message us for address and pick up times) Domestic : Fixed Rate we use Couriers please, Fastway, Australia Post (Regular Post) and express. please contact us of which you prefer on purchase in order details ore if not we will post out with the one we think would be the best to use. International : POA , Please contact us via EBay for a quote. All items sent with tracking no and insurance except when sent with Australia post which is only covered for $50.00 for lost ore damaged in transit. Fitting services Available in our modern and well equipt work shop. For General Enquires :Customer Support ,technical support and bookings & pickups we are located at 45 Charles street north Coburg Melbourne Victoria 3058. Always best to call first. Contact through EBay message leave us your details and we will get back to you ASAP. |
SEDAN ONLY
UTES AVAILABLE AS WELL.

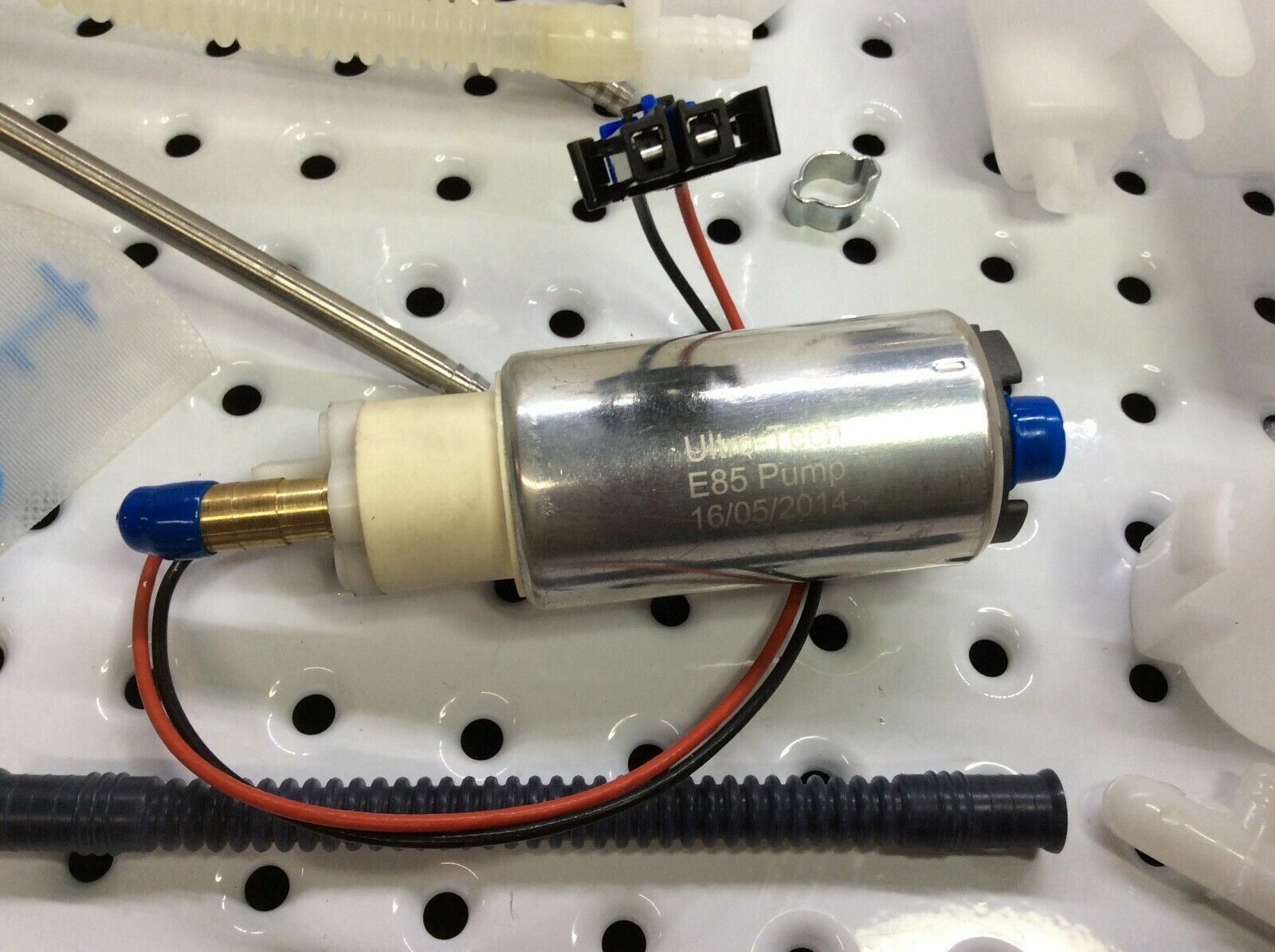

UP FOR SALS IS OUR NEW PRODUCT. SNIPER-PERFORMANCE & ULTRO-TECH E85 E98 FEED PUMP AND ASSEMBLY. COMES FULLY ASSEMBLED, USED TO FEED A SURGE TANK FOR HI PERFORMANCE APPLICATIONS. THIS IS THE ONLY PUMP ON THE MARKET THAT WILL RUN 100% ALCOHOL IT WILL EVEN PUMP WATER WITHOUT FAILING.
PLEASE NOTE THAT THIS IS A FEED PUMP ONLY.
FEATURES
COMES FULLY ASSEMBLED
NEW TECHNOLOGY CERAMIC INTERNAL PARTS.
E-85 APPROVED ASSEMBLY WITH STAINLESS STEEL PINS.
ANTY DRAIN BACK EXTENDED WIRING.
FLOW RATE 225 LPH AT 1 BAR 12-PSI UN REGULATED, AT 13 VOLTS DRAWS 4.7 AMPS.
E-85 APPROVED STRAINER AND SPECIAL CORROSION COATED BODY.
SLIM BODY 38mm WIDE. 112mm LONG. AND + 15mm FOR THE STRANER.
OUTLET 8mm BARBED. INLET 11mm OUTER SLEVED.
FITTING KIT ALL E-85 APPROUVED TO SUIT BA BF XR6 XR8 SEDAN.
E-85 APPROVED HI BURST PRESSURE HOSE BLACK MADE IN THE EU.
MOD-003
Warranty
12 Months or 20,000 km Warranty on Passenger Vehicles.
Payment
We accept : Pay on Pickup, PayPal, Bank Transaction, card over the phone from 9 to 5 mon to fri & Money Order as payment methods. Please use your EBay Username as a transaction reference.
Postage Local Pickup (message for address and pick up times)
Domestic : Fixed Rate we use Couriers please, Australia Post( Regular Post)and express.
International : POA , Please contact us via EBay for a quote.
All items sent with tracking no and insurance.
Fitting services Available in our modern and well equipt work shop.
For General Enquires :Customer Support ,technical support and bookings
Contact through Ebay message
Phone : (61) 0393542962 bh 9am to 5pm
Phone : ah 0417303775
Posted with eBay Mobile
ANY QUESHTIONS OR ADVICE CALL US ON 03 93542962, 0417303775
| SKU | MOD-043-240-E85 |
| Brand | SNIPER ULTROTECH |
| Shipping Weight | 3.0000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.150m |
| Shipping Length | 0.300m |
| Unit Of Measure | ea |
