GENUINE 460LPH TIA485-2 WALBRO MADE IN THE USA.

Image result for walbro gss341      NEW WALBRO E85 460-LPH TIA485-2  pump one of the most highest flowing in-tank fuel pump on the market, and is E85 & Methanol approved. Walbro designed the pump to meet the  requirements of modern turbocharged applications where a single 255LPH fuel pump is insufficient.  The pump uses a turbine style design which incorporates two composite plastic blades. The turbine design lends itself to extremely quiet operation and a massive flow rate.

THIS UNIT IS SUPPLED WITH A NEW WIRING PLUG WITH BIGGER TERMINALS AS THE 460 & 525-LPH PUMPS DRAW MORE CURENT AND WILL SOMETIMES MELT THE ORIGINAL PLUG. IT WILL NEED TO BE REWIRED.

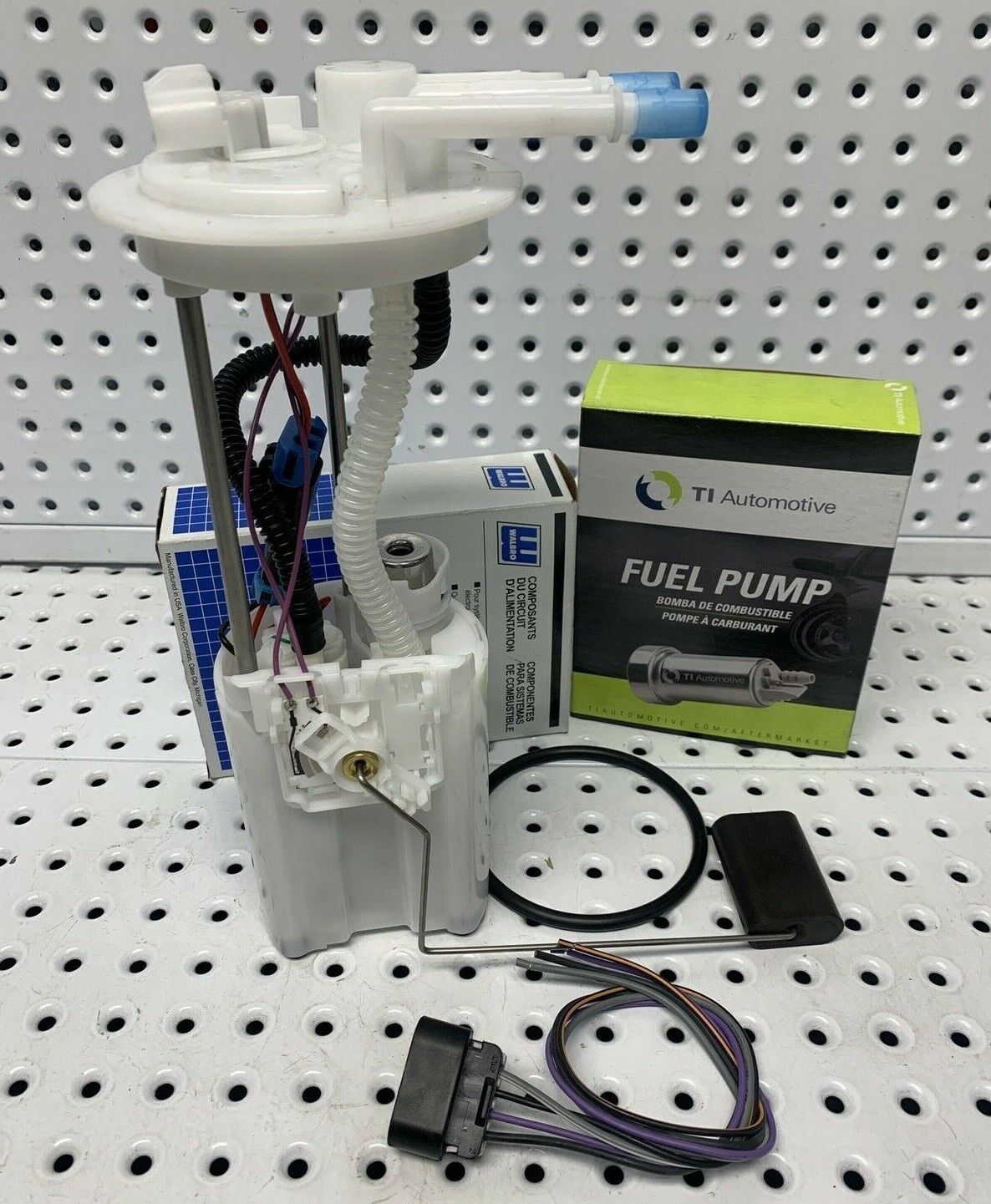

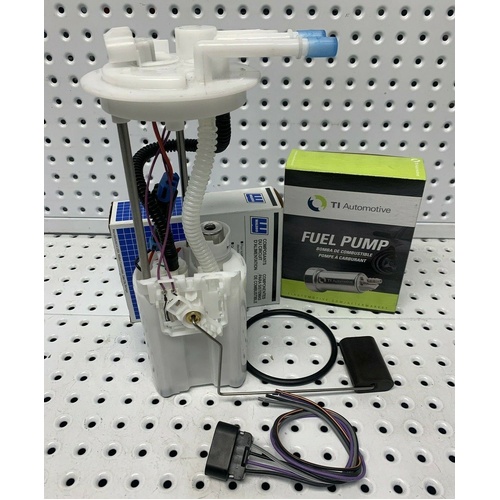

UP FOR SALE IS OUR SNIPER-PERFORMANCE UPDATED CUSTOM BUILT FUEL PUMP ASSEMBLY TO SUIT HOLDEN COMMODORE VU UTE V8 5.7L LS1, GEN3 UTE.


FITTED WITH A WALBRO TIA485-2 460-LPH E85 FUEL PUMP IS ALSO SUITES PETROL.


THIS ASSEMBLY IS MADE BY SNIPER PERFORMANCE AND FITTED WITH A WALBRO 460-LPH AT 43.3-PSI 3-BAR 12.5v. CAN SUPPORT UP TO 750+BHP BUT PLEASE CHECK WITH YOUR TUNER FOR CORRECT SIZE FOR YOUR APPLICATION.


WE SUPPY A WIRING PLUG WITH THIS MODEL AS ITS A HIGH AMP PUMP, OUR ASSEMBLY IS CUSTOM MADE THAT'S DIFFERENT IN THE SWIRL-POD AREA, MADE TO STOP SURGING UNDER EXTREME TAKE OFF'S AND AROUND CORNERS WHICH IS A COMMON PROBLEM WITH THE FACTORY SWIRL POD. AS THE FACTORY MRI UNIT DOSE NOT HAVE THE RIGHT PLUMING FOR AFTERMARKET HIGH FLOW PUMPS THAT CAUSES THEM TO SUCK AIR AND SURGE UNDER HALF A TANK OF FUEL. THIS SET UP WILL STOP THE SURGING PROBLEM BY 100%.


IT HAS BEEN RACE TRACK TESTED, 1/4 MILE, CIRCUIT AND DRIFT.

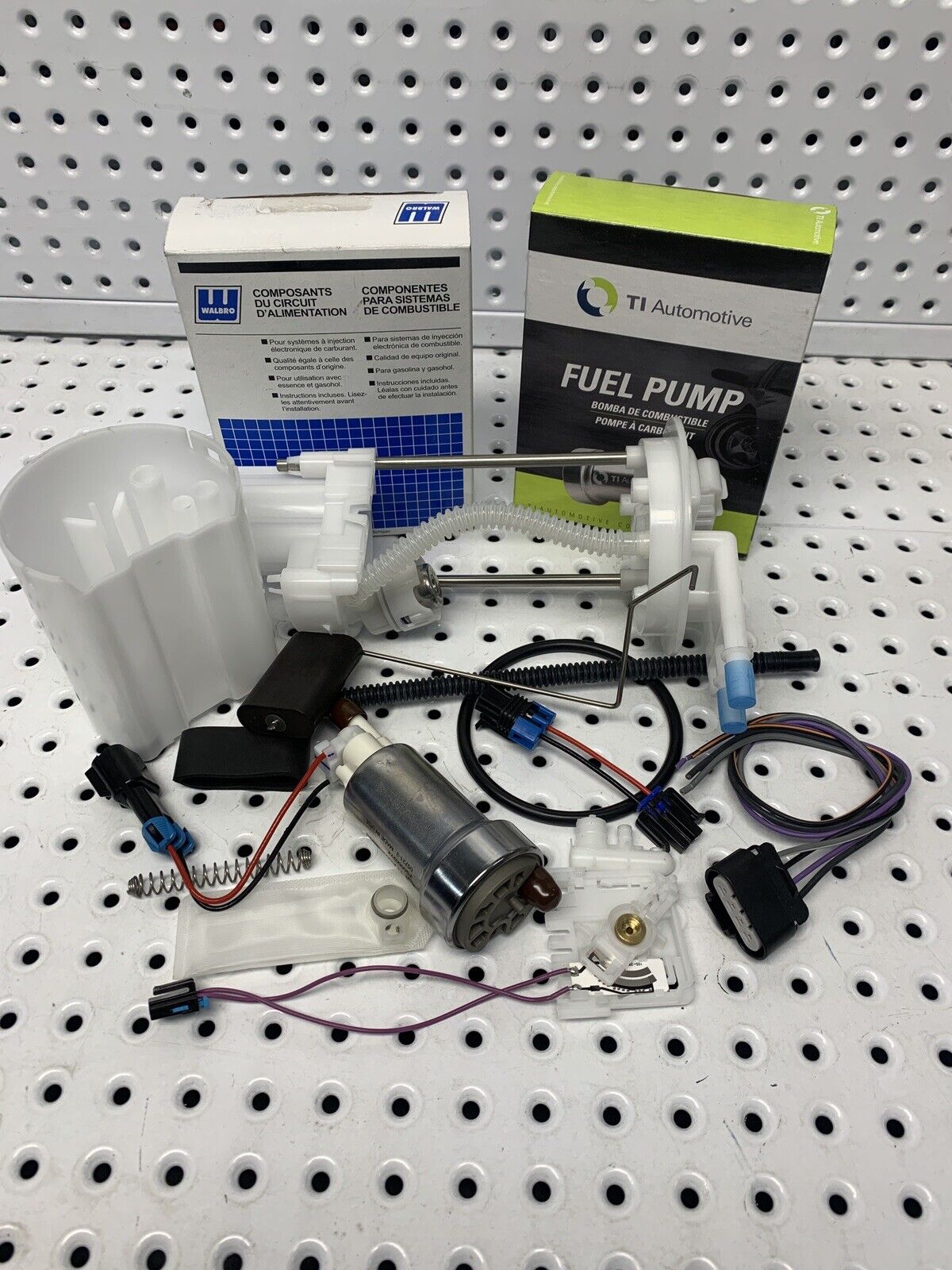

THIS ASSEMBLY CONSIST OF ONLY THE BEST OF THE BEST PARTS AVAILABLE AND HAND ASSEMBLED IN MELBOURNE.

THE ASSEMBLY IS MADE OF THE BEST DUPONT POLLIMER AVALABLE AND ITS E85 & METHANOL APPROVED.


OUR FUEL HOSES ARE RATED AT 2 TO 3 TIMES THE BURST PRESSURE OF THE FACTORY HOSES, HIGH FLOWING & ANTY STATIC.


FITTED WITH ONE PIECE WIRING LOOM WITH STAINLESS STEEL TERMINALS.


STAINLESS STEEL COMPRESSION SPRING, HOSE CLAMP & GUIDE PINS FITTED FOR NO CHANCE OF CORROSION.

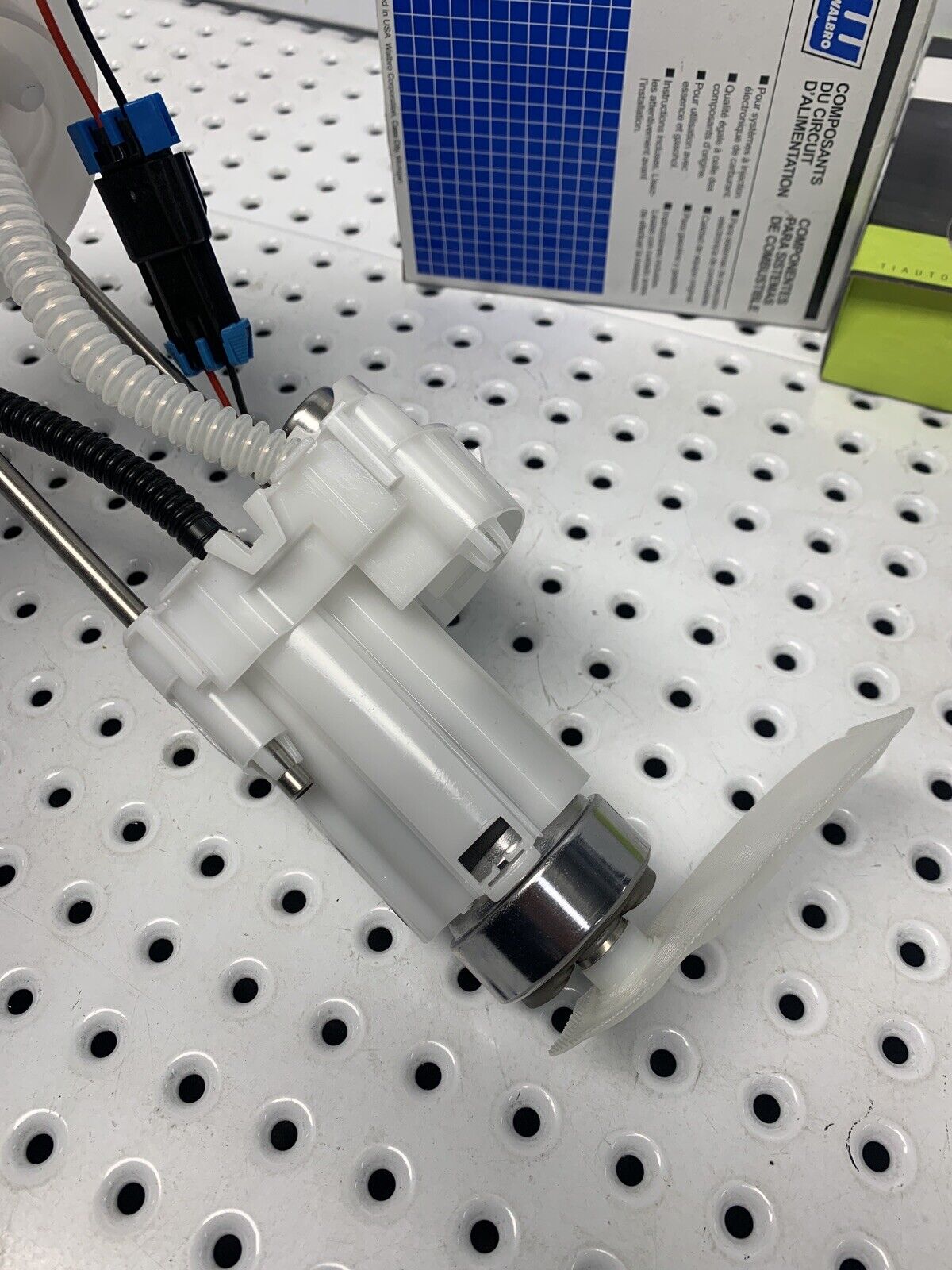

HIGH MICRON HIGH FLOW DUPONT NYLONG STRAINER.


HIGH FLOW MODIFIED FUEL RETURN VALVE TO KEEP THE RETURN PRESSURE AS LOW AS POSSIBLE AND TO FILL THE SWIRL POD IN HALF THE NORMAL TIME IT WOULD USALY TAKE.

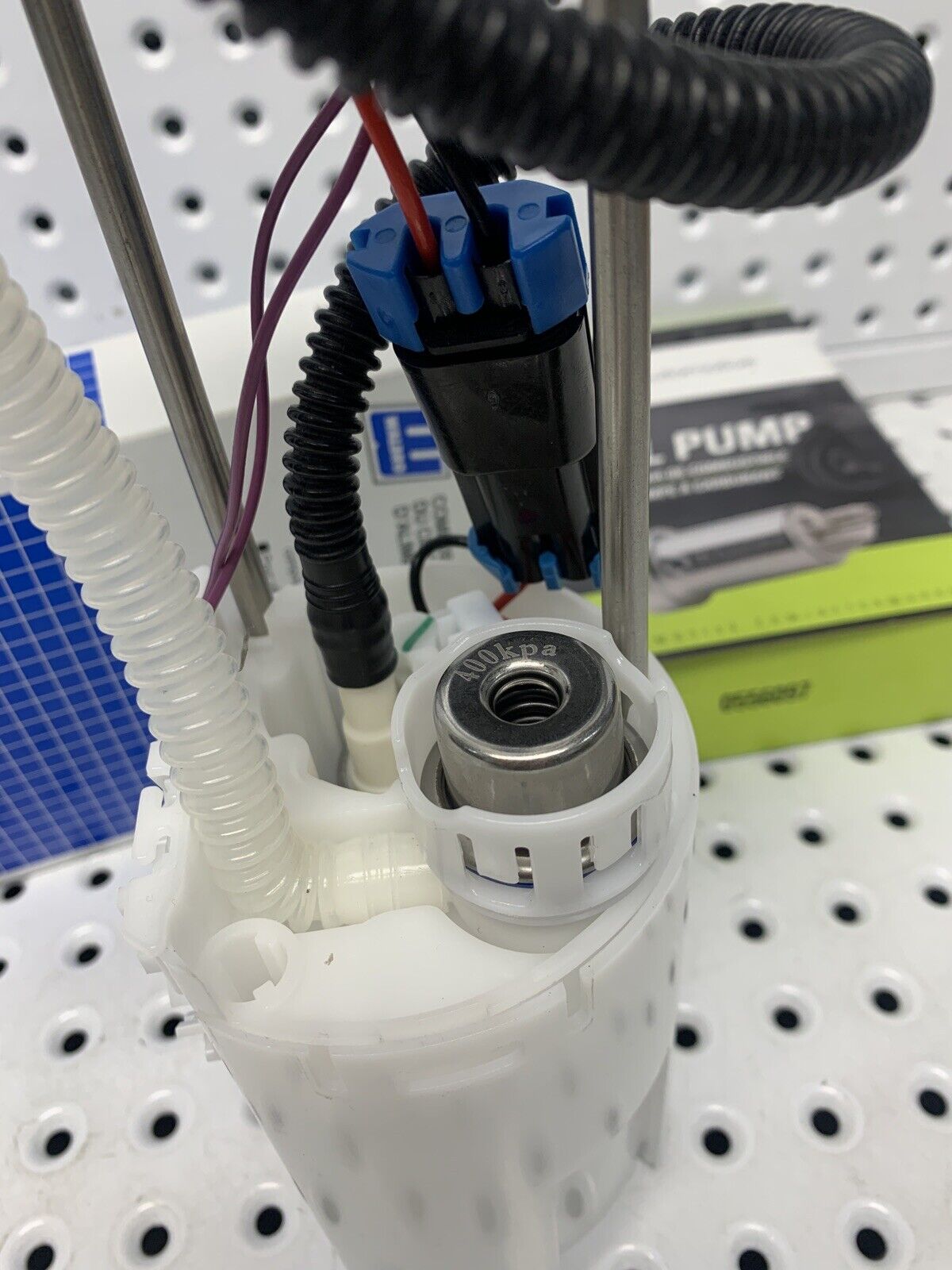

HIGH FLOW FUEL PRESSURE REGULATOR FITTED TO THIS ASSEMBLY.






TO SUIT UTE ONLY.



HOLDEN COMMODORE S SS VU 12/2000-09/2002 5.7L LS1 GENIII V8 16v OHV MPFI RWD 2-DOOR UTE.


HSV MALOO R8 VU 03/2001-09/2002 5.7L LS1 GENIII V8 16v OHV MPFI RWD 2-DOOR UTE.


HSV MALOO VU 03/2001-09/2002 5.7L LS1 GENIII V8 16v OHV MPFI RWD 2-DOOR UTE.


OUR PART NUMBER: MOD 016A. X-REF MOD-037.

GM PART NUMBER: 92158014, 92156789.

OTHER PART NUMBERS: EFP-129, GE114.


MOD- 016-A-460, WAS MOD-037.
SPECIFICATIONS.

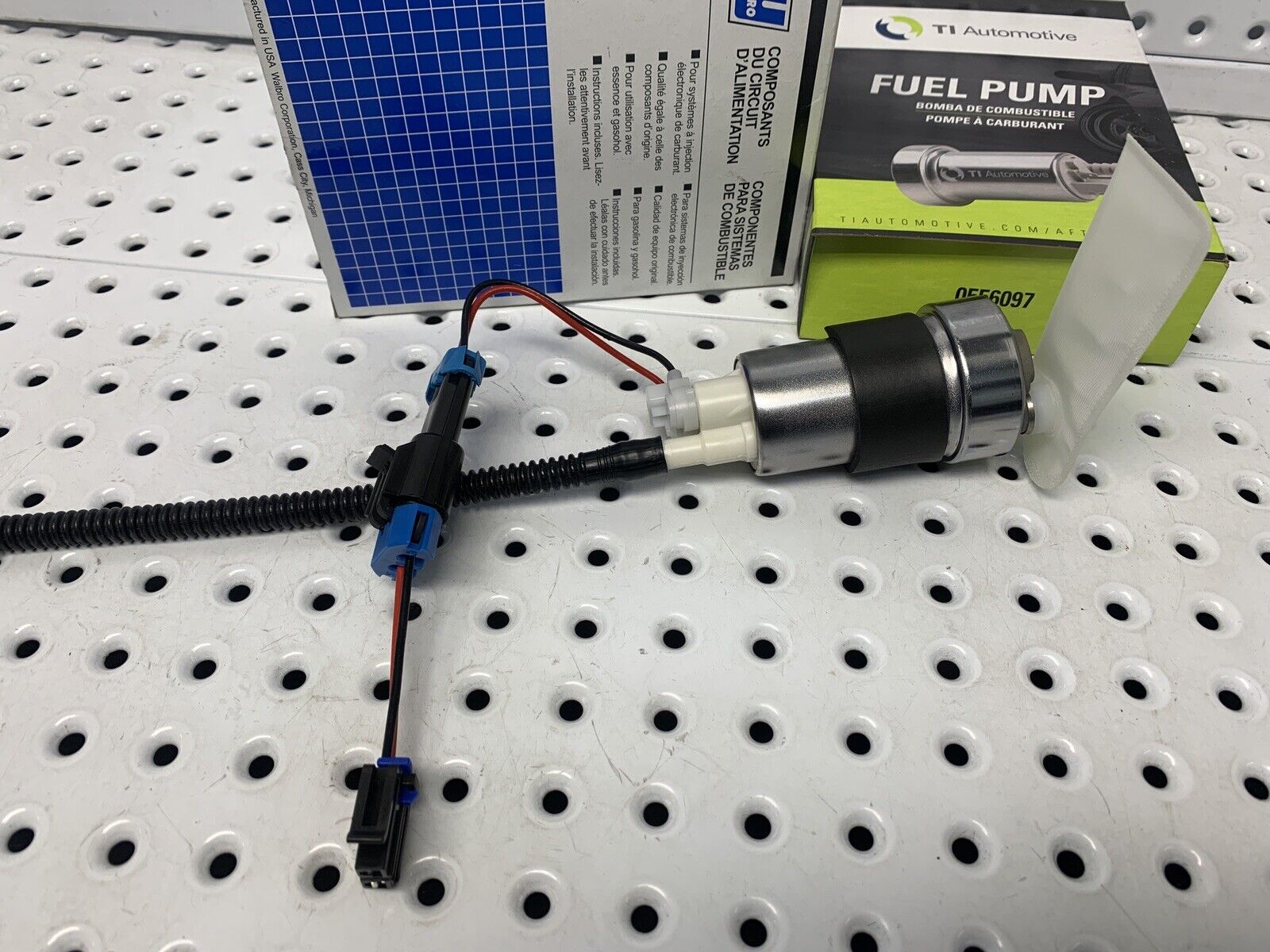

FUEL PUMP PART NUMBER: WALBRO 460-LPH TIA485-2, F90000267.
PRESSURE AND FLOW RATE: 460-LPH AT 3-BAR 43.3-PSI 12.5-V supports up to 750-BHP AT FLYWEEL.
ASSEMBLY PART NUMBER: SNIPER PERFORMANCE MOD-016-A-460.
ASSEMBLY HEIGHT: BACE TO FLANGE 275-mm COMPRESSED 220-mm.
ASSEMBLY CAPACITY: POD 500-millilitres as the factory unit.

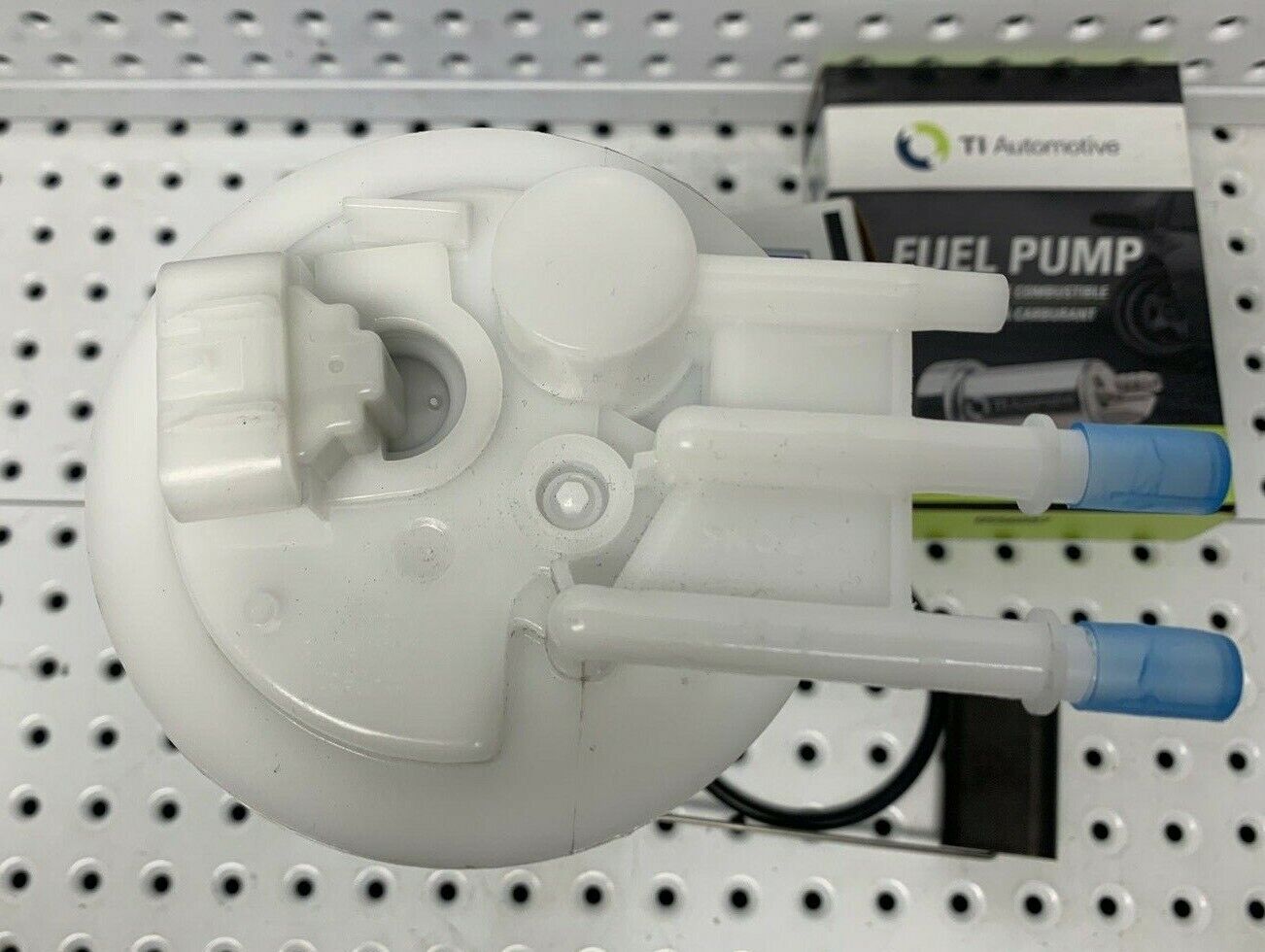

ASSEMBLY HOSE FITTINGS: Left Returnee (10-mm c-lock). Centre (10-mm c-lock) Fuel out. Right blocked.

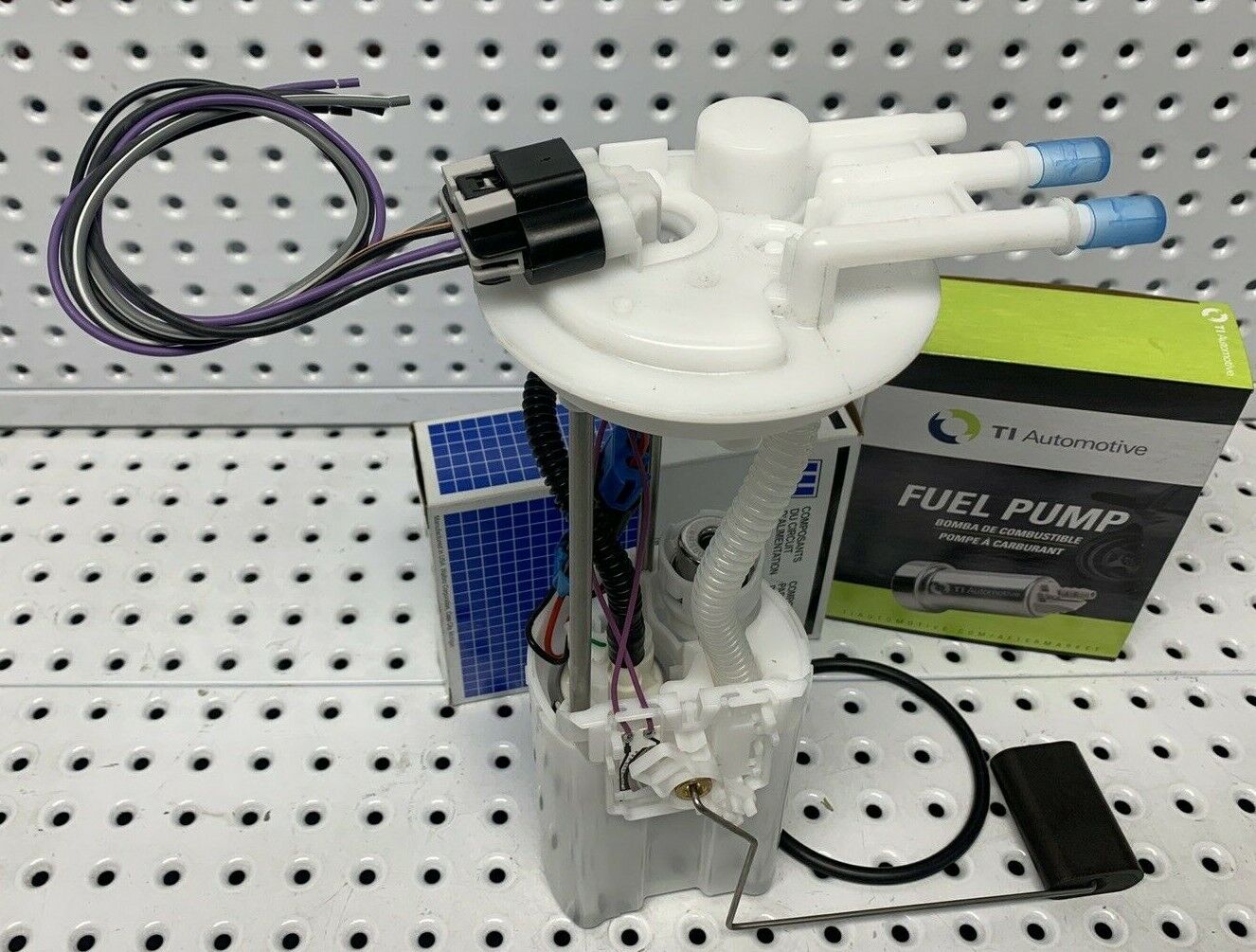

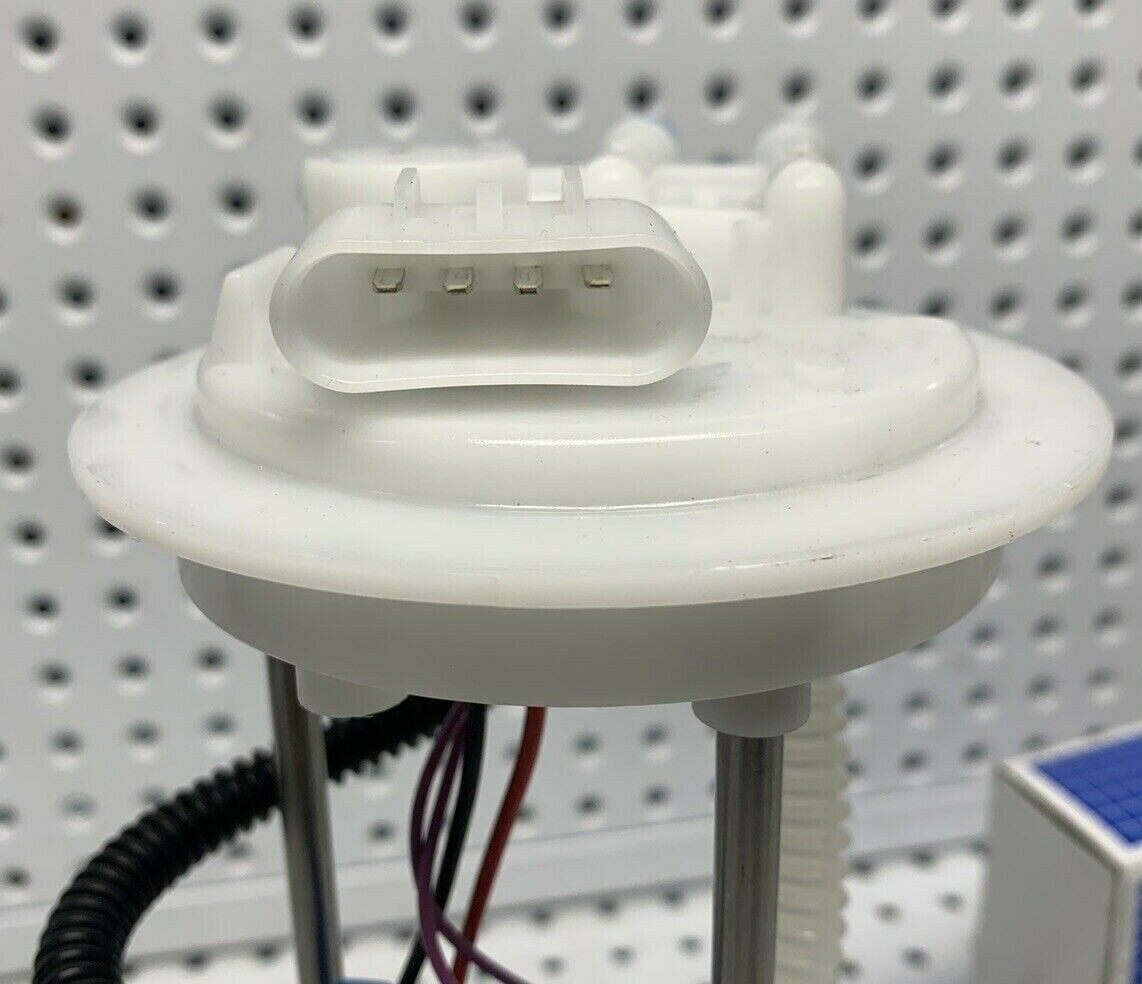

WIARING HARNEST: Oval 4 pin 2.2mm plug socket. Pump OE and joined with Walbro.
PRESSURE HOSES: High pressure, high burst, high flow white submersible fuel hoses made in the EU,  210mm long. E85 black hose made in Germany 4x burst pressure high flow no static.
FUEL GAUGE READINGS: Up-full 255-ohms -+5. Down-empty 39-ohms -+5.


The Walbro TIA485-2 460LPH pump is the highest flowing in-tank fuel pump on the market, and is E85 & Methanol and petrol approved. Walbro designed the pump to meet the  requirements of modern turbocharged applications where a single 255LPH fuel pump is insufficient.  The pump uses a turbine style design which incorporates two composite plastic blades. The turbine design lends itself to extremely quiet operation and a massive flow rate.


WE CAN ALSO SUPPLY THIS ASSEMBLY WITH THE WALBRO F90000285 E85 800-BHP-PLUS 520LPH & THE WALBRO GSS341 550-BHP 255-LPH & WALBRO GSS352 350-LPH.
 MESSAGE US FOR A PRICE $$$. ALL CUSTOM APPLICATIONS WILLING WELCOME TO BUILD.
GENUINE WALBRO/ TI Automotive E85 RACING FUEL PUMP ONLY F90000285 525LPH HELLCAT | eBayWalbro HELLCAT 525LPH F90000285 Fuel Pump - (Universal E85 Ethanol) Ultra High-Performance - TI AutomotiveWalbro GSS352 350 LPH High Performance In-Tank Fuel PumpWalbro 350 lph Fuel Pump Kit GSS352 G3 – T.I. Performance
ALL OUR ASSEMBLYS COMES FULLY ASSEMBELD READY TO DROP IN.


We also sell performance and standard fuel pumps, Injectors VDO & Bosch 280cc to 2400cc, Sniper Performance Coils, Garret Turbo, Turbosmart Full Range, Vic agent for AeroFlow fittings & hoses, Crow Cams, APR bolts, K&N Air Filters, NOS Kits & Filling, Auto Meter,  Intercoolers, Custom Piping, Center Line & Weld Racing Wheels, Mickie Thompson Race Tyres, Red Line Oils and many more.

Message us with your details and we will get back to you ASAP.


Warranty. 12 Months or 20,000 km Warranty on Passenger  Vehicles.

Payment. We accept : Pay on Pickup, PayPal, Bank Transaction, credit card over the phone from 9 to 5 Monday to Friday & Money Order as payment methods. Please use your eBay Username as a transaction reference.

Postage. Local Pickup (message us for address and pick up times) Domestic: Fixed Rate we use Couriers please, Fastway, Australia Post (Regular Post) and express. please contact us of which you prefer on purchase in order details ore if not we will post out with the one we think would be the best to use.  International : POA , Please contact us via eBay for a quote. All items sent with tracking no and insurance which is covered  for lost ore damaged in transit.

Fitting services. Available in our modern and well equipped work shop.

For General Enquires :Customer Support, technical support and bookings & pickups we are located at 45 Charles street north Coburg Melbourne Victoria 3058. Always best to call first.

      Contact through eBay message leave us your details and we will get back to you ASAP.

PH: 04., 17., 303., 775




SKU MOD-016-A-460_2
Brand AWA PARTS
Shipping Weight 4.0000kg
Shipping Width 0.300m
Shipping Height 0.150m
Shipping Length 0.300m
Unit Of Measure ea
