WALBRO 460LPH HI-PERFORMANCE FUEL PUMP COMMODORE VX HSV SV300 9/2000-9/2002 5.7L

Image result for vt hsv senator signature

Image result for v2 MONARO hsv COUPE GTO

Image result for walbro performance fuel pumps

DuPont Sustainable Sourcing Goals 2020 – Bioplastics News

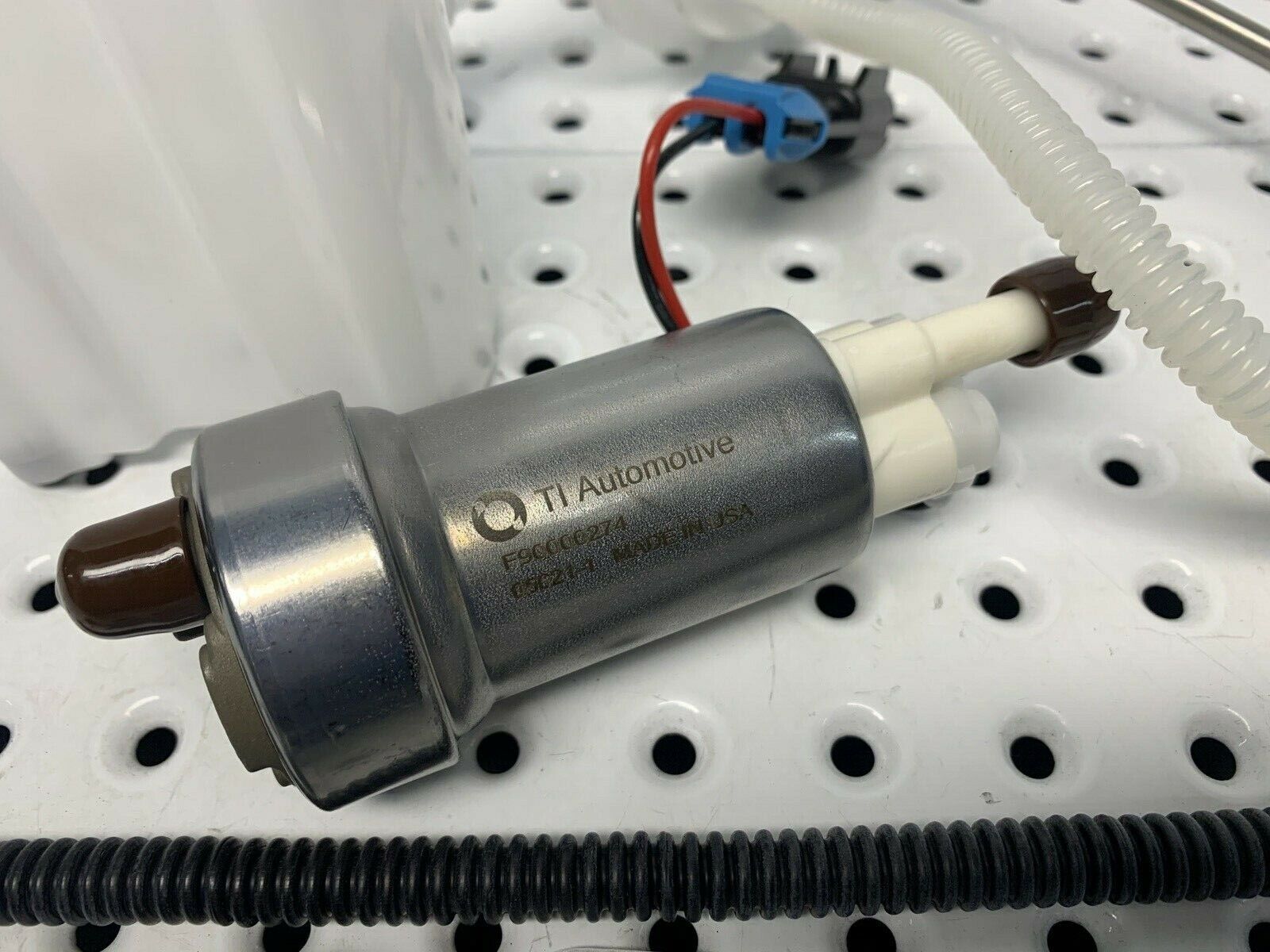

GENUINE 460LPH TIA485-2 WALBRO MADE IN THE USA.

NEW WALBRO E85 460-LPH TIA485-2 pump one of the most highest flowing in-tank fuel pump on the market, and is E85 & Methanol approved. Walbro designed the pump to meet the requirements of modern turbocharged applications where a single 255LPH fuel pump is insufficient. The pump uses a turbine style design which incorporates two composite plastic blades. The turbine design lends itself to extremely quiet operation and a massive flow rate.

THIS UNIT IS SUPPLED WITH A NEW WIRING PLUG WITH BIGGER TERMINALS AS THE 460 & 525-LPH PUMPS DRAW MORE CURENT AND WILL MELT THE ORIGINAL PLUG. IT WILL NEED TO BE REWIRED.

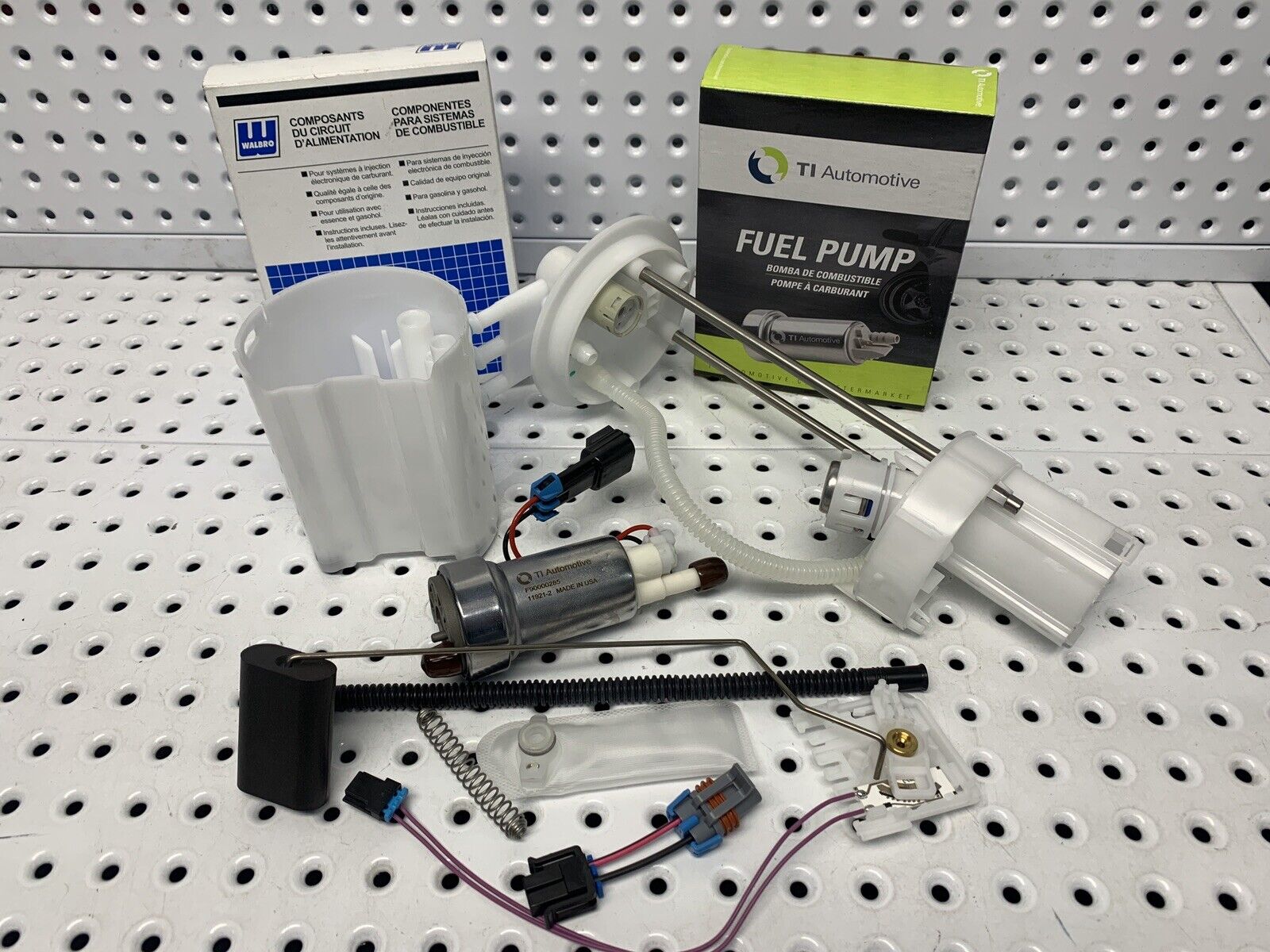

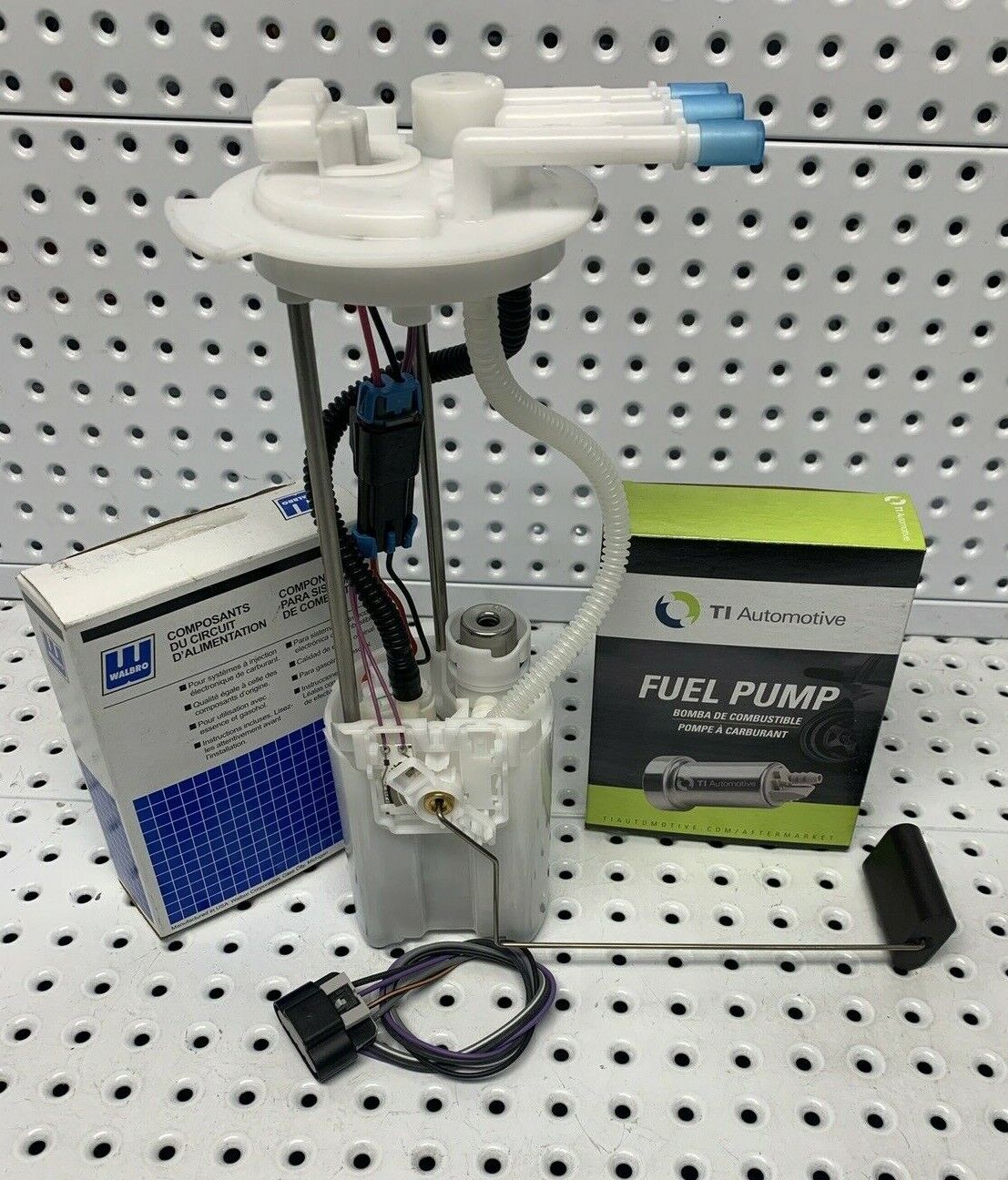

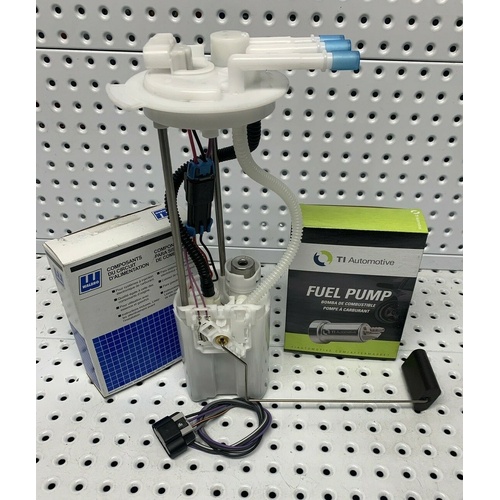

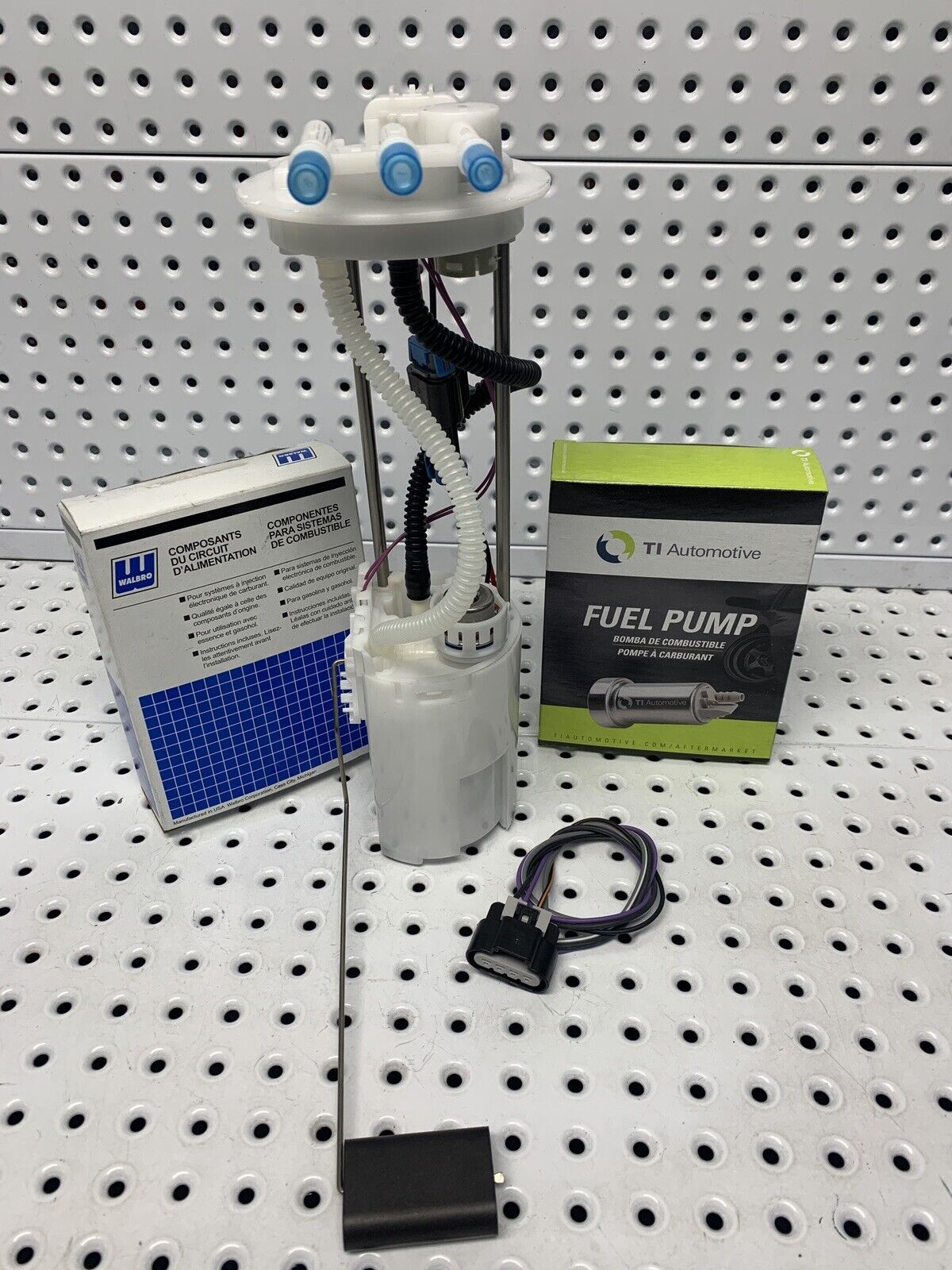

UP FOR SALE IS OUR SNIPER-PERFORMANCE CUSTOM BUILT FUEL PUMP ASSEMBLY TO SUIT HOLDEN COMMODORE VT, VX V8 5.7L LS1.

FITTED WITH A WALBRO TIA485-2 460LPH E85 FUEL PUMP IS ALSO SUITES PETROL.

THIS ASSEMBLY IS MADE BY SNIPER PERFORMANCE AND FITTED WITH A WALBRO 460-LPH AT 43.3-PSI 3-BAR 12.5v. CAN SUPPORT UP TO 750+BHP BUT PLEASE CHECK WITH YOUR TUNER FOR CORRECT SIZE FOR YOUR APPLICATION.

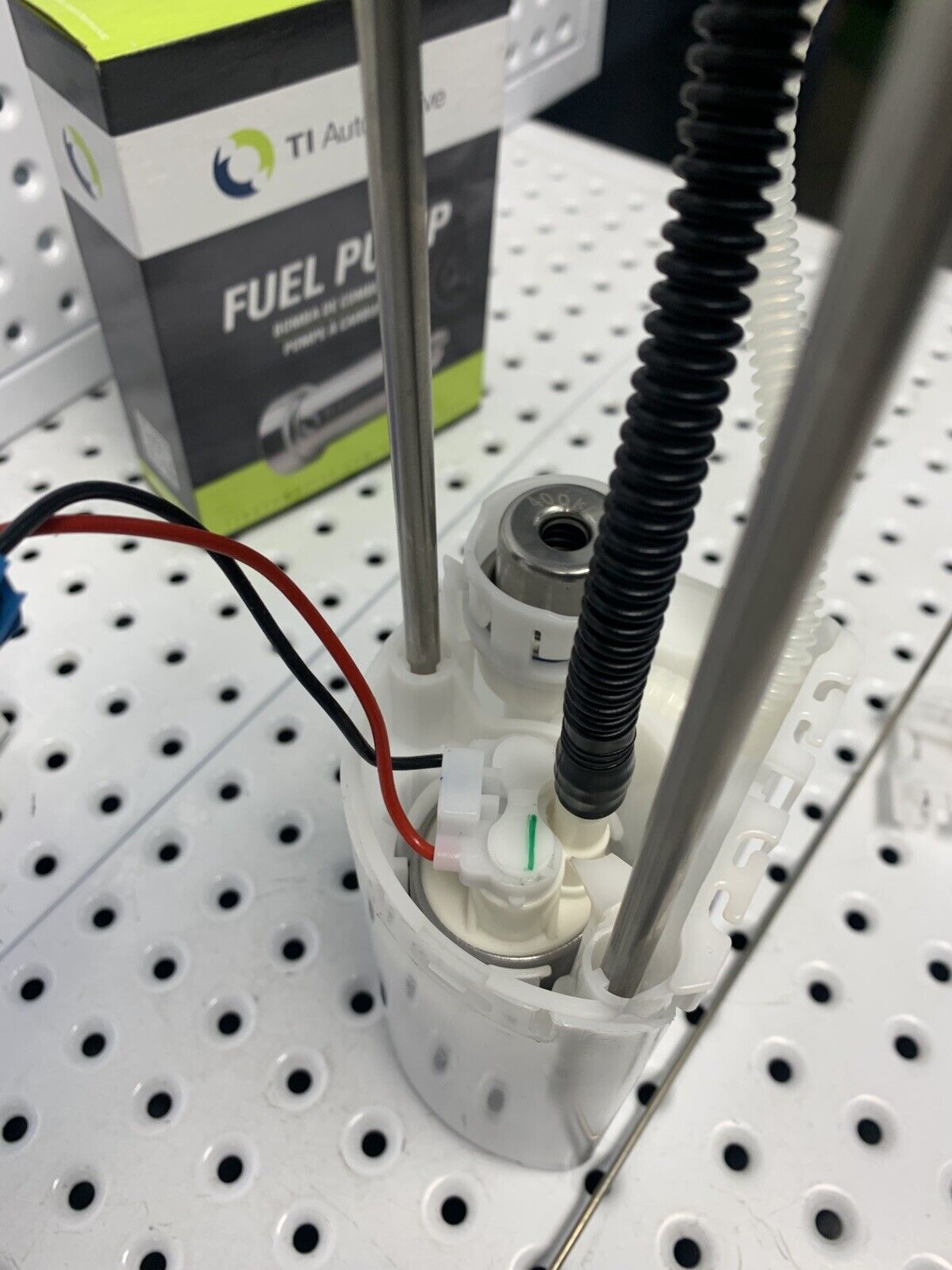

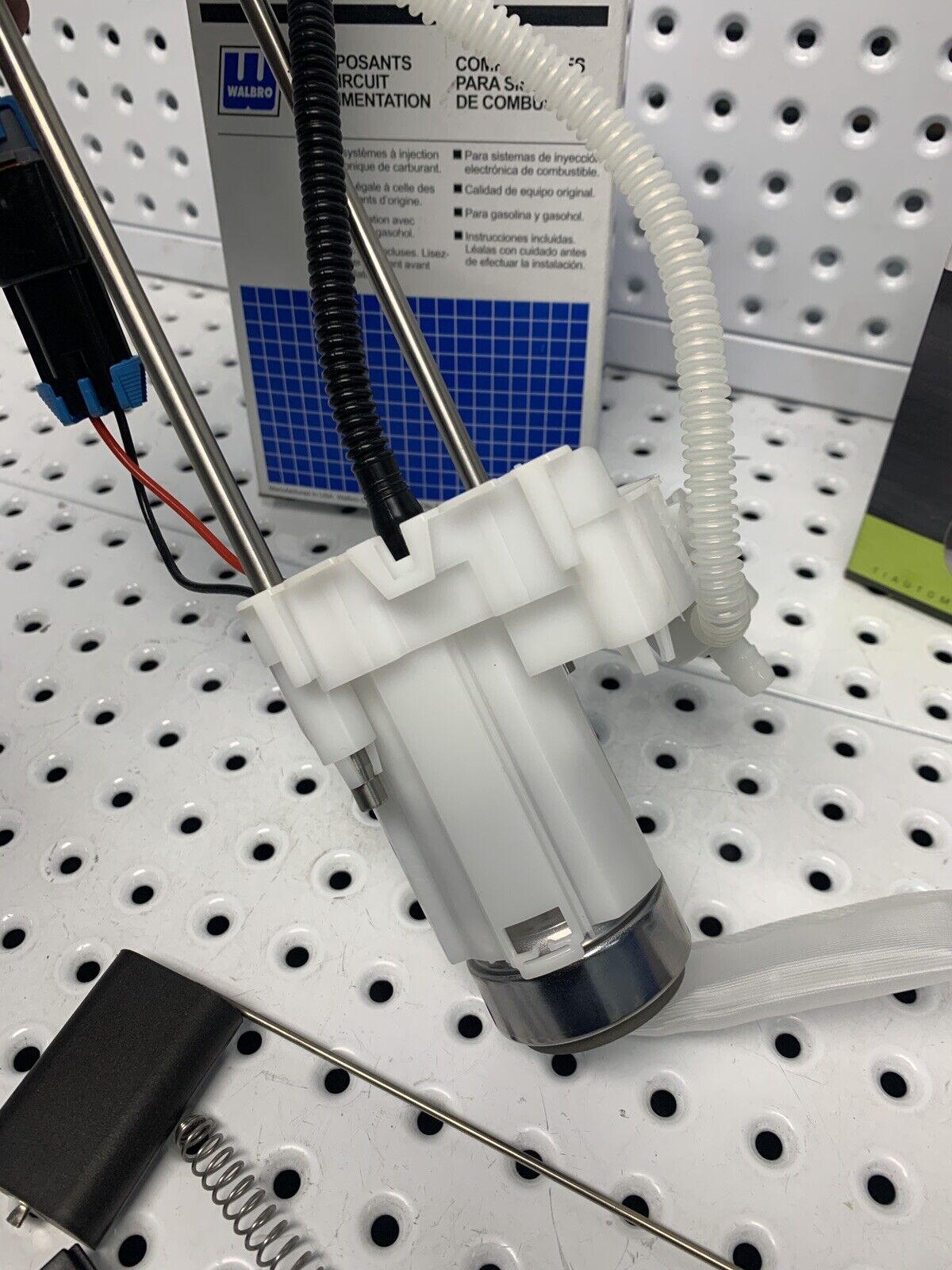

OUR ASSEMBLY IS CUSTOM MADE THAT'S DIFFERENT IN THE SWIRL-POD AREA, MADE TO STOP SURGING UNDER EXTREME TAKE OFF'S AND AROUND CORNERS WHICH IS A COMMON PROBLEM WITH THE FACTORY SWIRL POD. AS THE FACTORY MRI UNIT DOSE NOT HAVE THE RIGHT PLUMING FOR AFTERMARKET HIGH FLOW PUMPS THAT CAUSES THEM TO SUCK AIR AND SURGE UNDER HALF A TANK OF FUEL. THIS SET UP WILL STOP THE SURGING PROBLEM BY 100%.

IT HAS BEEN RACE TRACK TESTED, 1/4 MILE, CIRCUIT AND DRIFT.

THIS ASSEMBLY CONSIST OF ONLY THE BEST OF THE BEST PARTS AVAILABLE AND HAND ASSEMBLED IN MELBOURNE.

THE ASSEMBLY IS MADE OF THE BEST DUPONT POLLIMER AVALABLE AND ITS E85 & METHANOL APPROVED.

OUR FUEL HOSES ARE RATED AT 2 TO 3 TIMES THE BURST PRESSURE OF THE FACTORY HOSES, HIGH FLOWING & ANTY STATIC.

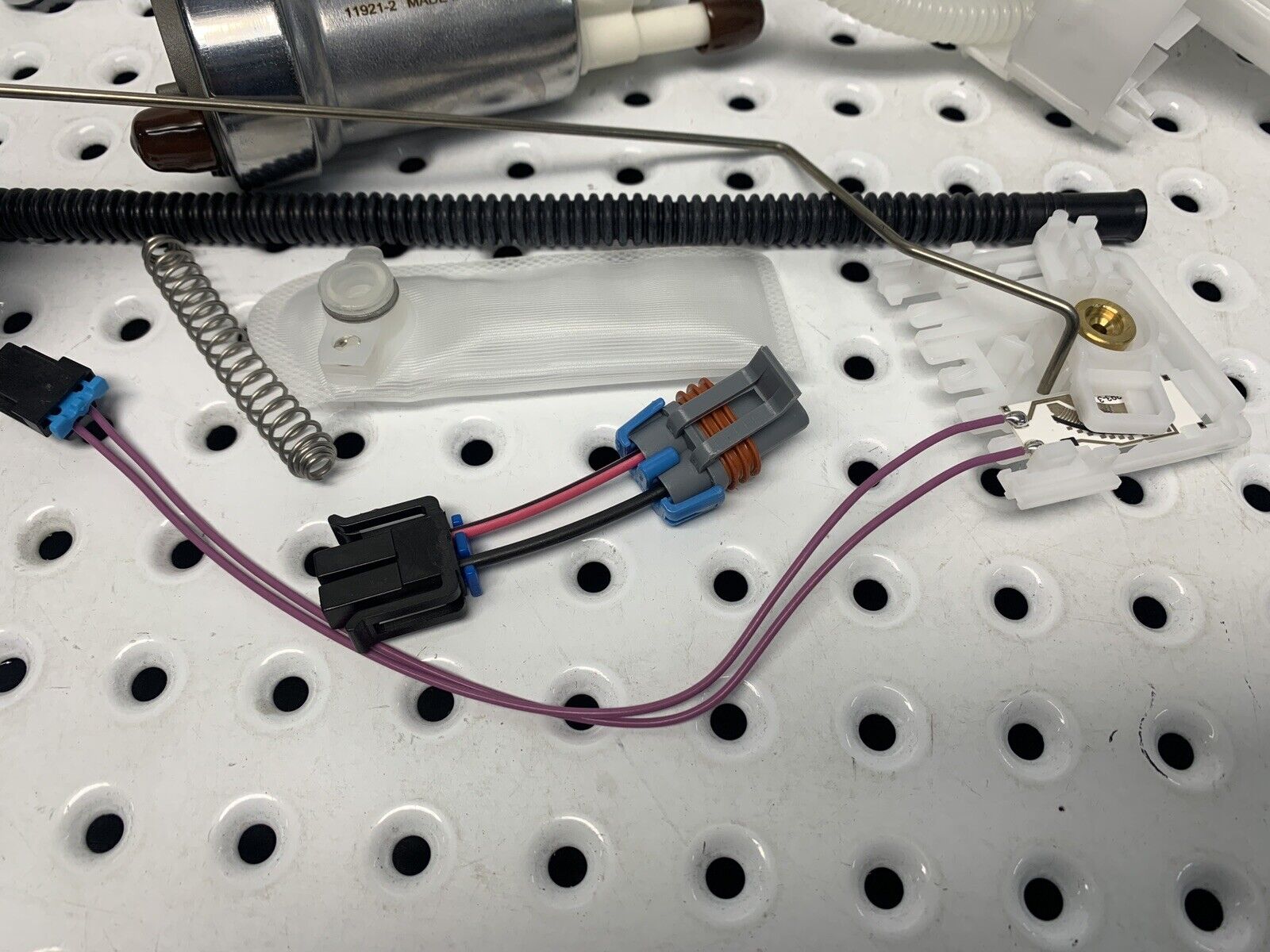

FITTED WITH ONE PIECE WIRING LOOM WITH STAINLESS STEEL TERMINALS.

STAINLESS STEEL COMPRESSION SPRING, HOSE CLAMP & GUIDE PINS FITTED FOR NO CHANCE OF CORROSION.

HIGH MICRON HIGH FLOW DUPONT NYLONG STRAINER.

HIGH FLOW MODIFIED FUEL RETURN VALVE TO KEEP THE RETURN PRESSURE AS LOW AS POSSIBLE AND TO FILL THE SWIRL POD IN HALF THE NORMAL TIME IT WOULD USALY TAKE.

TO SUIT SEDAN & WAGON.

COMMODORE VT I II 7/1999-10/2000 LS1 GEN3 5.7L.

COMMODORE VT I II BERLINA 7/1999-10/2000 LS1 GEN3 5.7L.

COMMODORE VT I II CALAIS 7/1999-10/2000 LS1 GEN3 5.7L.

COMMODORE VT I II CLUBSPORT R8 7/1999-10/2000 LS1 GEN3 5.7L.

COMMODORE VT I II EXECUTIVE 7/1999-10/2000 LS1 GEN3

5.7L.

COMMODORE VT I II POLICE 7/1999-10/2000 LS1 GEN3

5.7L.

COMMODORE VT I II SS 7/1999-10/2000 LS1 GEN3 5.7L.

COMMODORE VT I II GTS 4/2000-10/2000 LS1 GEN3 5.7L.

COMMODORE VT I II GTS-R 4/2000-10/2000 LS1 GEN3 5.7L.

COMMODORE VT I II HSV 7/1999-10/2000 LS1 GEN3 5.7L.

COMMODORE VT HSV SV99 7/1999-10/2000 LS1 GEN3 5.7L.

COMMODORE VX 9/2000-9/2002 LS1 GEN3 5.7L UP TO VIN NO L891247.

COMMODORE VX BERLINA 9/2000-9/2002 LS1 GEN3 5.7L UP TO VIN NO L891247.

COMMODORE VX CALAIS 9/2000-9/2002 LS1 GEN3 5.7L UP TO VIN NO L891247.

COMMODORE VX CLUBSPORT R8 9/2000-9/2002 LS1 GEN3 5.7L UP TO VIN NO L891247.

COMMODORE VX EXECUTIVE 9/2000-9/2002 LS1 GEN3 5.7L UP TO VIN NO L891247.

COMMODORE VX GTS 9/2000-8/2001 LS1 GEN3 5.7L UP TO VIN NO L763313.

COMMODORE VX GTS-R 9/2000-8/2001 LS1 GEN3 5.7L UP TO VIN NO L763313.

COMMODORE VX POLICE 9/2000-9/2002 LS1 GEN3 5.7L UP TO VIN NO L763313.

COMMODORE VX SS 9/2000-9/2002 LS1 GEN3 5.7L UP TO VIN NO L891247.

COMMODORE VX HSV 9/2000-9/2002 LS1 GEN3 5.7L UP TO VIN NO L891247.

COMMODORE VX HSV SV300 9/2000-9/2002 LS1 GEN3 5.7L UP TO VIN NO L891247.

COUPE GTO V2 12/2001-9-2004 LS1 GEN3 5.7L UP TO VIN NO L891247.

COUPE GTS V2 12/2001-9/2004 LS1 GEN3 5.7L UP TO VIN NO L891247.

GRANGE WH 7/1999-7/2003 LS1 GEN3 5.7L UP TO VIN NO L891247.

MONARO V2 2002 LS1 GEN3 5.7L UP TO VIN NO L891247.

SENATOR VT HSV 7/1999-10/2000 LS1 GEN3 5.7L.

SENATOR VX HSV 9/2000-9/2002 LS1 GEN3 5.7L UP TO VIN NO L891247.

SENATOR 300 VX HSV 9/2000-9/2002 LS1 GEN3 5.7L UP TO VIN NO L891247.

SENATOR SIGNATURE VX HSV 9/2000-9/2002 LS1 GEN3 5.7L UP TO VIN NO L891247.

STATESMAN / CAPRICE WH 6/1999-7/2002 LS1 GEN3 5.7L UP TO VIN NO L981247.

INTERCHANGABLE WITH GM PART NUMBERS: 92115057, 92157776, 92159227, 92158012.

OTHERE PART NUMBERS: MOD-013-A, MOD-010, EFP-130, EFP-119, EFP-128. GE164, GE159.

PLEASE NOTE THIS APPLICATION USES THE SQUARE ELECTRICAL PLUG AS ORIGINAL. AS THERE IS A LATER PUMP FROM THE LAST SEVEN NUMBERS OF YOUR VIN NO UP TO L891247 IS THIS ONE LISTED AND AFTER VIN NO L891248. THE OVAL PLUG WE USE WHEN USING THE 460LPH & 525LPH PUMP AND SUPPLY WITH A NEW PLUG. IF YOUR NOT SURE PLEASE CONTACKT US.

SPECIFICATIONS. MOD-013A-460, WAS MOD-010.

FUEL PUMP PART NUMBER: WALBRO TIA485-2, 460LPH.

PRESSURE - FLOW RATE: 460-LPH @ 3-BAR 43.3-PSI 12.5-V supports up to 750+-BHP at the flywheel.

ASSEMBLY PART NUMBER: SNIPER PERFORMANCE MOD-013-A.

ASSEMBLY HEIGHT: BACE TO FLANGE 325-mm COMPRESSED 240-mm.

ASSEMBLY CAPACITY: POD 500-millilitres as the factory unit.

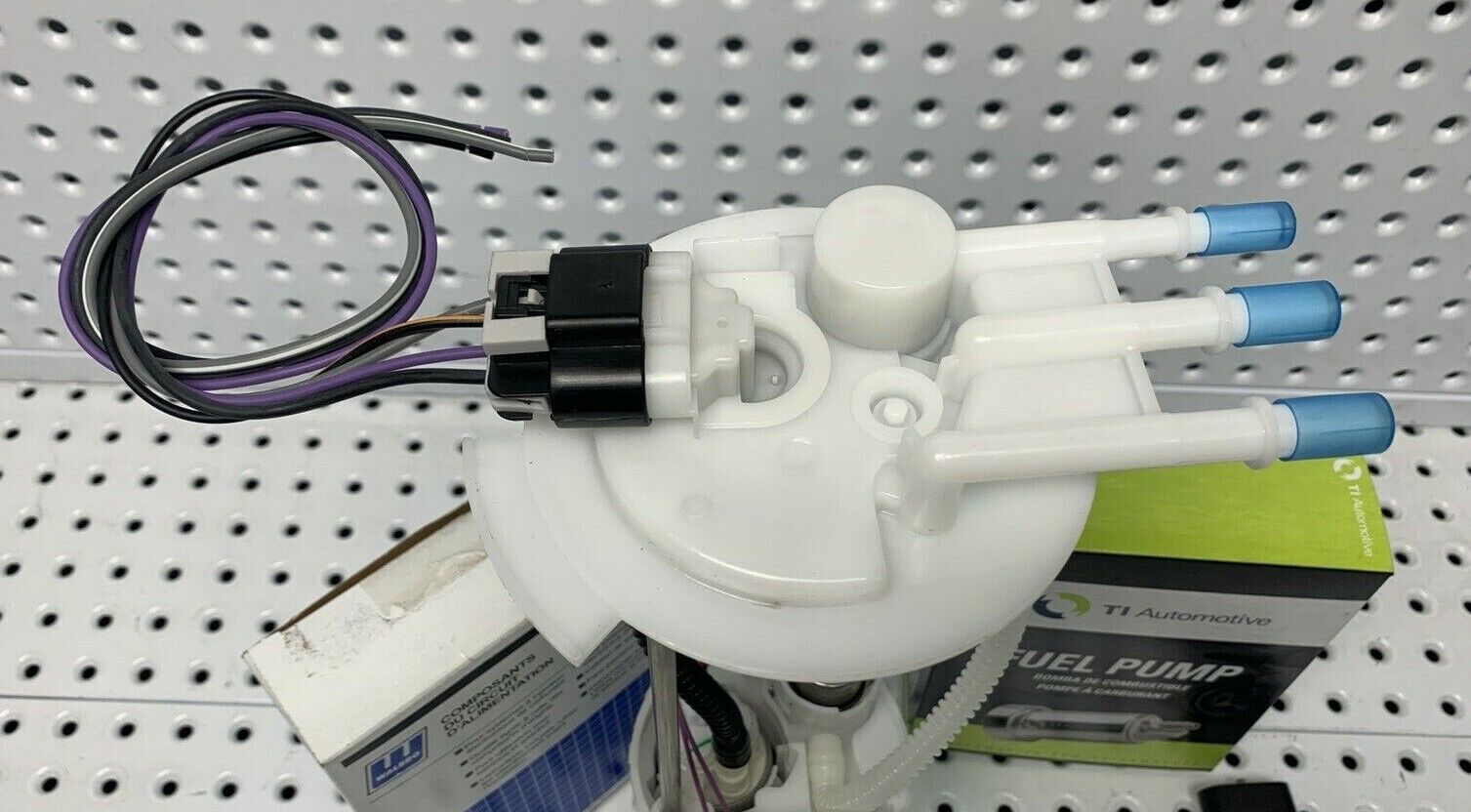

ASSEMBLY HOSE FITTINGS: Left Returnee (10-mm c-lock). Centre (8-mm c-lock) Charcoal Canister. Right (10-mm c-lock) Fuel out.

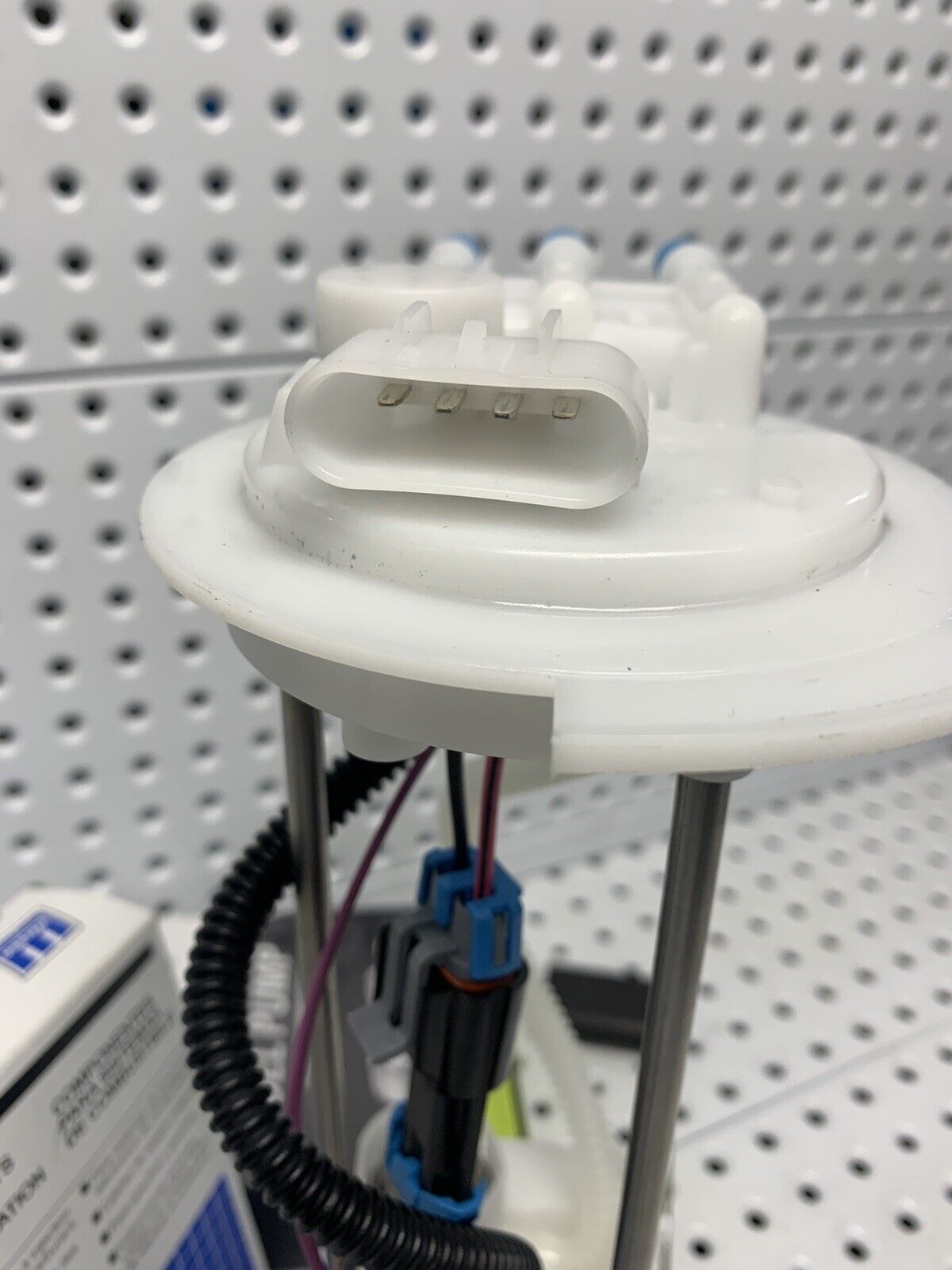

WIARING PLUG: High amp Oval side by side 4 pin 2.2-mm.

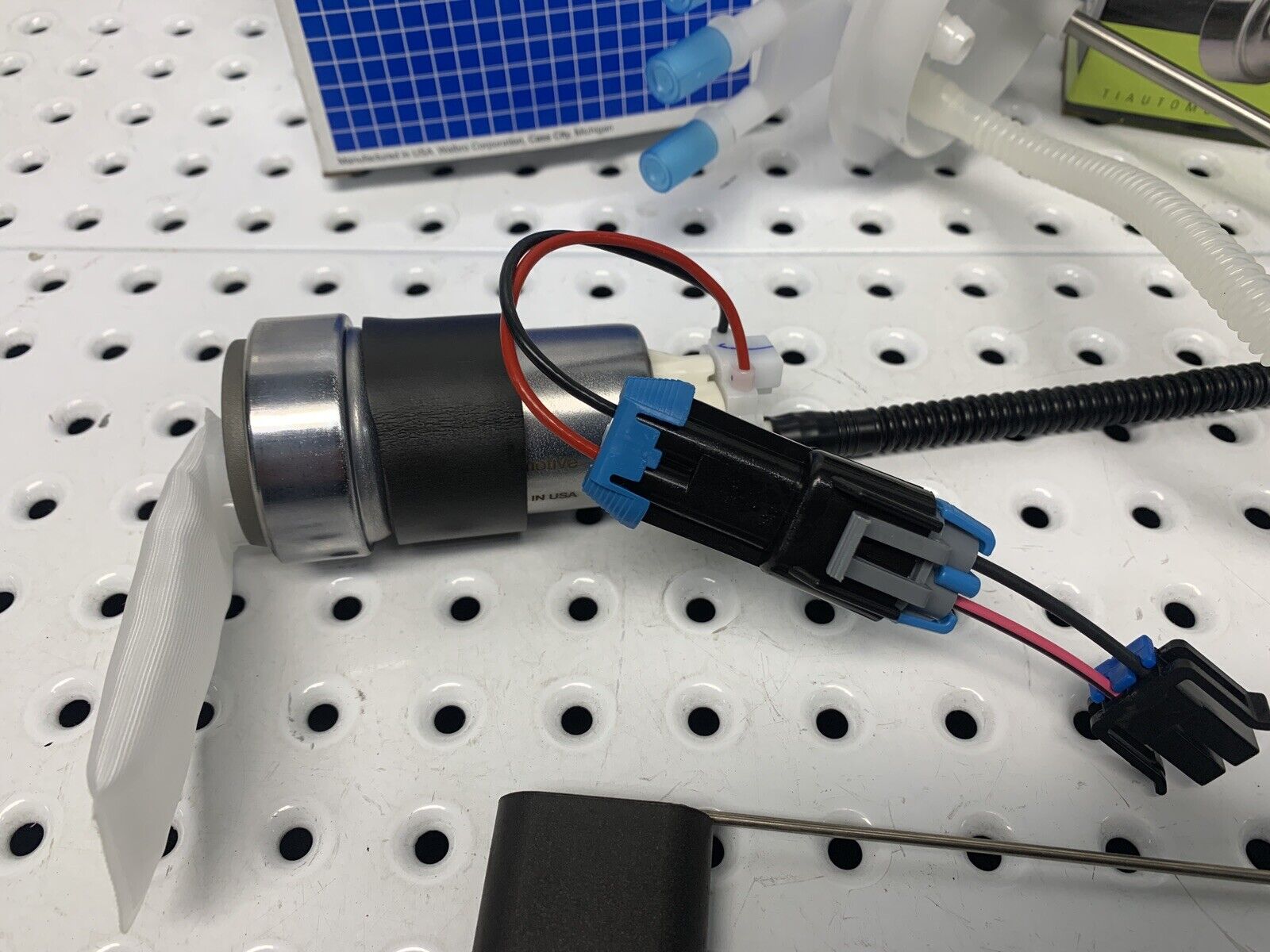

WIARING HARNEST: One piece wiring loom Delphi to Walbro with stainless steel braid and terminals.

PRESSURE HOSES: High pressure, high burst, high flow white submersible fuel hoses made in the EU, 210mm long.

FUEL GAUGE READINGS: Up-full 255-ohms. Down-empty 39-ohms.

WE CAN ALSO SUPPLY THIS ASSEMBLY WITH THE WALBRO 342 255LPH AND THE WALBRO UP TO 900 BHP F90000285 525LPH E85 PUMP. MESSAGE US FOR A PRICE $$$. AS ITS A CUSTOM BUILT APPLICATION WITH A NEW WIRING UPDATED PLUG.

Walbro / TI Automotive F90000285 High Pressure In-Tank Fuel Pump 900hp+ E85 Compatible

COMES FULLY ASSEMBELD WITH ALL E85 APROUVED PARTS FITTED READY TO DROP IN.
