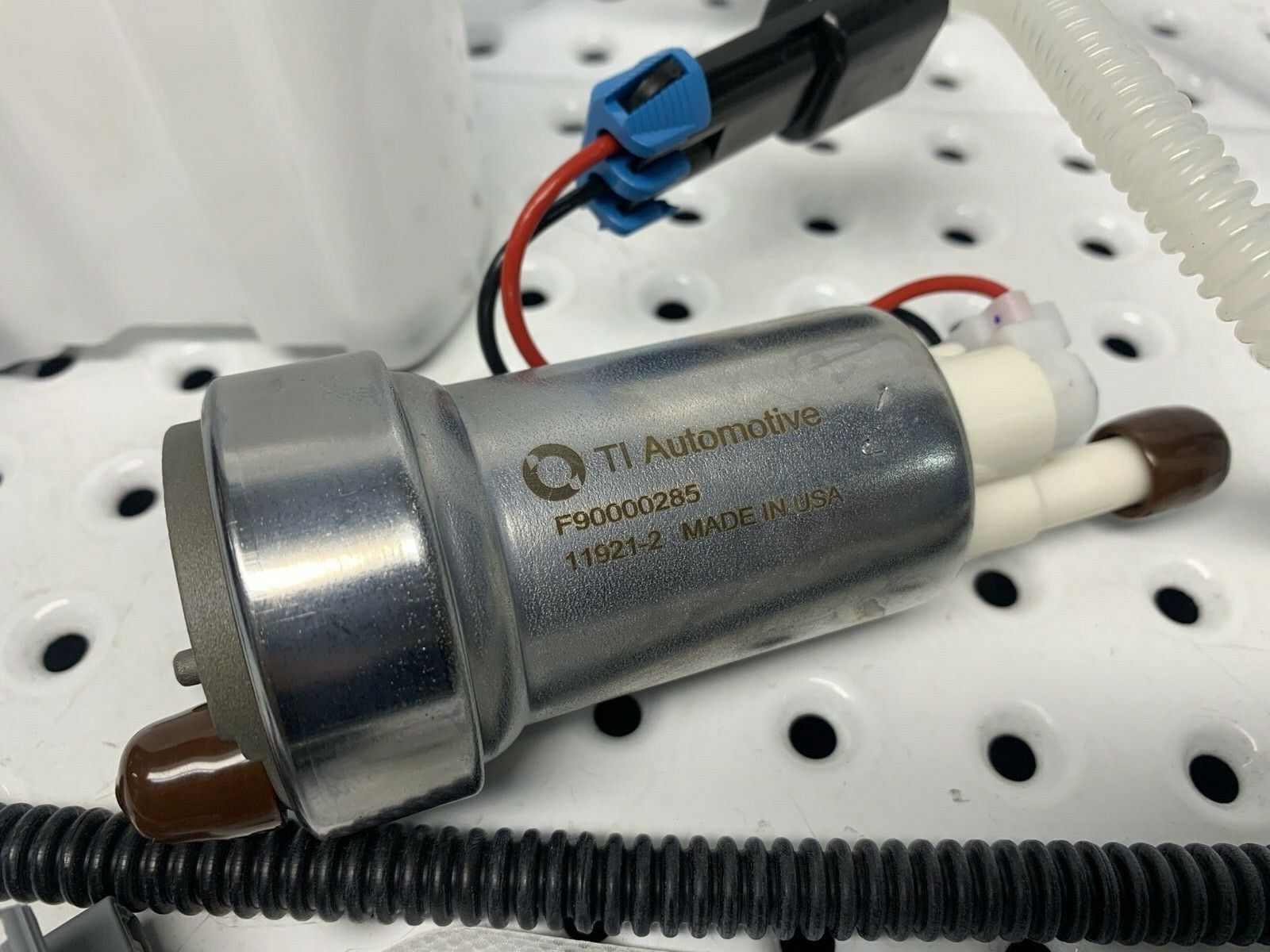

GENUINE 525-LPH F90000285 E85 WALBRO MADE IN THE USA.

Walbro F90000285 470 / 525LPH IN-TANK FUEL PUMP W/FITTING KIT     NEW WALBRO E85 525-LPH F90000285 the most highest flowing in-tank fuel pump on the market, and is E85 & Methanol approved. Walbro designed the pump to meet the  requirements of modern turbocharged applications where a single 255LPH fuel pump is insufficient.  The pump uses a turbine style design which incorporates two composite plastic blades. The turbine design lends itself to extremely quiet operation and a massive flow rate.

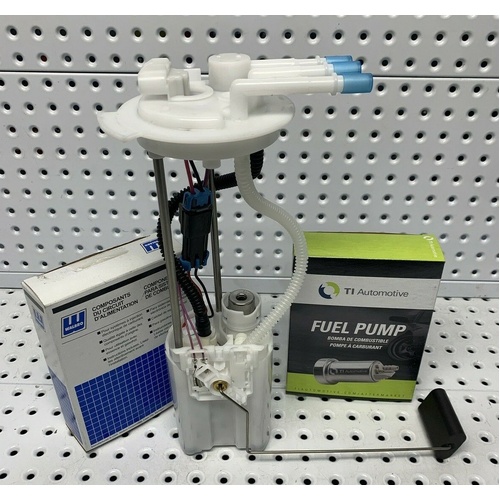

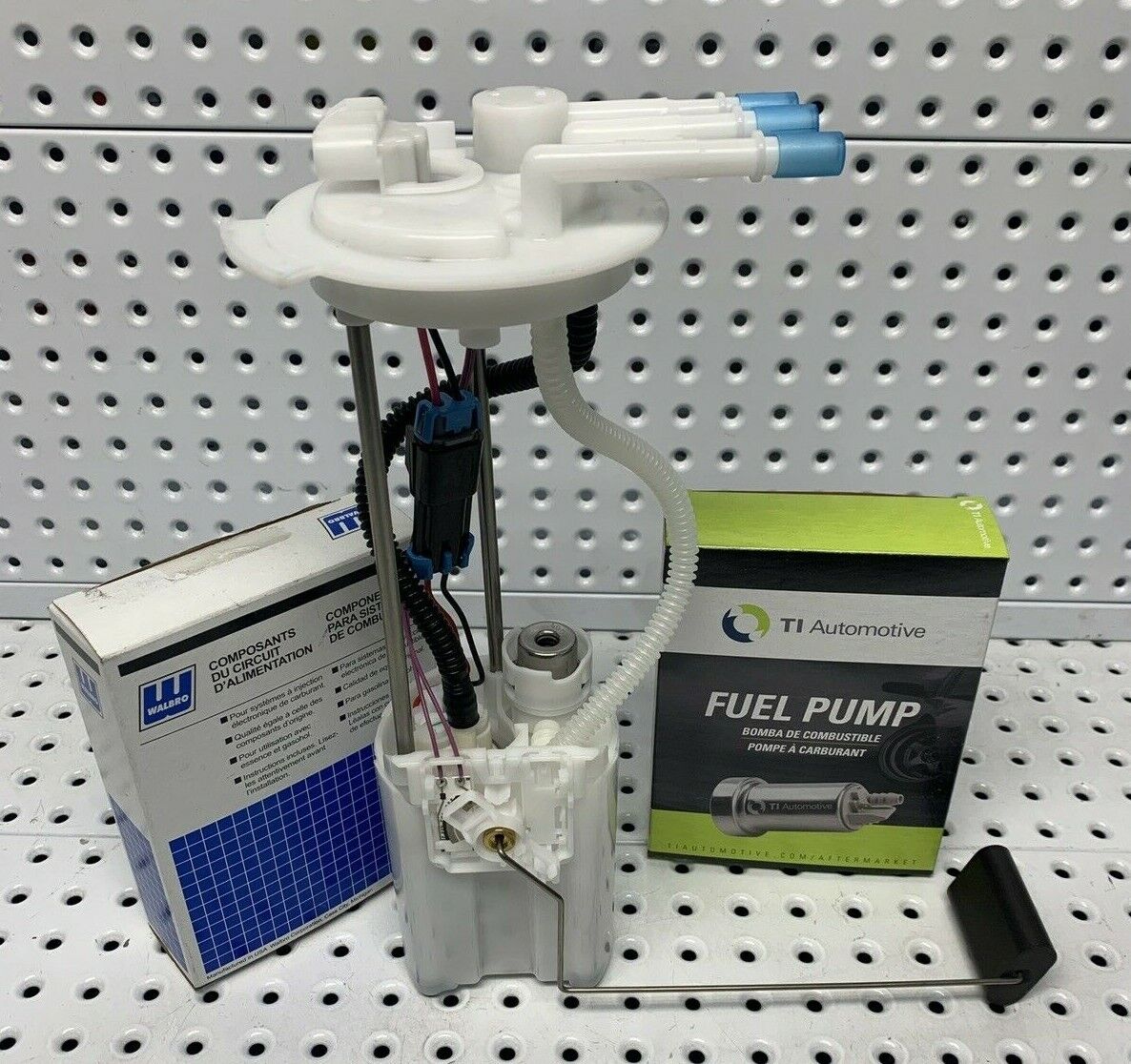

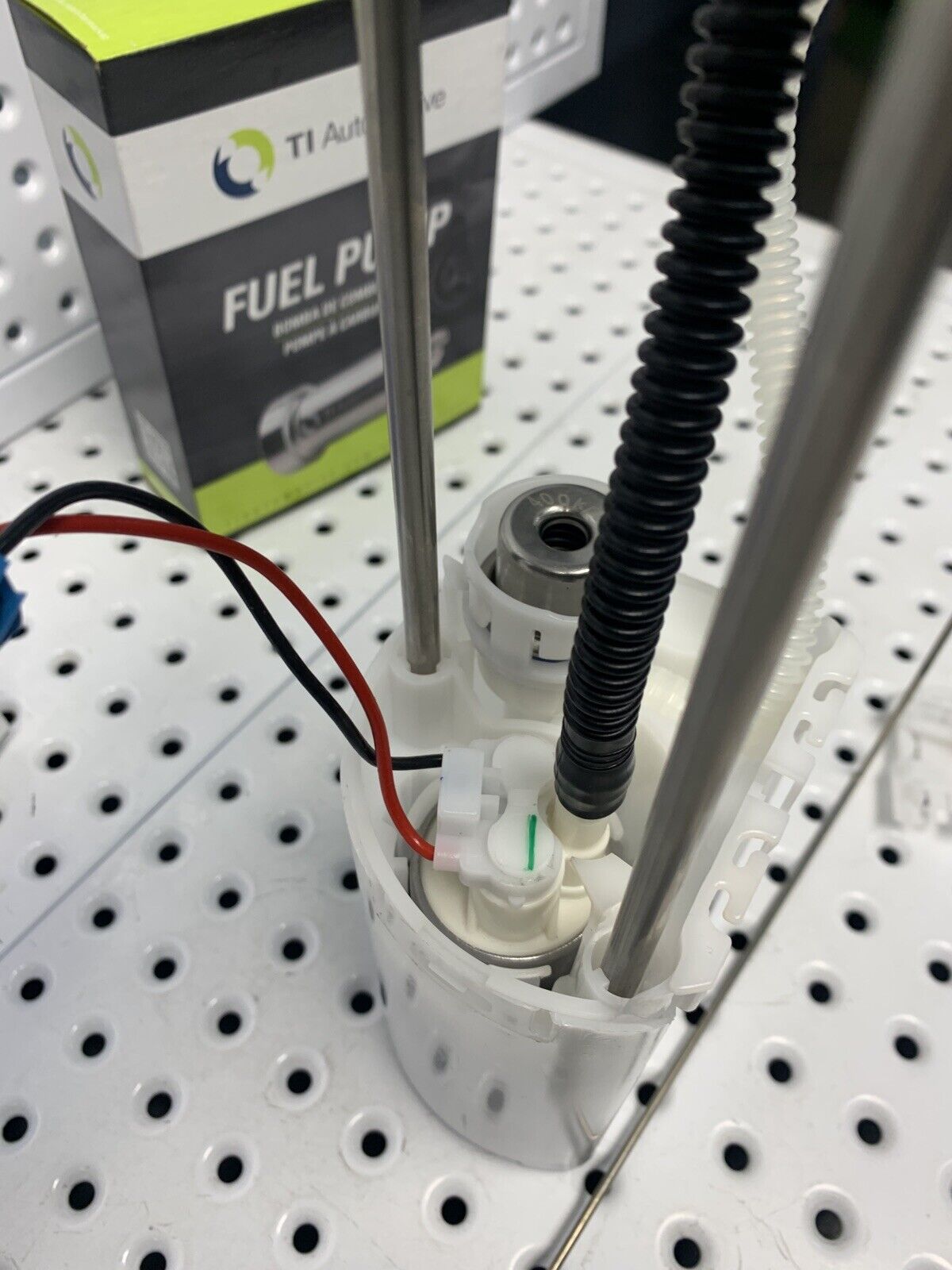

UP FOR SALE IS OUR SNIPER-PERFORMANCE CUSTOM BUILT FUEL PUMP ASSEMBLY TO SUIT HOLDEN COMMODORE VY, VZ V8 5.7L LS1 SEDAN & WAGON.

FITTED WITH A WALBRO F90000285 525-LPH E85 FUEL PUMP IS ALSO SUITES PETROL.

THIS ASSEMBLY IS MADE BY SNIPER PERFORMANCE AND FITTED WITH A WALBRO 525-LPH AT 43.3-PSI 3-BAR 12.5v. CAN SUPPORT UP TO 810+BHP BUT PLEASE CHECK WITH YOUR TUNER FOR CORRECT SIZE FOR YOUR APPLICATION.

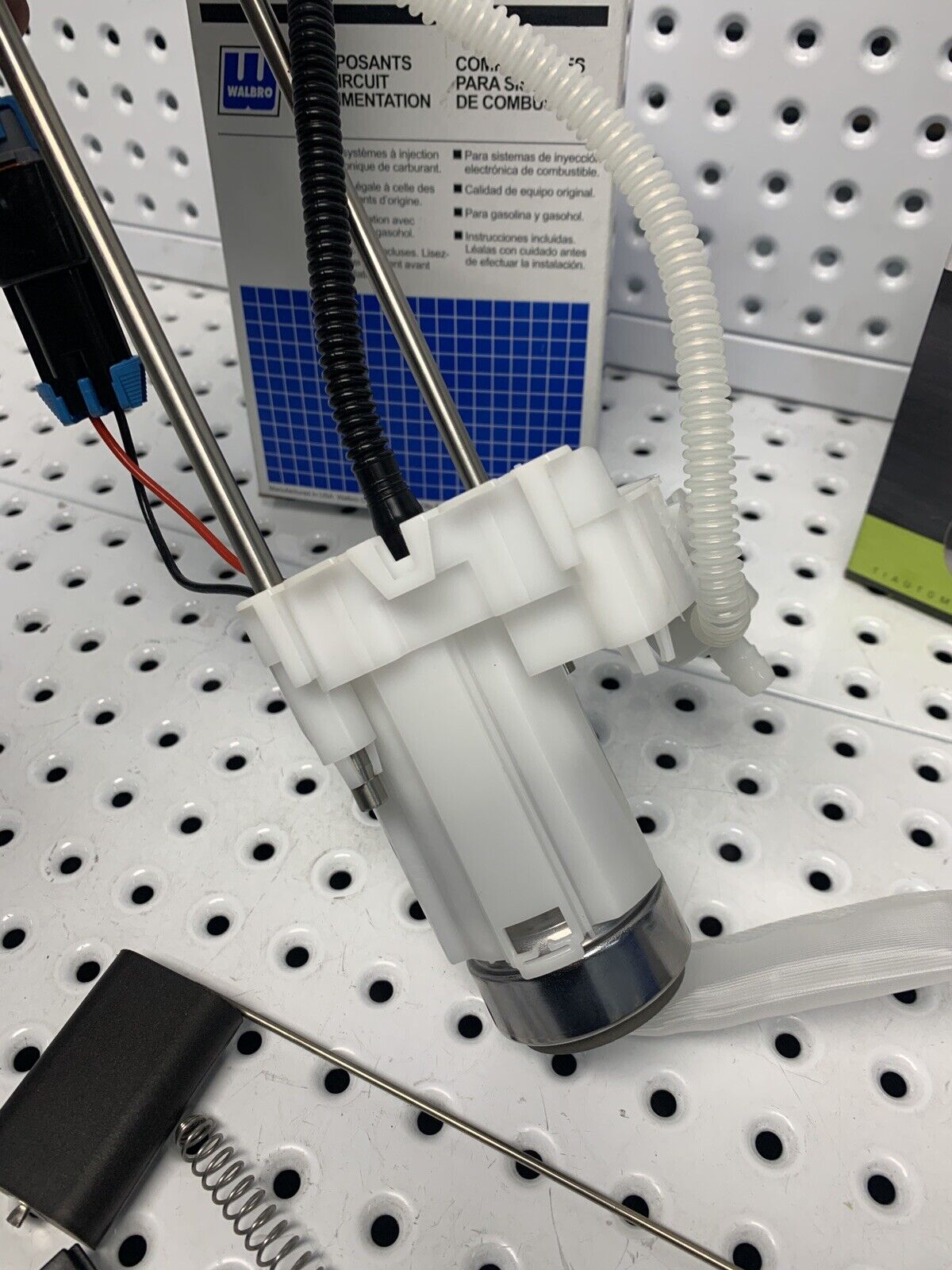

OUR ASSEMBLY IS CUSTOM MADE THAT'S DIFFERENT IN THE SWIRL-POD AREA, MADE TO STOP SURGING UNDER EXTREME TAKE OFF'S AND AROUND CORNERS WHICH IS A COMMON PROBLEM WITH THE FACTORY SWIRL POD. AS THE FACTORY MRI UNIT DOSE NOT HAVE THE RIGHT PLUMING FOR AFTERMARKET HIGH FLOW PUMPS THAT CAUSES THEM TO SUCK AIR AND SURGE UNDER HALF A TANK OF FUEL. THIS SET UP WILL STOP THE SURGING PROBLEM BY 100%.


IT HAS BEEN RACE TRACK TESTED, 1/4 MILE, CIRCUIT AND DRIFT.

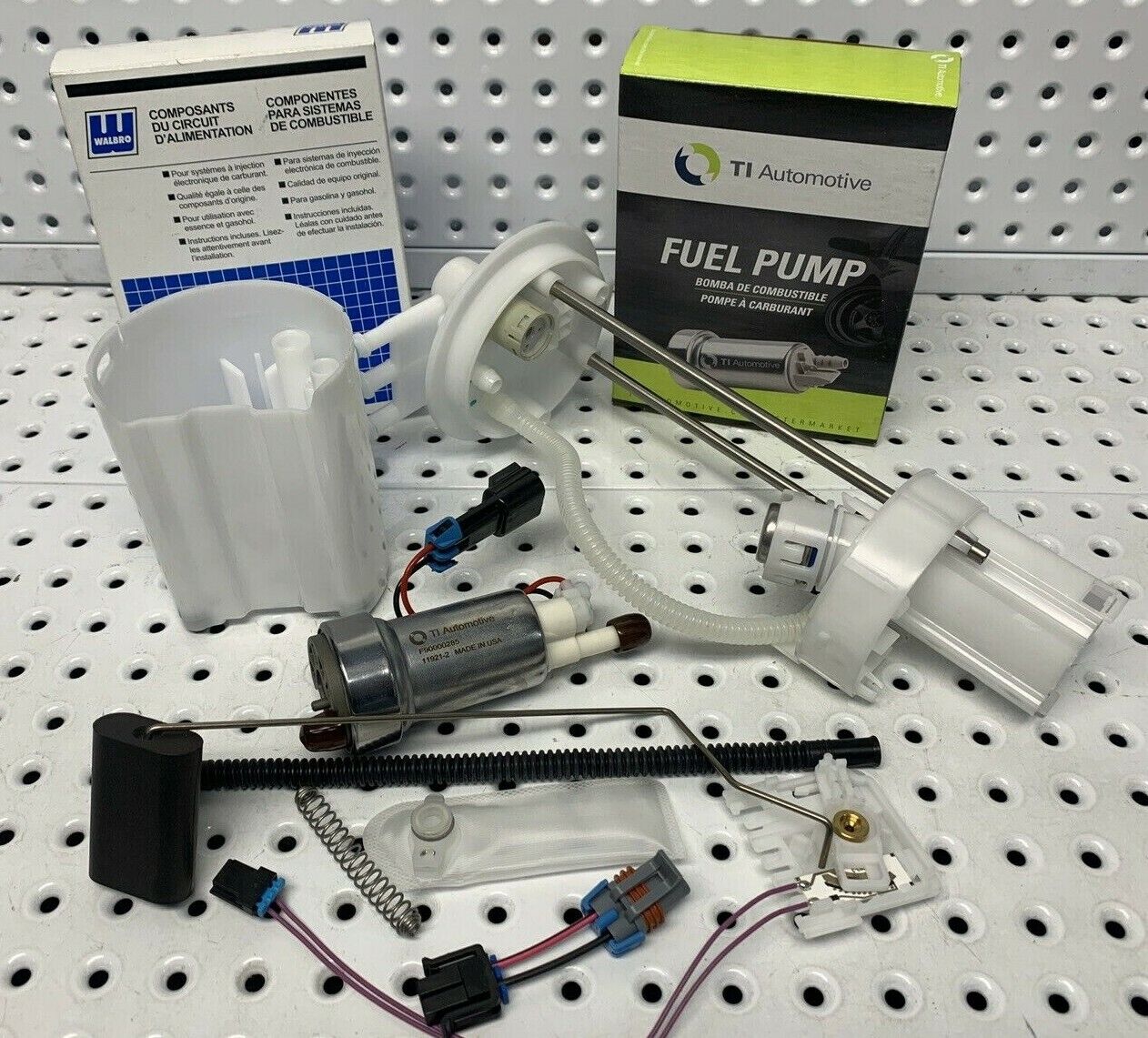

THIS ASSEMBLY CONSIST OF ONLY THE BEST OF THE BEST PARTS AVAILABLE AND HAND ASSEMBLED IN MELBOURNE.

THE ASSEMBLY IS MADE OF THE BEST DUPONT POLLIMER AVALABLE AND ITS E85 & METHANOL APPROVED.


OUR FUEL HOSES ARE RATED AT 2 TO 3 TIMES THE BURST PRESSURE OF THE FACTORY HOSES, HIGH FLOWING & ANTY STATIC.

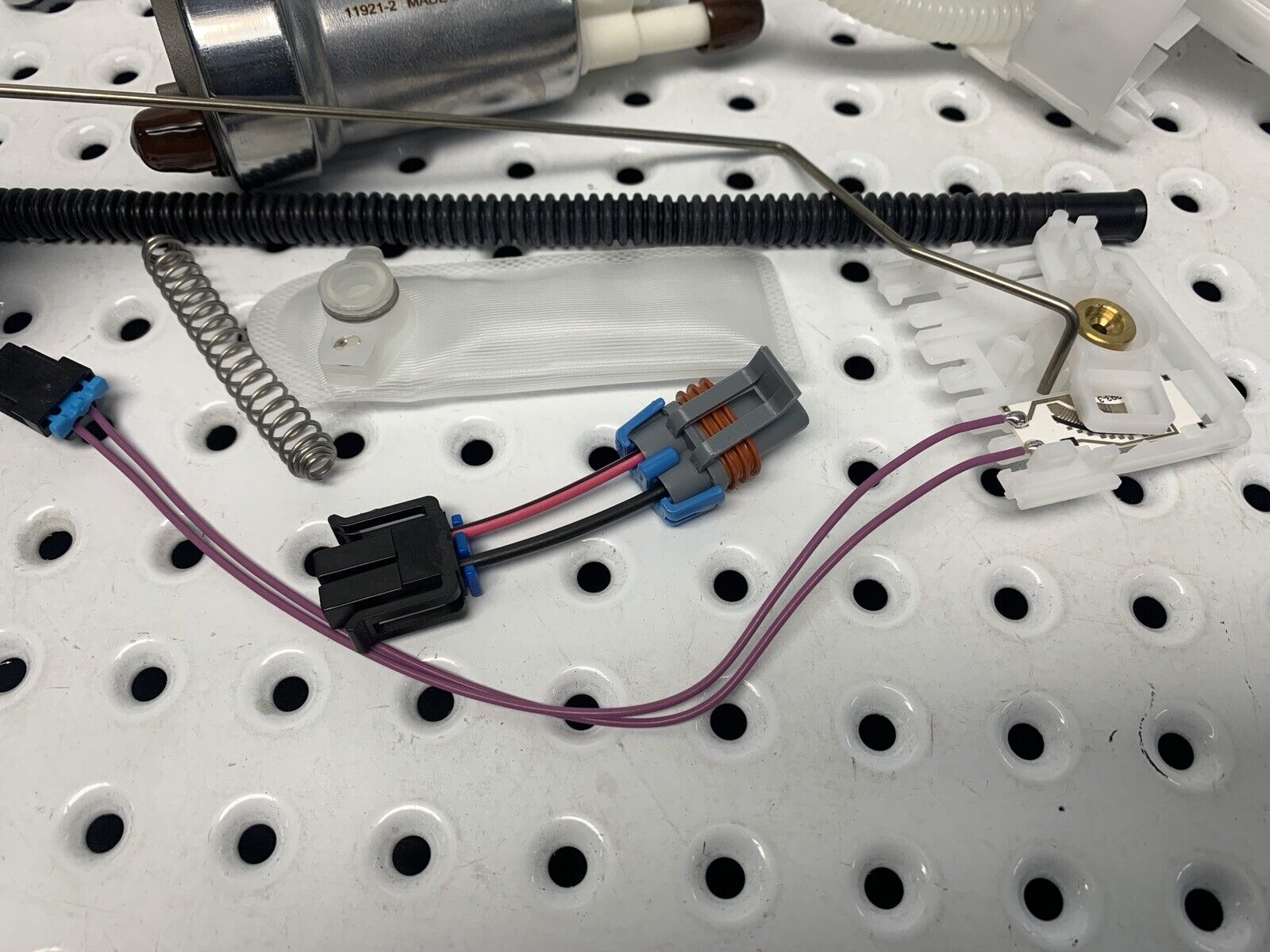

FITTED WITH ONE PIECE WIRING LOOM WITH STAINLESS STEEL TERMINALS.


STAINLESS STEEL COMPRESSION SPRING, HOSE CLAMP & GUIDE PINS FITTED FOR NO CHANCE OF CORROSION.


HIGH MICRON HIGH FLOW DUPONT NYLONG STRAINER.


HIGH FLOW MODIFIED FUEL RETURN VALVE TO KEEP THE RETURN PRESSURE AS LOW AS POSSIBLE AND TO FILL THE SWIRL POD IN HALF THE NORMAL TIME IT WOULD USALY TAKE.



PLEASE CHECK DESCRIPTION, PART NUMBER  AND VIN NUMBER BEFORE PURCHASE.

TO SUIT GMH COMMODORE & HSV SEDAN & WAGON.

WK HOLDEN CAPRICE 7/2003-07/2004 5.7L V8 LS1 FROM VIN NO 4L162085 - ON.

WK HOLDEN CAPRICE 7/2004-2006 5.7L V8 LS1 GEN3.

VY COMMODORE 7/2003-07/2004 5.7L V8 LS1 FROM VIN NO 4L156716 - ON.

VY HOLDEN CALAIS 7/2003-07/2004 5.7L V8 LS1 FROM VIN NO 4L156716 - ON.

VY COMMODORE ADVENTRA CX8, LX8 7/2003-07/2004 5.7L V8 LS1 FROM VIN NO 4L156716 - ON.

VY COMMODORE AVALANCH 7/2003-07/2004 5.7L V8 LS1 FROM VIN NO 4L156716 - ON.

VY COMMODORE GTS GTS-R 10/2002-09/2004 5.7L V8 LS1 FROM VIN NO 4L162085 - ON .

VY MONARO 9/2003-07/2004 5.7L V8 LS1 FROM VIN NO 4L167584 - ON.

VY HOLDEN SENATOR 10/2002-9/2004 5.7L V8 LS1 AFTER VIN NO 4L156716.

WK HOLDEN GRANGE 7/2003-9/2004 5.7L V8 LS1 FROM VIN NO 4L162085 - ON.

WK HOLDEN GRANGE 9/2004-10/2005 6.0L V8 LS2.

WK HOLDEN GRANGE 1/2006-7/2006 6.0L V8 LS2.

VZ COMMODORE SEDAN & WAGON 7/2004-2007 3.6L V6 ALOYTEC.

VZ COMMODORE ADVENTRA 7/2004-2007 3.6L V6 ALOYTEC.

VZ COMMODORE AVALANCH 7/2004-2007 3.6L V6 ALOYTEC.

VZ HOLDEN CALAIS 7/2004-2007 5.7L V8 LS1.

VZ COMMODORE SEDAN & WAGON 7/2004-2007 5.7L V8 LS1.

VZ COMMODORE ADVENTRA 7/2004-2007 5.7L V8 LS1.

VZ COMMODORE AVALANCH 7/2004-2007 5.7L V8 LS1.

VZ COMMODORE CLUBSPORT R8 10/2004-7/2006 6.0L V8 LS2.

WL HOLDEN STATESMAN 7/2004-2007 3.6L V6 ALOYTEC.

WK HOLDEN STATESMAN 7/2003-7/2004 5.7L V8 LS1 FROM VIN NO 4L162085.

WL HOLDEN STATESMAN 7/2004-ON 5.7L V8 LS1.

WL HOLDEN STATESMAN 2006 6.0L V8 LS2.

WL HOLDEN STATESMAN 2006 6.0L V8 L76.

VZ HOLDEN SENATOR 10/2004-7/2006 6.0L V8 LS2.

HSV CLUBSPORT R8 VY 09/2003-09/2004 5.7L LS1 GENIII V8.

HSV CLUBSPORT R8 VZ 10/2004-07/2006 6.0L LS2 V8.

HSV GTS VY 10/2002-09/2004 5.7L LS1 GENIII V8 FROM VIN NUMBER: 4L156716 --> ON.

HSV CLUBSPORT VY 09/2003-09/2004 5.7L LS1 GENIII V8 FROM VIN NUMBER: 4L156716 --> ON.

HSV CLUBSPORT VZ 10/2004-07/2006 6.0L LS2 V8.

HSV SENATOR VY 10/2002-08/2003 5.7L LS1 GENIII V8 FROM VIN NUMBER: 4L156716 --> ON.

HSV SENATOR VZ 10/2004-07/2006 6.0L LS2 V8.

HSV AVALANCHE VY 12/2003-09/2004 5.7L LS1 GENIII V8 FROM VIN NUMBER: 4L156716 --> ON.

HSV AVALANCHE VZ 10/2004-04/2006 5.7L LS1 GENIII V8.

HSV CLUBSPORT VY 09/2003-09/2004 5.7L LS1 GENIII V8.

HSV CLUBSPORT VY 2002-2004 5.7L LS1 C4B V8 FROM VIN NUMBER: 4L156716 --> ON.

HSV CLUBSPORT VZ 10/2004-07/2006 6.0L LS2 V8.

HSV CLUBSPORT R8 VY 09/2003-09/2004 5.7L LS1 GENIII V8.

HSV CLUBSPORT R8 VZ 10/2004-07/2006 6.0L LS2 V8.

HSV COUPE GTS V2 04/2004-09/2004 5.7L LS1 GENIII V8 FROM VIN NUMBER: 4L167584 -->ON.

HSV GRANGE WK 10/2003-09/2004 5.7L LS1 GENIII V8 FROM VIN NUMBER: 4L162085 -->ON.

HSV GRANGE WK 2003-2004 5.7L LS1 C4B V8 FROM VIN NUMBER: 4L162085 -->ON.

HSV GRANGE WL 09/2004-07/2006 6.0L LS2 V8.

HSV GTS VY 10/2002-09/2004 5.7L LS1 GENIII V8 FROM VIN NUMBER: 4L156716 -->ON.

HSV SENATOR VY 10/2002-08/2003 5.7L LS1 GENIII V8 FROM VIN NUMBER: 4L156716 -->ON.

HSV SENATOR VZ 10/2004-07/2006 6.0L LS2 V8.

HSV SV6000 VZ 08/2005-04/2006 6.0L LS2 V8.


OUR PART NUMBER: MOD-013-525.
INTERCHANGEABLE WITH GENUINE PART NUMBER GM: 92159903, 92181807, 92181830, 92183879.
OTHER PART NUMBERS: EFP-135, EFP-145, EFP-146.

SPECIFICATIONS. MOD-013-525.
FUEL PUMP PART NUMBER: WALBRO F90000285, 525-LPH.
PRESSURE - FLOW RATE: 525-LPH @ 3-BAR 43.3-PSI 12.5-V supports up to 810+-BHP at the flywheel.
ASSEMBLY PART NUMBER: SNIPER PERFORMANCE MOD-013.
ASSEMBLY HEIGHT: BACE TO FLANGE 325-mm COMPRESSED 240-mm.
ASSEMBLY CAPACITY: POD 500-millilitres as the factory unit.

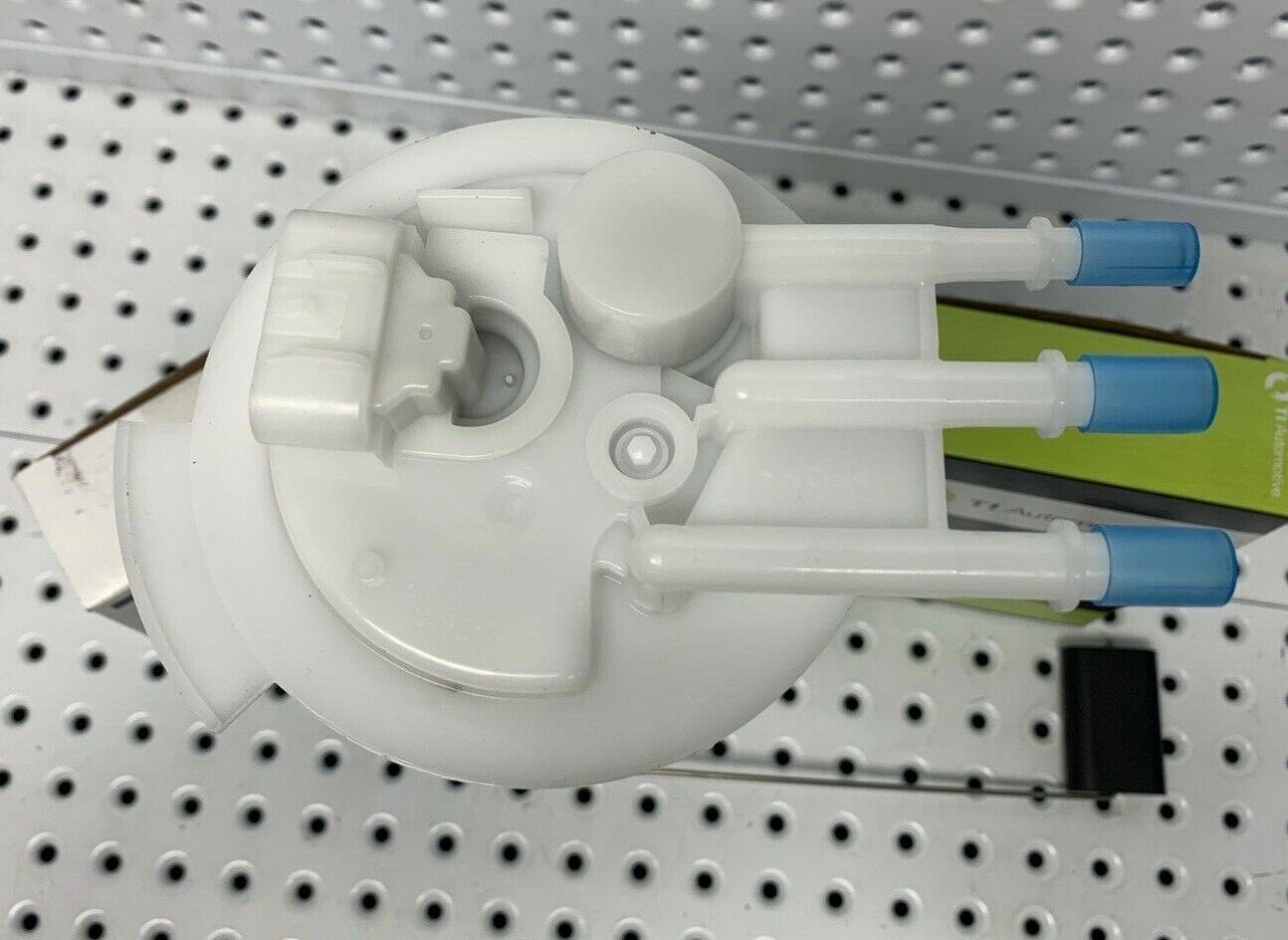

ASSEMBLY HOSE FITTINGS: Left Returnee (10-mm c-lock). Centre (8-mm c-lock) Charcoal Canister. Right (10-mm c-lock) Fuel out.

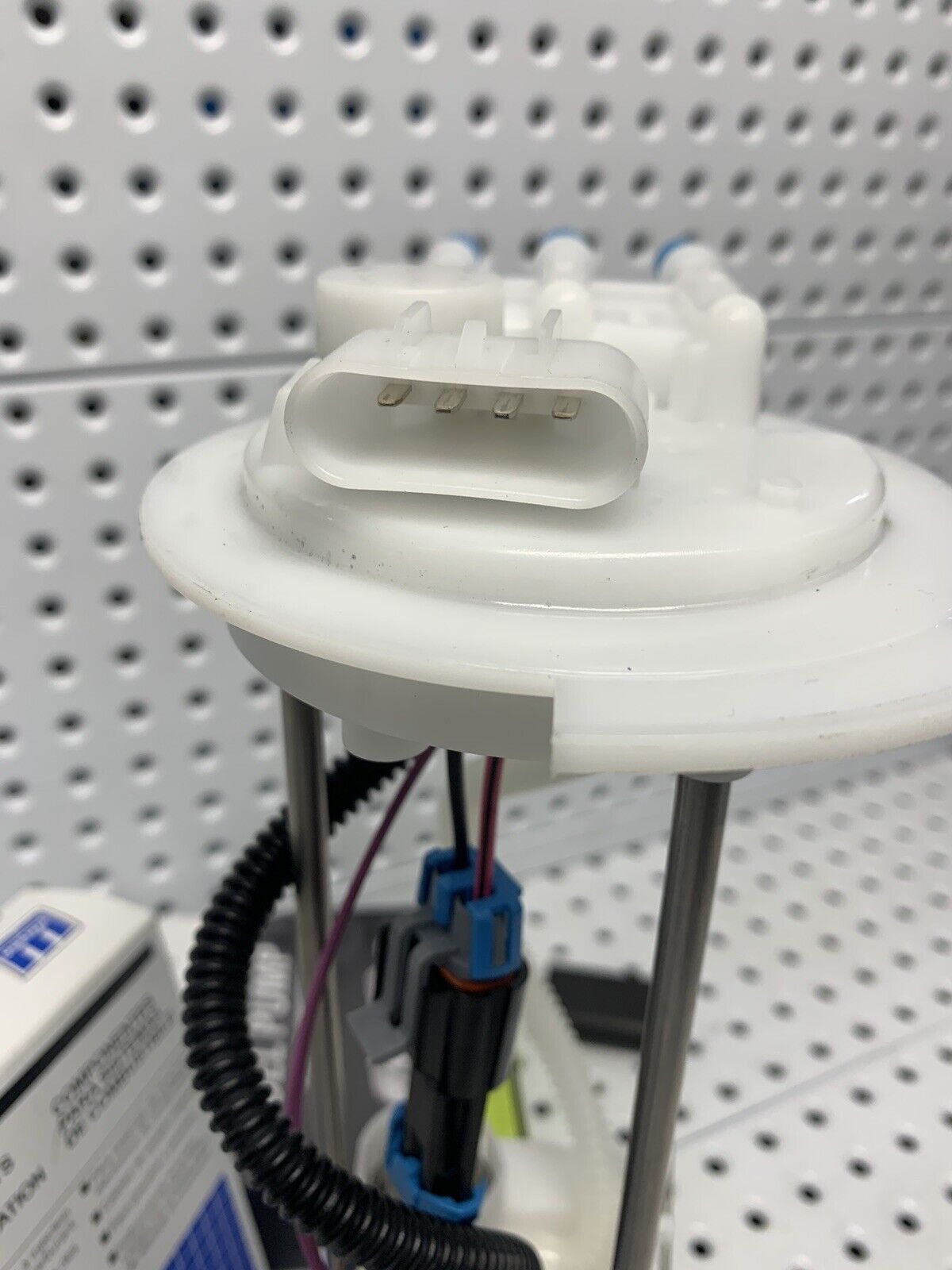

WIARING PLUG: High amp Oval side by side 4 pin 2.2-mm.

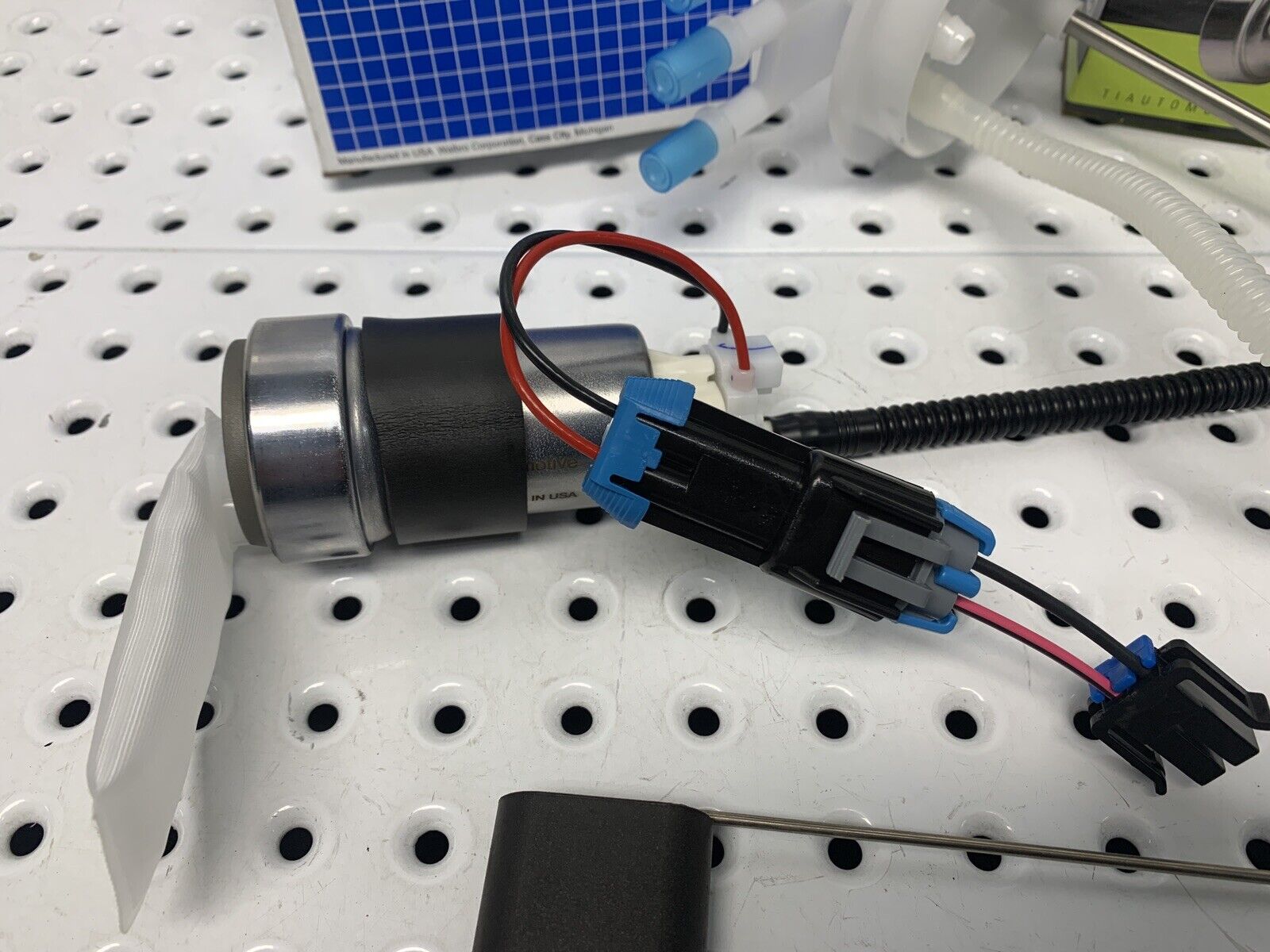

WIARING HARNEST: One piece wiring loom Delphi to Walbro with stainless steel braid and terminals.
PRESSURE HOSES: High pressure, high burst, high flow white submersible fuel hoses made in the EU, 210mm long.
FUEL GAUGE READINGS: Up-full 40-ohms -+5. Down-empty 255-ohms -+5.


WE CAN ALSO SUPPLY THIS ASSEMBLY WITH THE WALBRO 342 255-LPH, GSS352 350-LPH AND THE WALBRO UP TO 460-LPH E85 PUMP.  MESSAGE US FOR A PRICE $$$. AS ITS A CUSTOM BUILT APPLICATION WITH A NEW WIRING UPDATED PLUG.
   Walbro GSS342 Fuel Pump In-Tank 255LPH High Pressure Electric – Fuelpumps.com                     WALBRO 460 FUEL PUMP
COMES FULLY ASSEMBELD WITH ALL E85 APROUVED PARTS FITTED READY TO DROP IN.

We also sell performance and standard fuel pumps, Injectors VDO & Bosch 280cc to 2400cc, Sniper Performance Coils, Garret Turbo, Turbosmart Full Range, Vic agent for AeroFlow fittings & hoses, Crow Cams, APR bolts, K&N Air Filters, NOS Kits & Filling, Auto Meter,  Intercoolers, Custom Piping, Center Line & Weld Racing Wheels, Mickie Thompson Race Tyres, Red Line Oils and many more.

Message us with your details and we will get back to you.

For General Enquires :Customer Support ,technical support and bookings & pickups we are located at 45 Charles street north Coburg Melbourne Victoria 3058. Always best to call first.

      Contact through eBay message leave us your details and we will get back to you ASAP.


Warranty.  12 Months or 20,000 km Warranty.

Payment. We accept : Pay on Pickup, PayPal, Bank Transaction, credit card over the phone from 9 to 5 Monday to Friday Money Order as payment methods. Please use your eBay Username as a transaction reference.

Postage.  Local Pickup (message us for address and pick up times) Domestic: Fixed Rate we use Couriers please, Fastway, Australia Post Regular Post and express. please contact us of which you prefer on purchase in order details ore if not we will post out with the one we think would be the best to use. International: POA, Please contact us via eBay for a quote.  All items sent with tracking and insurance  for lost ore damaged in transit.

Fitting services.   Available in our modern and well equipped work shop.


For General Enquires: Customer Support ,technical support and bookings & pickups we are located at 45 Charles street north Coburg Melbourne Victoria 3058. Always best to call first.

      Contact through eBay message leave us your details and we will get back to you ASAP.

PH: 03 93 54 29 62.  PH: 04 17 30 37 75.
SKU MOD-013-525_42
Brand WALBRO. SNIPER PERFORMANCE
Shipping Weight 4.0000kg
Shipping Width 0.200m
Shipping Height 0.150m
Shipping Length 0.300m
Unit Of Measure ea
