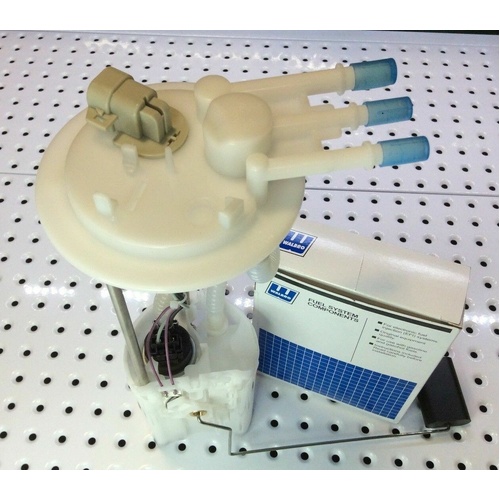

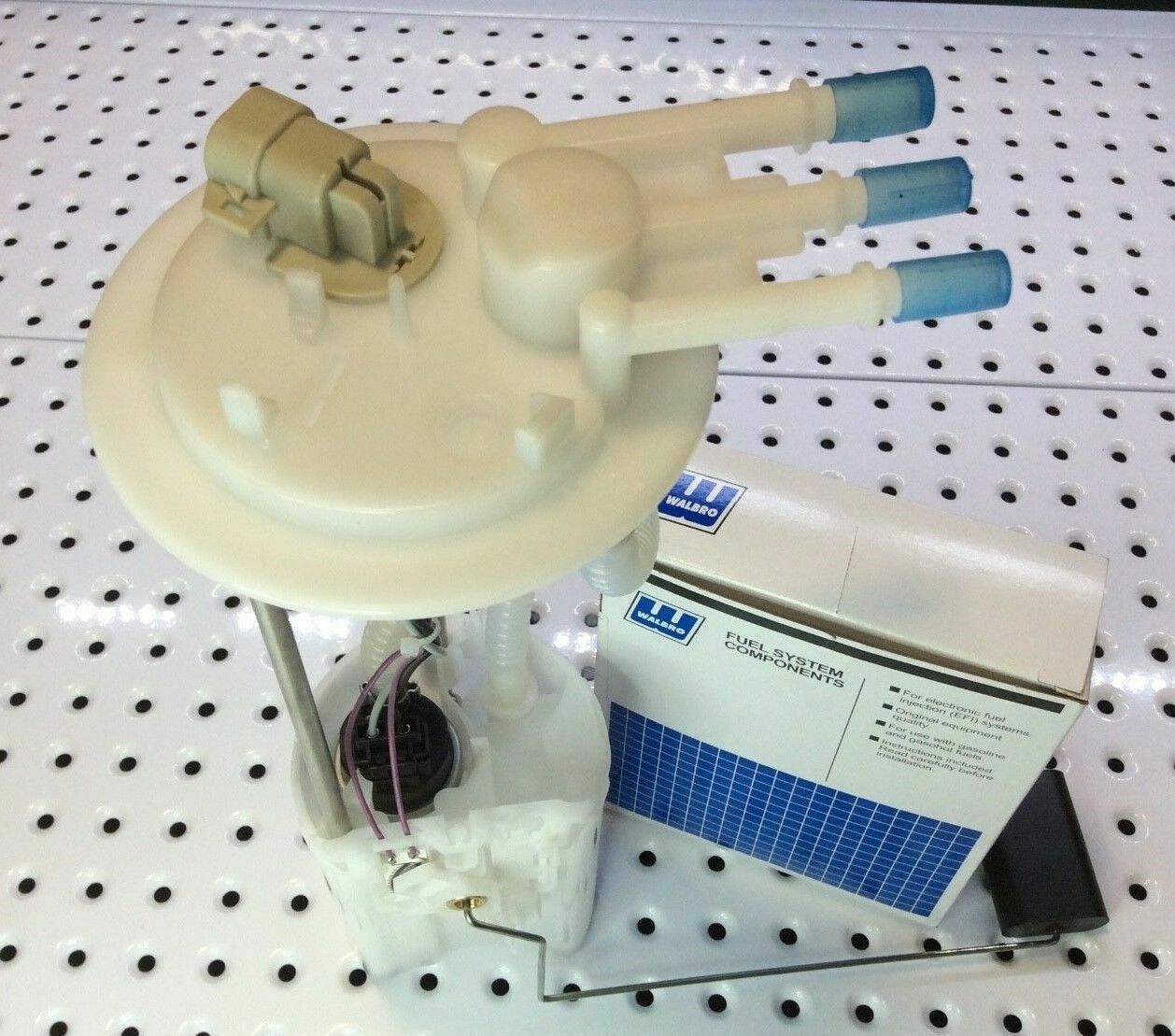

UP FOR SALE IS OUR SNIPER-PERFORMANCE & WALBRO CUSTOM BUILT FUEL PUMP ASSEMBLY TO SUIT HOLDEN COMMODORE VT VX V8 5.OL AUSTRALIAN ENGINE SEDAN. PLEASE NOTE WILL NOT SUIT THE 5.7L LS1.

FITTED WITH A WALBRO GSS341 550-BHP 255LPH suits (PUMP FUEL (PERTOL) ONLY WITH THIS PUMP.

THIS ASSEMBLY IS CUSTOM MADE BY SNIPER PERFORMANCE AND FITTED WITH A GENUINE WALBRO 255-LPH GSS341 AND CAN SUPPORT UP TO 550 BHP. PLEASE NOTE THIS IS NOT SUITED FOR E85.

GENUINE WALBRO MADE IN THE USA.

OUR ASSEMBLY IS CUSTOM MADE BY SNIPER-PERFORMANCE THEY ARE MADE WITH A MODIFIED SWIRL-POD TO STOP SURGING UNDER EXTREME TAKE OFFS AND AROUND CORNERS WHICH IS A COMMON PROBLEM WITH THE FACTORY SWIRL POD.

STOPS THE SURGING PROBLEM BY 100%.

IT HAS BEEN DYNO TESTED & RACE TRACK TESTED 1/4 MILE, CIRCUIT AND DRIFT.

THIS ASSEMBLY CONSIST OF ONLY THE BEST OF THE BEST PARTS AVAILABLE AND HAND ASSEMBLED IN MELBOURNE. THE ASSEMBLY IS MADE OF THE BEST POLLIMER AVALABLE AND ITS E85 & METHANOL APPROVED.

WE ARE THE ONLY ONES THAT OFFER THIS CUSTOM MADE ASSEMBLY WITH A SPECIAL CLIP LOCK PUMP RETANER THAT MOUNTS THE PUMP 10mm ABOVE THE BOTTOM OF THE SWIRL POD THIS KEEPS THE FILTER-STRAINER CLEAN AND ALLOWS THE PUMP ITS FULL POWER POTENTIAL. ALSO KEEPS THE PUMP QUIETER WITH NO CHANCE OF MOVING AROUND OR COMING LOOSE AND VIBRATING.

THE FUEL HOSES USED IN THIS ASSEMBLY ARE MADE IN THE EU THE WHITE HOSES ARE RATED AT TWICE THE BURST PRESSURE OF THE FACTORY HOSE AND IS A HIGH FLOW.

ONE PIECE WIRING PLUG (NO JOINS) WITH STAINLESS STEEL BRAID & TERMINALS.

STAINLESS STEEL COMPRESSION SPRING & GUIDE PINS FITTED FOR NO CHANCE OF CORROSION.

HIGH MICRON HIGH FLOW NYLONG STRAINER.

HIGH FLOW, MODIFIED FUEL RETURN VALVE TO KEEP THE RETURN PRESSURE LOW AND TO FILL THE SWIRL POD IN HALF THE NORMAL TIME IT WOULD USALY TAKE.









SUITS.





COMMODORE

VT SEDAN AND WAGON 9/1997-5/1999 V8 5.0L AUSI ENGINE INC HSV.


VT SEDAN HSV 9/1997-5/1999 V8 5.7L AUSI ENGINE INC HSV.


VT SEDAN AND WAGON 9/1997-8/2000 V6 3.8L.

VX SEDAN & WAGON 9/2000-2001 V6 3.8L UP TO VIN NO L766312.

The Walbro GSS-341 255LPH pump is one of the most popular high flowing in-tank fuel pump on the market, Walbro also make a 400lph and a 460lph that's suits E85, Methanol and Petrol. Walbro designed the pump to meet the requirements of modern turbocharged & H-Performance applications where factory fuel pump is insufficient.













SPECIFICATIONS. MOD-002 GSS-341
FUEL PUMP PART NUMBER: WALBRO 255-LPH GSS341.
PRESSURE AND FLOW RATE: 255-LPH AT 3-BAR 43.3-PSI 12.5-V supports up to 550-BHP.
ASSEMBLY PART NUMBER: SNIPER PERFORMANCE MOD-002-255
ASSEMBLY HEIGHT: BACE TO FLANGE 330-mm COMPRESSED 240-mm.
ASSEMBLY CAPACITY: POD 500-millilitres as the factory unit.
ASSEMBLY HOSE FITTINGS: (8-mm c-lock) Left Returnee. Centre (8-mm c-lock) To charcoal canister. Right (10-mm c-lock) fuel out.
WIARING HARNEST: One piece wiring loom Delphi to Walbro with stainless steel braid and terminals.
PRESSURE HOSES: High pressure, high burst, high flow white submersible fuel hoses made in the EU, 210mm long.
FUEL GAUGE READINGS: Up-full 255-ohms -+5. Down-empty 39-ohms -+5.



WE CAN ALSO SUPPLY THIS ASSEMBLY WITH THE WALBRO F90000274 700-BHP 400LPH PUMP FUEL & THE WALBRO TIA485-2 750+BHP 460LPH E85 PUMP. MESSAGE US FOR A PRICE $$$. ALL CUSTOM APPLICATIONS WILLING WELCOME TO BUILD.
Image result for F90000274Image result for walbro performance fuel pumps Image result for walbro performance fuel pumps Image result for walbro performance fuel pumps
COMES FULLY ASSEMBELD WITH ALL E85 APROUVED PARTS FITTED
