GENUINE WALBRO MADE IN THE USA.

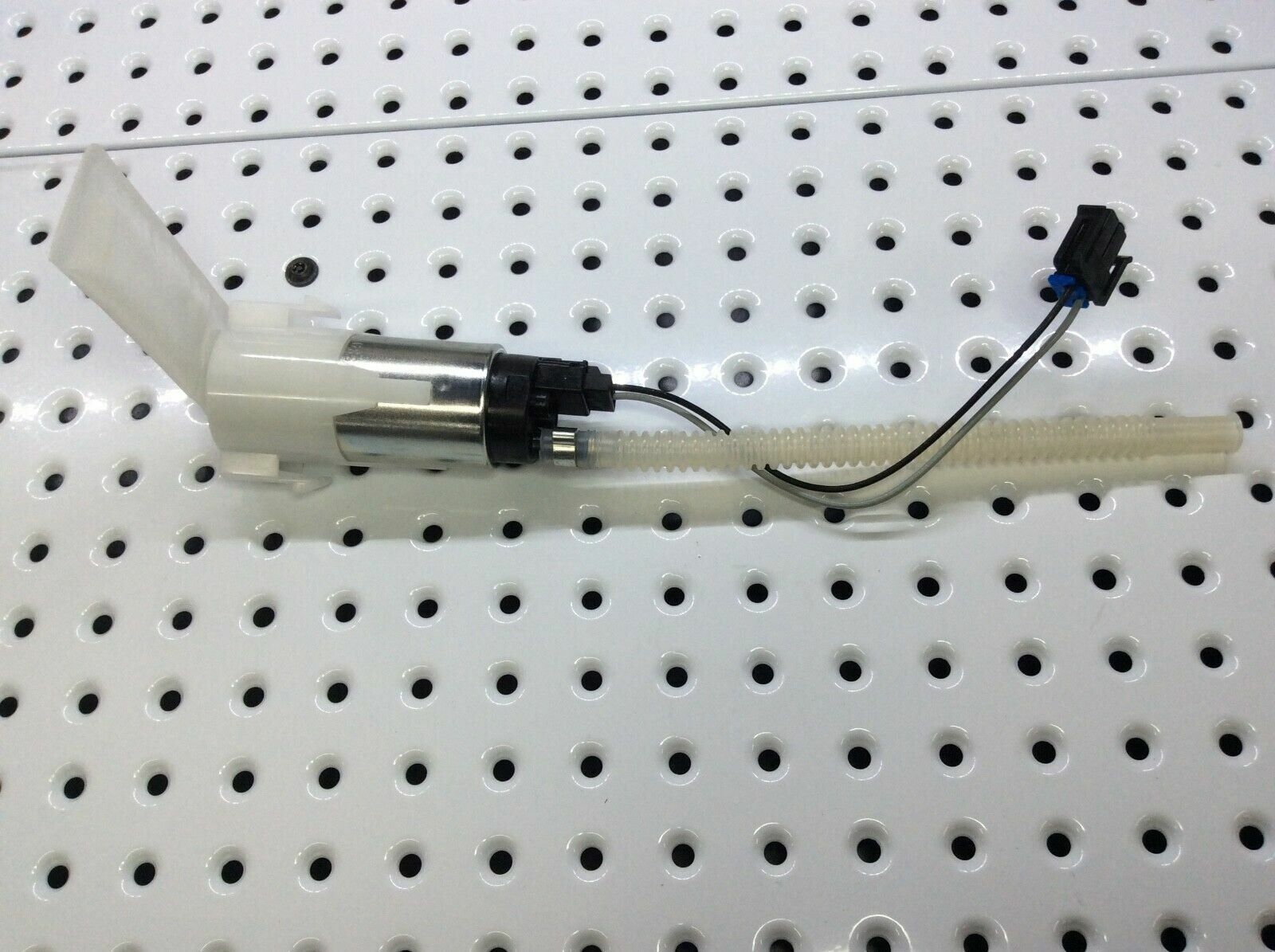

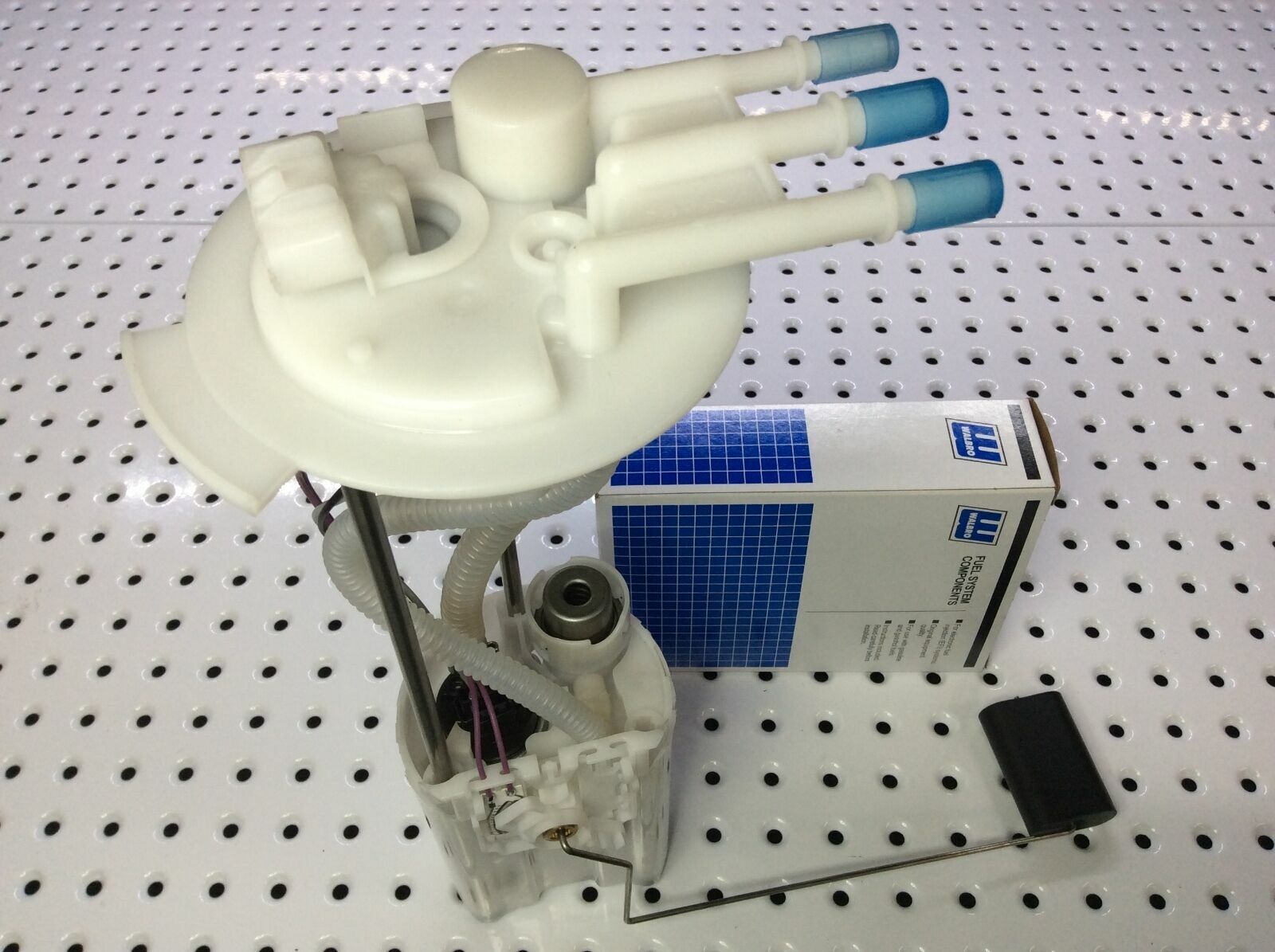

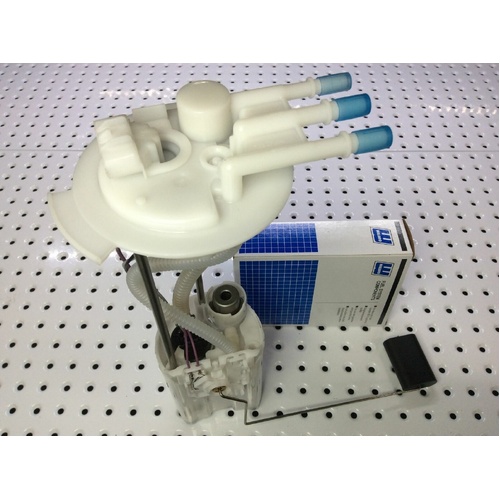

UP FOR SALE IS OUR SNIPER-PERFORMANCE & WALBRO CUSTOM BUILT FUEL PUMP ASSEMBLY TO SUIT HOLDEN COMMODORE VY VZ SEDAN & WAGON.


 FITTED WITH A WALBRO GSS341 550-BHP 255LPH suits (PUMP FUEL, PERTOL) ONLY WITH THIS PUMP.

THIS ASSEMBLY IS CUSTOM MADE BY SNIPER PERFORMANCE AND FITTED WITH A GENUINE WALBRO 255-LPH GSS341 AND CAN SUPPORT UP TO 550 BHP.


PLEASE NOTE THIS IS NOT SUITED FOR E85.


OUR ASSEMBLY IS CUSTOM MADE BY SNIPER-PERFORMANCE THEY ARE MADE WITH A MODIFIED SWIRL-POD TO STOP SURGING UNDER EXTREME TAKE OFF'S AND AROUND CORNERS WHICH IS A COMMON PROBLEM WITH THE FACTORY SWIRL POD.

STOPS THE SURGING PROBLEM BY 100%.


IT HAS BEEN DYNO TESTED & RACE TRACK TESTED 1/4 MILE, CIRCUIT AND DRIFT.

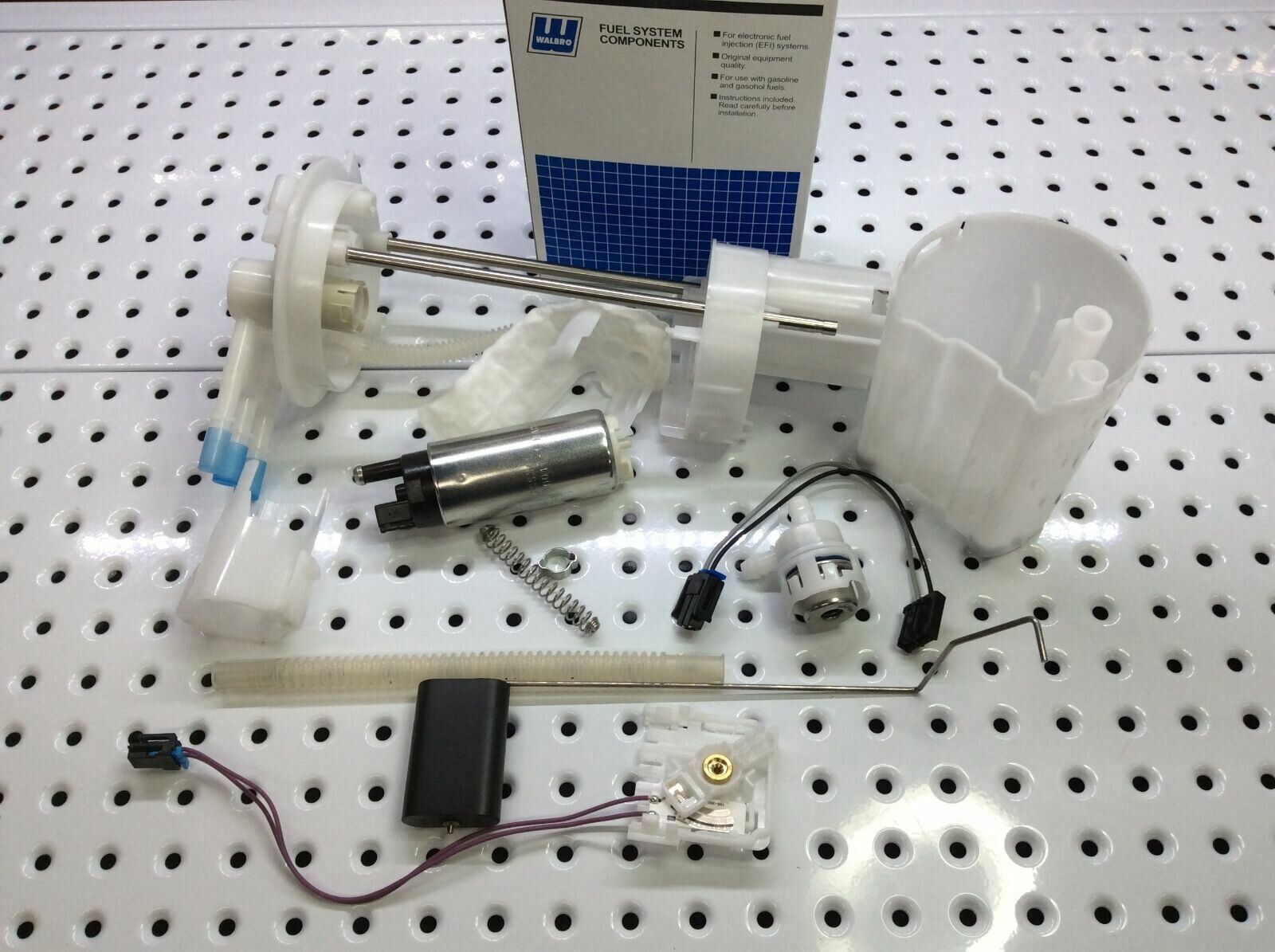

THIS ASSEMBLY CONSIST OF ONLY THE BEST OF THE BEST PARTS AVAILABLE AND HAND ASSEMBLED IN MELBOURNE. THE ASSEMBLY IS MADE OF THE BEST DUPONT EU POLLIMER AVALABLE AND ITS E85 & METHANOL APPROVED.

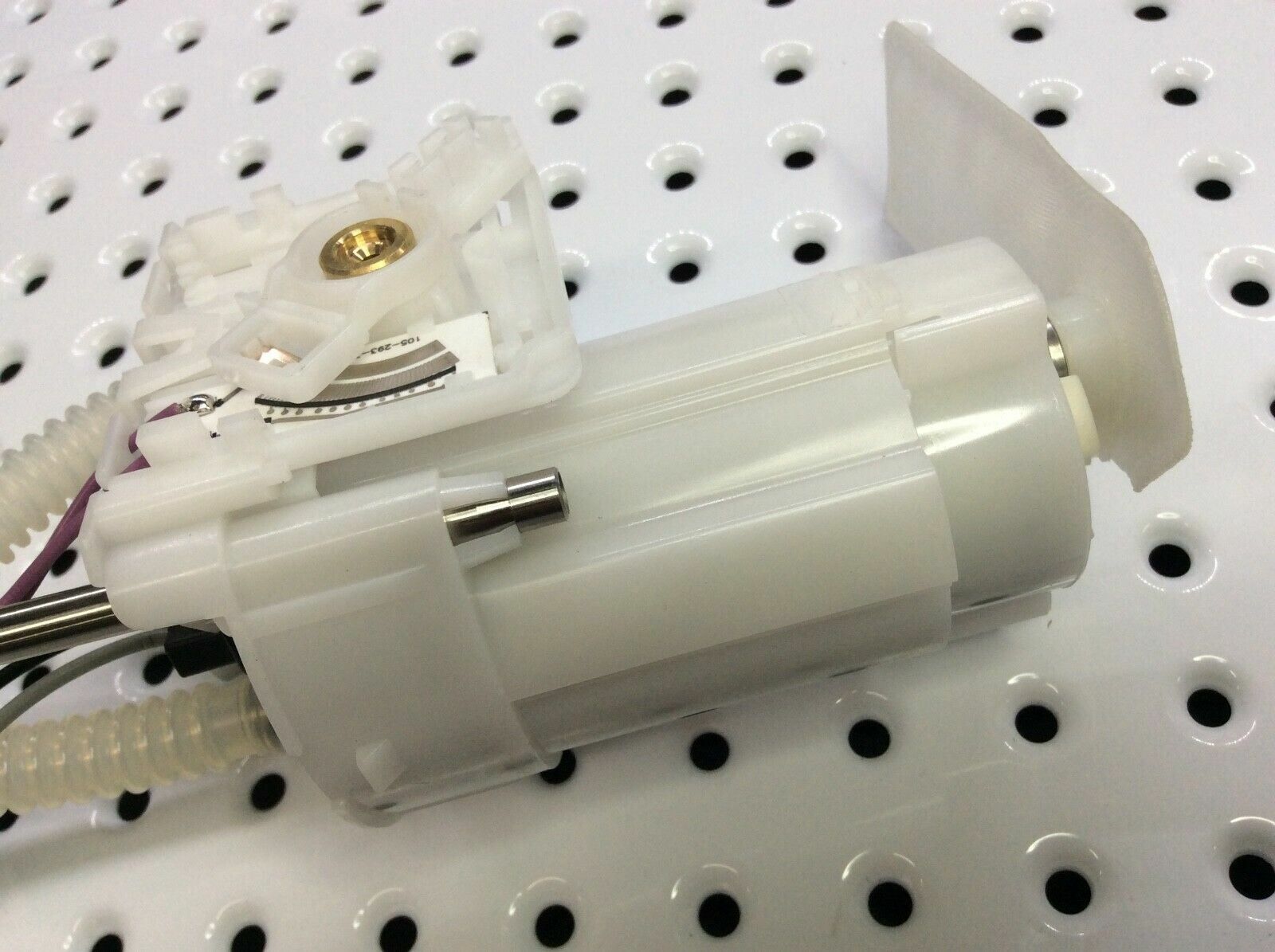

WE ARE THE ONLY ONES THAT OFFER THIS CUSTOM MADE ASSEMBLY WITH A SPECIAL CLIP LOCK PUMP RETANER THAT MOUNTS THE PUMP 10mm ABOVE THE BOTTOM OF THE SWIRL POD THIS KEEPS THE FILTER-STRAINER CLEAN  AND ALLOWS THE PUMP ITS FULL POWER POTENTIAL. ALSO KEEPS THE PUMP QUIETER WITH NO CHANCE OF MOVING AROUND OR COMING LOOSE AND VIBRATING.



THE FUEL HOSES USED IN THIS ASSEMBLY ARE MADE IN THE EU THE WHITE HOSES ARE RATED AT TWICE THE BURST PRESSURE OF THE FACTORY HOSE AND IS A HIGH FLOW & ANTY STATIC.


ONE PIECE WIRING PLUG (NO JOINS) WITH STAINLESS STEEL BRAID & TERMINALS.


STAINLESS STEEL COMPRESSION SPRING & GUIDE PINS FITTED FOR NO CHANCE OF CORROSION.


HIGH MICRON HIGH FLOW NYLONG STRAINER.


HIGH FLOW, MODIFIED FUEL RETURN VALVE TO KEEP THE RETURN PRESSURE LOW AND TO FILL THE SWIRL POD IN HALF THE NORMAL TIME IT WOULD USALY TAKE.



HIGH FLOW FUEL HIGH PRESSURE REGULATOR FITTED TO THIS ASSEMBLY.


PLEASE CHECK DESCRIPTION, PART NUMBER  AND VIN NUMBER BEFORE PURCHASE.

TO SUIT GMH COMMODORE & HSV SEDAN & WAGON.

WK HOLDEN CAPRICE 7/2003-07/2004 5.7L V8 LS1 FROM VIN NO 4L162085 - ON.

WK HOLDEN CAPRICE 7/2004-2006 5.7L V8 LS1 GEN3.

VY COMMODORE 7/2003-07/2004 5.7L V8 LS1 FROM VIN NO 4L156716 - ON.

VY HOLDEN CALAIS 7/2003-07/2004 5.7L V8 LS1 FROM VIN NO 4L156716 - ON.

VY COMMODORE ADVENTRA CX8, LX8 7/2003-07/2004 5.7L V8 LS1 FROM VIN NO 4L156716 - ON.

VY COMMODORE AVALANCH 7/2003-07/2004 5.7L V8 LS1 FROM VIN NO 4L156716 - ON.

VY COMMODORE GTS GTS-R 10/2002-09/2004 5.7L V8 LS1 FROM VIN NO 4L162085 - ON .

VY MONARO 9/2003-07/2004 5.7L V8 LS1 FROM VIN NO 4L167584 - ON.

VY HOLDEN SENATOR 10/2002-9/2004 5.7L V8 LS1 AFTER VIN NO 4L156716.

WK HOLDEN GRANGE 7/2003-9/2004 5.7L V8 LS1 FROM VIN NO 4L162085 - ON.

WK HOLDEN GRANGE 9/2004-10/2005 6.0L V8 LS2.

WK HOLDEN GRANGE 1/2006-7/2006 6.0L V8 LS2.

VZ COMMODORE SEDAN & WAGON 7/2004-2007 3.6L V6 ALOYTEC.

VZ COMMODORE ADVENTRA 7/2004-2007 3.6L V6 ALOYTEC.

VZ COMMODORE AVALANCH 7/2004-2007 3.6L V6 ALOYTEC.

VZ HOLDEN CALAIS 7/2004-2007 5.7L V8 LS1.

VZ COMMODORE SEDAN & WAGON 7/2004-2007 5.7L V8 LS1.

VZ COMMODORE ADVENTRA 7/2004-2007 5.7L V8 LS1.

VZ COMMODORE AVALANCH 7/2004-2007 5.7L V8 LS1.

VZ COMMODORE CLUBSPORT R8 10/2004-7/2006 6.0L V8 LS2.

WL HOLDEN STATESMAN 7/2004-2007 3.6L V6 ALOYTEC.

WK HOLDEN STATESMAN 7/2003-7/2004 5.7L V8 LS1 FROM VIN NO 4L162085.

WL HOLDEN STATESMAN 7/2004-ON 5.7L V8 LS1.

WL HOLDEN STATESMAN 2006 6.0L V8 LS2.

WL HOLDEN STATESMAN 2006 6.0L V8 L76.

HSV CLUBSPORT R8 VY 09/2003-09/2004 5.7L LS1 GENIII V8.

HSV CLUBSPORT R8 VZ 10/2004-07/2006 6.0L LS2 V8.

HSV GTS VY 10/2002-09/2004 5.7L LS1 GENIII V8 FROM VIN NUMBER: 4L156716 --> ON.

HSV CLUBSPORT VY 09/2003-09/2004 5.7L LS1 GENIII V8 FROM VIN NUMBER: 4L156716 --> ON.

HSV CLUBSPORT VZ 10/2004-07/2006 6.0L LS2 V8.

HSV SENATOR VY 10/2002-08/2003 5.7L LS1 GENIII V8 FROM VIN NUMBER: 4L156716 --> ON.

HSV SENATOR VZ 10/2004-07/2006 6.0L LS2 V8.

HSV AVALANCHE VY 12/2003-09/2004 5.7L LS1 GENIII V8 FROM VIN NUMBER: 4L156716 --> ON.

HSV AVALANCHE VZ 10/2004-04/2006 5.7L LS1 GENIII V8.

HSV CLUBSPORT VY 09/2003-09/2004 5.7L LS1 GENIII V8.

HSV CLUBSPORT VY 2002-2004 5.7L LS1 C4B V8 FROM VIN NUMBER: 4L156716 --> ON.

HSV CLUBSPORT VZ 10/2004-07/2006 6.0L LS2 V8.

HSV CLUBSPORT R8 VY 09/2003-09/2004 5.7L LS1 GENIII V8.

HSV CLUBSPORT R8 VZ 10/2004-07/2006 6.0L LS2 V8.

HSV COUPE GTS V2 04/2004-09/2004 5.7L LS1 GENIII V8 FROM VIN NUMBER: 4L167584 -->ON.

HSV GRANGE WK 10/2003-09/2004 5.7L LS1 GENIII V8 FROM VIN NUMBER: 4L162085 -->ON.

HSV GRANGE WK 2003-2004 5.7L LS1 C4B V8 FROM VIN NUMBER: 4L162085 -->ON.

HSV GRANGE WL 09/2004-07/2006 6.0L LS2 V8.

HSV GTS VY 10/2002-09/2004 5.7L LS1 GENIII V8 FROM VIN NUMBER: 4L156716 -->ON.

HSV SENATOR VY 10/2002-08/2003 5.7L LS1 GENIII V8 FROM VIN NUMBER: 4L156716 -->ON.

HSV SENATOR VZ 10/2004-07/2006 6.0L LS2 V8.

HSV SV6000 VZ 08/2005-04/2006 6.0L LS2 V8.


MOD-013-255, GSS-341.
SPECIFICATIONS.

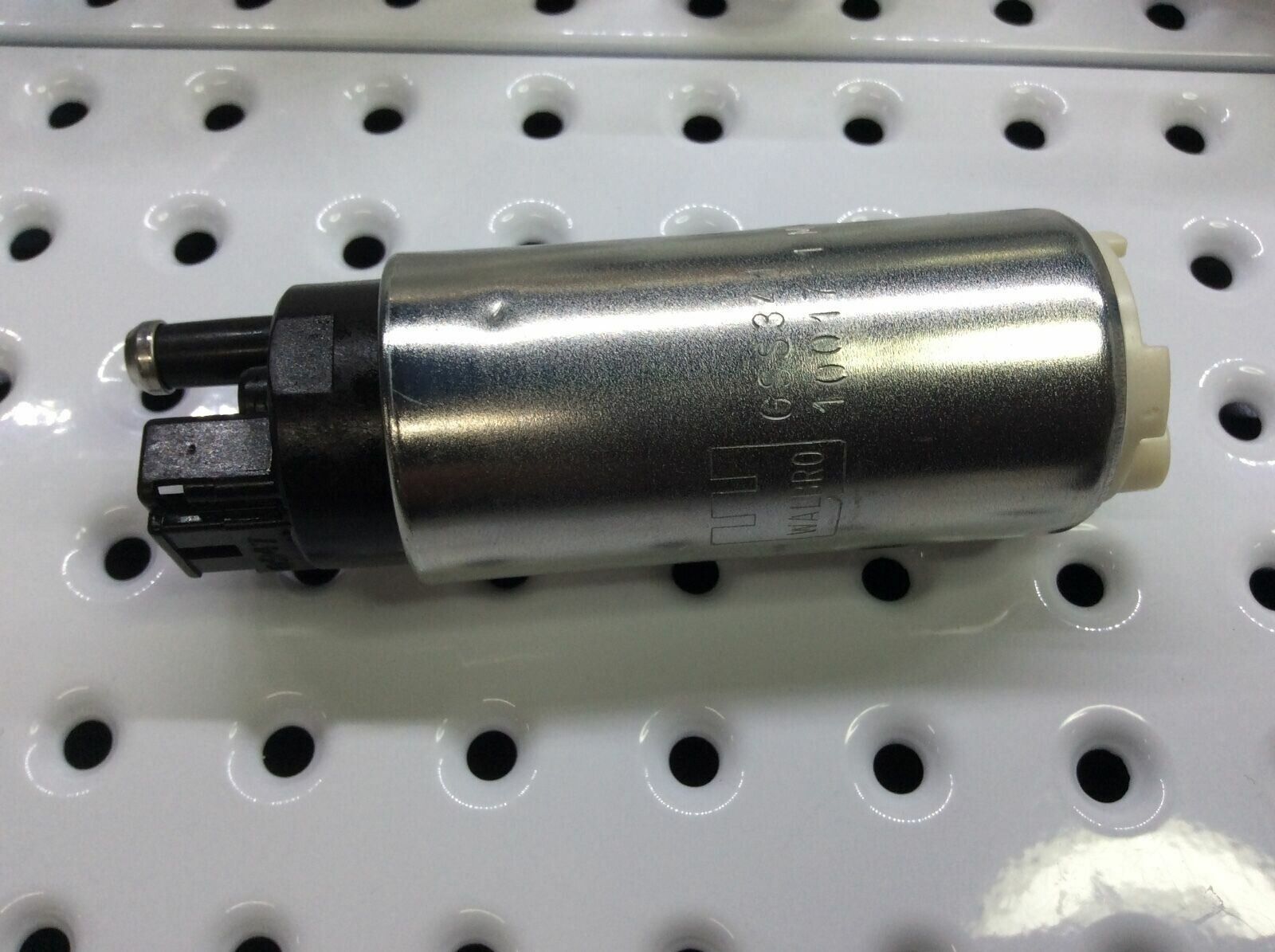

FUEL PUMP PART NUMBER: WALBRO 255-LPH GSS341.
PRESSURE AND FLOW RATE: 255-LPH AT 3-BAR 43.3-PSI 12.5-V supports up to 550-BHP.
ASSEMBLY PART NUMBER: SNIPER PERFORMANCE MOD-013-255
ASSEMBLY HEIGHT: BACE TO FLANGE 315-mm COMPRESSED 260-mm.
ASSEMBLY CAPACITY: POD 500-millilitres as the factory unit.
ASSEMBLY HOSE FITTINGS: Left Returnee (10-mm c-lock). Centre (10-mm c-lock) Fuel out. Right (8-mm c-lock) To charcoal canister.
WIARING HARNEST: One piece wiring loom Delphi to Walbro with stainless steel braid and terminals.
PRESSURE HOSES: High pressure, high burst, high flow white submersible fuel hoses made in the EU, 210mm long.
FUEL GAUGE READINGS: Up-full 40-ohms -+5. Down-empty 255-ohms -+5.

The Walbro GSS-341 255LPH pump is one of the most popular high flowing in-tank fuel pump on the market, Walbro also make a 400lph and a 460lph that's suits E85, Methanol and Petrol. Walbro designed the pump to meet the  requirements of modern turbocharged & H-Performance applications where factory fuel pump is insufficient.

WE CAN ALSO SUPPLY THIS ASSEMBLY WITH THE WALBRO F90000274 700-BHP 400LPH PUMP FUEL & THE WALBRO TIA485-2 750+BHP 460LPH E85 PUMP. MESSAGE US FOR A PRICE $$$. ALL CUSTOM APPLICATIONS WILLING WELCOME TO BUILD.
Image result for F90000274 Image result for walbro performance fuel pumps     Image result for walbro performance fuel pumps

COMES FULLY ASSEMBELD WITH ALL E85 APROUVED PARTS FITTED


We also sell performance and standard fuel pumps, Injectors VDO & Bosch 280cc to 2400cc, Sniper Performance Coils, Garret Turbo, Turbosmart Full Range, Vic agent for AeroFlow fittings & hoses, Crow Cams, APR bolts, K&N Air Filters, NOS Kits & Filling, Auto Meter,  Intercoolers, Custom Piping, Center Line & Weld Racing Wheels, Mickie Thompson Race Tyres, Red Line Oils and many more.

Message us with your details and we will get back to you ASAP.

For General Enquires :Customer Support, technical support and bookings & pickups we are located at 45 Charles street north Coburg Melbourne Victoria 3058. Always best to call first.

      Contact through eBay message leave us your details and we will get back to you ASAP.

 Warranty. 12 Months or 20,000 km Warranty on Passenger  Vehicles.

Payment. We accept : Pay on Pickup, PayPal, Bank Transaction, credit card over the phone from 9 to 5 Monday to Friday & Money Order as payment methods. Please use your eBay Username as a transaction reference.

Postage. Local Pickup (message us for address and pick up times) Domestic: Fixed Rate we use Couriers please, Fastway, Australia Post (Regular Post) and express. please contact us of which you prefer on purchase in order details ore if not we will post out with the one we think would be the best to use.  International : POA , Please contact us via eBay for a quote.  All items sent with tracking and insurance  for lost ore damaged in transit.

Fitting services.  Available in our modern and well equipped work shop.
