GENUINE WALBRO GSS352, 350-LPH MADE IN THE USA.


Amazon.com: Walbro TI AUTOMOTIVE GSS352G3 GSS352 Intank fuel pump 350LPH HIGH PRESSURE UNIVERSAL: Automotive

TI Automotive GSS352G3 High Performance Fuel Pump Flow Rates

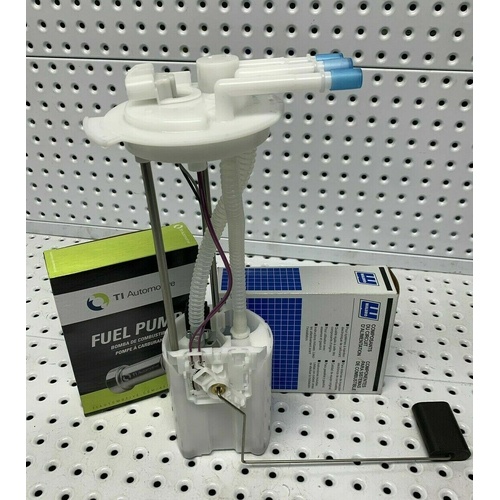

UP FOR SALE IS OUR SNIPER-PERFORMANCE & WALBRO CUSTOM BUILT FUEL PUMP ASSEMBLY TO SUIT HOLDEN COMMODORE VY V6 SEDAN & WAGON.

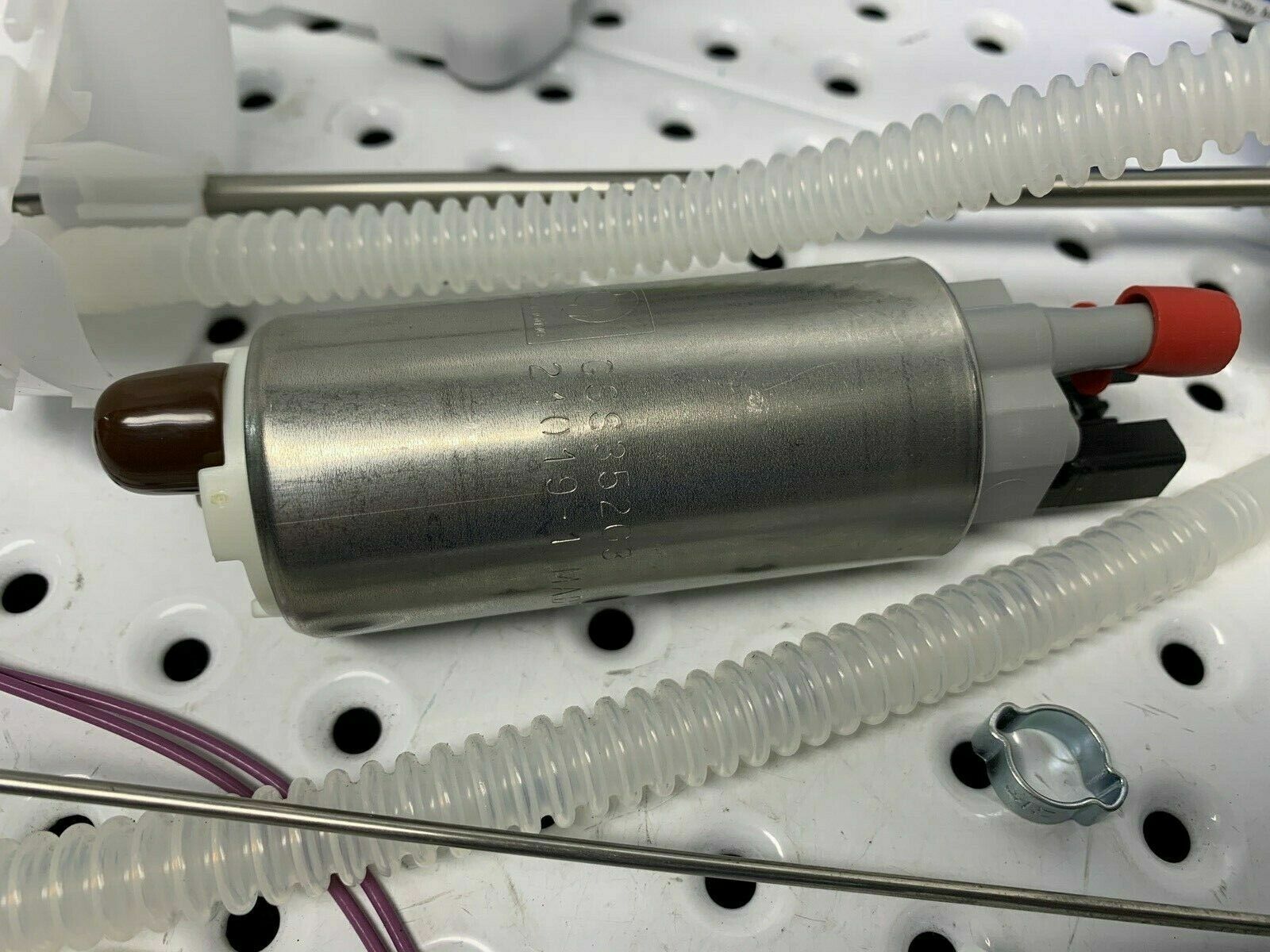

 FITTED WITH A WALBRO GSS352 350-LPH 670-BHP SUITS PUMP FUEL (PERTOL) ONLY NON E85 WITH THIS PUMP.

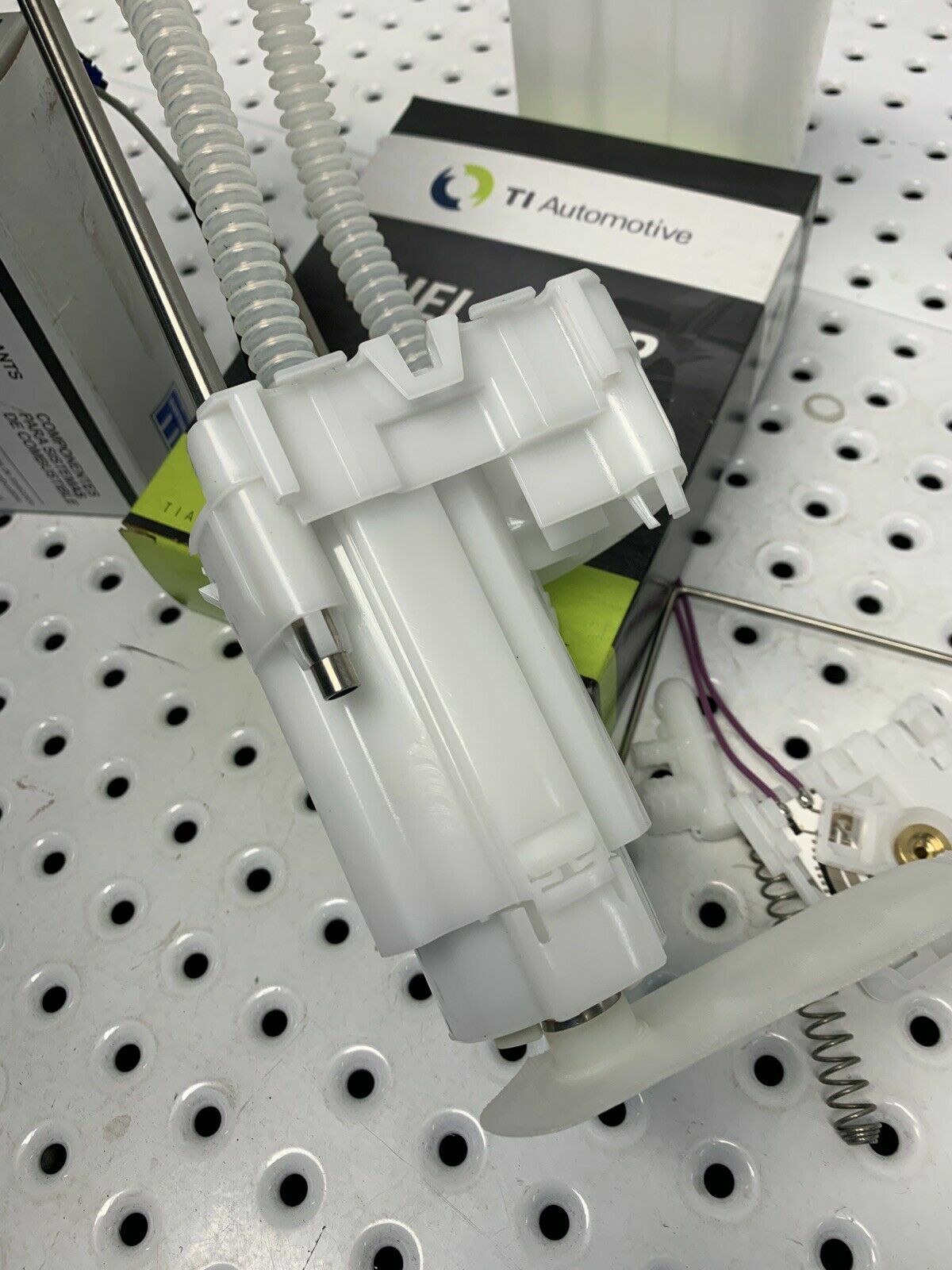

OUR ASSEMBLY IS CUSTOM MADE IN THE SWIRL-POD AREA MODIFIED TO STOP SURGING UNDER EXTREME TAKE OFFS AND AROUND CORNERS WHICH IS A COMMON PROBLEM WITH THE FACTORY SWIRL POD.

STOPS THE SURGING PROBLEM BY 100%.


IT HAS BEEN RACE TRACK TESTED, 1/4 MILE, CIRCUIT AND DRIFT.

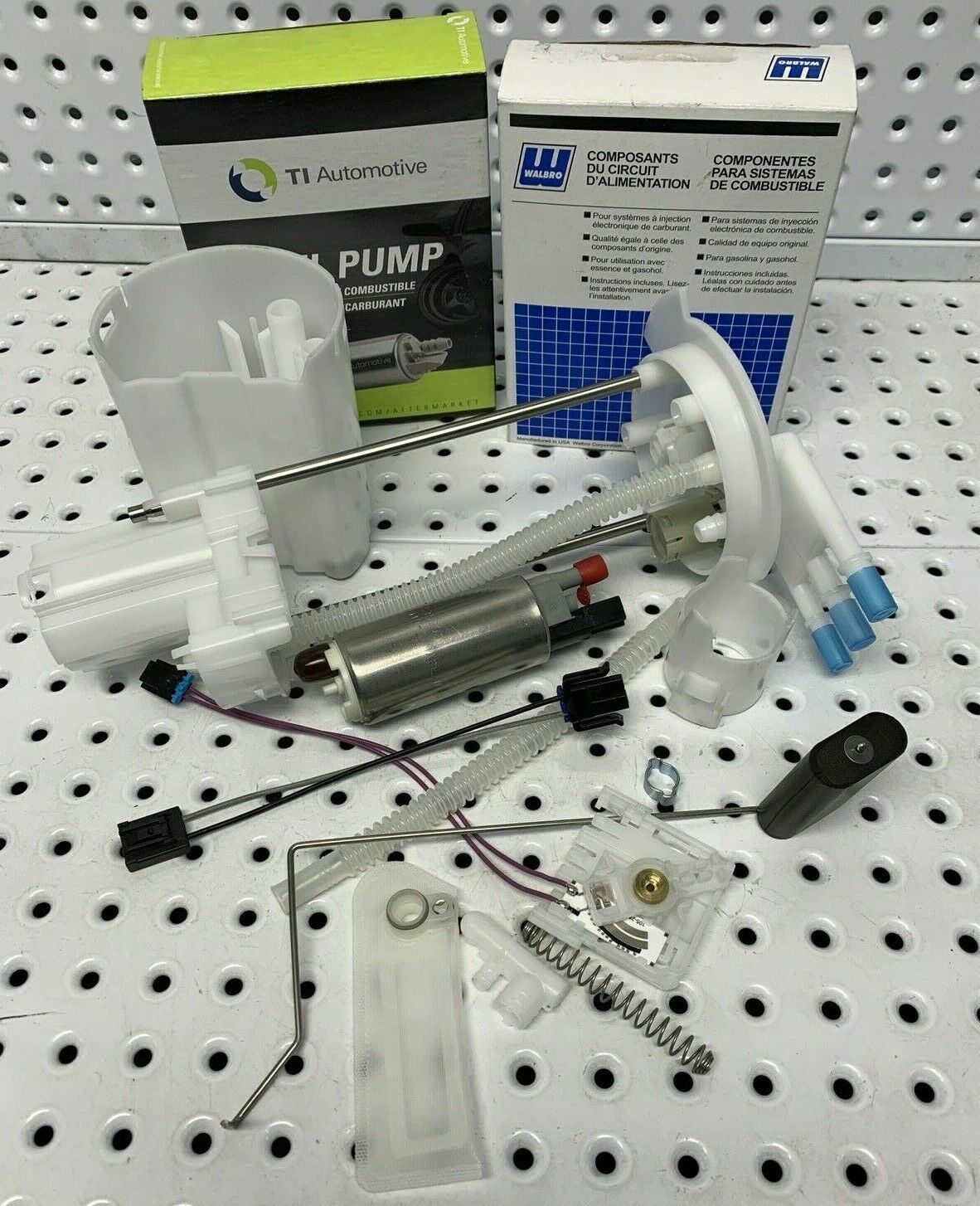

THIS ASSEMBLY CONSIST OF ONLY THE BEST OF THE BEST PARTS AVAILABLE AND HAND ASSEMBLED IN MELBOURNE.

THE ASSEMBLY IS MADE OF THE BEST DUPONT POLLIMER AVALABLE AND ITS E85 & METHANOL APPROVED.


OUR FUEL HOSES ARE RATED AT 2 TO 3 TIMES THE BURST PRESSURE OF THE FACTORY HOSES, HIGH FLOWING & ANTY STATIC.

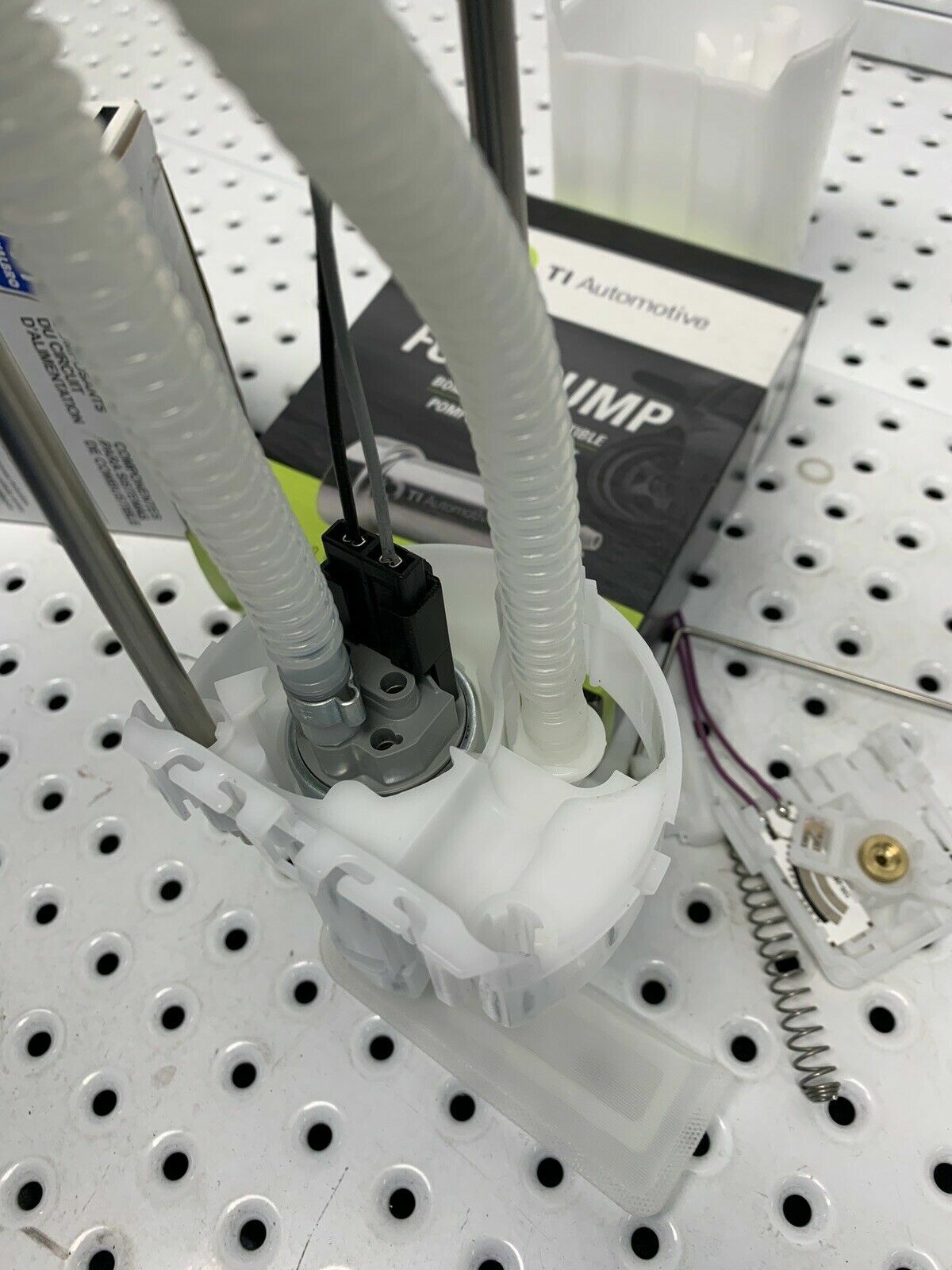

FITTED WITH ONE PIECE WIRING LOOM WITH STAINLESS STEEL TERMINALS.


STAINLESS STEEL COMPRESSION SPRING, HOSE CLAMP & GUIDE PINS FITTED FOR NO CHANCE OF CORROSION.


HIGH MICRON HIGH FLOW DUPONT NYLONG STRAINER.


HIGH FLOW MODIFIED FUEL RETURN VALVE TO KEEP THE RETURN PRESSURE AS LOW AS POSSIBLE AND TO FILL THE SWIRL POD IN HALF THE NORMAL TIME IT WOULD USALY TAKE.


PLEASE CHECK LISTING AND VIN NUMBER BEFORE PURCHASE AS IT COULD BE ONE OF 2 DIFFERENT ASSEMBLYS.


TO SUIT SEDAN & WAGON SERIES 2.

HOLDEN COMMODORE VY 10/2002-07/2004 SEDAN & WAGON 3.8L LN3 L36 V6 FROM VIN NUMBER 4L156716-> ON.

HOLDEN COMMODORE BERLINA VY 10/2002-07/2004 SEDAN & WAGON 3.8L LN3 L36 V6 FROM VIN NUMBER 4L156716-> ON.

HOLDEN CALAIS VY 10/2002-07/2004 SEDAN 3.8L LN3 L36 V6 FROM VIN NUMBER 4L156716-> ON.

HOLDEN STATESMAN WK 05/2003-07/2004 SEDAN 3.8L LN3 L36 V6 FROM VIN NUMBER 4162085-> ON.

HOLDEN COMMODORE POLICE  VY 10/2002-07/2004 3.8L LN3 L36 V6 FROM VIN NUMBER 4L156716-> ON.


OUR PART NO: MOD-040-350.

GENUINE PART NO: 92159902.

OTHERE PART NO: EFP-133, GE176.


MOD-040-350.  GSS-352.
SPECIFICATIONS.

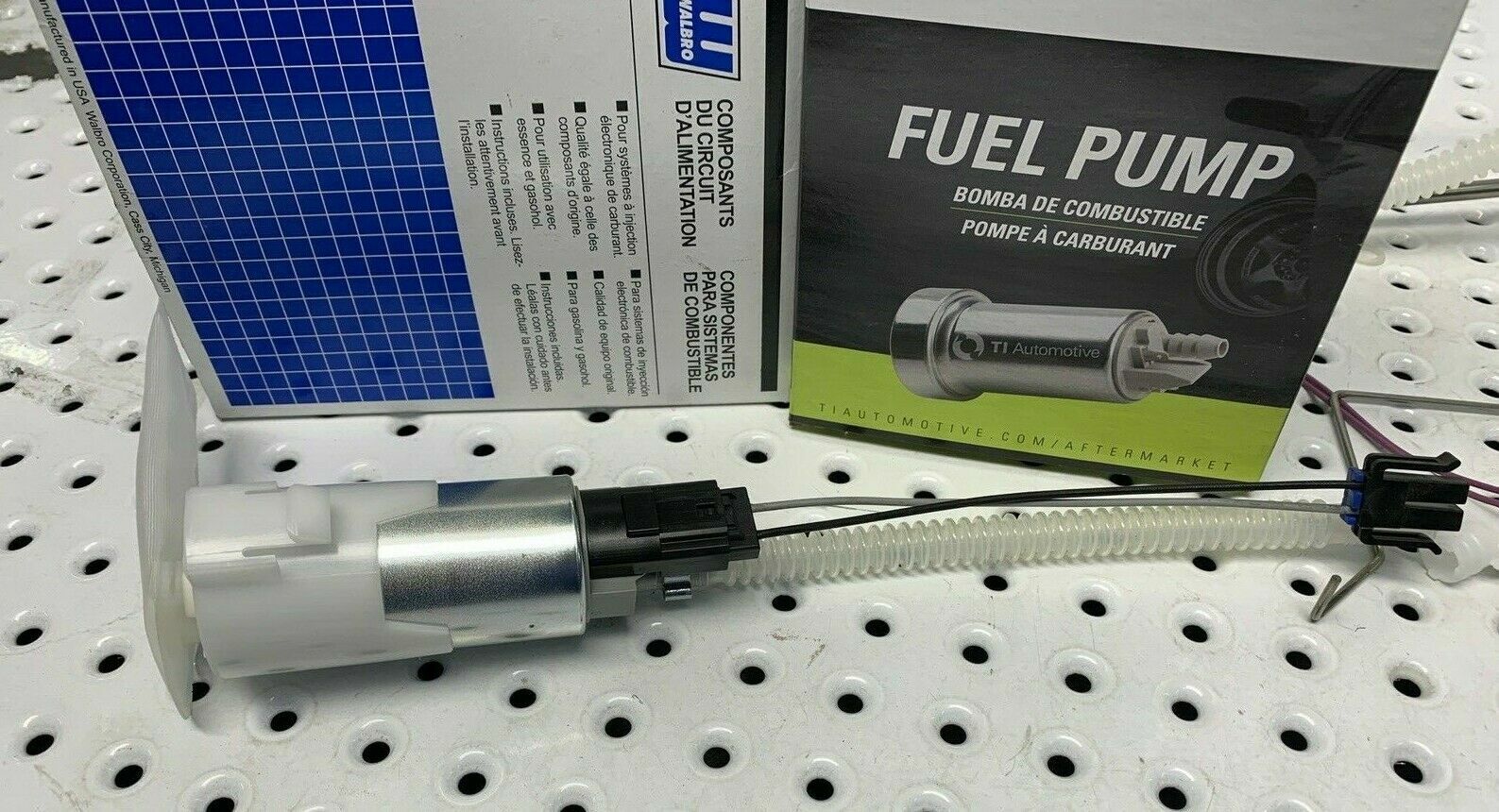

FUEL PUMP PART NUMBER: WALBRO 350-LPH GSS352.
PRESSURE AND FLOW RATE: 350-LPH AT 3-BAR 43.3-PSI 12.5-V supports up to 670-BHP.
ASSEMBLY PART NUMBER: Sniper Performance MOD-040-350.
ASSEMBLY HEIGHT: Base to Flange 315-mm Compressed 260-mm.
ASSEMBLY CAPACITY: POD 500-millilitres as the factory unit.

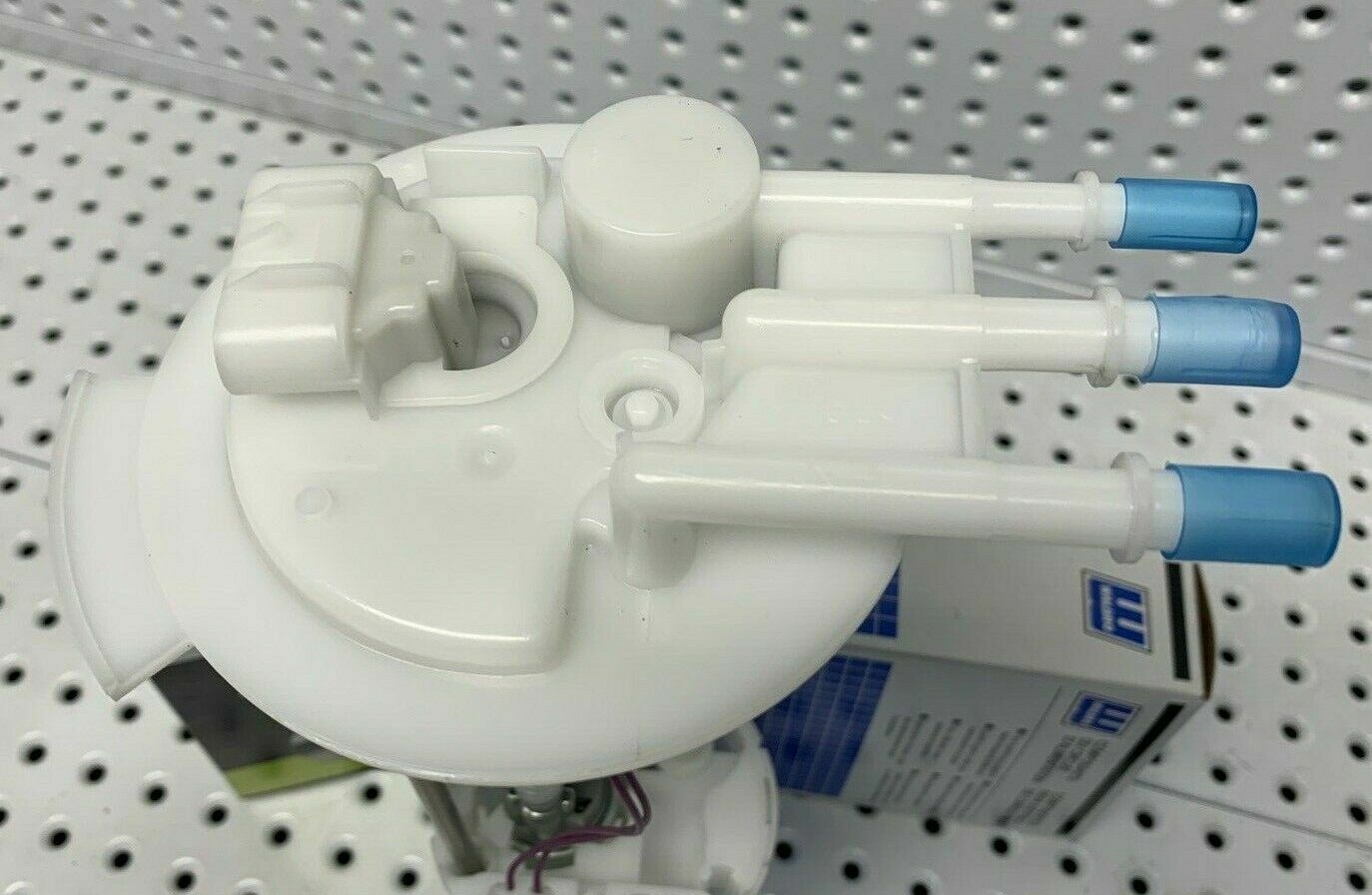

ASSEMBLY HOSE FITTINGS: Left (8-mm c-lock) Fuel out. Centre blocked. Right Returnee (10-mm c-lock).

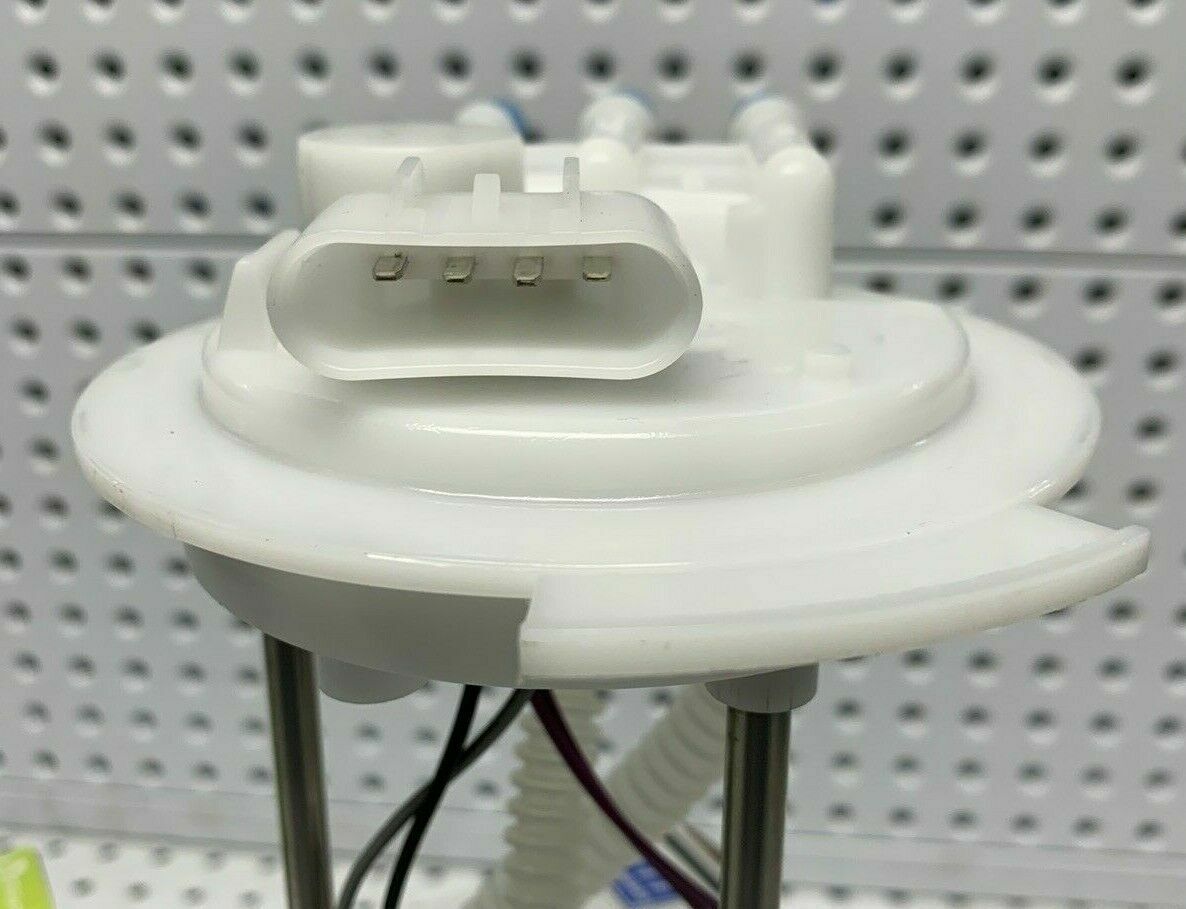

WIARING HARNEST: One piece wiring loom Delphi to Walbro with stainless steel braid and terminals.
PRESSURE HOSES: High pressure, high burst, high flow white submersible fuel hoses made in the EU, 210mm long.
FUEL GAUGE READINGS: Up-full 40-ohms. Down-empty 255-ohms.



The Walbro GSS-341 255LPH pump is one of the most popular high flowing in-tank fuel pump on the market, Walbro also make a 400lph and a 460lph that's suits E85, Methanol and Petrol. Walbro designed the pump to meet the  requirements of modern turbocharged & H-Performance applications where factory fuel pump is insufficient.

WE CAN ALSO SUPPLY THIS ASSEMBLY WITH THE WALBRO GSS341 255-LPH PUMP, THE WALBRO TIA485-2 750+BHP 460LPH E85 PUMP. & F90000285 E85 525LPH. MESSAGE US FOR A PRICE $$$. ALL CUSTOM APPLICATIONS WILLING WELCOME TO BUILD.
Image result for walbro GSS341Image result for walbro GSS341  Image result for walbro performance fuel pumps
COMES FULLY ASSEMBELD WITH ALL E85 APROUVED PARTS FITTED



We also sell performance and standard fuel pumps, Injectors VDO & Bosch 280cc to 2400cc, Sniper Performance Coils, Garret Turbo, Turbosmart Full Range, Vic agent for AeroFlow fittings & hoses, Crow Cams, APR bolts, K&N Air Filters, NOS Kits & Filling, Auto Meter,  Intercoolers, Custom Piping, Center Line & Weld Racing Wheels, Mickie Thompson Race Tyres, Red Line Oils and many more.

Message us with your details and we will get back to you ASAP.

 Warranty.  12 Months or 20,000 km Warranty on Passenger  Vehicles.

Payment. We accept : Pay on Pickup, PayPal, Bank Transaction, credit card over the phone from 9 to 5 Monday to Friday & Money Order as payment methods. Please use your eBay Username as a transaction reference.

Postage. Local Pickup (message us for address and pick up times) Domestic: Fixed Rate we use Couriers please, Fastway, Australia Post (Regular Post) and express. please contact us of which you prefer on purchase in order details ore if not we will post out with the one we think would be the best to use.  International : POA , Please contact us via eBay for a quote.  All items sent with tracking no and insurance for lost ore damaged in transit.

Fitting services.  Available in our modern and well equipped work shop.


For General Enquires :Customer Support, technical support and bookings & pickups we are located at 45 Charles street north Coburg Melbourne Victoria 3058. Always best to call first.
